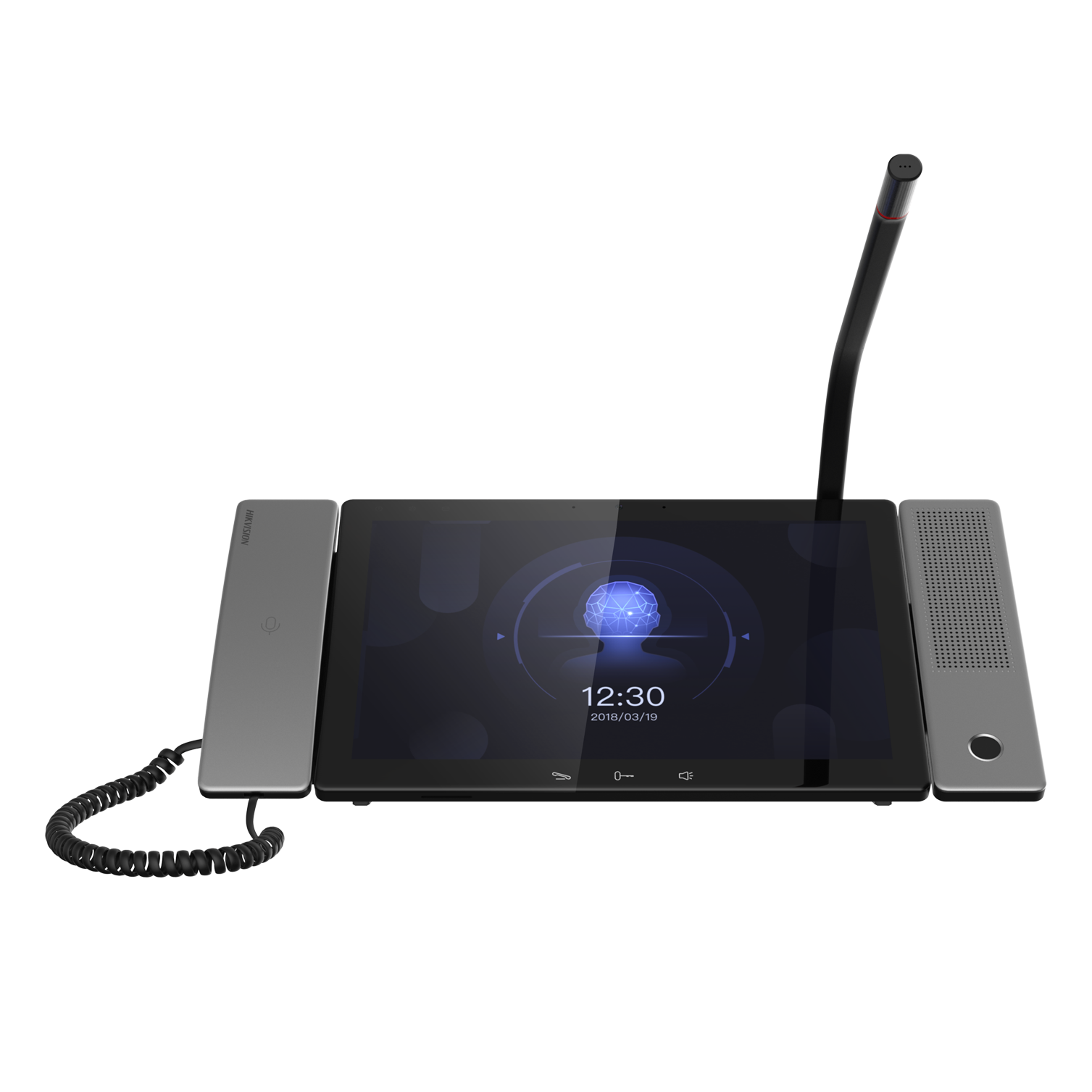

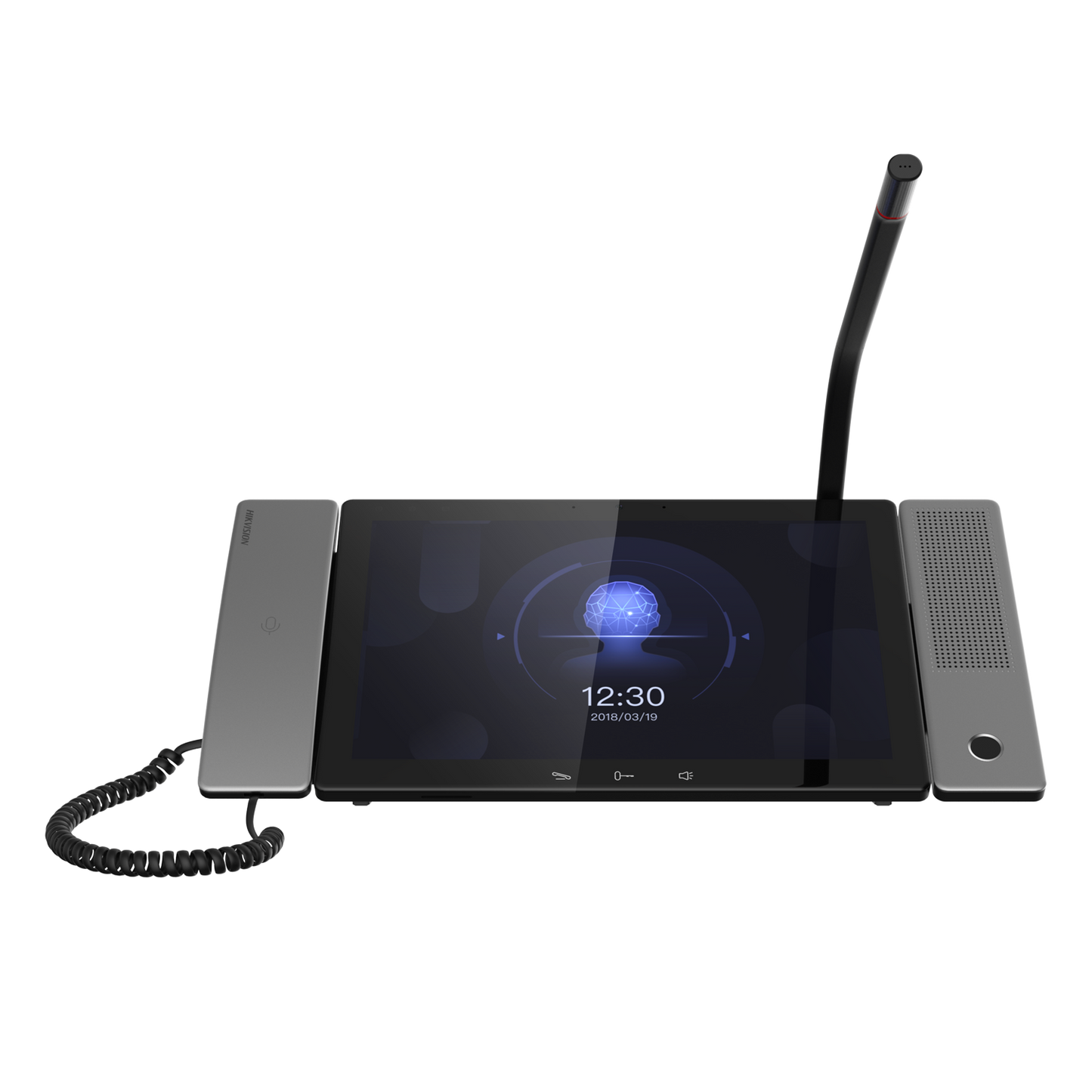

Hikvision DS-KM9503 | IP Intercom | Outdoor Bell
Hikvision DS-KM9503 | IP Intercom | Outdoor Bell
- Intercom
- IP Series
- Ultra Series
CMOS 2 MP, 10-Inch Colorful IPS LCD, capacitive Touch Screen and display resolution 1280 × 800, 2 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface, 1 HDMI, 1 RS-485 Half-Duplex Port, 3 USB Interface, 2 Relay Output, 2 Alarm Input , 4 Audio Inputs & 4 Audio Outputs, 12 VDC & Standard PoE
Power adapter European Standard , Goose neck microphone and External voice box are included in the package
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KM9503 | IP Intercom | Outdoor Bell
Specifications
- Operation system: Android 7.1
- ROM: 8 GB
- RAM: 2 GB
- Processor: Embeded high performance processor
- Screen size: 10.1-inch
- Operation method: Capacitive touch screen
- Type: Colorful IPS
- Resolution: 1280 × 800
- Lens: /
- Resolution: 2 MP
- FOV: Horizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
- Wide dynamic range (WDR): /
- Supplement light: /
- Video compression standard: Main stream: H.264; Sub-stream: H.264
- Audio input: Built-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)
- Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output: Built-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- Linked network camera capacity: 128
- Linked intercom device capacity: 10,000
- Network protocol: TCP/IP, SIP, RTSP
- Wi-Fi: /
- 3G/4G: /
- Zigbee: /
- Alarm input: 2 (reserved)
- Network interface: 2
- TAMPER: /
- RS-485: 1 (reserved)
- USB: 3
- TF card: Support TF card, up to 128 G
- Lock control: 2 relays (reserved)
- Button: 3 touch buttons
- Installation: Table mounting & wall mounting
- Indicator: 3
- Weight: Net weight: 1.285 kg (2.8 lb) Gross weight: 2.305 kg (5.0 lb)
- Protective level: /
- Working humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")
- Battery: /
- Power supply: 12 VDC, standard PoE (LAN1)
- Application environment: Indoor
- Power consumption: ≤ 12 W
- Language: English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian English, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese.
