• DS-KP8000-WHE1

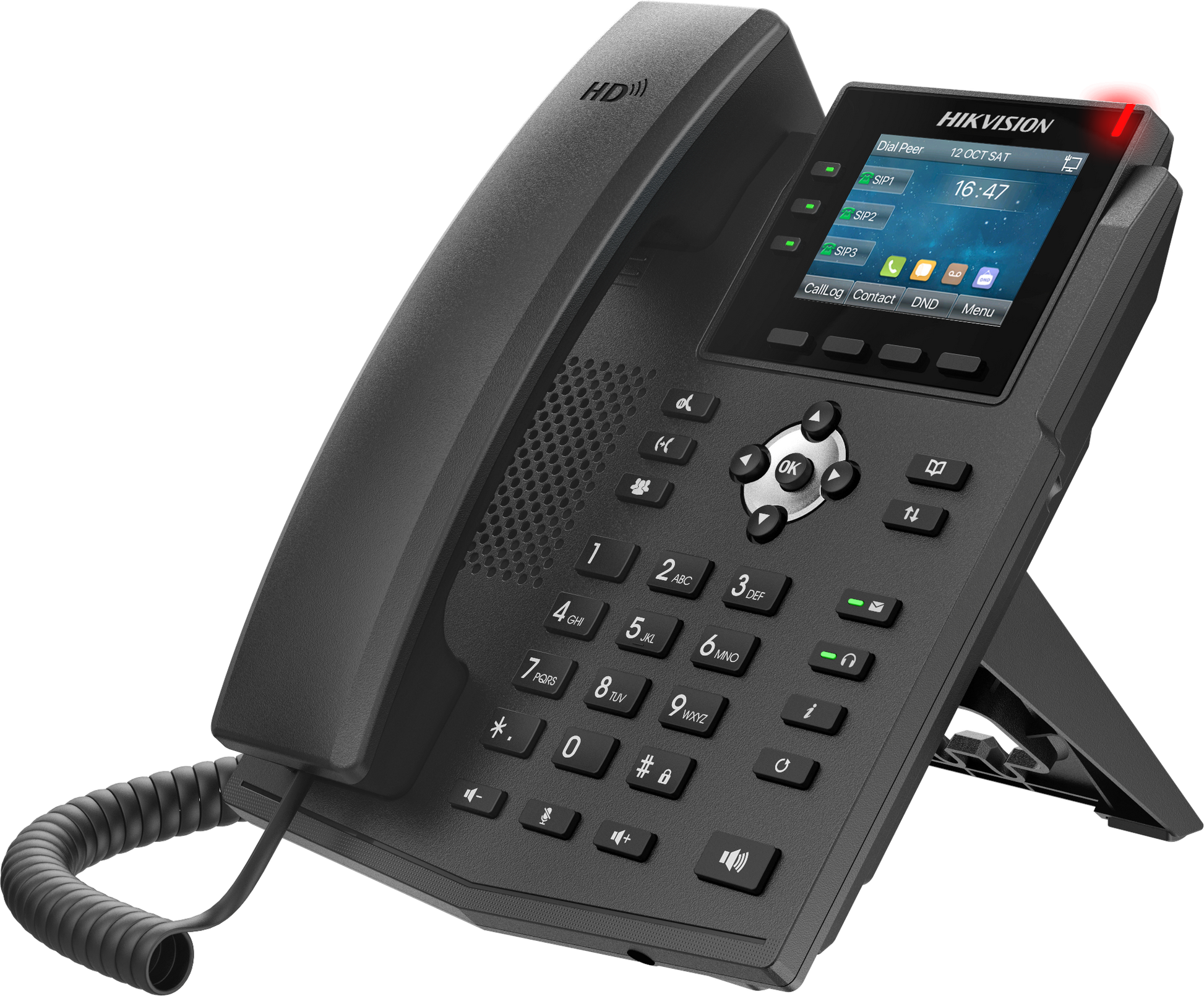

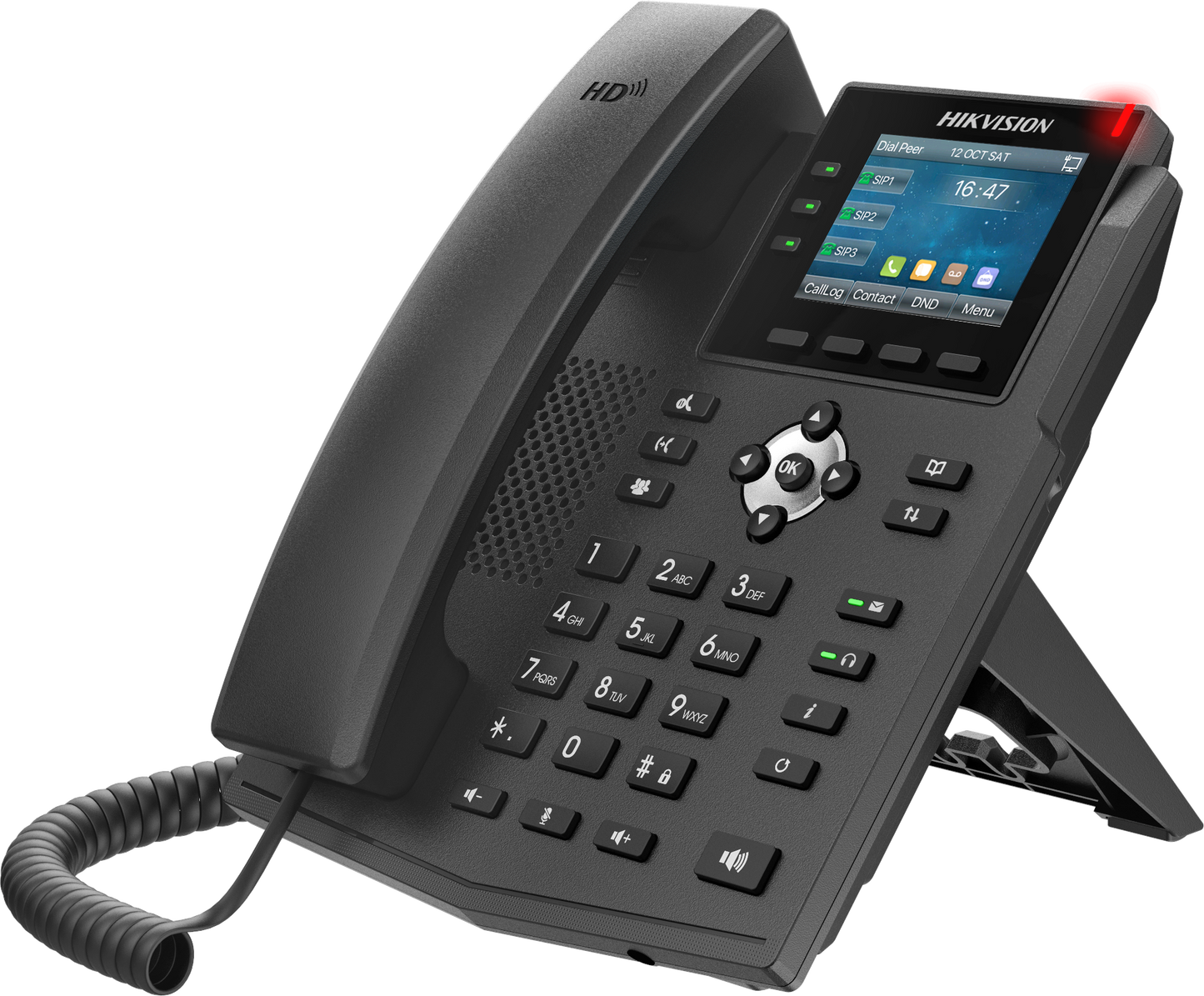

Hikvision DS-KP8000-WHE1 | SIP Phone

Hikvision DS-KP8000-WHE1 | SIP Phone

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • SIP Phone
  • Pro Series

2.8“ Screen SIP Phone,
display resolution: 320 x 240;
6 SIP Lines；37 physical keys;
2 10/100Mbps Ethernet interfaces, Wi-Fi 802.11b/g/n;
standard PoE/ 12 VDC.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KP8000-WHE1 | SIP Phone
Login to View Price

Specifications

  • Operating system: Embedded Linux operation system
  • ROM: 128 MB
  • RAM: 94 MB
  • CPU: Embedded processor
  • Screen size: 2.8-inch
  • Operation method: Physical keys
  • Type: Colorful screen
  • Resolution: 320 x 240
  • Video decoding: H.264
  • Video decoding resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
  • Audio compression standard: G.711A/U, G.729AB, iLBC, G.722, Opus
  • Audio input: HD voice microphone; HAC handset
  • Audio output: HD voice speaker (handset/hands-free, 0 ~ 7 KHz frequency response)
  • Audio quality: Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)/ Voice quality monitoring
  • Volume adjustment: Adjustable
  • Communication Lines: 6 SIP Lines
  • Contact capacity: Local phonebook (1000 entries) Remote phonebook (XML/LDAP, 1000 entries)
  • Call log capacity: In/Out/Missed, 600 entries
  • Communication protocol: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
  • Wired network: 10/100 Mbps self-adaptive
  • Wi-Fi standard: Wi-Fi 802.11 b/g/n
  • Network interface: 2 RJ-45 10/100 Mbps self-adaptive
  • Power supply input: DC power input
  • Communication interface: 2 RJ-9 ：handset x1, headset x1
  • Button: 37 Keys: 3 line keys (BLF keys) with LED indicator; 2 keys for with LED indicator, including: MWI/handset 8 keys, including: Hold/Transfer/Conference/Contact/CallLog/Status/Redial/Mute 4 soft keys 4 navigation keys 1 OK key 12 standard phone digits keys 2 volume control keys (Up/Down) 1 hands-free key
  • Installation: Desktop stand (angles 1: 45°): Wall-mounted
  • Indicator: Red status indicator light for call and message waiting
  • Working temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimensions: Desktop stand (angles 1: 45°): 169 mm x 186.3 mm x 174.5 mm; desktop stand (angles 2: 50°): 169 mm x 177.6 mm x 183.7 mm; wall-mounted: 169 mm x 115.6 mm x 212.5 mm
  • Power supply: IEEE802.3af, Standard PoE,12 VDC
  • Application environment: Indoor
  • Power consumption: Power consumption (PoE): 1.78 W ~ 5.92 W; power consumption (adapter): 1.28 W ~ 4.31 W
  • Language: English, Simplified Chinese, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Basque, Galician, Turkish, Hungarian, Slovenian, Czech, Korean, Dutch, Ukrainian, Portuguese, Polish

System parameters
  • Operating system: Embedded Linux operation system
  • ROM: 128 MB
  • RAM: 94 MB
  • CPU: Embedded processor

Display parameters
  • Screen size: 2.8-inch
  • Operation method: Physical keys
  • Type: Colorful screen
  • Resolution: 320 x 240

Video parameters
  • Video decoding: H.264
  • Video decoding resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P

Audio parameters
  • Audio compression standard: G.711A/U, G.729AB, iLBC, G.722, Opus
  • Audio input: HD voice microphone; HAC handset
  • Audio output: HD voice speaker (handset/hands-free, 0 ~ 7 KHz frequency response)
  • Audio quality: Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)/ Voice quality monitoring
  • Volume adjustment: Adjustable

Capacity
  • Communication Lines: 6 SIP Lines
  • Contact capacity: Local phonebook (1000 entries) Remote phonebook (XML/LDAP, 1000 entries)
  • Call log capacity: In/Out/Missed, 600 entries

Network parameters
  • Communication protocol: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
  • Wired network: 10/100 Mbps self-adaptive
  • Wi-Fi standard: Wi-Fi 802.11 b/g/n

Device interfaces
  • Network interface: 2 RJ-45 10/100 Mbps self-adaptive
  • Power supply input: DC power input
  • Communication interface: 2 RJ-9 ：handset x1, headset x1

General
  • Button: 37 Keys: 3 line keys (BLF keys) with LED indicator; 2 keys for with LED indicator, including: MWI/handset 8 keys, including: Hold/Transfer/Conference/Contact/CallLog/Status/Redial/Mute 4 soft keys 4 navigation keys 1 OK key 12 standard phone digits keys 2 volume control keys (Up/Down) 1 hands-free key
  • Installation: Desktop stand (angles 1: 45°): Wall-mounted
  • Indicator: Red status indicator light for call and message waiting
  • Working temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimensions: Desktop stand (angles 1: 45°): 169 mm x 186.3 mm x 174.5 mm; desktop stand (angles 2: 50°): 169 mm x 177.6 mm x 183.7 mm; wall-mounted: 169 mm x 115.6 mm x 212.5 mm
  • Power supply: IEEE802.3af, Standard PoE,12 VDC
  • Application environment: Indoor
  • Power consumption: Power consumption (PoE): 1.78 W ~ 5.92 W; power consumption (adapter): 1.28 W ~ 4.31 W
  • Language: English, Simplified Chinese, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Basque, Galician, Turkish, Hungarian, Slovenian, Czech, Korean, Dutch, Ukrainian, Portuguese, Polish
