• DS-KP8200-HE1

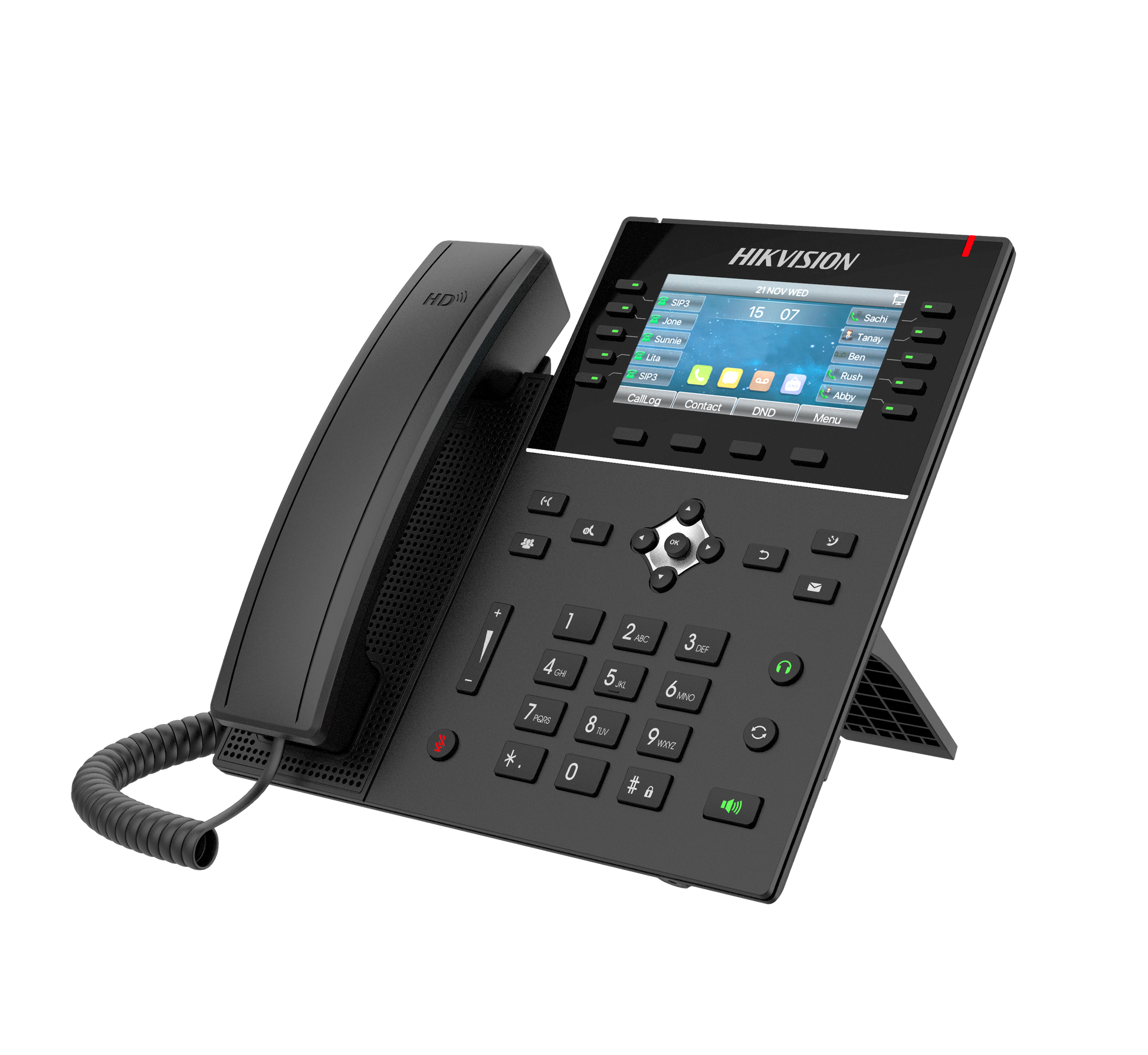

Hikvision DS-KP8200-HE1 | SIP Phone

Hikvision DS-KP8200-HE1 | SIP Phone

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • SIP Phone
  • Pro Series

4.3“ Screen SIP Phone,
display resolution: 480 x 272;
20 SIP Lines；43 physical keys;
2 10/100M/1000Mbps Ethernet interfaces;
standard PoE/ 12 VDC.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KP8200-HE1 | SIP Phone
Login to View Price

Specifications

  • Operating system: Embedded Linux operation system
  • ROM: 128 MB
  • RAM: 94 MB
  • CPU: Embedded processor
  • Screen size: 4.3-inch
  • Operation method: Physical keys
  • Type: Colorful screen
  • Resolution: 480x272
  • Video decoding: H.264
  • Video decoding resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
  • Audio input: HD voice microphone; HAC handset
  • Audio compression standard: G.711a/u, G.723.1, G.726, G.729A/B, iLBC. G.722, Opus
  • Audio output: HD voice speaker (handset/hands-free, 0 ~ 7KHz frequency response)
  • Audio quality: Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)/ Voice quality monitoring
  • Volume adjustment: Adjustable
  • Communication Lines: 20 SIP Lines
  • Contact capacity: Local phonebook (2000 entries) Remote phonebook (XML/LDAP, 2000 entries)
  • Call log capacity: In/Out/Missed, 1000 entries
  • Communication protocol: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
  • Wired network: 10/100/1000 Mbps Ethernet
  • Wi-Fi standard: NA
  • Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive
  • USB: 1 reserved
  • Power supply input: DC power input
  • Communication interface: 2 RJ-9 ：handset x1, headset x1
  • Button: Keys: 43 keys, including 10 DSS keys with LED indicator light, 4 Soft-keys, 2 Keys for with LED indicator light,including:mute/headset, 7 keys, including: Hold/Transfer/Conference/Back/CallLog/MWI/Redial, 4 navigation keys. 1 OK key, 12 standard phone digits keys, 2 volume control keys (Up/Down), 1 hands-free key for with LED indicator light
  • Installation: Desktop stand (angles: 45 degree): Wall-mounted (need an additional wall hanging parts)
  • Indicator: Red status indicator light for call and message waiting indication
  • Working temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimensions: Desktop stand (angles 1: 45 degree): 225x217x182.4 mm Desktop stand (angles 2: 50 degree): 225x206x194.3 mm Wall-mounted: 225x110.5x237.9 mm
  • Power supply: IEEE802.3af, Standard PoE,12 VDC
  • Application environment: Indoor
  • Power consumption: <=7W
  • Language: English, Simplified Chinese, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Basque, Galician, Turkish, Hungarian, Slovenian, Czech, Korean, Dutch, Ukrainian, Portuguese, Polish

System parameters
  • Operating system: Embedded Linux operation system
  • ROM: 128 MB
  • RAM: 94 MB
  • CPU: Embedded processor

Display parameters
  • Screen size: 4.3-inch
  • Operation method: Physical keys
  • Type: Colorful screen
  • Resolution: 480x272

Video parameters
  • Video decoding: H.264
  • Video decoding resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P

Audio parameters
  • Audio input: HD voice microphone; HAC handset
  • Audio compression standard: G.711a/u, G.723.1, G.726, G.729A/B, iLBC. G.722, Opus
  • Audio output: HD voice speaker (handset/hands-free, 0 ~ 7KHz frequency response)
  • Audio quality: Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)/ Voice quality monitoring
  • Volume adjustment: Adjustable

Capacity
  • Communication Lines: 20 SIP Lines
  • Contact capacity: Local phonebook (2000 entries) Remote phonebook (XML/LDAP, 2000 entries)
  • Call log capacity: In/Out/Missed, 1000 entries

Network parameters
  • Communication protocol: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
  • Wired network: 10/100/1000 Mbps Ethernet
  • Wi-Fi standard: NA

Device interfaces
  • Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive
  • USB: 1 reserved
  • Power supply input: DC power input
  • Communication interface: 2 RJ-9 ：handset x1, headset x1

General
  • Button: Keys: 43 keys, including 10 DSS keys with LED indicator light, 4 Soft-keys, 2 Keys for with LED indicator light,including:mute/headset, 7 keys, including: Hold/Transfer/Conference/Back/CallLog/MWI/Redial, 4 navigation keys. 1 OK key, 12 standard phone digits keys, 2 volume control keys (Up/Down), 1 hands-free key for with LED indicator light
  • Installation: Desktop stand (angles: 45 degree): Wall-mounted (need an additional wall hanging parts)
  • Indicator: Red status indicator light for call and message waiting indication
  • Working temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimensions: Desktop stand (angles 1: 45 degree): 225x217x182.4 mm Desktop stand (angles 2: 50 degree): 225x206x194.3 mm Wall-mounted: 225x110.5x237.9 mm
  • Power supply: IEEE802.3af, Standard PoE,12 VDC
  • Application environment: Indoor
  • Power consumption: <=7W
  • Language: English, Simplified Chinese, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Basque, Galician, Turkish, Hungarian, Slovenian, Czech, Korean, Dutch, Ukrainian, Portuguese, Polish
