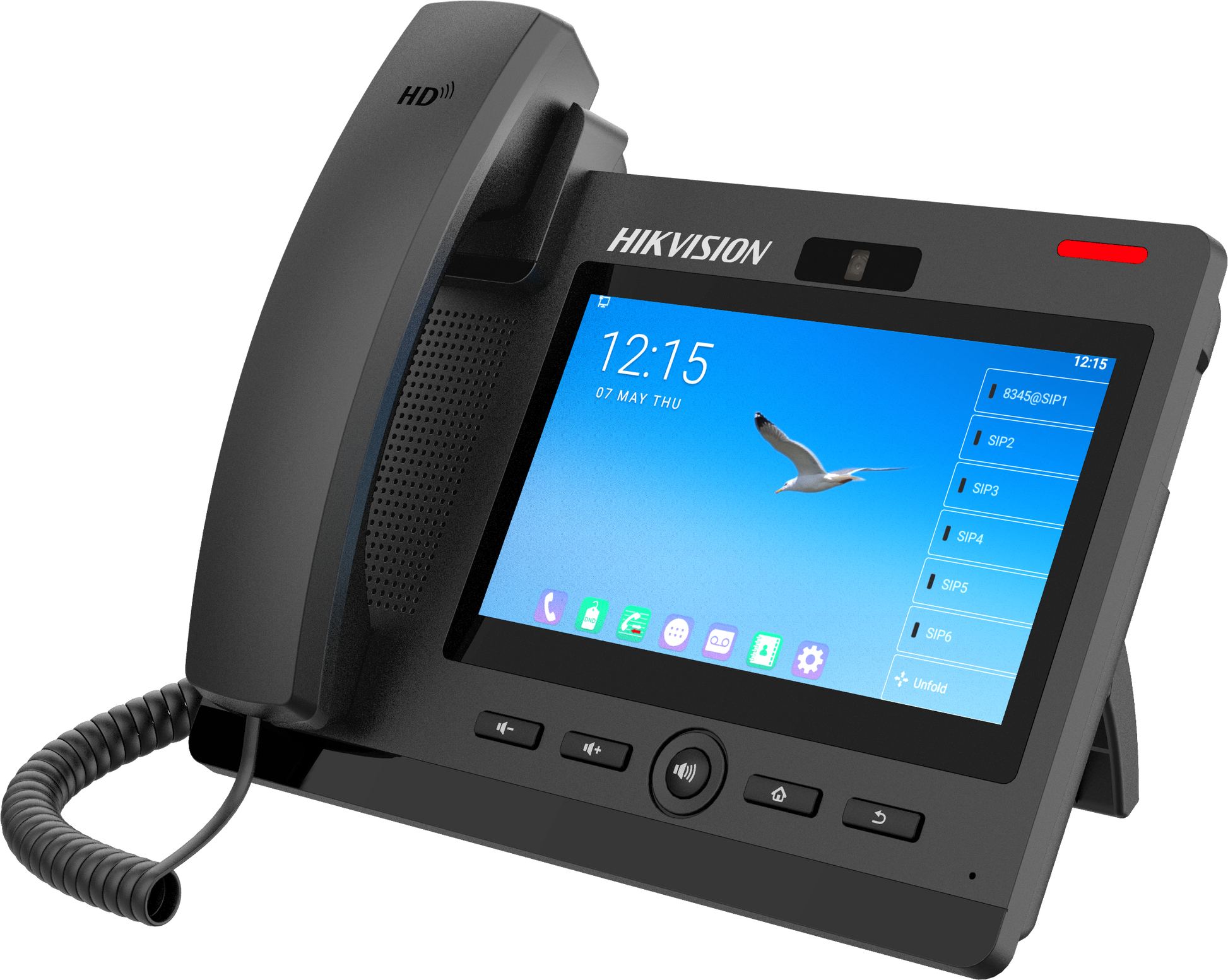

Hikvision DS-KP9301-HE1 | SIP Phone

Hikvision DS-KP9301-HE1 | SIP Phone

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • SIP Phone
  • Ultra Series

7“ Touch Screen SIP Phone, Android 9.0;
display resolution: 1024 x 600;
20 SIP Lines；5 physical keys;
2 10/100M/1000Mbps Ethernet interfaces;
standard PoE/ 12 VDC.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KP9301-HE1 | SIP Phone
Login to View Price

Specifications

  • Operating system: Embedded Android 9.0 operation system
  • ROM: 4 GB
  • RAM: 2 GB
  • CPU: Embedded processor
  • Screen size: 7-inch
  • Operation method: Touch screen
  • Type: Colorful IPS screen
  • Resolution: 1024 × 600
  • Lens: 1
  • Resolution: 2 MP
  • Video compression standard: H.264
  • Video decoding: H.264
  • Video decoding resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
  • Audio input: HD voice microphone; HAC handset
  • Audio compression standard: G.711A/U, G.729AB, iLBC, G.722, Opus
  • Audio output: HD voice speaker (handset/hands-free, 0 ~ 7KHz frequency response)
  • Audio quality: Full-duplex Acoustic Echo Canceller (AEC) Noise Reduction (NR) Packet Loss Concealment (PLC)
  • Volume adjustment: Adjustable
  • Communication Lines: 20 SIP Lines
  • Contact capacity: Local phonebook (2000 entries) Remote phonebook (XML/LDAP, 2000 entries)
  • Call log capacity: In/Out/Missed, 1000 entries
  • Communication protocol: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
  • Wired network: 10/100/1000 Mbps self-adaptive
  • Wi-Fi standard: NA
  • Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive
  • TF card: Max to 128 G (reserved)
  • USB: USB2.0 Port x1 (reserved)
  • Power supply input: DC power input
  • Communication interface: 2 RJ-9 ：handset x1, headset x1
  • Video output: HDMI x 1 (reserved)
  • Button: 5 keys, including 1 home key, 1 return key, 1 hand free key, and 2 Volume Control keys (up/down)
  • Installation: Desktop stand Wall-mounted
  • Indicator: Red status indicator light for call and message waiting
  • Working temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimensions: Desktop Stand (Angle 1): 254.8 mm x 154.9 mm x 202.8 mm; Desktop Stand (Angle 2): 254.8 mm x 167.8 mm x 182.4 mm; Wall Mounted: 254.8 mm x 118.4 mm x 206.9 mm
  • Power supply: IEEE802.3af, Standard PoE,12 VDC
  • Application environment: Indoor
  • Power consumption: Power Consumption (PoE): 3.11~ 10.76 W Power Consumption (Adapter): 2.38~8.4 W
  • Language: English, Galician, Simplified Chinese, Danish, Czech, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Turkish, Hungarian, Slovenian, Korean, Dutch, Ukrainian, Portuguese, Polish, Philippine,, Indonesian, Latvian, Lithuanian, Malay, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Bulgarian, Serbian, Arabic, Persian, Thai

System parameters
  • Operating system: Embedded Android 9.0 operation system
  • ROM: 4 GB
  • RAM: 2 GB
  • CPU: Embedded processor

Display parameters
  • Screen size: 7-inch
  • Operation method: Touch screen
  • Type: Colorful IPS screen
  • Resolution: 1024 × 600

Video parameters
  • Lens: 1
  • Resolution: 2 MP
  • Video compression standard: H.264
  • Video decoding: H.264
  • Video decoding resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P

Audio parameters
  • Audio input: HD voice microphone; HAC handset
  • Audio compression standard: G.711A/U, G.729AB, iLBC, G.722, Opus
  • Audio output: HD voice speaker (handset/hands-free, 0 ~ 7KHz frequency response)
  • Audio quality: Full-duplex Acoustic Echo Canceller (AEC) Noise Reduction (NR) Packet Loss Concealment (PLC)
  • Volume adjustment: Adjustable

Capacity
  • Communication Lines: 20 SIP Lines
  • Contact capacity: Local phonebook (2000 entries) Remote phonebook (XML/LDAP, 2000 entries)
  • Call log capacity: In/Out/Missed, 1000 entries

Network parameters
  • Communication protocol: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
  • Wired network: 10/100/1000 Mbps self-adaptive
  • Wi-Fi standard: NA

Device interfaces
  • Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive
  • TF card: Max to 128 G (reserved)
  • USB: USB2.0 Port x1 (reserved)
  • Power supply input: DC power input
  • Communication interface: 2 RJ-9 ：handset x1, headset x1
  • Video output: HDMI x 1 (reserved)

General
  • Button: 5 keys, including 1 home key, 1 return key, 1 hand free key, and 2 Volume Control keys (up/down)
  • Installation: Desktop stand Wall-mounted
  • Indicator: Red status indicator light for call and message waiting
  • Working temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimensions: Desktop Stand (Angle 1): 254.8 mm x 154.9 mm x 202.8 mm; Desktop Stand (Angle 2): 254.8 mm x 167.8 mm x 182.4 mm; Wall Mounted: 254.8 mm x 118.4 mm x 206.9 mm
  • Power supply: IEEE802.3af, Standard PoE,12 VDC
  • Application environment: Indoor
  • Power consumption: Power Consumption (PoE): 3.11~ 10.76 W Power Consumption (Adapter): 2.38~8.4 W
  • Language: English, Galician, Simplified Chinese, Danish, Czech, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Turkish, Hungarian, Slovenian, Korean, Dutch, Ukrainian, Portuguese, Polish, Philippine,, Indonesian, Latvian, Lithuanian, Malay, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Bulgarian, Serbian, Arabic, Persian, Thai
