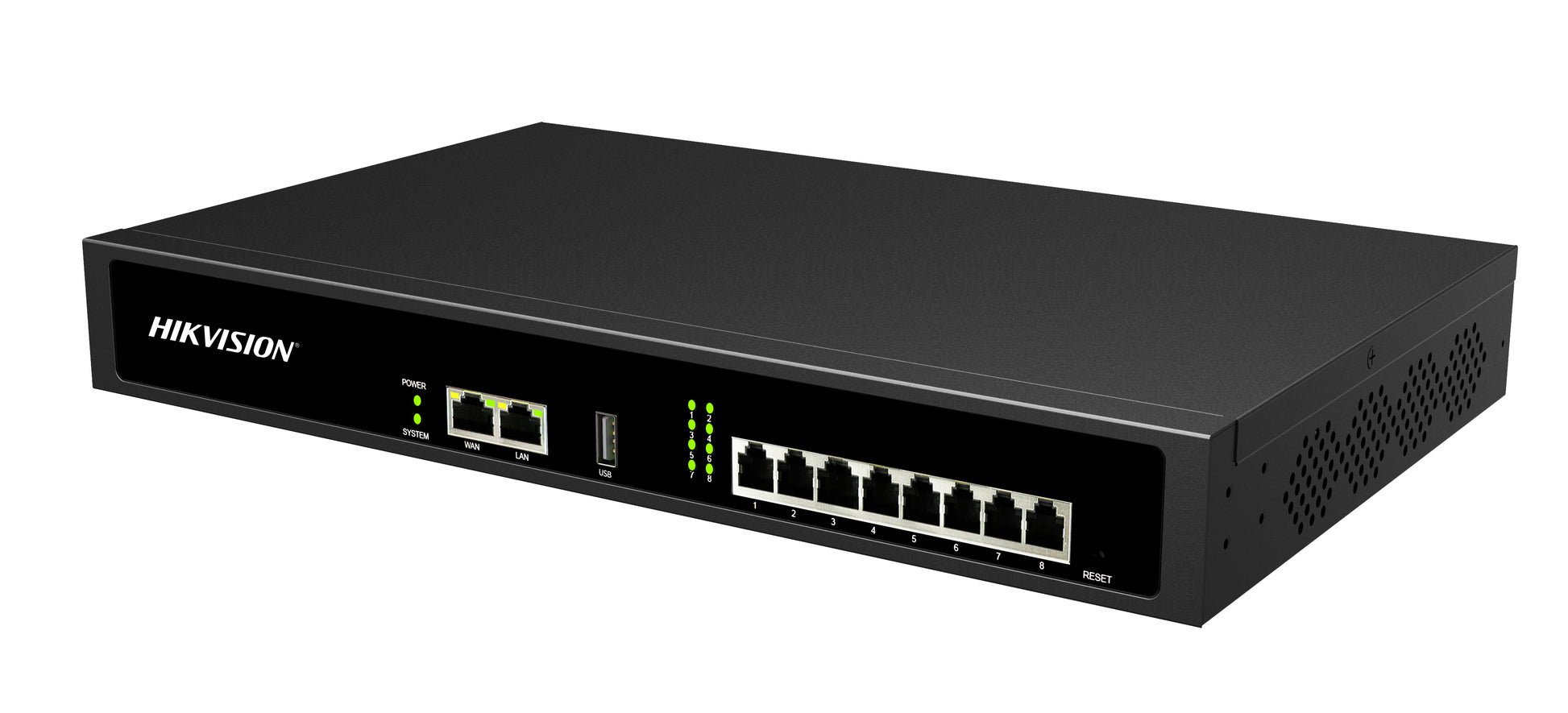

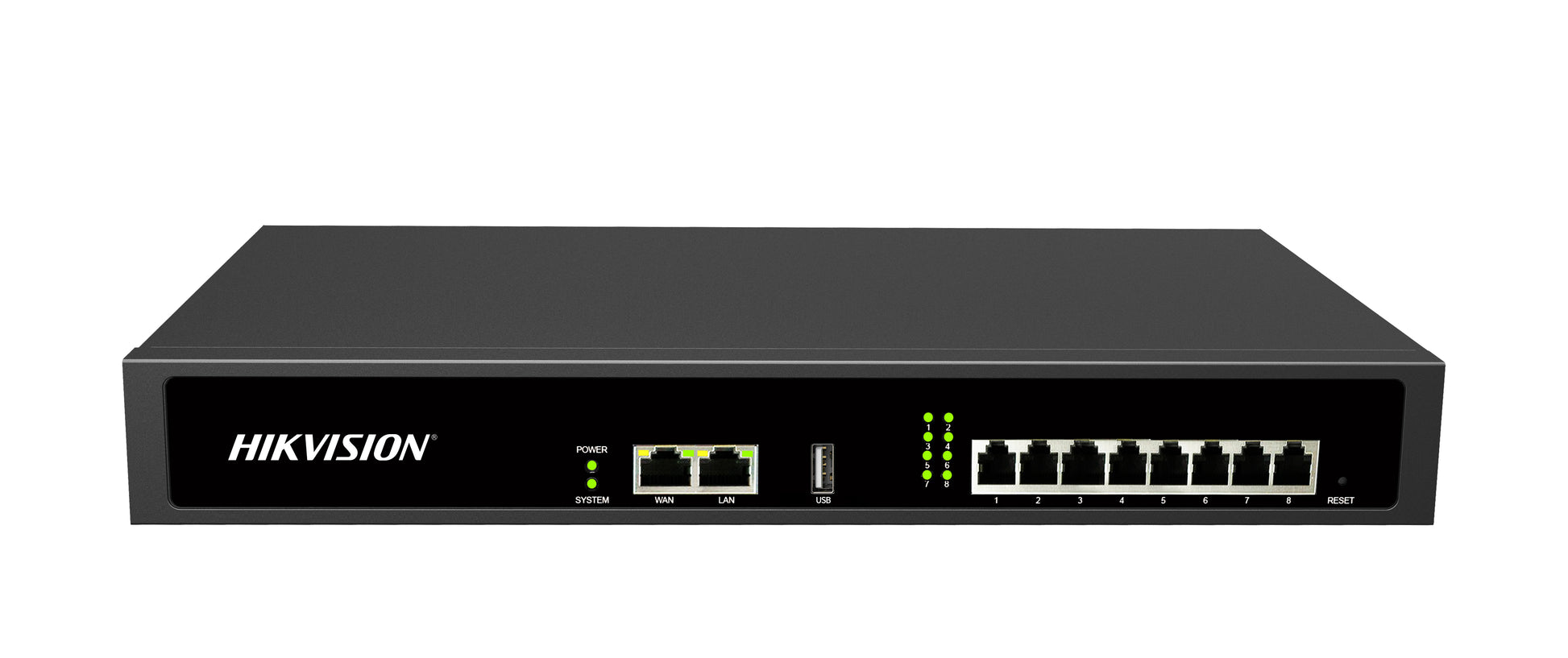

Hikvision DS-KS6150 | SIP Server

Hikvision DS-KS6150 | SIP Server

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • SIP Server
  • SIP Server

Standard SIP Server PBX
Users: 50
Max Concurrent Calls: 25
Max Analog Ports: 8
Max BRI Ports: 8
Max Cellular Ports: 4
External Storage: USB
It includes European power adapter, if you want to change the standard of power supply, you have to mark which standard of power adapter you want when you place an order

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KS6150 | SIP Server
Login to View Price

Specifications

  • ROM: 8GB
  • RAM: 2GB
  • Processor: 1.8GHz ARM Cortex
  • Video codecs: VP8, H263, H263P, H264, MPEG4
  • Audio codecs: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC
  • Base Users / Max Users: 50
  • Max Concurrent Calls: 25
  • Max FXS Ports: 8 RJ11 ports
  • Max FXO/BRI Ports: 8 RJ11 ports
  • Max GSM/3G/4G Ports: 4
  • Max E1/T1/J1 Ports: Not supported
  • Linked SIP extension: 50
  • Network protocol: UDP, TCP, TLS, SRTP
  • DTMF: In-band, RFC4733, RFC2833, SIP INFO
  • Network interface: 1xLAN(10/100/1000 Mbps) 1xWAN (10/100/1000 Mbps)
  • USB: USB2.0
  • Power supply input: AC 100-240V 50/60HZ 0.6A max
  • Hard Disk: Not supported
  • SD card: Not supported
  • RJ11 port: 8 (Max 8 FXS Ports or 8 FXO/BRI Ports)
  • Weight: 1.48KG
  • Working temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature: -20°C to 65°C (-4°F to 149°F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 340 mm × 210 mm × 44 mm (13.39" × 8.27" × 1.74")
  • Power consumption: ≤ 3.3 W

System parameters
  • ROM: 8GB
  • RAM: 2GB
  • Processor: 1.8GHz ARM Cortex

Video parameters
  • Video codecs: VP8, H263, H263P, H264, MPEG4

Audio parameters
  • Audio codecs: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC

Capacity
  • Base Users / Max Users: 50
  • Max Concurrent Calls: 25
  • Max FXS Ports: 8 RJ11 ports
  • Max FXO/BRI Ports: 8 RJ11 ports
  • Max GSM/3G/4G Ports: 4
  • Max E1/T1/J1 Ports: Not supported
  • Linked SIP extension: 50

Network parameters
  • Network protocol: UDP, TCP, TLS, SRTP
  • DTMF: In-band, RFC4733, RFC2833, SIP INFO

Device interfaces
  • Network interface: 1xLAN(10/100/1000 Mbps) 1xWAN (10/100/1000 Mbps)
  • USB: USB2.0
  • Power supply input: AC 100-240V 50/60HZ 0.6A max
  • Hard Disk: Not supported
  • SD card: Not supported
  • RJ11 port: 8 (Max 8 FXS Ports or 8 FXO/BRI Ports)

General
  • Weight: 1.48KG
  • Working temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature: -20°C to 65°C (-4°F to 149°F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 340 mm × 210 mm × 44 mm (13.39" × 8.27" × 1.74")
  • Power consumption: ≤ 3.3 W
