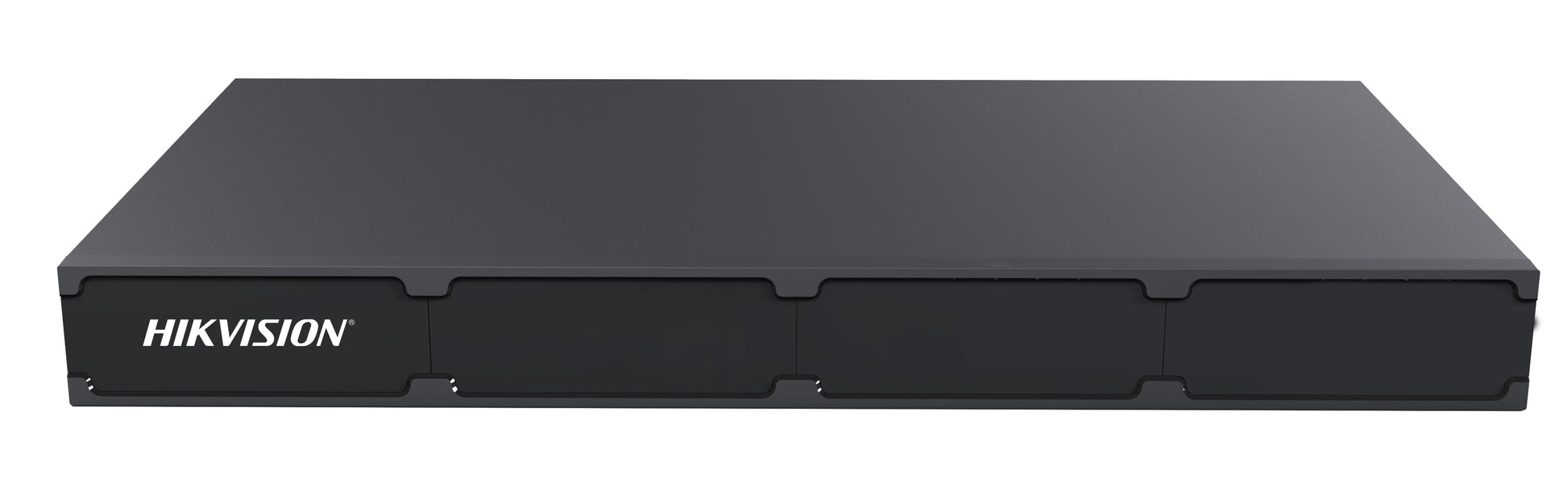

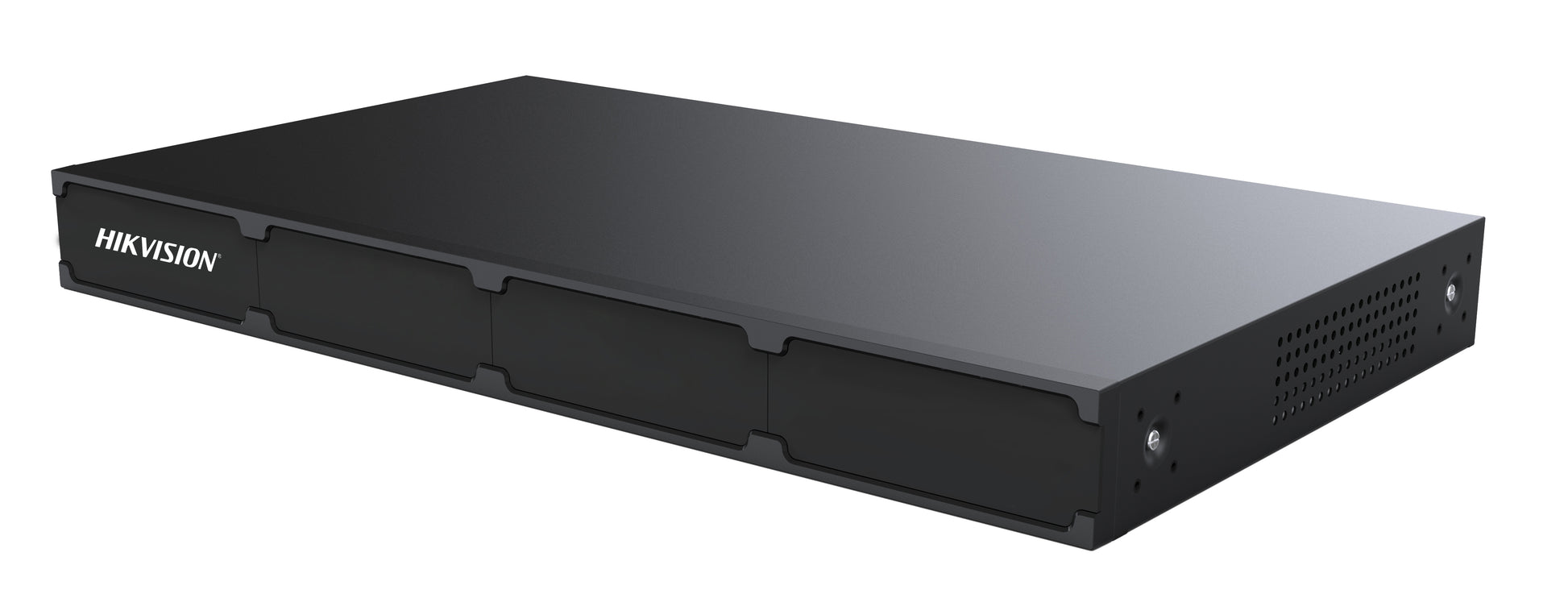

Hikvision DS-KS6170 | SIP Server

Hikvision DS-KS6170 | SIP Server

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • SIP Server
  • SIP Server

Standard SIP Server PBX
Users: 300
Max Concurrent Calls: 60
Max Analog Ports: 16
Max BRI Ports: 8
Max Cellular Ports: 6
Max E1/T1/J1 Ports: 2
Expanion Boards: 2*EX30/EX08+2*D30
External Storage: USB, HDD
It includes European power adapter, if you want to change the standard of power supply, you have to mark which standard of power adapter you want when you place an order

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KS6170 | SIP Server
Login to View Price

Specifications

  • ROM: 16GB
  • RAM: 4GB
  • Processor: 1.8GHz ARM Cortex
  • Video codecs: VP8, H263, H263P, H264, MPEG4
  • Audio codecs: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC
  • Base Users / Max Users: Base users: 300 Max users: 400/500 (by adding 1/2 expansion board)
  • Max Concurrent Calls: 60/90/120
  • Max FXS Ports: 16 RJ11 ports
  • Max FXO/BRI Ports: 16 RJ11 ports
  • Max GSM/3G/4G Ports: 6
  • Max E1/T1/J1 Ports: 2
  • Linked SIP extension: 300/400/500
  • Network protocol: UDP, TCP, TLS, SRTP
  • DTMF: In-band, RFC4733, RFC2833, SIP INFO
  • Network interface: 1xLAN(10/100/1000 Mbps) 1xWAN (10/100/1000 Mbps)
  • USB: USB2.0
  • Power supply input: AC 100-240V 50/60HZ 1.5A max
  • Hard Disk: 1 SATA (expanable up to 2TB)
  • SD card: Supported, 1slot(s)
  • RJ11 port: Max 16 ports (expansion board required)
  • Weight: 2.6 KG
  • Working temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature: -20°C to 65°C (-4°F to 149°F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 441.2 mm × 252 mm × 45.9 mm (17.37" × 9.92" × 1.81")
  • Power consumption: ≤ 45 W

System parameters
  • ROM: 16GB
  • RAM: 4GB
  • Processor: 1.8GHz ARM Cortex

Video parameters
  • Video codecs: VP8, H263, H263P, H264, MPEG4

Audio parameters
  • Audio codecs: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC

Capacity
  • Base Users / Max Users: Base users: 300 Max users: 400/500 (by adding 1/2 expansion board)
  • Max Concurrent Calls: 60/90/120
  • Max FXS Ports: 16 RJ11 ports
  • Max FXO/BRI Ports: 16 RJ11 ports
  • Max GSM/3G/4G Ports: 6
  • Max E1/T1/J1 Ports: 2
  • Linked SIP extension: 300/400/500

Network parameters
  • Network protocol: UDP, TCP, TLS, SRTP
  • DTMF: In-band, RFC4733, RFC2833, SIP INFO

Device interfaces
  • Network interface: 1xLAN(10/100/1000 Mbps) 1xWAN (10/100/1000 Mbps)
  • USB: USB2.0
  • Power supply input: AC 100-240V 50/60HZ 1.5A max
  • Hard Disk: 1 SATA (expanable up to 2TB)
  • SD card: Supported, 1slot(s)
  • RJ11 port: Max 16 ports (expansion board required)

General
  • Weight: 2.6 KG
  • Working temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature: -20°C to 65°C (-4°F to 149°F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 441.2 mm × 252 mm × 45.9 mm (17.37" × 9.92" × 1.81")
  • Power consumption: ≤ 45 W
