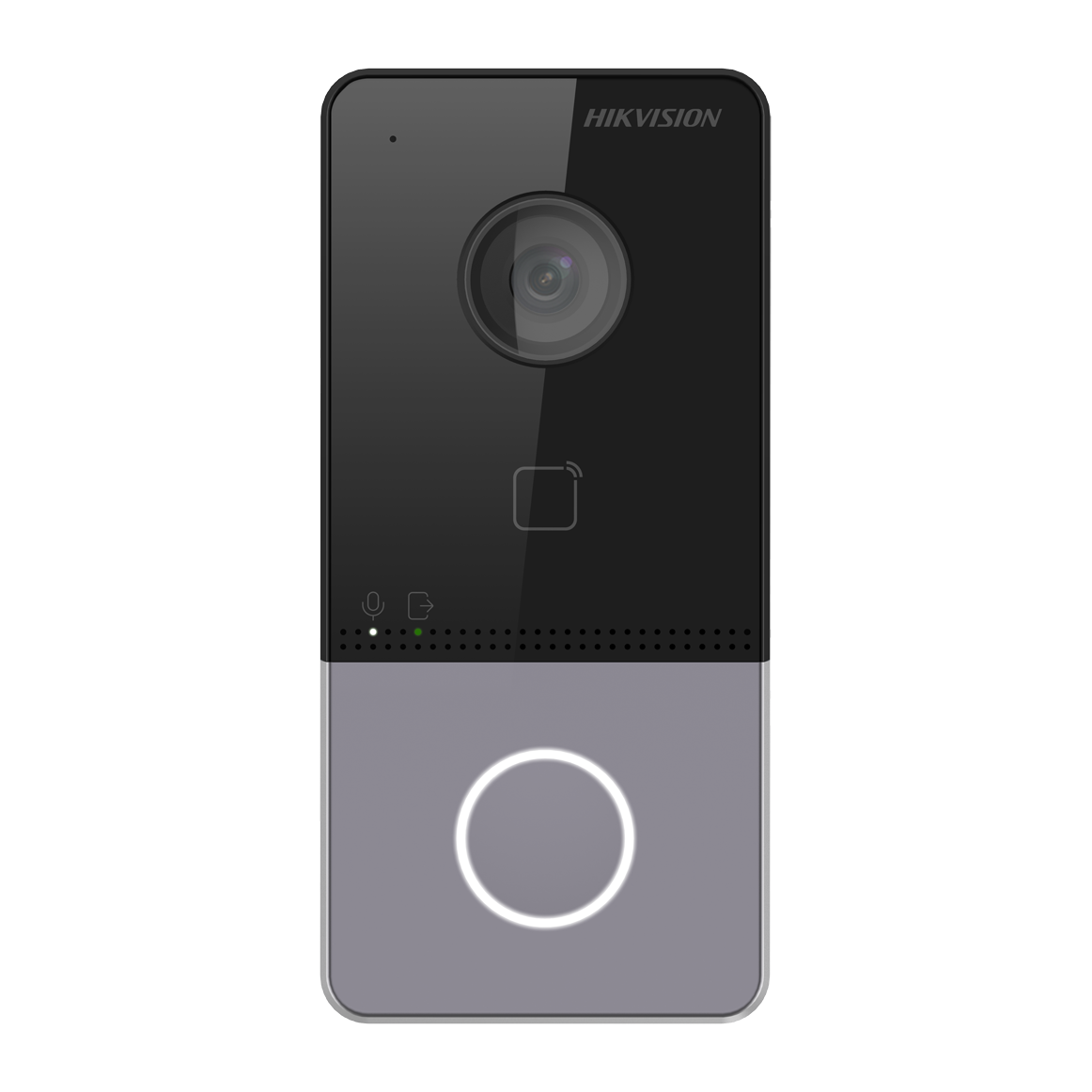

Hikvision DS-KV6113-WPE1(C) | IP Intercom | Outdoor Bell
Hikvision DS-KV6113-WPE1(C) | IP Intercom | Outdoor Bell
- Intercom
- IP Intercom
- Outdoor Bell
CMOS 2MP HD Colorful Camera,,Plastic, 1-ch Indoor station access, Wi-Fi 802.11b/g/n,
Standard PoE/ 12 VDC, Mifare card reading module;
10M/100M Self-adaptive Ethernet, RS-485;
4-ch alarm input,1 relay for door lock contrl;
IP65, 2 indicator integrated
Call directly to Hik-Connect APP without indoor station.
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KV6113-WPE1(C) | IP Intercom | Outdoor Bell
Specifications
- Weight: Net weight: 0.190 kgGross weight: 0.414 kg
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
- Operation system: Linux
- ROM: 32 MB
- RAM: 256 MB
- Processor: Embedded high performance processor
- Screen size: /
- Operation method: /
- Type: /
- Resolution: Main stream: 1920 x 1080p, 720pSub stream: 640 x 480p
- FOV: Horizontal: 131° Vertical: 78°
- Wide dynamic range (WDR): Support 120 dB
- Supplement light: IR light, up to 3 m
- Video compression standard: H.264
- Audio input: 1 built-in omnidirectional microphone
- Audio compression standard: G.711 U
- Audio output: 1 built-in loudspeaker
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- User capacity: 2000
- Face capacity: /
- Card capacity: 10000
- Network protocol: TCP/IP, RTSP
- Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth: Not supported.
- 3G/4G: /
- Alarm input: 4
- Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER: 1
- Exit button: 1
- RS-485: 1
- USB: /
- Wiegand: /
- TF card: Reserved
- Alarm output: /
- Lock control: 1 relay, Max. 30 VDC 2 A
- Door contact input: 1
- Button: 1 physical button
- Installation: Surface mounting
- Indicator: 2
- Protective level: IP65
- Working temperature: -40 °C to 55 °C(-40 °F to 131 °F)
- Working humidity: 10% to 95% (no-condensing)
- Dimension (W x H x D): 138 mm x 65 mm x 27 mm (5.4" x 2.6" x 1.1")
- Battery: /
- Application environment: Outdoor
- Power consumption: : 10 W
