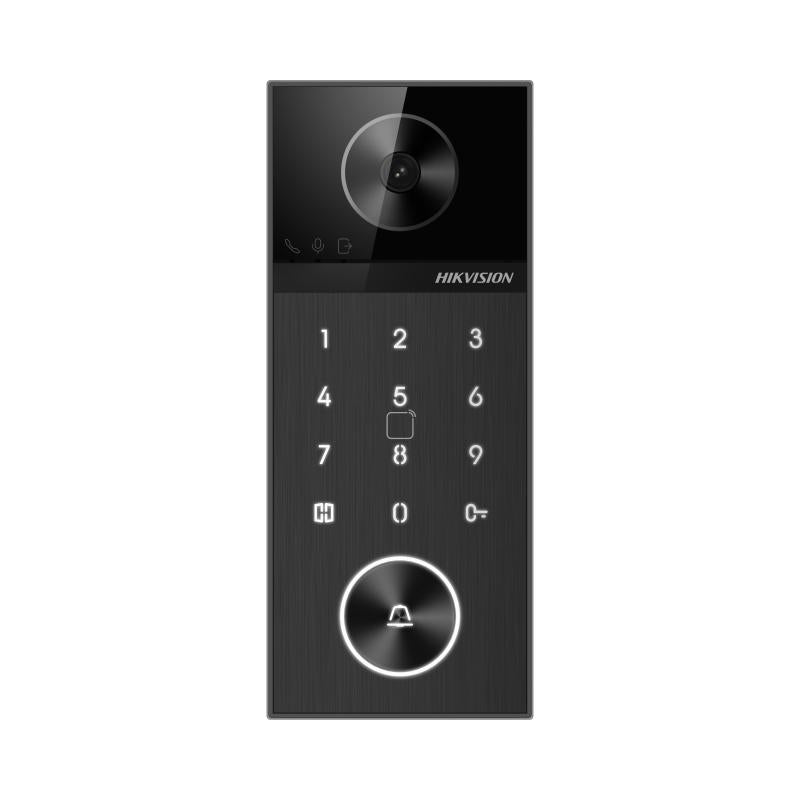

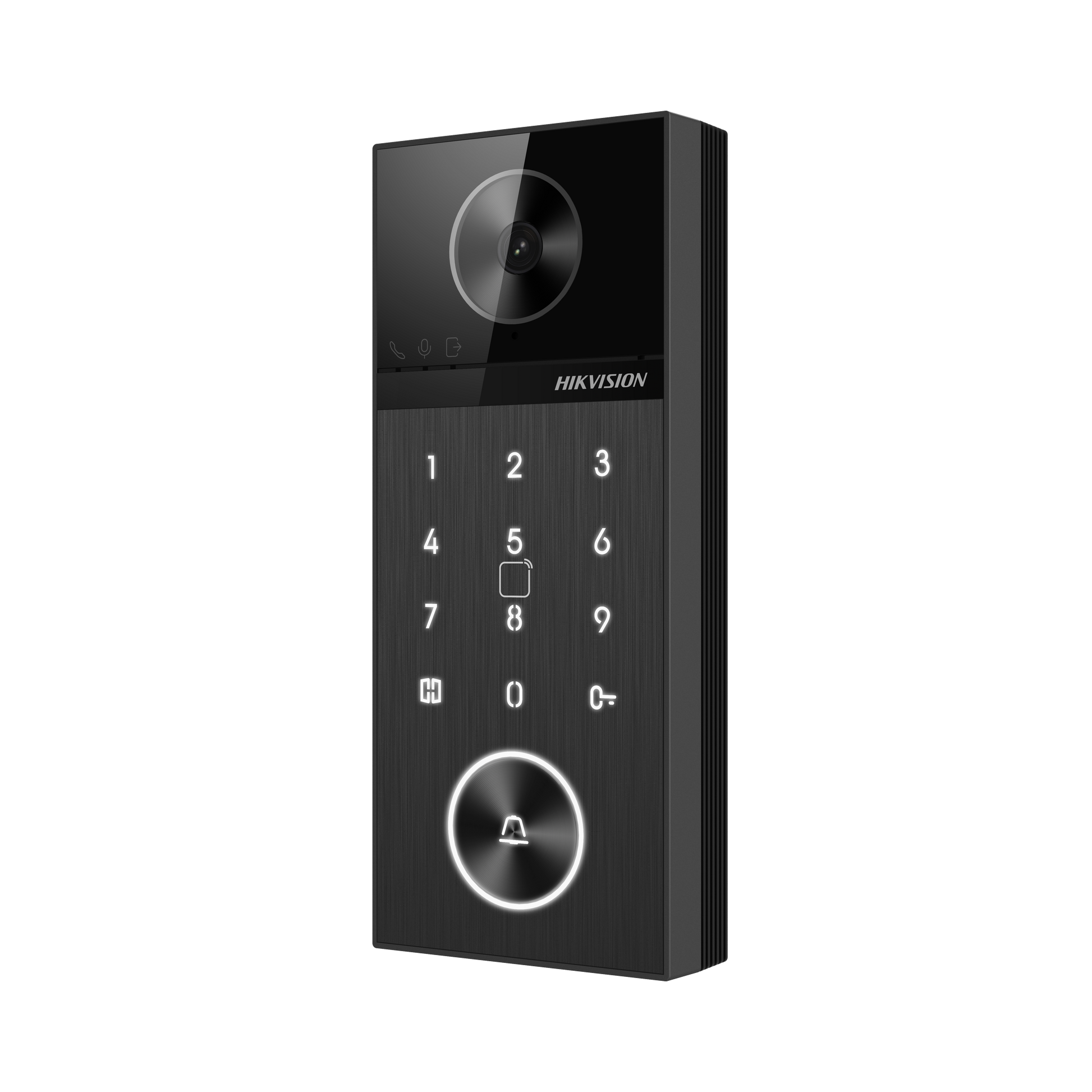

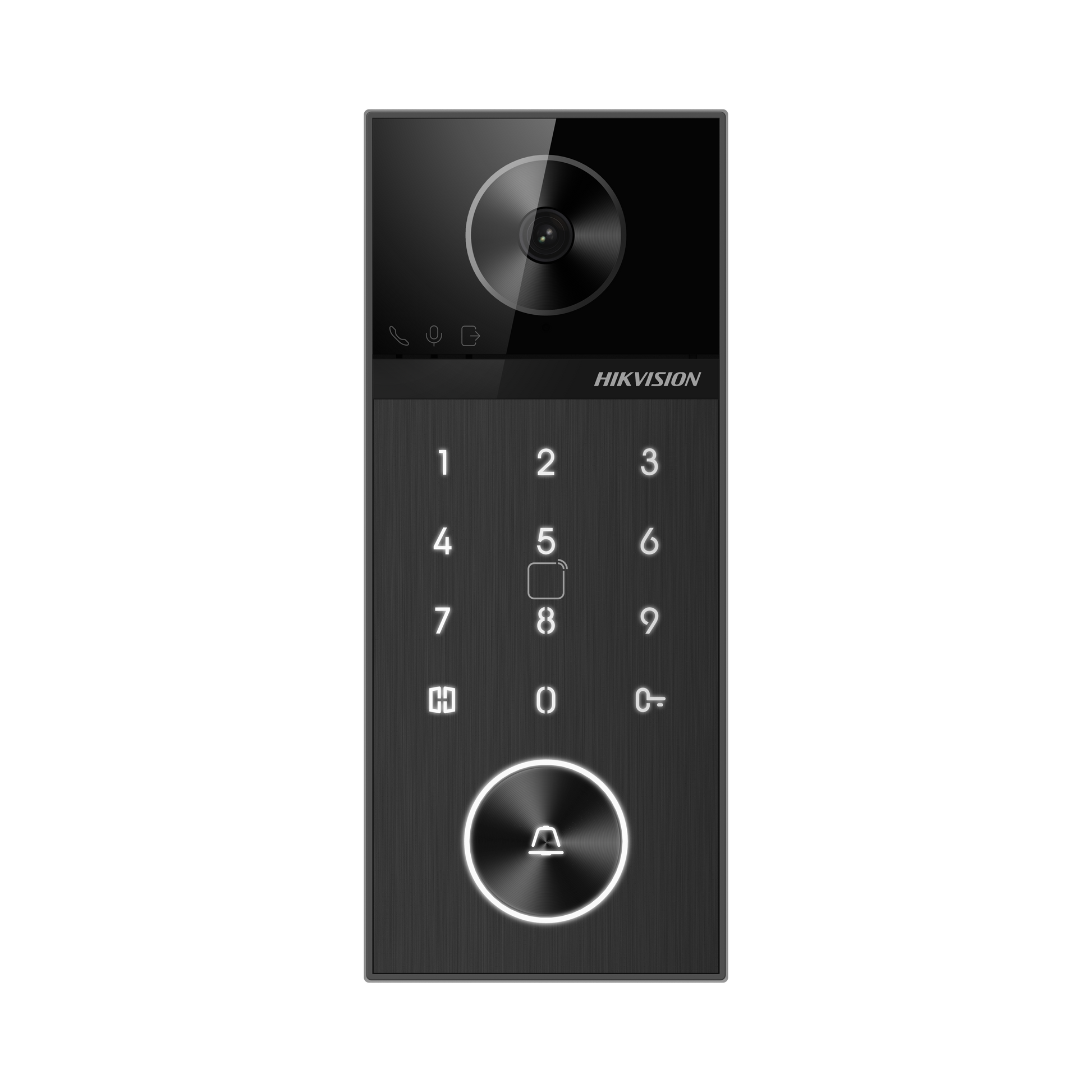

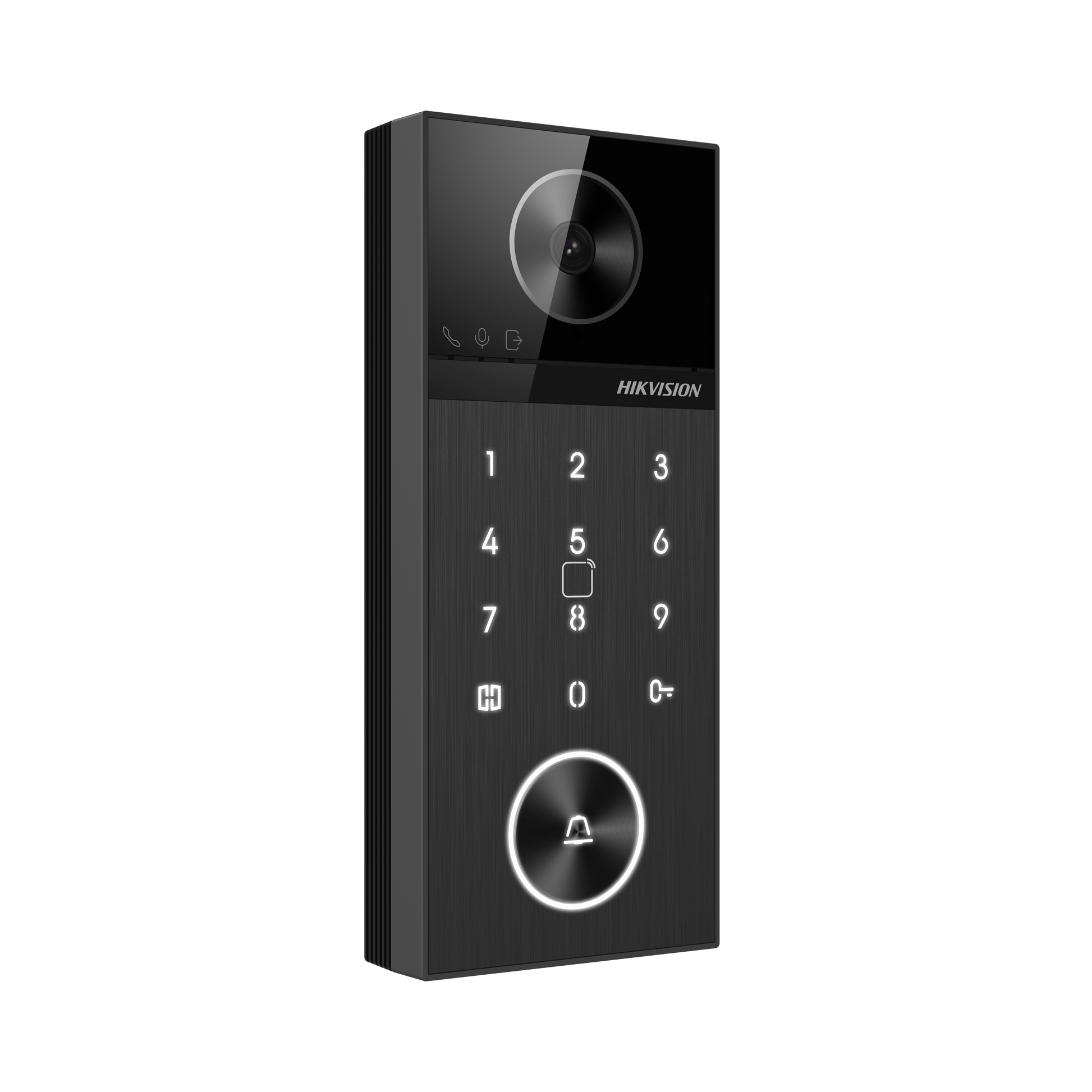

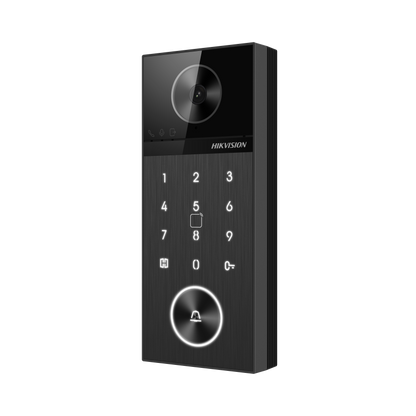

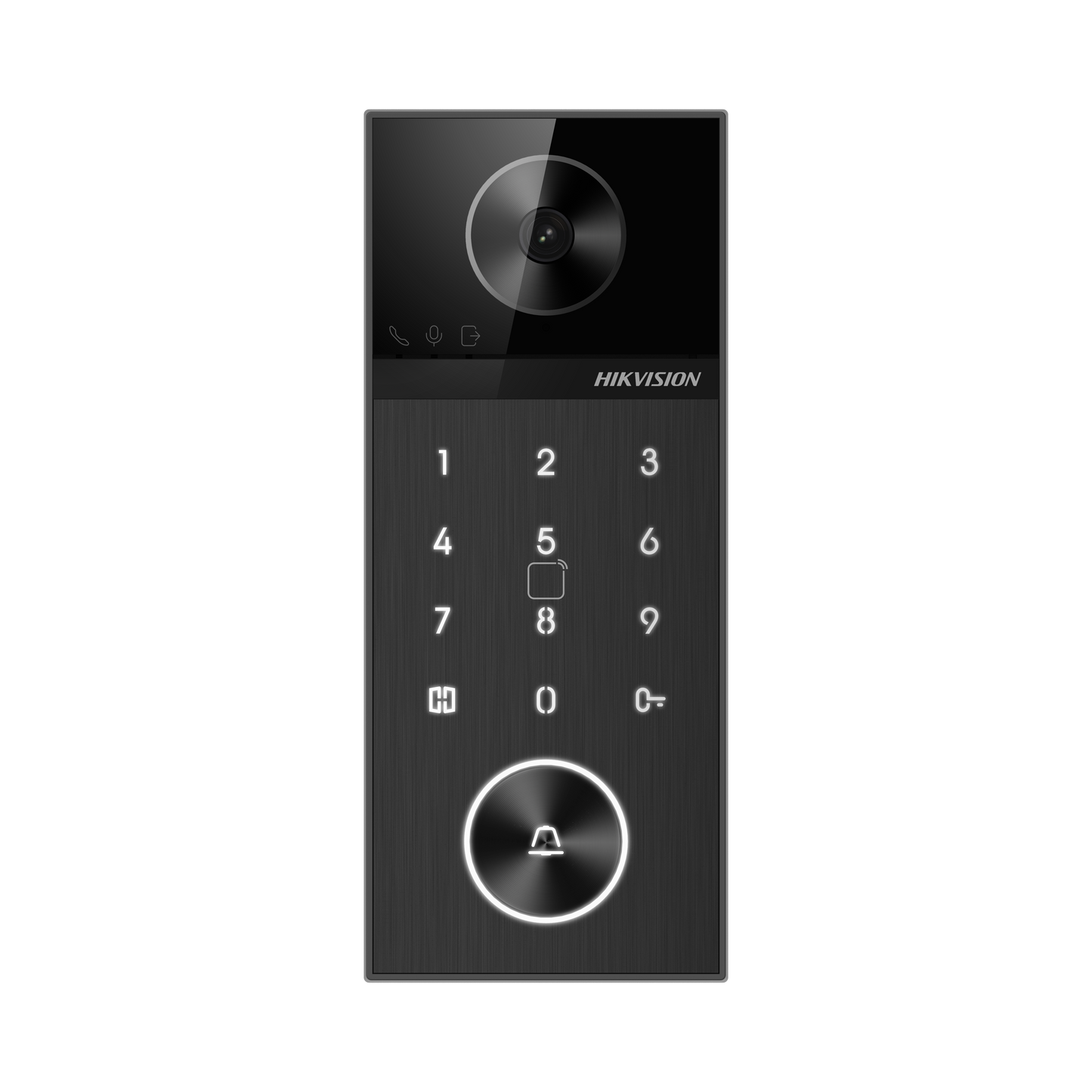

Hikvision DS-KV6124-WBE1 VILLA DOOR STATION
Hikvision DS-KV6124-WBE1 VILLA DOOR STATION
- Intercom
- IP Series
- Pro Series
4MP higher resolution with 150° viewing angle.
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KV6124-WBE1 VILLA DOOR STATION
Specifications
- Operation system: Linux
- ROM: 4 GB
- RAM: 512 MB
- Processor: Embeded high performance processor
- Lens: 1
- Resolution: Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
- FOV: Horizontal: 150°; Vertical: 75°
- Wide dynamic range (WDR): Support 120 dB
- Supplement light: IR light, up to 3 m
- Video compression standard: H.264; H.265; MJPEG
- Audio input: 1 built-in omnidirectional microphone
- Audio compression standard: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
- Audio output: 1 built-in loudspeaker
- Audio compression bitrate: 8~64 Kps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- Audio Performance: 50cm 80dB (Maximum: 50cm 83dB)
- Audio Sample Rate: 16kHz、8kHz
- User capacity: 2000
- Face capacity: /
- Card capacity: 10000
- Network protocol: TCP/IP, RTSP, ipv6,onvif
- Wi-Fi: 2.4G
- Bluetooth: Supported
- 3G/4G: /
- Wi-Fi Protocol: IEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax
- Wi-Fi Type: WiFi 6
- Authentication mode: Card, PIN code, Bluetooth, Hik-Connect, indoor station
- Card type: M1 Card
- Card reading frequency: 13.56 MHz
- Card reading distance: M1 card：2 to 2.5 cm
- Mobile APP: Hik-Connect
- Motion Detection: Support
- Playback: Support
- Call Elevator: Support
- Smart Features: Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)
- Alarm input: 4, (include Exit button and Door contact input)
- Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER: 1
- Exit button: 1
- RS-485: 1
- USB: /
- Wiegand: /
- TF card: Support TF card, up to 128 G
- Alarm output: /
- Lock control: 2 relays, Max. 30 VDC 2 A
- Door contact input: 1
- Supported TF Format: FAT32;exFAT
- Button: 1 physical button
- Installation: Surface mounting
- Indicator: 3
- Weight: Without package: 273 g (0.61 lb),With package: 431g (0.95 lb)
- Protective level: IP65
- Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Working humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97")
- Battery: /
- Application environment: Outdoor
- Power consumption: ＜ 10 W
- Power supply: 12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
- Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
- Material: Front Shell and Rear Shell Material: Plastic Viewing Window Panel Material: Glass
- Power Supply Output: Max. 12 VDC, 1 A
