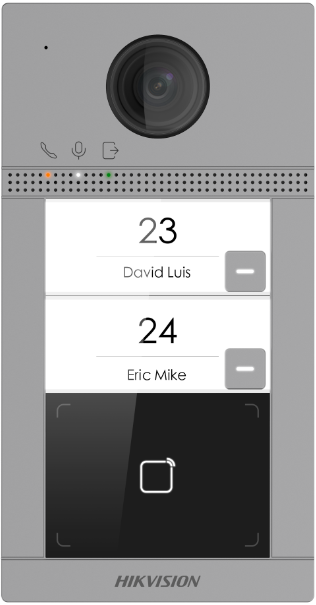

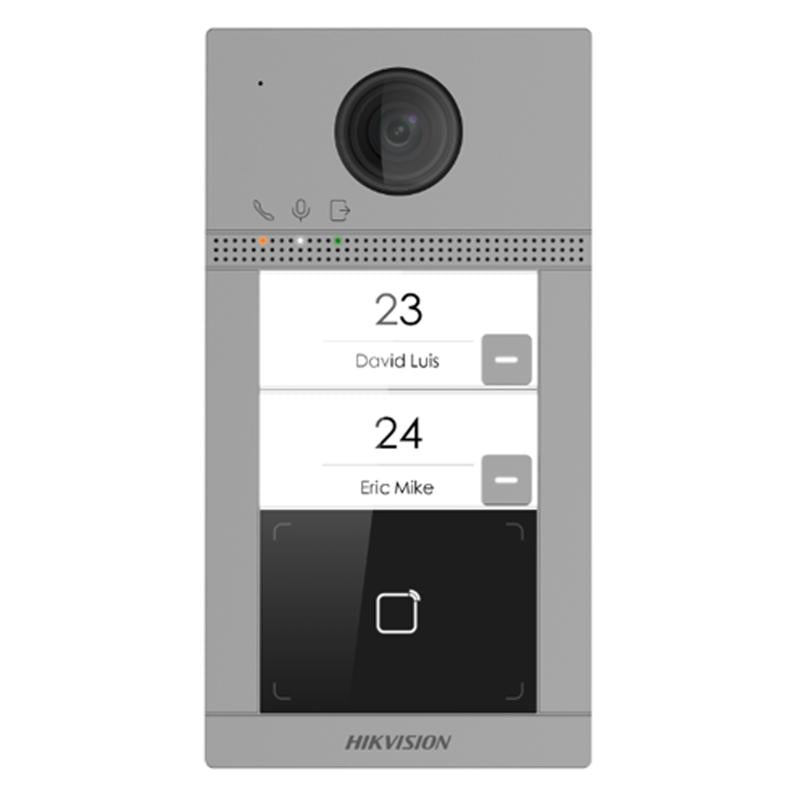

Hikvision DS-KV8213-WME1(C)/Flush | IP Intercom | Outdoor Bell
Hikvision DS-KV8213-WME1(C)/Flush | IP Intercom | Outdoor Bell
- Intercom
- IP Series
- Pro Series
CMOS 2MP HD Colorful Camera,, Aluminum alloy, 2-ch Indoor station access, Wi-Fi 802.11b/g/n, Surface mounting
Standard PoE/ 12 VDC, Mifare card reading module;
10M/100M Self-adaptive Ethernet, RS-485;
4-ch alarm input,2 relay for door lock contrl;
IP65,3 indicator integrated
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KV8213-WME1(C)/Flush | IP Intercom | Outdoor Bell
Specifications
- Operating system: Embedded Linux operation system
- ROM: 32 M
- RAM: 256 M
- CPU: Embedded MCU Processor
- Screen size: /
- Operation method: /
- Type: /
- Resolution: /
- Lens: 1
- Resolution: Main stream : 1920 × 1080 Sub stream : 640 × 480
- FOV: Horizontal: 124° Vertical: 75°
- WDR: Support
- Supplement light: IR supplement
- Video compression standard: H.264
- Audio compression standard: G.711 U, G.711 A
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker (more than 80 dB within 30 cm)
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- User capacity: 2000
- Card capacity: 10000
- Linked indoor station capacity: 2(main indoor station)
- Sub door station capacity: 16
- Communication protocol: TCP/IP, RTSP
- Wired network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi standard: Wi-Fi 802.11 b/g/n
- Bluetooth version: /
- 3G/4G standard: /
- Received frequency: 2.4 to 2.4835GHz
- Transmitted frequency: 2.4 to 2.4835 GHz
- Bandwidth: 20/40 MHz
- Frequency power: 802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm
- Card reading frequency: 13.56 MHz
- Alarm input: 4
- Network interface: 1
- TAMPER: 1
- Exit button: 2 Max.
- RS-485: 1
- USB: 0
- Wiegand: 0
- TF card: 1(Reserved)
- Alarm output: 0
- Lock control: 2
- Door contact input: 2
- Power interface: 1
- Button: 2
- Installation: Flush mounting
- Indicator: 3
- Weight: 384 g
- Protective level: IP65, IK08
- Working temperature: -40° C to 53° C (-40° F to 127.4° F)
- Working humidity: 10% to 95%
- Dimensions: 174 mm × 91 mm × 29 mm
- Battery: /
- Application environment: Outdoor
- Power consumption: ＜ 10 W
- Language: English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
