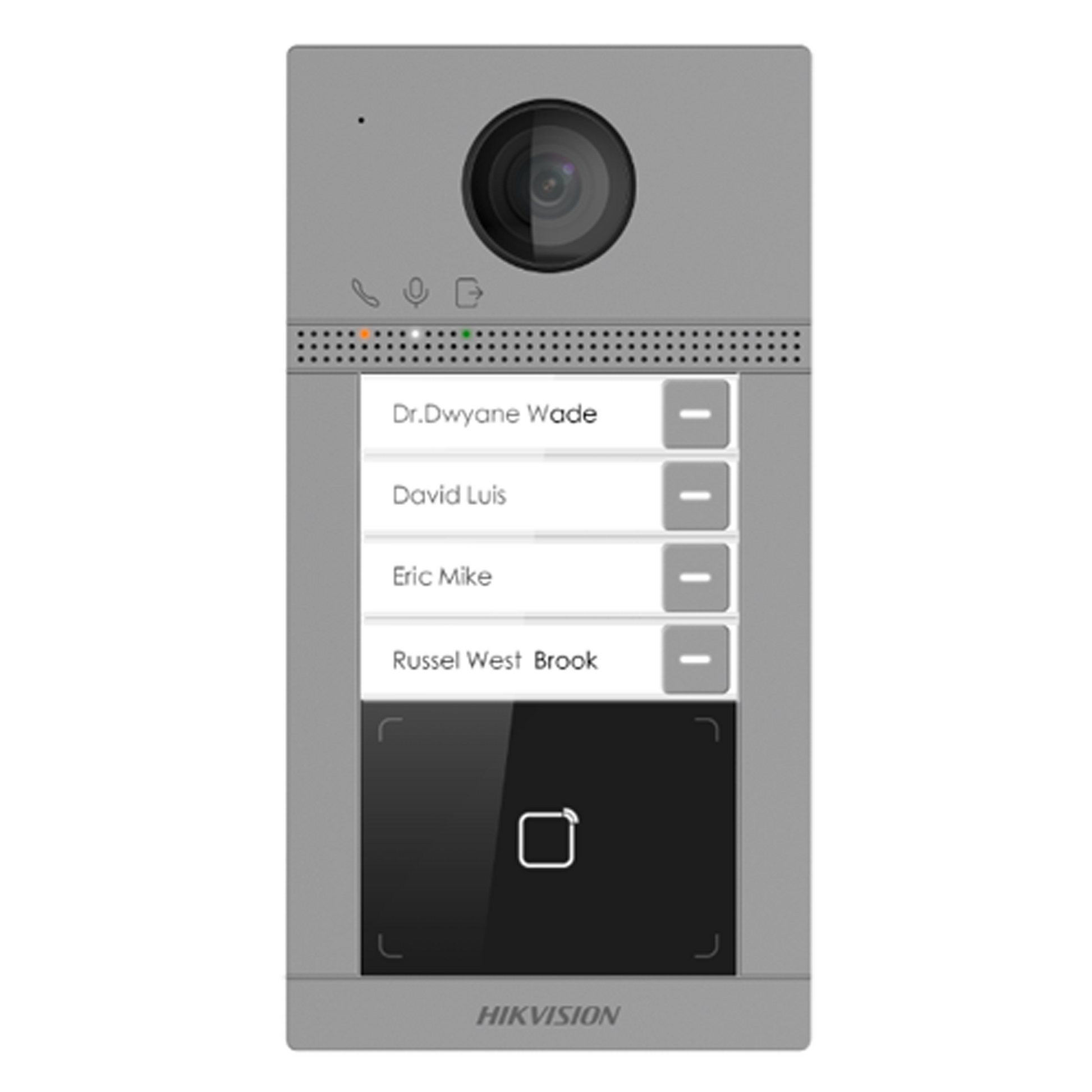

Hikvision DS-KV8413-WME1(C) | IP Intercom | Outdoor Bell
Hikvision DS-KV8413-WME1(C) | IP Intercom | Outdoor Bell
- Intercom
- IP Series
- Pro Series
CMOS 2MP HD Colorful Camera,, Aluminum alloy, 4-ch Indoor station access, Wi-Fi 802.11b/g/n, Surface mounting
Standard PoE/ 12 VDC, Mifare card reading module;
10M/100M Self-adaptive Ethernet, RS-485;
4-ch alarm input,2 relay for door lock contrl;
IP65,3 indicator integrated
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KV8413-WME1(C) | IP Intercom | Outdoor Bell
Specifications
- Operation system: Linux
- ROM: 32 MB
- RAM: 256 MB
- Processor: Embeded high performance processor
- Screen size: /
- Operation method: /
- Type: /
- Resolution: /
- Lens: 1
- Resolution: Main stream:1920p × 1080 and 1280 × 720p Sub stream: 640 × 480p
- FOV: Horizontal: 124° Vertical: 75°
- Wide dynamic range (WDR): Digital WDR/76.9 dB
- Supplement light: IR light, up to 3 m
- Video compression standard: H.264; H.265; MJPEG
- Audio input: 1 built-in omnidirectional microphone
- Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output: 1 built-in loudspeaker
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- User capacity: 2000
- Card capacity: 10000
- Linked indoor station capacity: 4 (main indoor station)
- Sub door station capacity: 16
- Network protocol: TCP/IP, RTSP, IPV6, ONVIF
- Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth: /
- 3G/4G: /
- Received frequency: 2.4 to 2.4835 GHz
- Transmitted frequency: 2.4 to 2.4835 GHz
- Bandwidth: 20/40 MHz
- Frequency power: 802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm
- Card reading frequency: 13.56 MHz
- Alarm input: 4
- Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER: 1
- Exit button: 2
- RS-485: 1
- USB: /
- Wiegand: /
- TF card: Reserved
- Alarm output: /
- Lock control: 2 relays, Max. 30 VDC 2 A
- Door contact input: 2
- Button: 4 physical buttons
- Installation: Surface mounting
- Indicator: 3
- Weight: Net weight: 0.400 kg Gross weight: 0.658 kg
- Protective level: IP65, IK08
- Working temperature: -40 °C to 53 °C(-40 °F to 127.4 °F)
- Working humidity: 10% to 95% (no-condensing)
- Dimension (W × H × D): 174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
- Battery: /
- Application environment: Outdoor
- Power consumption: ＜ 10 W
- Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
