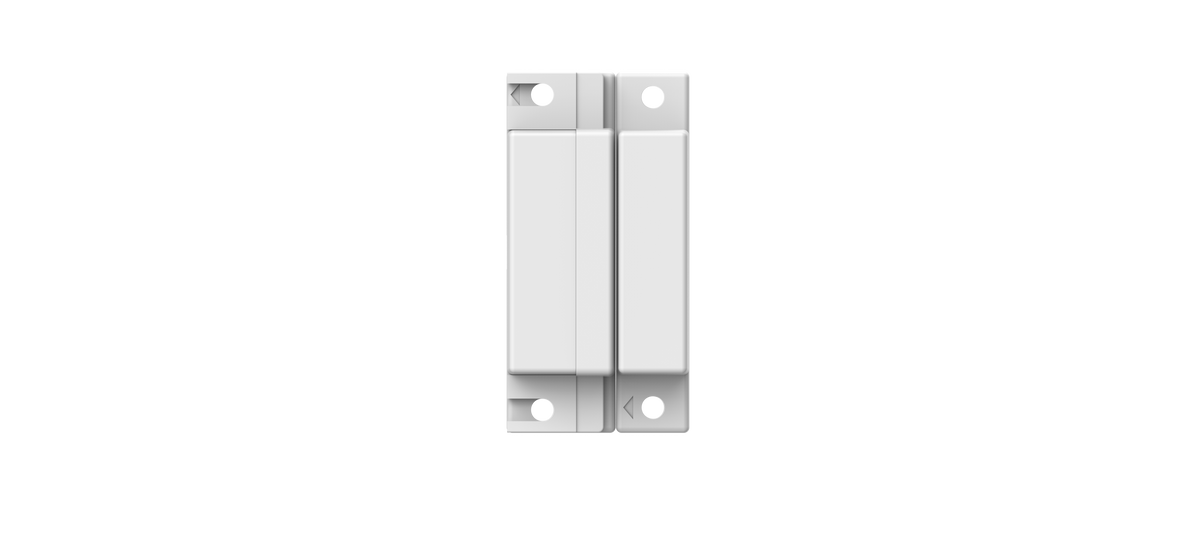

HIKVISION DS-PD1-MC-WS Surface mounted magnetic contact of plastic casing

HIKVISION DS-PD1-MC-WS Surface mounted magnetic contact of plastic casing

Category: Alarm
|
Brand: Hikvision
  • Alarm
  • Wired Intrusion Alarm
  • General Wired Detectors
  • ABS shell
  • Connection type: NC
  • Designed for the surface mounting on wood door
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HIKVISION DS-PD1-MC-WS Surface mounted magnetic contact of plastic casing
Login to View Price

Specifications

  • Detection Gap: ≥17
  • Alarm Output: Normally Closed
  • Typical Voltage: ≤100 VDC（Capacity）
  • Typical Current: ≤500 mA（Capacity）
  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Shell Material: Flame Retardant ABS
  • Dimension(WxHxD): 63.5mm x 12.5mm x 15.7mm 63.5mm x 12.5mm x 12.5mm

Detection Performance
  • Detection Gap: ≥17

Interface
  • Alarm Output: Normally Closed

Electrical Characteristics
  • Typical Voltage: ≤100 VDC（Capacity）
  • Typical Current: ≤500 mA（Capacity）

General
  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Shell Material: Flame Retardant ABS
  • Dimension(WxHxD): 63.5mm x 12.5mm x 15.7mm 63.5mm x 12.5mm x 12.5mm
