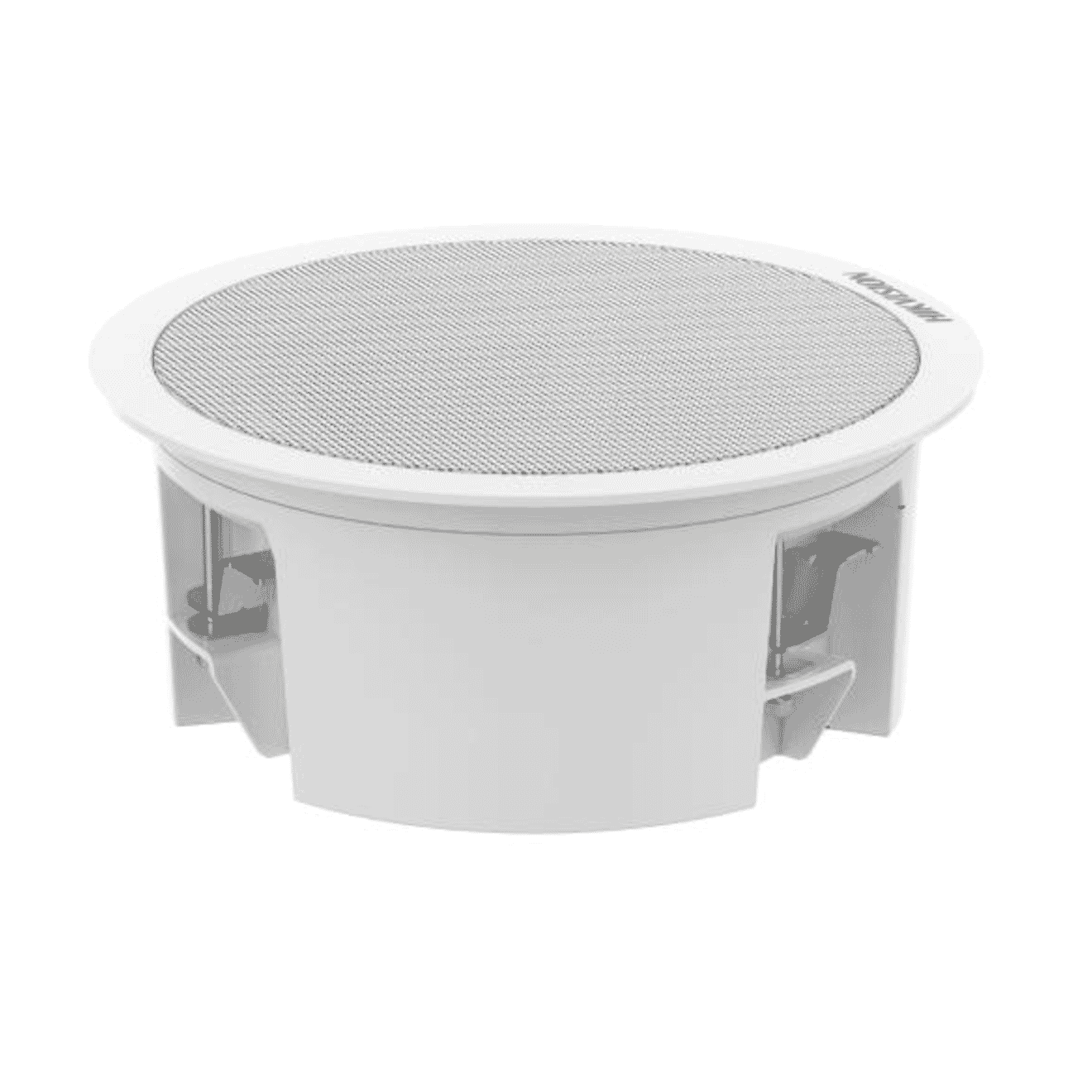

Hikvision DS-QAZ1206G1-BE 6 W Network Ceiling Speaker

Hikvision DS-QAZ1206G1-BE 6 W Network Ceiling Speaker

Category: Speaker
|
Brand: Hikvision
  • Speaker
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-QAZ1206G1-BE 6 W Network Ceiling Speaker
Login to View Price

Specifications

  • API: ISAPI, ISUP
  • SNR: 82 dB
  • Ethernet Interface: RJ45 10 M/100 M Adaptive Ethernet port x 1
  • Power: PoE: 802.3at:12 VDC/1.5 A
  • Dimension: Ø179 mm x 73.5 mm (Ø7.05" x 2.89") (Hole size: 160 mm）
  • Package Dimension: 255 mm x 243 mm x 175 mm (10.04" x 9.57" x 6.89")
  • Weight: Approx. 0.3 kg (0.66 lb.)
  • With Package Weight: Approx. 0.5 kg (1.1 lb.)
  • Language: 5 languages: English, French, Spanish, German, Italian
  • EMC: CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
  • Safety: CB: IEC 62368-1:2014CE-LVD: EN 62368-1:2014/A11:2017
  • Environment: CE-RoHS: 2011/65/EUWEEE: 2012/19/EUReach: Regulation (EC) No 1907/2006
  • Rated Power: 6 W
  • Impedance: 8 O
  • Max. Acoustic Pressure: 100 dBSPL
  • Sensitivity(1 m, 1 W): 93 dB
  • Direction: All directions
  • Frequency Response: 300 Hz to 15 kHz
  • Audio Algorithm: AEC、AGC、ANS、DRC
  • Audio Bit Rate: G.711ulaw (64 Kbps)/G.711alaw(64 Kbps)/MP3 (128 Kbps)
  • Audio File Format: MP3, WAV
  • NTP Timing: Support
  • Broadcast: Regular broadcast, live broadcast, emergency broadcast
  • Speech Synthesis: English
  • Network Protocol: IPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
  • Audio Function: Support digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality.
  • Communication Method: Support wired network and bluetooth communication
  • Local Storage: Built-in 4 GB EMMC (Audio file storage is 1 GB.)
  • Alarm: Alarm input x 2
  • Audio In: 3.5 mm audio interface x 1
  • Audio Out: fixed resistance output x 1:phoenix terminal:8 O*The primary speaker(6 W, 8 O) can be connected to a maximum of 1 secondary speaker(6 W, 8 O).
  • Material: Device body: plastic; Mesh cover: metal
  • Colour: White
  • Packing List: Device x 1Mesh cover x 1Regulatory Compliance and Safety Information x 1
  • Operating Temperature: -10 °C to 50 °C(14 °F to 122 °F)
  • Operating Humidity: :90% (No condensation)
  • RF: CE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G)RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory NoteIC ID: RSS-247(BT or 2.4G)ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018

Video
  • API: ISAPI, ISUP

  • SNR: 82 dB

Interface
  • Ethernet Interface: RJ45 10 M/100 M Adaptive Ethernet port x 1

General
  • Power: PoE: 802.3at:12 VDC/1.5 A
  • Dimension: Ø179 mm x 73.5 mm (Ø7.05" x 2.89") (Hole size: 160 mm）
  • Package Dimension: 255 mm x 243 mm x 175 mm (10.04" x 9.57" x 6.89")
  • Weight: Approx. 0.3 kg (0.66 lb.)
  • With Package Weight: Approx. 0.5 kg (1.1 lb.)
  • Language: 5 languages: English, French, Spanish, German, Italian

Approval
  • EMC: CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
  • Safety: CB: IEC 62368-1:2014CE-LVD: EN 62368-1:2014/A11:2017
  • Environment: CE-RoHS: 2011/65/EUWEEE: 2012/19/EUReach: Regulation (EC) No 1907/2006

Other
  • Rated Power: 6 W
  • Impedance: 8 O
  • Max. Acoustic Pressure: 100 dBSPL
  • Sensitivity(1 m, 1 W): 93 dB
  • Direction: All directions
  • Frequency Response: 300 Hz to 15 kHz
  • Audio Algorithm: AEC、AGC、ANS、DRC
  • Audio Bit Rate: G.711ulaw (64 Kbps)/G.711alaw(64 Kbps)/MP3 (128 Kbps)
  • Audio File Format: MP3, WAV
  • NTP Timing: Support
  • Broadcast: Regular broadcast, live broadcast, emergency broadcast
  • Speech Synthesis: English
  • Network Protocol: IPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
  • Audio Function: Support digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality.
  • Communication Method: Support wired network and bluetooth communication
  • Local Storage: Built-in 4 GB EMMC (Audio file storage is 1 GB.)
  • Alarm: Alarm input x 2
  • Audio In: 3.5 mm audio interface x 1
  • Audio Out: fixed resistance output x 1:phoenix terminal:8 O*The primary speaker(6 W, 8 O) can be connected to a maximum of 1 secondary speaker(6 W, 8 O).
  • Material: Device body: plastic; Mesh cover: metal
  • Colour: White
  • Packing List: Device x 1Mesh cover x 1Regulatory Compliance and Safety Information x 1
  • Operating Temperature: -10 °C to 50 °C(14 °F to 122 °F)
  • Operating Humidity: :90% (No condensation)
  • RF: CE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G)RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory NoteIC ID: RSS-247(BT or 2.4G)ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
