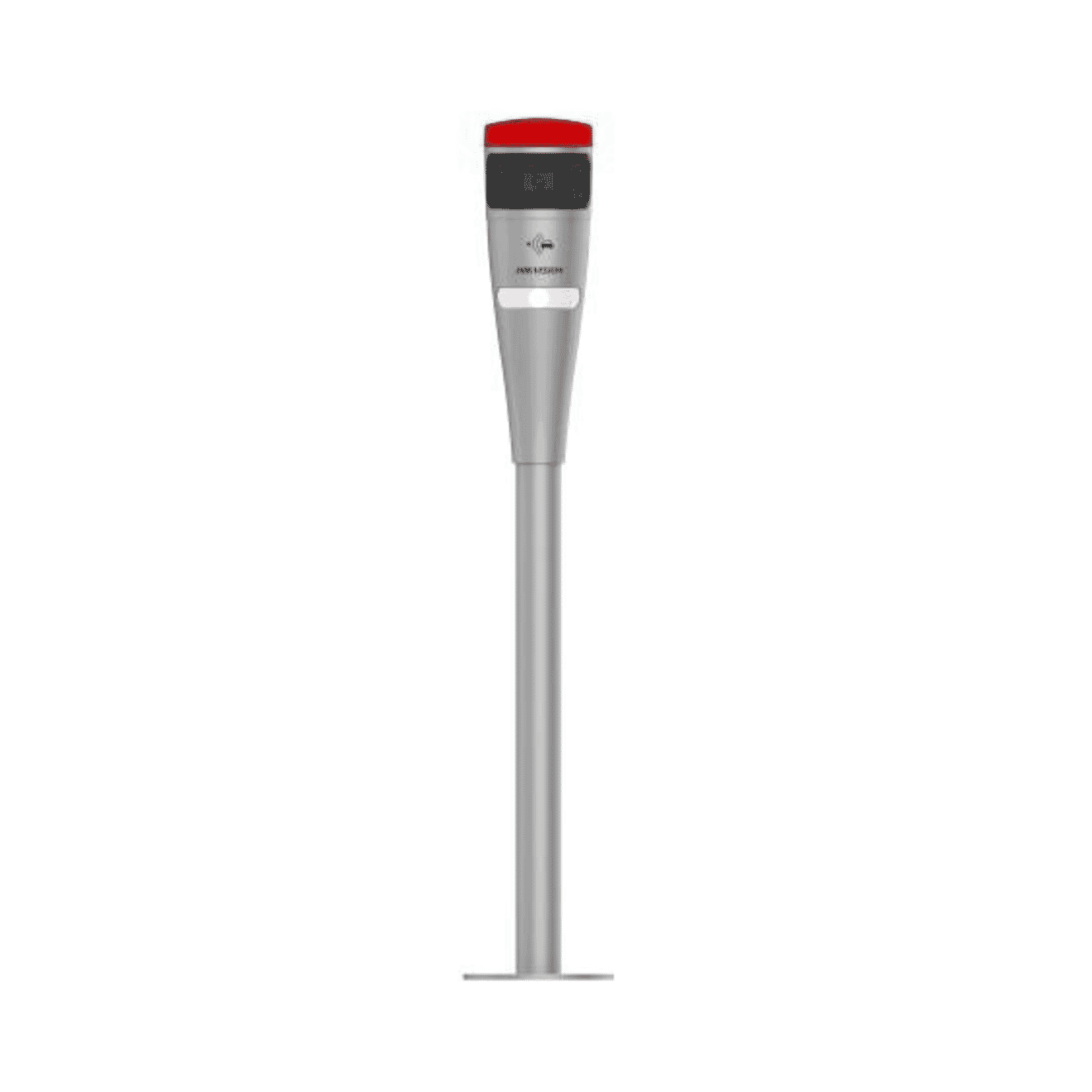

Hikvision DS-TCL400-E 2.8mm Parking Camera
Hikvision DS-TCL400-E 2.8mm Parking Camera
- IP CCTV
- 2MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-TCL400-E 2.8mm Parking Camera
Specifications
- Max. Resolution: 2688 x 1520
- Min. Illumination: Colour: 0.04 Lux (F1.6, AGC ON)B/W: 0.02 Lux (F1.6, AGC ON)
- Lens Type: 2.8mm
- Aperture: 2.8mm：F1.6
- Supplement Light Type: Warm White Light
- Supplement Light Range: 10m
- Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
- Sub-Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
- Video Compression: H.264/H.265/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Low profileMedium profileHigh Profile
- Scalable Video Coding (SVC): MJPEG , H.265 and H.264 encoding
- API: ONVIF(PROFILE S,PROFILE G), ISAPI, SDK
- Security: One-key restoration, password protection, watermark
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Client: HikCentral,SDKdemo,TPE400
- Web Browser: Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
- Image Settings: Saturation, brightness, contrast, white balance, and gain are adjustable by clientsoftware or web browser.
- Day/Night Switch: Auto/Scheduled/Manual
- Weight: 2 kg (4.4 lb.)
- Startup and Operating Conditions: Temperature: -20 °C to 70 °C (- 4°F to 158 °F)Humidity: 95% (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Protection: IP67
- Sensor Type: 1/1.8" Progressive Scan CMOS
- Shutter: 1/30 s to 1/100,000 s
- IR Cut Filter: IR cut filterBlue glass module to reduce ghost phenomenon
- Focal Length & FoV: 2.8 mm, horizontal FoV: 103.9°, vertical FoV: 56.2°, diagonal FoV: 123.5°
- Focus: Fixed
- WDR: 140db
- Defog: supported
- WDR Switch: On, Time, Brightness
- Frame Rate: 25fps
- ROI: 8 regions respectively for main stream and sub-stream, 6 levels for each region.
- Bit Rate Type: Constant, Variable
- Trigger Type: Parking Detection
- Picture Type: Scene Picture, Composition, Close-up Picture
- Scene Mode: Parallel Parking, Reverse Parking
- Capture Type: Checkpoint Capture
- Image Format: JPEG
- Capture Resolution: 2688*1520 (default)1920*1080,1280*720, 704*576,352*288
- Smart Recognition: License plate recognition, vehicle entering/exiting parking space status, parking space status detection, parking over spaces detection, parking over line detection
- Capture Picture Overlay: Location, shooting time, license plate number, shooting number, vehicle colour Vehicle type, etc
- Protocol: TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP
- RS-485: 1-ch RS-485 serial port
- Alarm Input: Not Supported
- Alarm Output: Not Supported
- RS-232: 1-ch RS-232 serial port
- Network Interface: 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface
- Memory Card Slot: Not Supported
- Power Supply: 12 to 24 VDCHik-PoE (with DS-TPM400）;12 to 24 VDC, wide voltage
- Working Temperature and Humidity: -20 °C to 70 °C (-4 °F to 158 °F)5% to 95% @ 40°C (non-condensing)
- Working Environment: 90% or less (non-condensing)
- Dimensions: 114.3 x 114.3 x 917.5 mm (4.5 x 4.5 x 36.1 inch)
- Power Consumption: Max. 10 W
- Weight (with Package): 3 kg (6.6 lb.)
- Dimensions (with Package): 150 x 150 x 1000 mm (5.9 x 5.9 x 39.3 inch)
- Storage Temperature and Humidity: Temperature: -20 °C to 70 °C (- 4°F to 158 °F)Humidity: 95% (non-condensing)
- ANPR Supported Country/Region: Middle East:The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, BahrainAfrica:Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, AlgeriaAsia-Pacific:Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, China, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri LankaAmerica:Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, GuatemalaEurope:Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and HerzegovinaSpeaking Regions:Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
