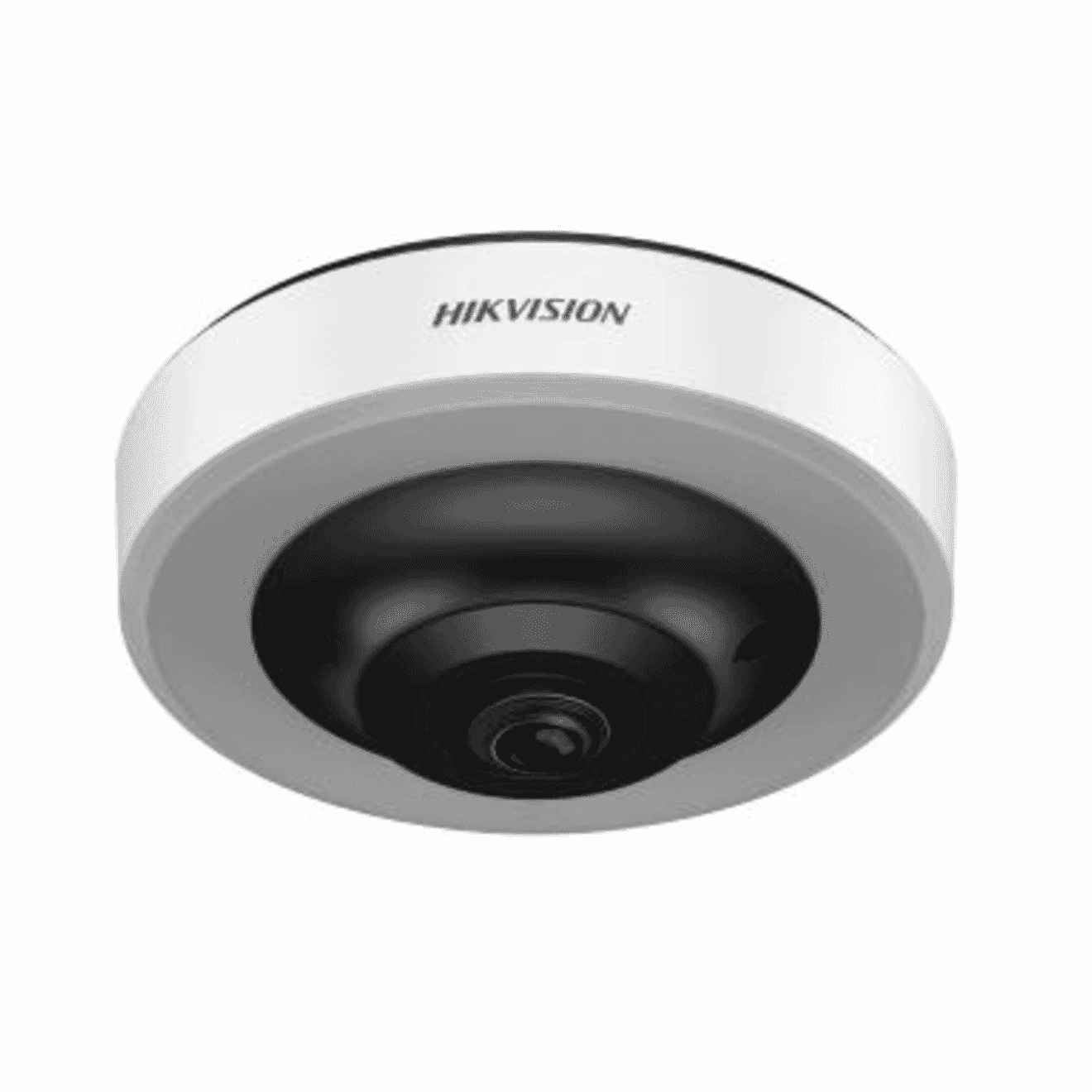

Hikvision DS-TCPC06-EP 12MP Fisheye Parking Camera
Hikvision DS-TCPC06-EP 12MP Fisheye Parking Camera
- IP CCTV
- 12MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-TCPC06-EP 12MP Fisheye Parking Camera
Specifications
- Max. Resolution: 4000 × 3000
- Min. Illumination: Color: 0.06 Lux @ (F2.2, AGC ON)B/W: 0.04 Lux @ (F2.2, AGC ON)
- Lens Type: 1.29 mm
- Aperture: 1.29 mm:F2.2
- Main Stream: Dual-channel: 50 Hz: 8.5 fps (3840 × 1440), 60 Hz: 7.5 fps (3840 × 1440);4-channel: 50 Hz: 8.5 fps (1920 × 1440), 60 Hz: 7.5 fps (1920 × 1440);1-channel (with 2 windows): 50 Hz: 8.5 fps (3840 × 2880), 60 Hz: 7.5 fps (3840 × 2880);1-channel (with 4 windows): 50 Hz: 8.5 fps (3840 × 2880), 60 Hz: 7.5 fps (3840 × 2880);Main Stream (configurable): 1280 × 1024, 1280 × 720, 704 × 576
- Sub-Stream: 1920 × 1080, 640 × 480
- Video Compression: H.265/H264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Low profileMedium profileHigh Profile
- Scalable Video Coding (SVC): MJPEG , H.265 and H.264 encoding
- API: ONVIF(PROFILE S,PROFILE G), ISAPI, SDK
- Security: One-key restoration, password protection, watermark
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Client: HikCentral,SDKdemo,DS-TPM400
- Web Browser: Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
- Image Settings: Saturation, brightness, contrast, white balance, and gain are adjustable by client,software or web browser.
- Day/Night Switch: Auto/Scheduled/Manual
- Weight: 0.15 kg (0.33 lb.)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Protection: IP67
- Number of Detected Parking Space: Max 16
- Sensor Type: 1/1.7" Progressive Scan CMOS
- Shutter: 1/75 to 1/58800 s
- Focal Length & FoV: 1.29 mm, horizontal FoV: 210°, vertical FoV: 210°, diagonal FoV: 210°
- Focus: Fixed
- WDR: 140db
- Defog: supported
- WDR Switch: On, Time, Brightness
- Frame Rate: 15fps
- ROI: 8 regions respectively for main stream and sub-stream, 6 levels for each region.
- Bit Rate Type: Constant, Variable
- Image Format: JPEG
- Capture Resolution: 3840*2880 (default)3840*1440, 1920*1440, 1920*1080,1920*1080
- Smart Recognition: vehicle entering/exiting parking space status, parking spacestatus detection,Intelligent Detection
- Capture Picture Overlay: Lane No., Capture Time, Anti-counterfeiting Code, Capture No., Vehicle Entry/Exit Direction, etc
- Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNSDDNS,RT,RTSP,RTCP,NTP,SNMP,OTAP,HIK-POE
- Audio: 1 × audio input and output port(s)
- Alarm Output: 2 × alarm output
- RS-485: 1 × RS485
- Network Interface: 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface
- Smart Detection: Up to 16 parking spaces status detection in dual-channel mode.
- Working Environment: 90% or less (non-condensing)
- Storage Temperature and Humidity: Temperature: -20 °C to 70 °C (- 4°F to 158 °F)Humidity: 95% (non-condensing)
- Working Temperature and Humidity: -20 °C to 70 °C (-4 °F to 158 °F)5% to 95% @ 40°C (non-condensing)
- Power Supply: PoE, or 12 to 24 VDC wide-range voltage
- Working Consumption: Max 5 W
- Dimensions: 133 × 133 × 86 mm (5.2 × 5.2 × 3.4 inch)
- Weight (with Package): 0.5 kg (1.1 lb.)
- Dimensions (with Package): 255× 175 × 130 mm (10 × 6.9 × 5.1 inch)
