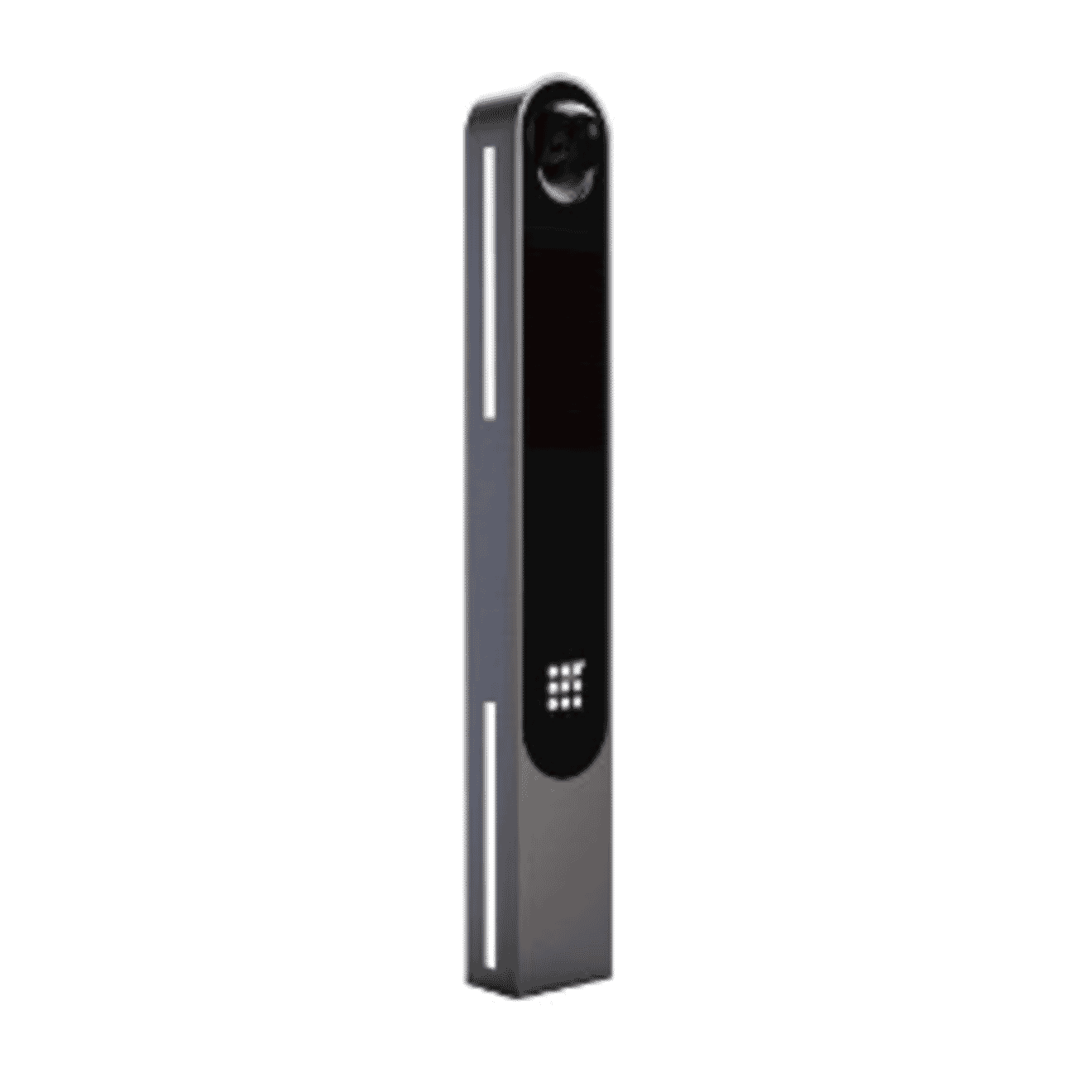

Hikvision DS-TMC403-E/WG/3106 4MP ANPR Camera (2688 × 1520 Resolution)

Hikvision DS-TMC403-E/WG/3106 4MP ANPR Camera (2688 × 1520 Resolution)

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-TMC403-E/WG/3106 4MP ANPR Camera (2688 × 1520 Resolution)
Login to View Price

Specifications

  • Max. Resolution: 2688*1520
  • Min. Illumination: Color: 0.022Lux@(F1.2, AGC ON)B/W: 0.011Lux@(F1.2, AGC ON)
  • Lens Type: 3.1 mm to 6 mm
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • Security: User Authentication, Heartbeat, NTP
  • Image Settings: Saturation: 0 to 100Brightness: 0 to 100Contrast: 0 to 100Gain: 0 to 1003D DNR: Off, Normal and Expert modes are selectable.White balance: White Balance 1 and White Balance 2 are selectable.
  • Day/Night Switch: Support
  • Sensor Type: 1/3" Progressive Scan CMOS
  • Shutter: 1/30 s to 1/100,000 s
  • Protocol: TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP Upload Pictures
  • Trigger Input: 2-ch triggered/alarm inputs
  • Trigger Output: 2-ch relay outputs, supporting rising of barrier gate boom pole
  • Communication Mode: 1 RJ45 10M/100M Ethernet port
  • RS-485: 1 RS-485 Port
  • Vehicle Type Recognition: ANPR
  • Working Temperature & Humidity: -25°C to 70°C (-13°F to 158°F)90% or less (non-condensing)
  • Power Supply: 220V AC
  • Working Consumption: 35W Max

Camera
  • Max. Resolution: 2688*1520
  • Min. Illumination: Color: 0.022Lux@(F1.2, AGC ON)B/W: 0.011Lux@(F1.2, AGC ON)

Lens
  • Lens Type: 3.1 mm to 6 mm

Video
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • Security: User Authentication, Heartbeat, NTP

  • Image Settings: Saturation: 0 to 100Brightness: 0 to 100Contrast: 0 to 100Gain: 0 to 1003D DNR: Off, Normal and Expert modes are selectable.White balance: White Balance 1 and White Balance 2 are selectable.
  • Day/Night Switch: Support

Other
  • Sensor Type: 1/3" Progressive Scan CMOS
  • Shutter: 1/30 s to 1/100,000 s
  • Protocol: TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP Upload Pictures
  • Trigger Input: 2-ch triggered/alarm inputs
  • Trigger Output: 2-ch relay outputs, supporting rising of barrier gate boom pole
  • Communication Mode: 1 RJ45 10M/100M Ethernet port
  • RS-485: 1 RS-485 Port
  • Vehicle Type Recognition: ANPR
  • Working Temperature & Humidity: -25°C to 70°C (-13°F to 158°F)90% or less (non-condensing)
  • Power Supply: 220V AC
  • Working Consumption: 35W Max
