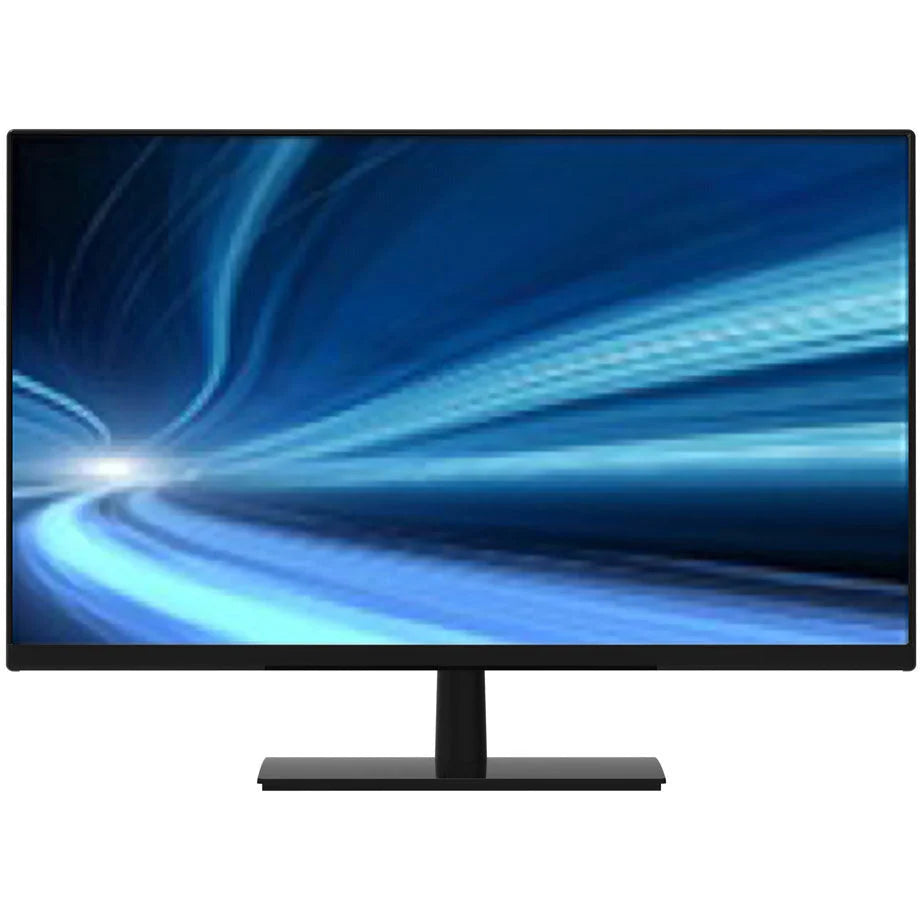

DS215AHDA-2 21.5" 1080P AHD/TVI/CVI In/Out. BNC In/Out,
DS215AHDA-2 21.5" 1080P AHD/TVI/CVI In/Out. BNC In/Out,
- Monitor
- Monitors
- Commercial Monitor
SPECIFICATION
| Panel Type | 21″ LED |
| Case Type | Plastic |
| Maximum Resolution | 1920 x 1080 |
| MTBF | 50000 hours |
| Active Display Area | 476.26 (H) x 267.61 (V)mm |
| Pixel Pitch | 0.24825 (H) x 0.24825 (V)mm |
| Bezel Thickness | Left/Right/Top 2mm Bottom 16mm |
| Contrast Ratio | 1000 : 1 Ratio |
| Brightness | 250 cd/ m² |
| Response Time | 5m.sec |
| Viewing Angle | 178 / 178 (H/V) |
| Display Colours | 16.7 M |
| Video Synchronization | Yes |
| PC Compatibility | N/A |
| Aspect Ratio | 16 : 9 Ratio |
| VGA Auto Frequency correction | No |
| Speakers | No |
| Number of Speakers | 0 |
| Sound Demodulation | No |
| Mute | N/A |
| Work Humidity | 5 % – 90 % |
| Work Temperature | 0 -40 °C |
| Volume +/- Power On/Off | Yes |
IN/OUT INTERFACE
| Video Interface | 2 x HD analogue BNC in (CVBS,AHD,CVI,TVI) 2 x HD analogue BNC out (CVBS,AHD,CVI,TVI) HDMI in |
| Audio Interface | No |
| Power Interface | DC in x1 |
| Termination | 75 Ohms |
| Safety & EMC Certification | CE, FCC-DOC, ROHS |
| Vesa Standard Mount | 100 x 100mm |
| Stand Type | Desk |
| Colour | Black |
| Button Position | Front, Bottom Right |
| Packing Dimension | 548x110x370mm |
| NET Weight | |
| GROSS Weight | 4.1 Kgs |
POWER
- Power Supply: 220/240 AC
- Voltage: 12vDC
- Power Consumption: <25W
OSD CONTROLS
Contrast, Brightness, Saturation, Hue, Language, OSD position, OSD Time, Reset
OSD LANGUAGE
English, French, German, Spanish, Italian, Dutch, Polish, Russian, Danish
ACCESSORIES
Power Cord, Adapter, Stand, Users Guide, HDMI Cable
-
