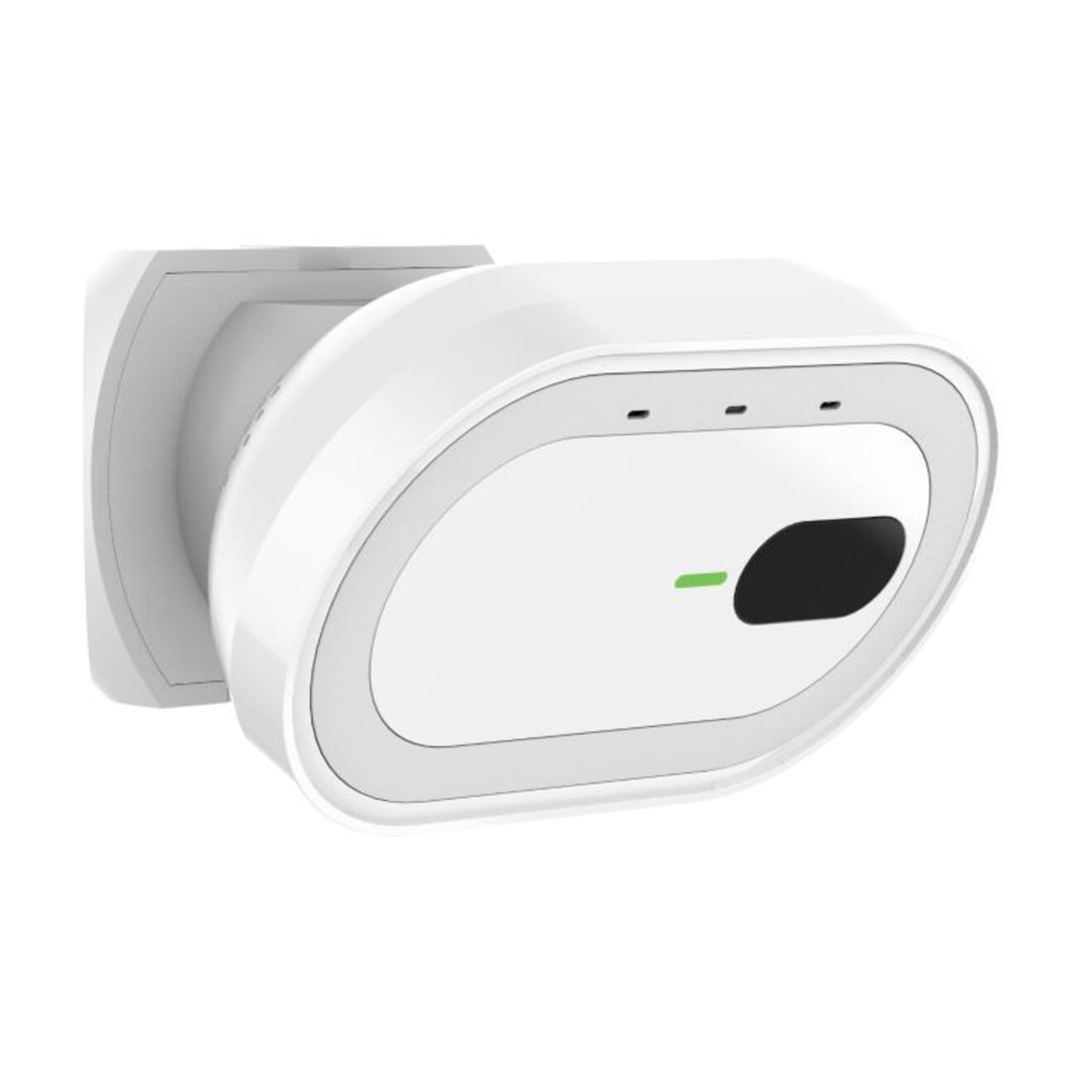

Hikvision HM-TD1018-1/QR Thermal Radar Presence Detector

Hikvision HM-TD1018-1/QR Thermal Radar Presence Detector

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision HM-TD1018-1/QR Thermal Radar Presence Detector
Login to View Price

Specifications

  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Aperture: F1.0
  • Main Stream: Thermal:25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
  • Video Compression: H.264/H.265/MJPEG, H.265/MJPEG encoding support Main Profile, H.264 support Baseline/Main/High Profile
  • Protocols: IPv4,HTTP,HTTPS,Qos,FTP,SNMP,DDNS,TCP,PPPoE,RTSP,UPnP
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
  • Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage
  • Client: iVMS-4200/EZVIZ/HIK-CONNCET/HIK-CENTRAL
  • Web Browser: Internet Explorer 11+, Chrome 18.0 +, Firefox 5.0 +, Safari5.02+
  • Reset Key: 1 reset button built in the motherboard
  • Weight: 0.38kg (0.84 lb)
  • EMC: EN55032
  • Resolution: 160 × 120
  • Pixel Pitch: 12 µm
  • Spectral Range: 8 µm to 14 µm
  • NETD: < 50 mK (25°C, F#=1.1)
  • Focal Length: 1.3 mm
  • Field of View: 90.0° (H)x65.2° (V)
  • Min. Focusing Distance: 0.01 m
  • Sub-stream: Thermal:25 fps (704 × 576, 352 × 288, 320 × 240)
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Output: 1, alarm output (alarm response actions configurable)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload
  • Audio Input: Built-In Mic
  • Audio Output: Built-In Speaker
  • Communication Interface: 1, RS-485 interface (half duplex)
  • Working Frequency Range: 60GHz ~64GHz
  • Modulation Waveform: FMCW
  • Capture Distance: 0.3 m-4m
  • Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: DC 12 V(±20%):0.5 A, max. 5WPoE (802.3af):36 V to 57 V, 0.17 A to 0.11 A, max. 6W
  • Working Temperature/Humidity: Temperature: -20°C to 50°C (-4°F to 122°F)Humidity: 95% or less
  • Protection Level: IP40
  • Dimensions: 130mm*102mm*75mm
  • Mount: Corner Mount

Camera
  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Lens
  • Aperture: F1.0

Video
  • Main Stream: Thermal:25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
  • Video Compression: H.264/H.265/MJPEG, H.265/MJPEG encoding support Main Profile, H.264 support Baseline/Main/High Profile
  • Protocols: IPv4,HTTP,HTTPS,Qos,FTP,SNMP,DDNS,TCP,PPPoE,RTSP,UPnP
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
  • Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage
  • Client: iVMS-4200/EZVIZ/HIK-CONNCET/HIK-CENTRAL
  • Web Browser: Internet Explorer 11+, Chrome 18.0 +, Firefox 5.0 +, Safari5.02+

Interface
  • Reset Key: 1 reset button built in the motherboard

General
  • Weight: 0.38kg (0.84 lb)

Approval
  • EMC: EN55032

Other
  • Resolution: 160 × 120
  • Pixel Pitch: 12 µm
  • Spectral Range: 8 µm to 14 µm
  • NETD: < 50 mK (25°C, F#=1.1)
  • Focal Length: 1.3 mm
  • Field of View: 90.0° (H)x65.2° (V)
  • Min. Focusing Distance: 0.01 m
  • Sub-stream: Thermal:25 fps (704 × 576, 352 × 288, 320 × 240)
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Output: 1, alarm output (alarm response actions configurable)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload
  • Audio Input: Built-In Mic
  • Audio Output: Built-In Speaker
  • Communication Interface: 1, RS-485 interface (half duplex)
  • Working Frequency Range: 60GHz ~64GHz
  • Modulation Waveform: FMCW
  • Capture Distance: 0.3 m-4m
  • Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: DC 12 V(±20%):0.5 A, max. 5WPoE (802.3af):36 V to 57 V, 0.17 A to 0.11 A, max. 6W
  • Working Temperature/Humidity: Temperature: -20°C to 50°C (-4°F to 122°F)Humidity: 95% or less
  • Protection Level: IP40
  • Dimensions: 130mm*102mm*75mm
  • Mount: Corner Mount
