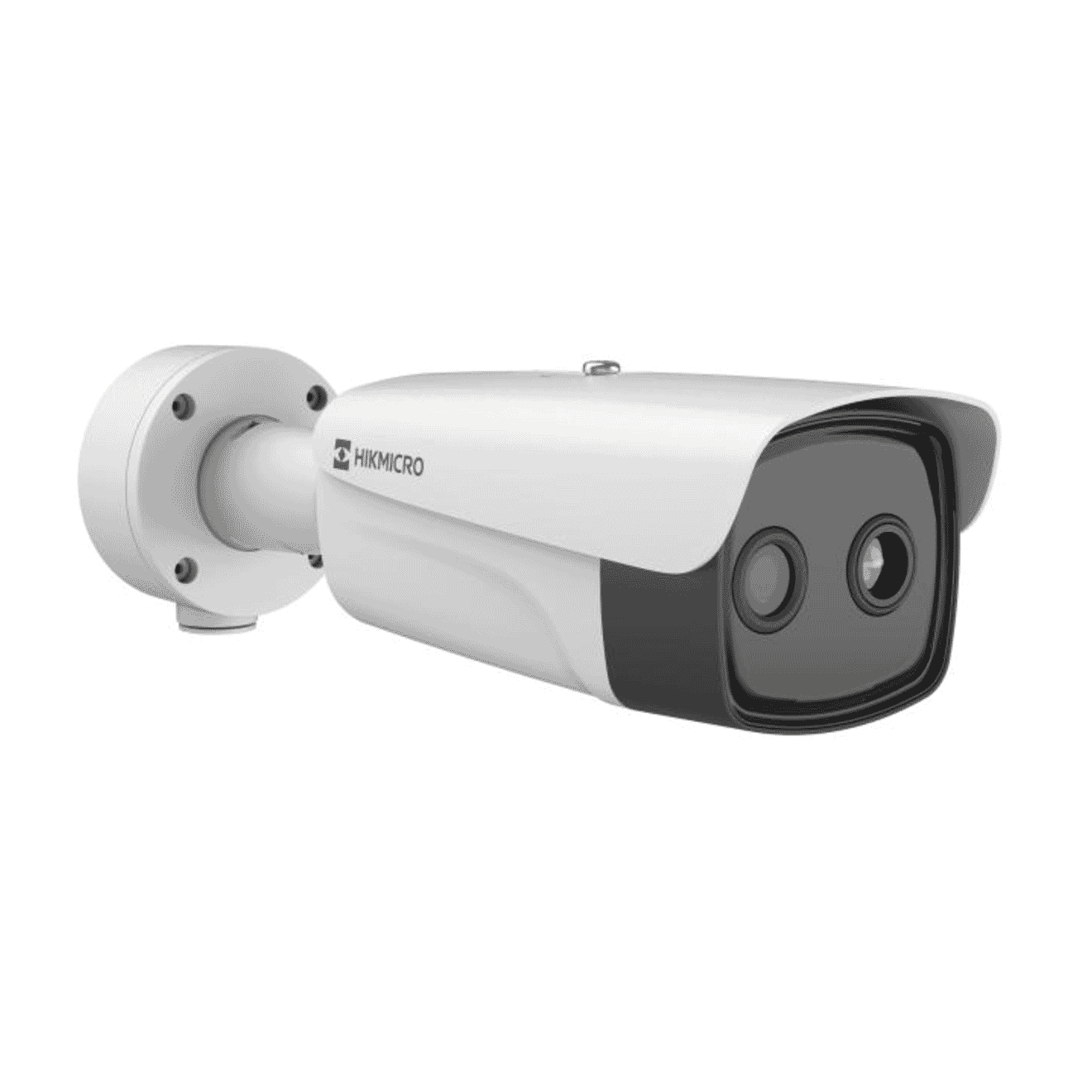

Hikvision HM-TD2668-25/G0/T1Y Thermal & Optical Bi-spectrum Network Bullet Camera

Hikvision HM-TD2668-25/G0/T1Y Thermal & Optical Bi-spectrum Network Bullet Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision HM-TD2668-25/G0/T1Y Thermal & Optical Bi-spectrum Network Bullet Camera
Login to View Price

Specifications

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Aperture: F1.0
  • Main Stream: Optical channel50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)Thermal channel25 fps (1280×720P, 704×576, 640×512,352×288)
  • Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect
  • Weight: 1.82 kg (4.01 lb)
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7)
  • Safety: CB: IEC 62368-1: 2014+A11;CE-LVD: EN 62368-1: 2014/A11: 2017;BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005LOA: SANS/IEC 60950-1
  • Environment: CE-RoHS:2011/65/EU,WEEE: 2012/19/EU,Reach:Regulation(EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013IK10: IEC 62262-2002
  • Resolution: 2688 × 1520
  • Pixel Pitch: 12 µm
  • NETD: = 20 mK (@25° C,F# = 1.0)
  • Focal Length: 8 mm
  • IFOV: 0.48 mrad
  • Field of View: 39.4° × 22° (H × V)
  • Min. Focusing Distance: 23 m
  • Digital Zoom: ×2, ×4,×8
  • Shutter Speed: 1 s to 1/100,000 s
  • White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night Mode: IR Cut Filter with Auto Switch
  • WDR: 120 dB
  • Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
  • Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
  • Target Coloration: Yes. Supported in white hot and black hot mode.
  • EIS: Thermal channel supports EIS, mutually exclusive with all smart functions except VCA function
  • IR Distance: Up to 75 m
  • IR Intensity and Angle: Automatically adjusted
  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy: ± 8 °C (±14.4 °F)
  • Fire Detection: Dynamic fire detection, up to 10 fire points detectable
  • Sub-stream: Optical channel50 HZ: 25 fps (704 × 576, 352 × 288)60 HZ: 30 fps (704 × 480, 352 × 240)Thermal channel25 fps (704 × 576, 640 × 512, 384 × 288)
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Color Palettes: 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2-ch relay outputs, alarm response actions configurable
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear level, impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
  • Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal blockPoE (802.3af, class 3)
  • Power Consumption: 24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.6 W12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.8 WPoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 12.3 W
  • Working Temperature/Humidity: Temperature: -40°C to 70°C (-40°F to 158°F)Humidity: 95% or less
  • Protection Level: IP67 StandardTVS 4000V lightning protection, surge protection, voltage transient protectionIK10-rated housingNEMA 4X anti-corrosion housing
  • Dimensions: 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
  • VCA Range for Humans: 325 m
  • VCA Range for Vehicles: 750 m
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR

Lens
  • Aperture: F1.0

Video
  • Main Stream: Optical channel50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)Thermal channel25 fps (1280×720P, 704×576, 640×512,352×288)
  • Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect

General
  • Weight: 1.82 kg (4.01 lb)

Approval
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7)
  • Safety: CB: IEC 62368-1: 2014+A11;CE-LVD: EN 62368-1: 2014/A11: 2017;BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005LOA: SANS/IEC 60950-1
  • Environment: CE-RoHS:2011/65/EU,WEEE: 2012/19/EU,Reach:Regulation(EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013IK10: IEC 62262-2002

Other
  • Resolution: 2688 × 1520
  • Pixel Pitch: 12 µm
  • NETD: = 20 mK (@25° C,F# = 1.0)
  • Focal Length: 8 mm
  • IFOV: 0.48 mrad
  • Field of View: 39.4° × 22° (H × V)
  • Min. Focusing Distance: 23 m
  • Digital Zoom: ×2, ×4,×8
  • Shutter Speed: 1 s to 1/100,000 s
  • White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night Mode: IR Cut Filter with Auto Switch
  • WDR: 120 dB
  • Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
  • Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
  • Target Coloration: Yes. Supported in white hot and black hot mode.
  • EIS: Thermal channel supports EIS, mutually exclusive with all smart functions except VCA function
  • IR Distance: Up to 75 m
  • IR Intensity and Angle: Automatically adjusted
  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy: ± 8 °C (±14.4 °F)
  • Fire Detection: Dynamic fire detection, up to 10 fire points detectable
  • Sub-stream: Optical channel50 HZ: 25 fps (704 × 576, 352 × 288)60 HZ: 30 fps (704 × 480, 352 × 240)Thermal channel25 fps (704 × 576, 640 × 512, 384 × 288)
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Color Palettes: 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2-ch relay outputs, alarm response actions configurable
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear level, impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
  • Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal blockPoE (802.3af, class 3)
  • Power Consumption: 24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.6 W12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.8 WPoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 12.3 W
  • Working Temperature/Humidity: Temperature: -40°C to 70°C (-40°F to 158°F)Humidity: 95% or less
  • Protection Level: IP67 StandardTVS 4000V lightning protection, surge protection, voltage transient protectionIK10-rated housingNEMA 4X anti-corrosion housing
  • Dimensions: 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
  • VCA Range for Humans: 325 m
  • VCA Range for Vehicles: 750 m
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
