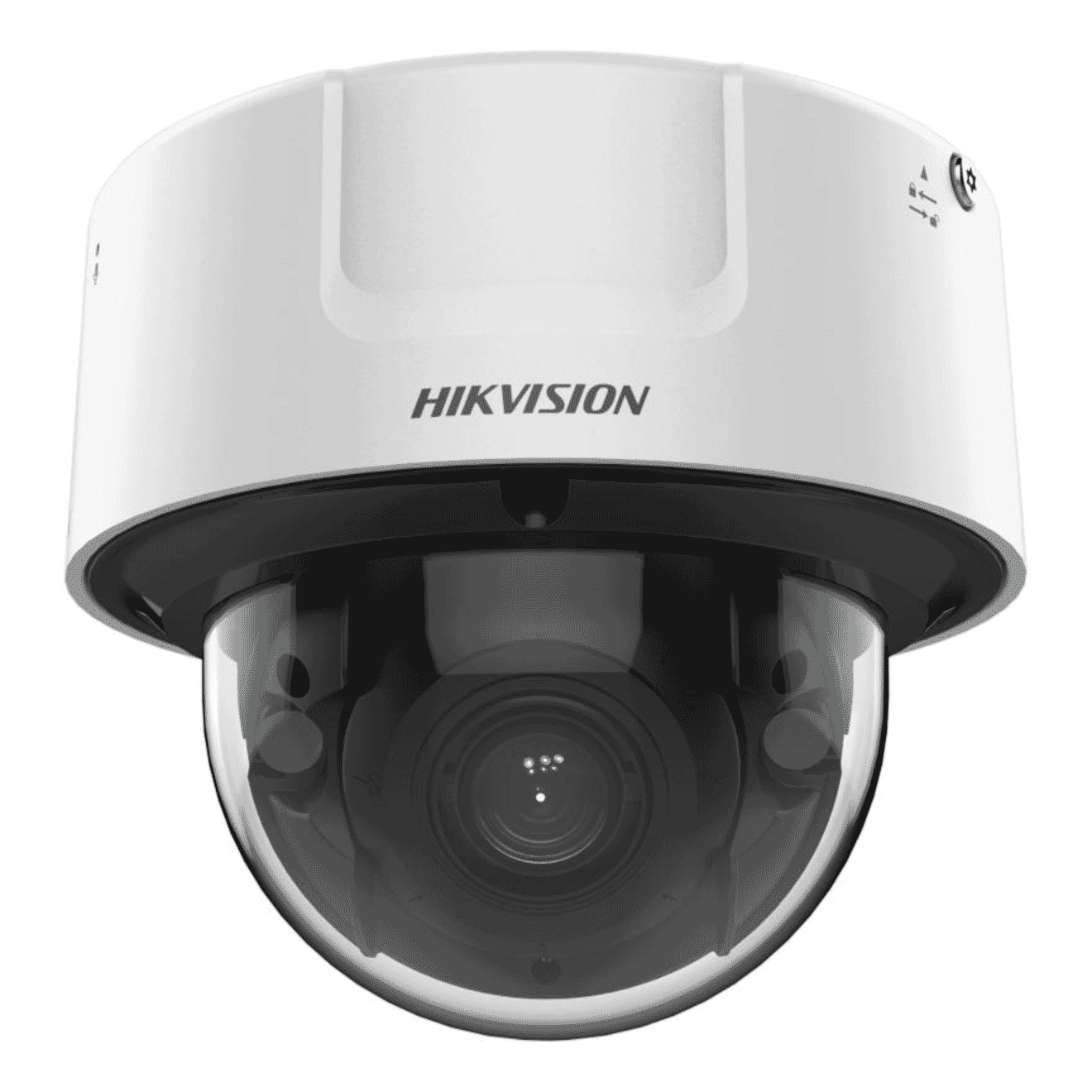

Hikvision iDS-2CD71C5G0-IZS (2.8-12mm) 5MP Varifocal Dome Camera DeepinView IR

Hikvision iDS-2CD71C5G0-IZS (2.8-12mm) 5MP Varifocal Dome Camera DeepinView IR

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 5MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision iDS-2CD71C5G0-IZS (2.8-12mm) 5MP Varifocal Dome Camera DeepinView IR
Login to View Price

Specifications

  • Image Sensor: 1/1.7" Progressive Scan CMOS
  • Max. Resolution: 4000 × 3000
  • Min. Illumination: Color: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 96° to 46.2°, vertical FOV 69.2° to 27.2°, diagonal FOV 131° to 45.2°8 to 32 mm, horizontal FOV 37.8° to 13.6°, vertical FOV 27.8° to 10.3°, diagonal FOV 48.6° to 17.4°
  • Lens Mount: Integrated
  • Aperture: 2.8 to 12 mm: F1.2 to 2.58 to 32 mm: F1.7 to F1.73
  • Supplement Light Range: 2.8 to 12 mm: 30 m8 to 32 mm: 50 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)50 Hz: 20 fps (4000 × 3000)60 Hz: 20 fps (4000 × 3000)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 4 fixed regions for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live View: Up to 20 channels
  • API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+
  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
  • Wide Dynamic Range (WDR): Digital WDR
  • SNR: =52 dB
  • Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
  • Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key: Yes
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, up to 4 lines configurableIntrusion detection, up to 4 regions configurableRegion entrance detection, up to 4 regions configurableRegion exiting detection, up to 4 regions configurableUnattended baggage detection, up to 4 regions configurableObject removal detection, up to 4 regions configurableScene change detection, audio exception detection, defocus detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger captureTrigger recording: memory card, network storage, pre-record and post-recordTrigger captured pictures uploading: FTP, SFTP, HTTP, NAS, EmailTrigger notification: HTTP, ISAPI, alarm output, Email
  • Face Capture: Detects up to 30 faces simultaneously;Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;Up to 3 face libraries with up to 30000 faces each are configurable;Recognizes face identity via face modeling, grading and comparing to those in face library;Supports face library encryption.
  • Power: 12 VDC ± 20%, 0.83 A, max. 9.96 W, two-core terminal block, reverse polarity protection24 VAC ± 20%, 0.85 A, max. 12 WPoE: IEEE 802.3af, 36 V to 57 V, 0.35 A to 0.21 A, max. 12 W
  • Dimension: Ø140.5 mm × 122.6 mm (Ø5.5" × 4.8")
  • Package Dimension: 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
  • Weight: Approx. 950 g (2.1 lb.)
  • With Package Weight: Approx. 1300 g (2.9 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IK10(IEC 62262:2002)
  • Focus: Auto, semi-auto, manual
  • Fourth Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Custom Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Target Cropping: Yes
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/8 to 320 Kbps (MP3)
  • Audio Type: Mono sound
  • Smooth Streaming: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
  • Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
  • Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KO, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 O, interface type: non-equilibrium, mono sound,1 built-in microphone
  • RS-485: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Video Output: 1 Vp-p Composite Output(75O/CVBS)(Only for Debug)
  • Power Output: 12 VDC, max. 100 mA (supported by all power supply types)
  • Multi-target-type Detection: Supports simultaneous detection of human body and faceGets 8 face features and 13 human body features
  • People Counting: Yes
  • Queue Management: Detects queuing-up people number, and waiting time of each personGenerates reports to compare the efficiency of different queuing-ups and display the changing status of one queueSupports raw data export for further analysis
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
  • Metadata: Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.
  • Material: Aluminum alloy body

Camera
  • Image Sensor: 1/1.7" Progressive Scan CMOS
  • Max. Resolution: 4000 × 3000
  • Min. Illumination: Color: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 96° to 46.2°, vertical FOV 69.2° to 27.2°, diagonal FOV 131° to 45.2°8 to 32 mm, horizontal FOV 37.8° to 13.6°, vertical FOV 27.8° to 10.3°, diagonal FOV 48.6° to 17.4°
  • Lens Mount: Integrated
  • Aperture: 2.8 to 12 mm: F1.2 to 2.58 to 32 mm: F1.7 to F1.73

Illuminator
  • Supplement Light Range: 2.8 to 12 mm: 30 m8 to 32 mm: 50 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)50 Hz: 20 fps (4000 × 3000)60 Hz: 20 fps (4000 × 3000)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 4 fixed regions for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live View: Up to 20 channels
  • API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+

  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
  • Wide Dynamic Range (WDR): Digital WDR
  • SNR: =52 dB
  • Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, up to 4 lines configurableIntrusion detection, up to 4 regions configurableRegion entrance detection, up to 4 regions configurableRegion exiting detection, up to 4 regions configurableUnattended baggage detection, up to 4 regions configurableObject removal detection, up to 4 regions configurableScene change detection, audio exception detection, defocus detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger captureTrigger recording: memory card, network storage, pre-record and post-recordTrigger captured pictures uploading: FTP, SFTP, HTTP, NAS, EmailTrigger notification: HTTP, ISAPI, alarm output, Email

Deep Learning Function
  • Face Capture: Detects up to 30 faces simultaneously;Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;Up to 3 face libraries with up to 30000 faces each are configurable;Recognizes face identity via face modeling, grading and comparing to those in face library;Supports face library encryption.

General
  • Power: 12 VDC ± 20%, 0.83 A, max. 9.96 W, two-core terminal block, reverse polarity protection24 VAC ± 20%, 0.85 A, max. 12 WPoE: IEEE 802.3af, 36 V to 57 V, 0.35 A to 0.21 A, max. 12 W
  • Dimension: Ø140.5 mm × 122.6 mm (Ø5.5" × 4.8")
  • Package Dimension: 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
  • Weight: Approx. 950 g (2.1 lb.)
  • With Package Weight: Approx. 1300 g (2.9 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IK10(IEC 62262:2002)

Other
  • Focus: Auto, semi-auto, manual
  • Fourth Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Custom Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Target Cropping: Yes
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/8 to 320 Kbps (MP3)
  • Audio Type: Mono sound
  • Smooth Streaming: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
  • Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
  • Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KO, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 O, interface type: non-equilibrium, mono sound,1 built-in microphone
  • RS-485: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Video Output: 1 Vp-p Composite Output(75O/CVBS)(Only for Debug)
  • Power Output: 12 VDC, max. 100 mA (supported by all power supply types)
  • Multi-target-type Detection: Supports simultaneous detection of human body and faceGets 8 face features and 13 human body features
  • People Counting: Yes
  • Queue Management: Detects queuing-up people number, and waiting time of each personGenerates reports to compare the efficiency of different queuing-ups and display the changing status of one queueSupports raw data export for further analysis
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
  • Metadata: Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.
  • Material: Aluminum alloy body
