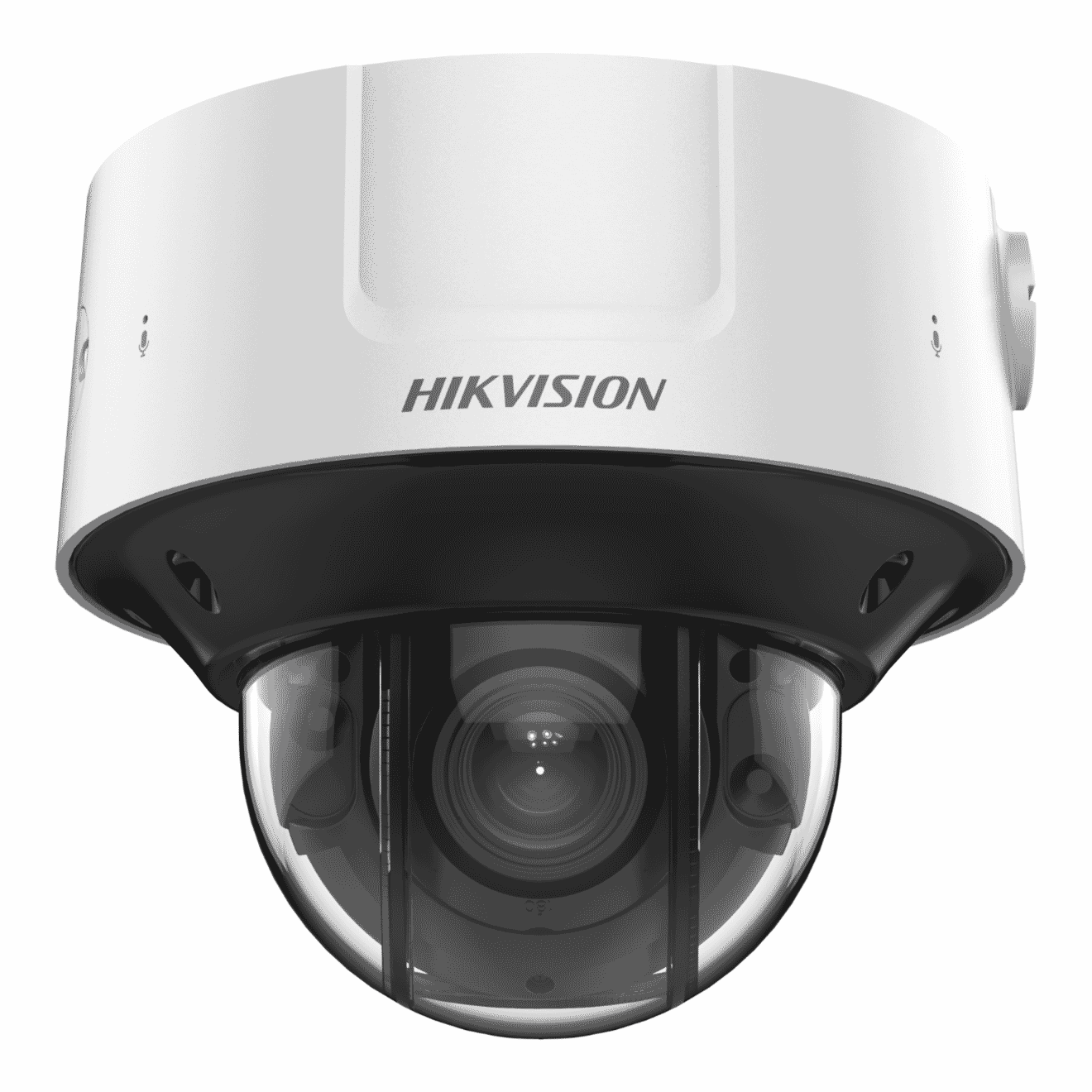

Hikvision iDS-2CD7546G0-IZHS(2.8-12mm)(C) 4MP AI Varifocal Dome Camera
Hikvision iDS-2CD7546G0-IZHS(2.8-12mm)(C) 4MP AI Varifocal Dome Camera
- IP CCTV
- 4MP
- Verifocal
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision iDS-2CD7546G0-IZHS(2.8-12mm)(C) 4MP AI Varifocal Dome Camera
Specifications
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 2560 x 1440
- Min. Illumination: Colour: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filterBlue glass module to reduce ghost phenomenon
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Focal Length & FOV: 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
- Iris Type: P-iris
- Aperture: 2.8 to 12 mm: F1.2 to F2.5
- DORI: Wide:D: 60 m, O: 23.8 m, R: 12 m, I: 6 mTele:D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
- Supplement Light Type: IR
- Supplement Light Range: 2.8 to 12 mm: 30 m8 to 32 mm: 50 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 50 fps (2560 x 1440, 1920 x 1080, 1280 x 720)60 Hz: 60 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
- Sub-Stream: 50 Hz: 25 fps (704 x 480, 640 x 480)60 Hz: 30 fps (704 x 480, 640 x 480)
- Third Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 4 fixed region(s) for each stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, Hik-Connect
- Web Browser: Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+Not recommended: Safari 11+, Edge
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR): 140 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, Defog, 3D DNR
- Privacy Mask: 8 programmable polygon privacy masks, mask color or mosaic configurable
- Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Reset Key: Yes
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
- Face Capture: 1. Detects up to 60 faces simultaneously2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°3. Uploads face with background and closed-up face pictures
- Power: 12 VDC ± 20%, 1.23 A, max. 14.7 W, two-core terminal block;24 VAC ± 20%, 0.91 A, max. 13.7 W, two-core terminal block;PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.27 A to 0.36A, max. 15.0 W
- Dimension: Ø162 x 141.8 mm (Ø6.4" x 5.6")
- Package Dimension: 251 x 215 x 189 mm (9.9" x 8.5" x 7.4")
- Weight: approx. 1490 g (3.28 lb.)
- With Package Weight: approx. 2435 g (5.37 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams
- EMC: FCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 62368-1)CB (IEC 62368-1:2014+A11)CE-LVD (EN 62368-1:2014/A11:2017)BIS (IS 13252(Part 1):2010/IEC 60950-1: 2005)LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
- Protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
- Focus: Auto, semi-auto, manual
- Model Specification: Up to 4 models,Model type: detection model, classification model, mixed model (detection model and classification model)
- Fourth Stream: 50 Hz: 25 fps (704 x 480, 640 x 480)60 Hz: 30 fps (704 x 480, 640 x 480)
- Fifth Stream: 50 Hz: 25 fps (704 x 480, 640 x 480)60 Hz: 30 fps (704 x 480, 640 x 480)
- Target Cropping: Yes
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Image Stabilization: EIS
- Picture Overlay: LOGO picture can be overlaid on video with 128 x 128 24bit bmp format
- Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Audio: 1 input (line in), 1 output (line out), 3.5 mm connector,2 built-in microphones
- Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
- RS-485: With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Power Output: 12 VDC, max. 100 mA
- Multi-target-type Detection: Supports simultaneous detection and capture of human body, face and vehicleGets 7 face features, 13 human body features and 2 vehicle features
- Face Comparison: Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.Supports face library encryption
- Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
- Heat Map: A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,Two report types are available, space heat map and time heat map line chart.
- Queue Management: Supports up to 8 detection regions, and independent arming schedule and linkage methodSupports 2 detection modes: regional people queuing-up, waiting time detectionGenerates reports to compare the efficiency of different queuing-ups and display the changing status of one queueSupports raw data export for further analysis.Supports real-time data uploading and scheduled data uploadingRegional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to thresholdWaiting time detection: supports 1 alarm trigger condition, including greater than threshold
- People Counting: Supports crossline people counting.,Supports counting, displaying and exporting the people flow data of entering and exiting. (The data is stored in the flash.),The real-time people flow data is displayed on the screen. ,Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°.,Uploads face with background and closed-up face picture.,Supports real-time uploading and uploading by statistic cycle
- Hard Hat Detection: Detects up to 30 human targets simultaneouslySupports up to 4 shield regions
- Metadata: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, face capture, multi-target-type detection
- Regional People Counting: Supports up to 8 detection regions, and independent arming schedule and linkage methodSupports 3 detection modes: people density detection, number of people exception detection, waiting time exception detectionSupports parameter settings: alarm times per exception, alarm interval, first alarm delaySupports searching real-time number of peoplePeople density detection: supports scheduled uploading, number of people change uploading, congestion level uploadingNumber of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
- On/Off Duty Detection: Supports up to 8 detection regions, and independent arming schedule and linkage methodSupports 2 detection modes: absence detection, on/off duty detectionSupports parameter settings: person on duty, absence duration
- Heater: Yes
- Anti-Corrosion Protection: With -Y: NEMA 4X (NEMA 250-2018)
- Automotive and Railway: EN50121-4
- Other: PVC FREE
