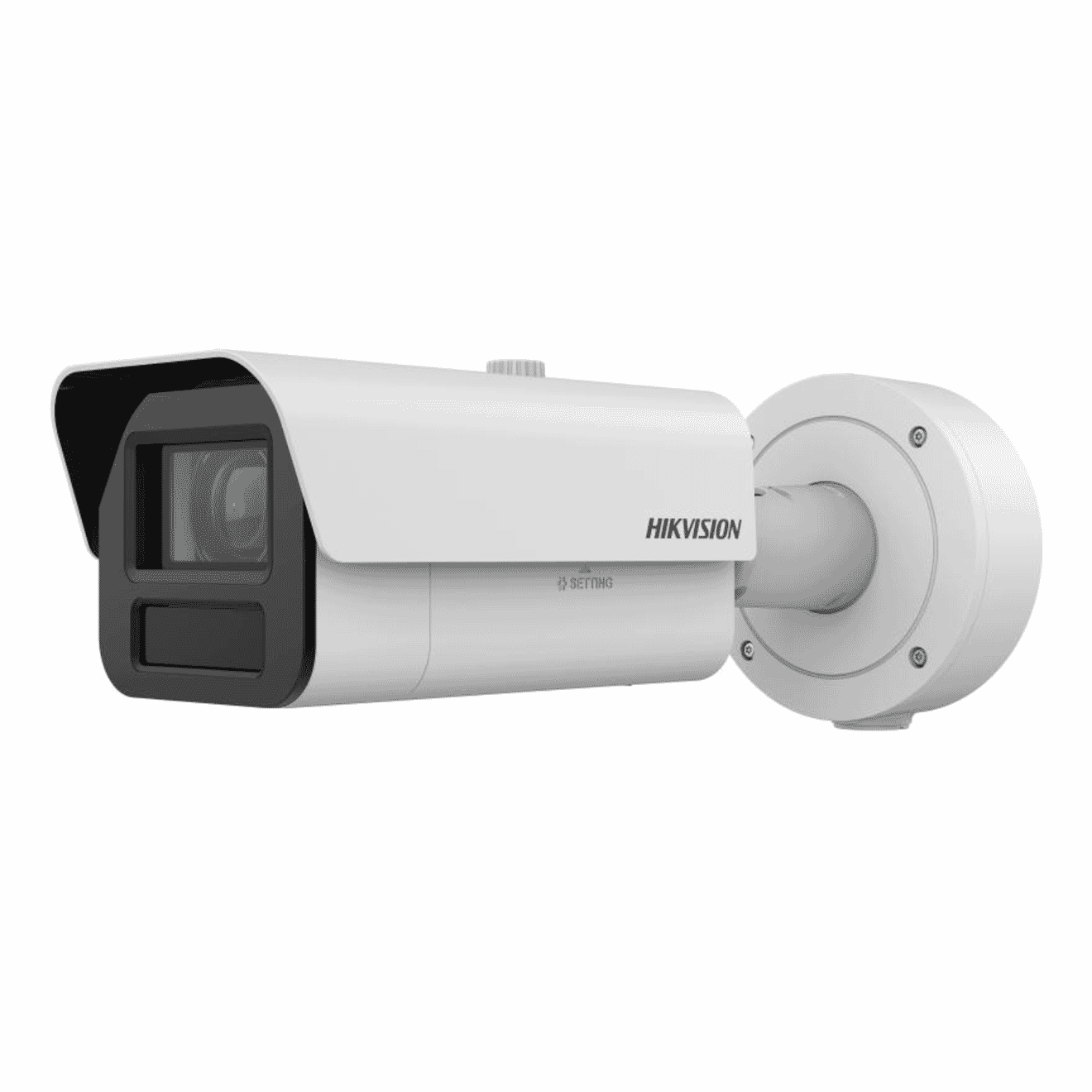

Hikvision iDS-2CD7A45G0/P-IZHSY(4.7-118mm)(UK) 4MP ANPR DeepinView IP Camera CCTV

Hikvision iDS-2CD7A45G0/P-IZHSY(4.7-118mm)(UK) 4MP ANPR DeepinView IP Camera CCTV

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision iDS-2CD7A45G0/P-IZHSY(4.7-118mm)(UK) 4MP ANPR DeepinView IP Camera CCTV
Login to View Price

Specifications

  • Image Sensor: 1/2.5" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: 1 s to 1/30,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Focal Length & FOV: 4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3°
  • Iris Type: P-iris
  • Aperture: 4.7 to 118 mm: F1.6 to F3.8
  • DORI: Wide: D (Detect): 106 m, O (Observe): 42.1 m, R (Recognize): 21.2 m, I (Identify): 10.6 mTele: D (Detect): 2200 m, O (Observe): 873 m, R (Recognize): 440 m, I (Identify): 220 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 200 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz:25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz:30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 4 fixed regions for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
  • Wide Dynamic Range (WDR): 140 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog
  • Privacy Mask: 8 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Reset Key: Yes
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
  • Smart Event: scene change detection,audio exception detection,defocus detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Power: -IZHSY:12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal blockPoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W-IZHS:12 VDC ± 20%, 1.62 A, max. 19.4 W, two-core terminal block24 VAC ± 20%, 1.21 A, max. 18.7 W, two-core terminal blockPoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18.2 W
  • Dimension: With -Y: Ø140 mm × 378.4 mm (Ø5.5" × 14.9\")Without -Y: Ø144.1 mm × 375.2 mm (Ø5.7 × 14.8\")"
  • Package Dimension: 425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
  • Weight: With -Y: Approx. 2160 g (4.8 lb.)Without -Y: Approx. 2130 g (4.7 lb.)
  • With Package Weight: With -Y: Approx. 3310 g (7.3 lb.)Without -Y: Approx. 3200 g (7.1 lb.)
  • Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter
  • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Focus: Auto,Semi-auto,Manual
  • Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Target Cropping: Yes
  • e-PTZ: Support Patrol and Auto Tracking settings
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Type: Mono sound
  • Environment Noise Filtering: Yes
  • Image Stabilization: EIS (Built-in gyroscope to improve EIS performance)
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Video Output: 1 Vp-p Composite Output (75 O/CVBS) (Only for debugging)
  • Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • RS-485: -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Power Output: -Y: 12 VDC, max. 100 mA
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggering
  • Metadata: Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
  • Road Traffic and Vehicle Detection: Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate =98%Capture rate =99%Driving direction accuracy rate =98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • Parking Management: Support distant view mode and close view modeDistant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarmClose view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
  • Material: Aluminum alloy body
  • Heater: Yes
  • De-icing: Yes
  • Device Management: Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
  • Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
  • Other: PVC FREE

Camera
  • Image Sensor: 1/2.5" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: 1 s to 1/30,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
  • Focal Length & FOV: 4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3°
  • Iris Type: P-iris
  • Aperture: 4.7 to 118 mm: F1.6 to F3.8

DORI
  • DORI: Wide: D (Detect): 106 m, O (Observe): 42.1 m, R (Recognize): 21.2 m, I (Identify): 10.6 mTele: D (Detect): 2200 m, O (Observe): 873 m, R (Recognize): 440 m, I (Identify): 220 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 200 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz:25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz:30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 4 fixed regions for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
  • Wide Dynamic Range (WDR): 140 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog
  • Privacy Mask: 8 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
  • Smart Event: scene change detection,audio exception detection,defocus detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

General
  • Power: -IZHSY:12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal blockPoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W-IZHS:12 VDC ± 20%, 1.62 A, max. 19.4 W, two-core terminal block24 VAC ± 20%, 1.21 A, max. 18.7 W, two-core terminal blockPoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18.2 W
  • Dimension: With -Y: Ø140 mm × 378.4 mm (Ø5.5" × 14.9\")Without -Y: Ø144.1 mm × 375.2 mm (Ø5.7 × 14.8\")"
  • Package Dimension: 425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
  • Weight: With -Y: Approx. 2160 g (4.8 lb.)Without -Y: Approx. 2130 g (4.7 lb.)
  • With Package Weight: With -Y: Approx. 3310 g (7.3 lb.)Without -Y: Approx. 3200 g (7.1 lb.)
  • Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter

Approval
  • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002

Other
  • Focus: Auto,Semi-auto,Manual
  • Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Target Cropping: Yes
  • e-PTZ: Support Patrol and Auto Tracking settings
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Type: Mono sound
  • Environment Noise Filtering: Yes
  • Image Stabilization: EIS (Built-in gyroscope to improve EIS performance)
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Video Output: 1 Vp-p Composite Output (75 O/CVBS) (Only for debugging)
  • Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • RS-485: -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Power Output: -Y: 12 VDC, max. 100 mA
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggering
  • Metadata: Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
  • Road Traffic and Vehicle Detection: Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate =98%Capture rate =99%Driving direction accuracy rate =98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • Parking Management: Support distant view mode and close view modeDistant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarmClose view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
  • Material: Aluminum alloy body
  • Heater: Yes
  • De-icing: Yes
  • Device Management: Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
  • Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
  • Other: PVC FREE

Resources

Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.

Need additional support? Visit our

documentation center or contact support
