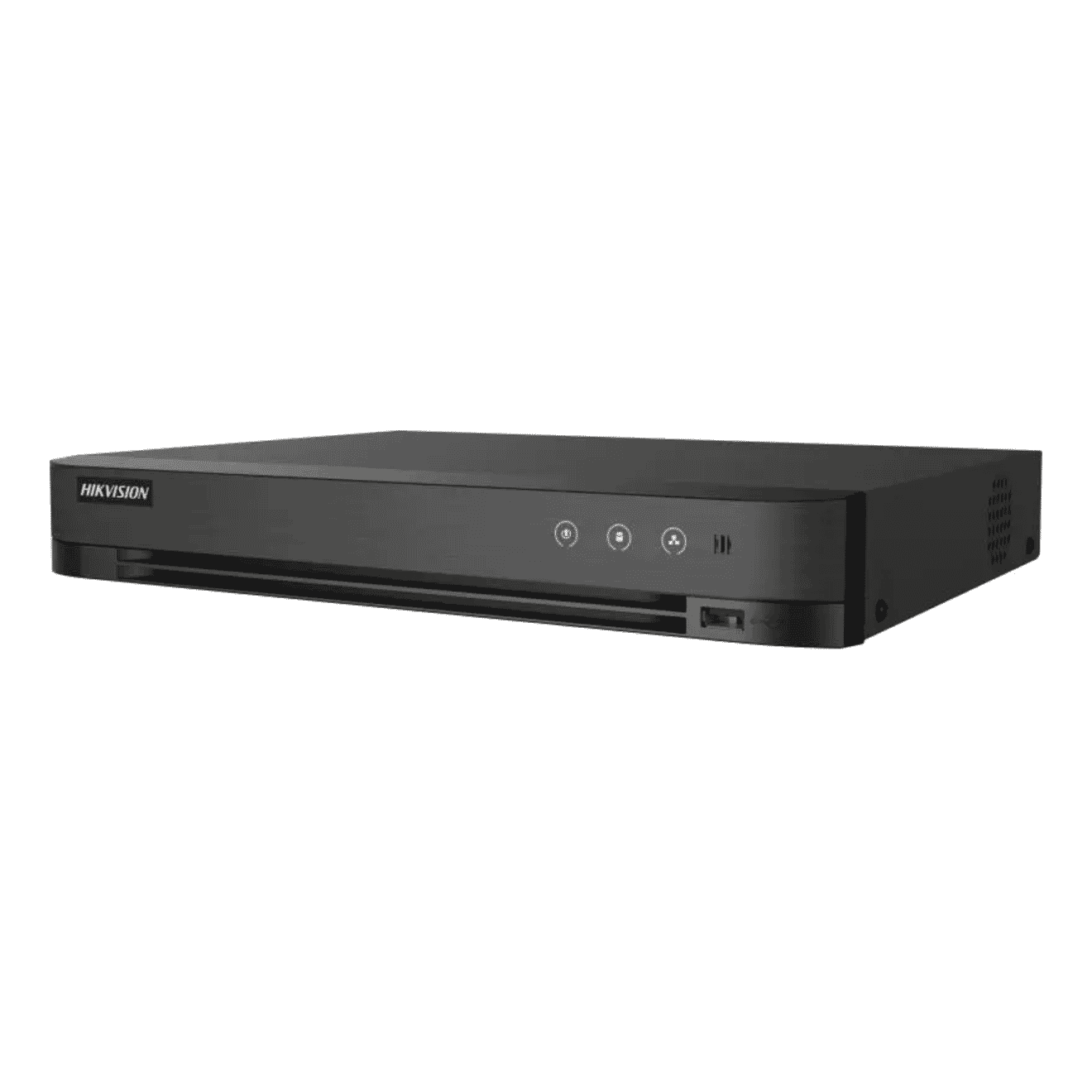

Hikvision iDS-7204HTHI-M1/P(C) 4-Channel Turbo HD DVR

Hikvision iDS-7204HTHI-M1/P(C) 4-Channel Turbo HD DVR

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 8MP
  • 4CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision iDS-7204HTHI-M1/P(C) 4-Channel Turbo HD DVR
Login to View Price

Specifications

  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
  • Line Crossing Detection/Intrusion Detection: 4-ch
  • Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream: 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps(N)Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 16 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • IP Video Input: 4-ch (up to 8-ch) Up to 8 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • Total Bandwidth: 96 Mbps
  • HDMI Output: 1-ch, 4K (3840

Video
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Other
  • Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
  • Line Crossing Detection/Intrusion Detection: 4-ch
  • Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream: 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps(N)Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 16 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • IP Video Input: 4-ch (up to 8-ch) Up to 8 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • Total Bandwidth: 96 Mbps
  • HDMI Output: 1-ch, 4K (3840
