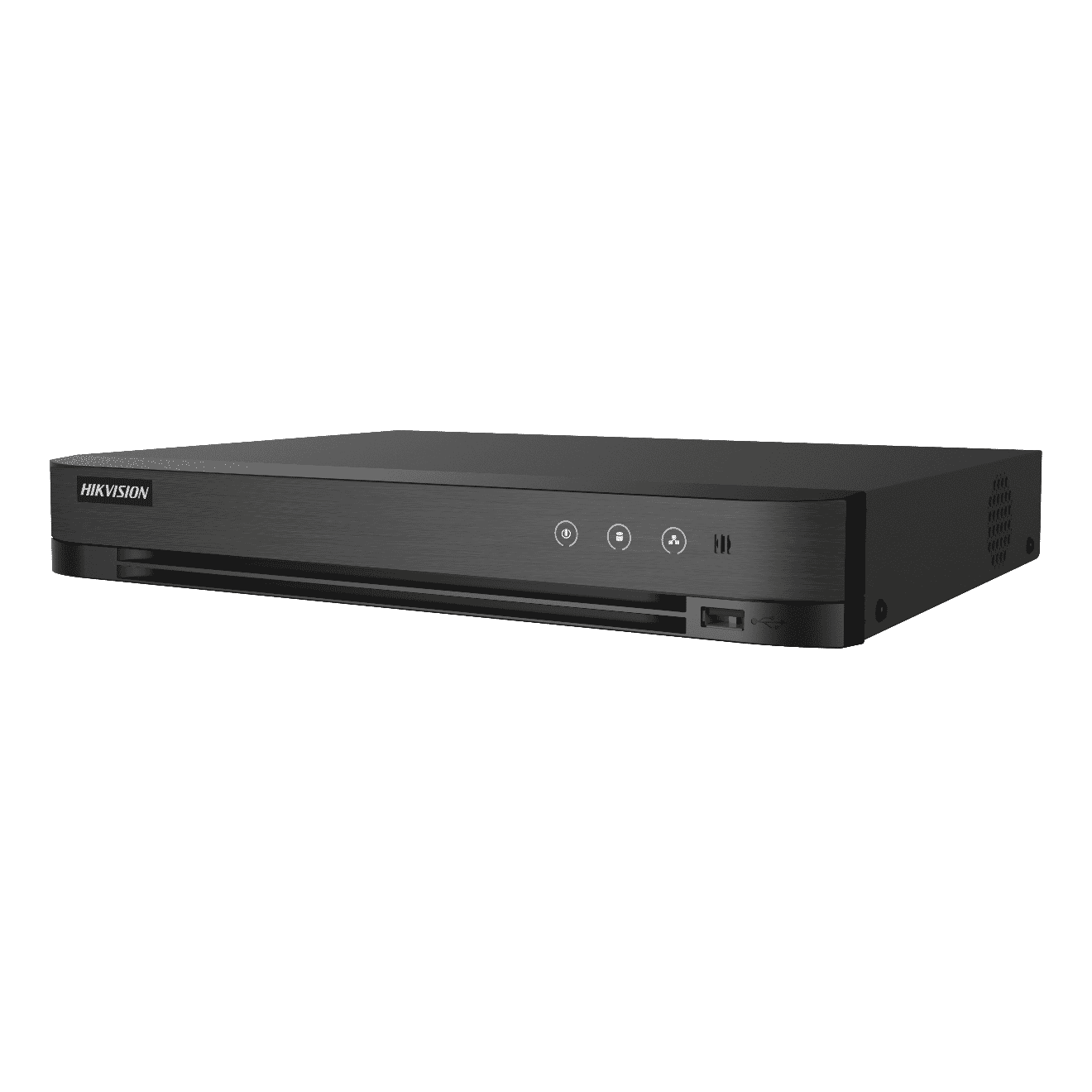

Hikvision iDS-7204HUHI-M1/XT 4CH 5MP 1U H.265 AcuSense DVR

Hikvision iDS-7204HUHI-M1/XT 4CH 5MP 1U H.265 AcuSense DVR

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 8MP
  • 4CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision iDS-7204HUHI-M1/XT 4CH 5MP 1U H.265 AcuSense DVR
Login to View Price

Specifications

  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Weight: = 1.16 kg (2.6 lb)
  • Face Picture Library: Up to 16 face picture libraries
  • Face Picture Comparison: Face picture comparison, face picture search;2-ch face picture comparison alarm (HD analogue camera)
  • Human/Vehicle Analysis: Up to 4-ch
  • IP Video Input: 4-ch (up to 8-ch), each up to 8 MP
  • Analog Video Input: 4-chBNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • HDMI Output: 1-ch, 2K (2560 x 1440)/60Hz,1920 x 1080/60Hz,1280 x 1024/60Hz,1280 x 720/60HzHDMI/VGA simultaneous output
  • VGA Output: 1-ch, 1920 x 1080/60Hz,1280 x 1024/60Hz,1280 x 720/60HzHDMI/VGA simultaneous output
  • CVBS Input: PAL/NTSC
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O),resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Synchronous Playback: 4-ch
  • HDTVI Input: 8 MP(3840 x 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • AHD Input: 5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • HDCVI Input: 8 MP(3840 x 2160)@12/15 fps, 3K(2880x1620)@25fps, 5 MP(2592 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KO):4-ch via coaxial cable
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)
  • Encoding Resolution: Main stream:8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.Sub-stream:WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support main stream or sub stream
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Total Bandwidth: 96 Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF
  • Remote Connection: 32
  • Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • SATA: 1 SATA interface
  • Capacity: up to 10 TB capacity for each disk
  • Serial Interface: RS-485 (half-duplex)
  • USB Interface: Front panel: 1 x USB 2.0;Rear panel: 1 x USB 2.0
  • Alarm In/Out: N/A
  • Power Supply: 12 VDC, 1.5 A
  • Consumption: = 10 W
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 319 x 236 x 48 mm (12.6 x 9.3 x 1.9 inch)

Video
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

General
  • Weight: = 1.16 kg (2.6 lb)

Other
  • Face Picture Library: Up to 16 face picture libraries
  • Face Picture Comparison: Face picture comparison, face picture search;2-ch face picture comparison alarm (HD analogue camera)
  • Human/Vehicle Analysis: Up to 4-ch
  • IP Video Input: 4-ch (up to 8-ch), each up to 8 MP
  • Analog Video Input: 4-chBNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • HDMI Output: 1-ch, 2K (2560 x 1440)/60Hz,1920 x 1080/60Hz,1280 x 1024/60Hz,1280 x 720/60HzHDMI/VGA simultaneous output
  • VGA Output: 1-ch, 1920 x 1080/60Hz,1280 x 1024/60Hz,1280 x 720/60HzHDMI/VGA simultaneous output
  • CVBS Input: PAL/NTSC
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O),resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Synchronous Playback: 4-ch
  • HDTVI Input: 8 MP(3840 x 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • AHD Input: 5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • HDCVI Input: 8 MP(3840 x 2160)@12/15 fps, 3K(2880x1620)@25fps, 5 MP(2592 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KO):4-ch via coaxial cable
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)
  • Encoding Resolution: Main stream:8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.Sub-stream:WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support main stream or sub stream
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Total Bandwidth: 96 Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF
  • Remote Connection: 32
  • Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • SATA: 1 SATA interface
  • Capacity: up to 10 TB capacity for each disk
  • Serial Interface: RS-485 (half-duplex)
  • USB Interface: Front panel: 1 x USB 2.0;Rear panel: 1 x USB 2.0
  • Alarm In/Out: N/A
  • Power Supply: 12 VDC, 1.5 A
  • Consumption: = 10 W
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 319 x 236 x 48 mm (12.6 x 9.3 x 1.9 inch)
