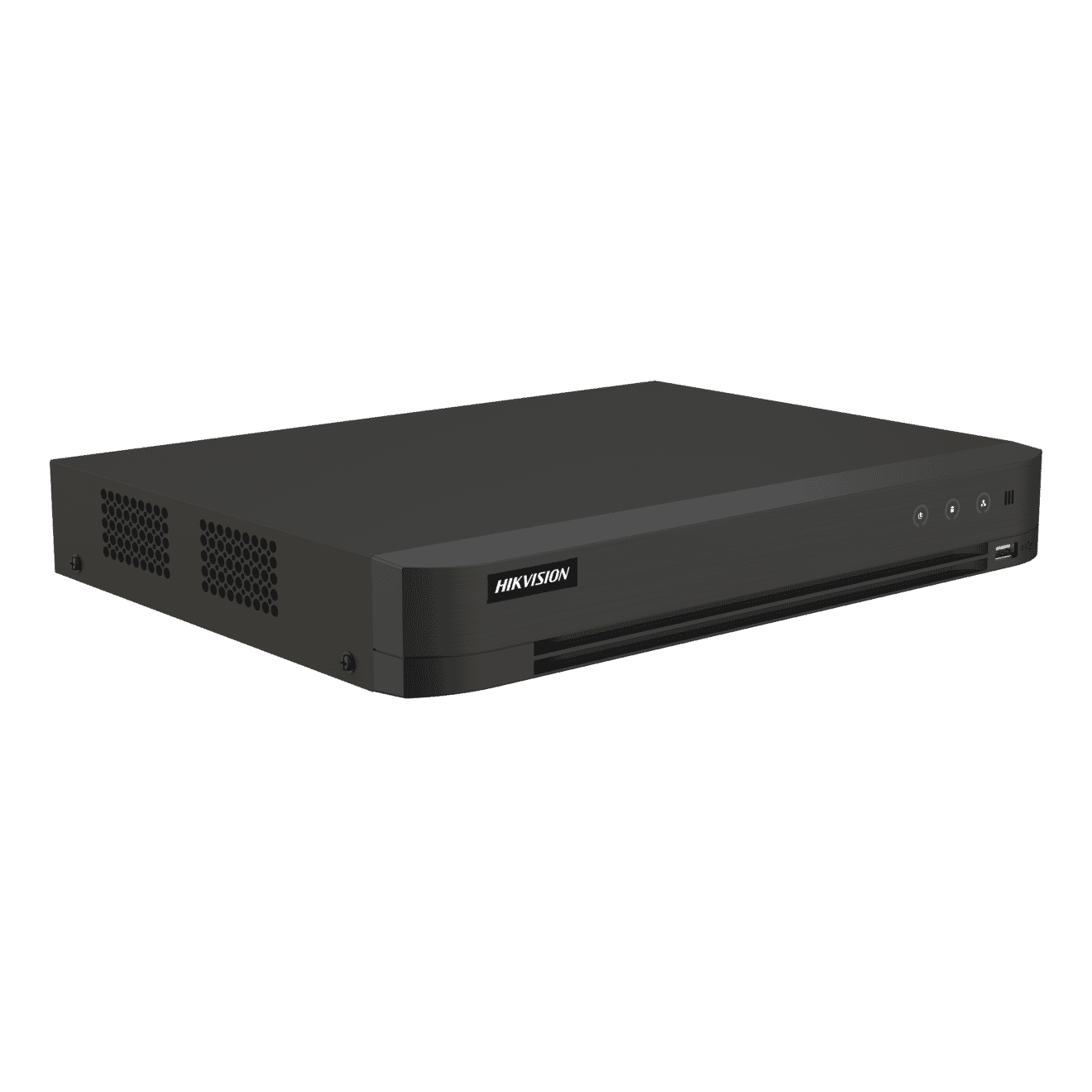

Hikvision iDS-7216HQHI-M1/XT 16-Channel 1080P 1U H.265 AcuSense DVR
Hikvision iDS-7216HQHI-M1/XT 16-Channel 1080P 1U H.265 AcuSense DVR
- HD COAX CCTV
- 5MP
- 16CH
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision iDS-7216HQHI-M1/XT 16-Channel 1080P 1U H.265 AcuSense DVR
Specifications
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Weight: = 2 kg (4.4 lb)
- Face Picture Comparison: Face picture comparison, face picture search (4-ch face picture comparison alarm for HD analogue camera)
- Face Picture Library: Up to 16 face picture libraries,;HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
- Human/Vehicle Analysis: Up to 8-ch (advanced model)
- Facial Detection and Capture: Face picture detection, face picture searchï¼›4-ch face picture capture
- IP Video Input: 8-ch (up to 24-ch), Up to 6 MP resolution
- Analog Video Input: 16-chBNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
- HDTVI Input: 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- AHD Input: 5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input: 3K(2880x1620)@25fps, 5MP(2592 x 1944)@20 fps, 4MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- CVBS Input: PAL/NTSC
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O),resolution: PAL: 704 x 576, NTSC: 704 x 480
- HDMI Output: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,HDMI/VGA simultaneous output
- VGA Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,HDMI/VGA simultaneous output
- Audio Input: 1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KO)16-ch via coaxial cable
- Audio Output: 1-ch, RCA (Linear, 1 KO)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)
- Synchronous playback: 16-ch
- Encoding Resolution: When 1080p Lite mode is not enabled:3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;When 1080p Lite mode is enabled:3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate: Main stream:When 1080p Lite mode not enabled:For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate: 32 Kbps to 6 Mbps
- Dual-stream: Support main stream or sub stream
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bitrate: 64 Kbps
- Decoding Capability: up to 24-ch 1080P@30fps
- Remote Connection: 128
- Total Bandwidth: 256 Mbps
- Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF, ISUP
- Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- SATA: 1 SATA interface, up to 12 TB capacity for each disk
- Serial Interface: RS-485 (half-duplex)
- USB Interface: Front panel: 1 x USB 2.0;Rear panel: 2 x USB 3.0
- Alarm In/Out: N/A (optional to support)
- Power Supply: 12 VDC, 2 A
- Consumption: = 24 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W x D x H): 319 x 240 x 48 mm (12.6 x 9.4 x 1.9 inch)
