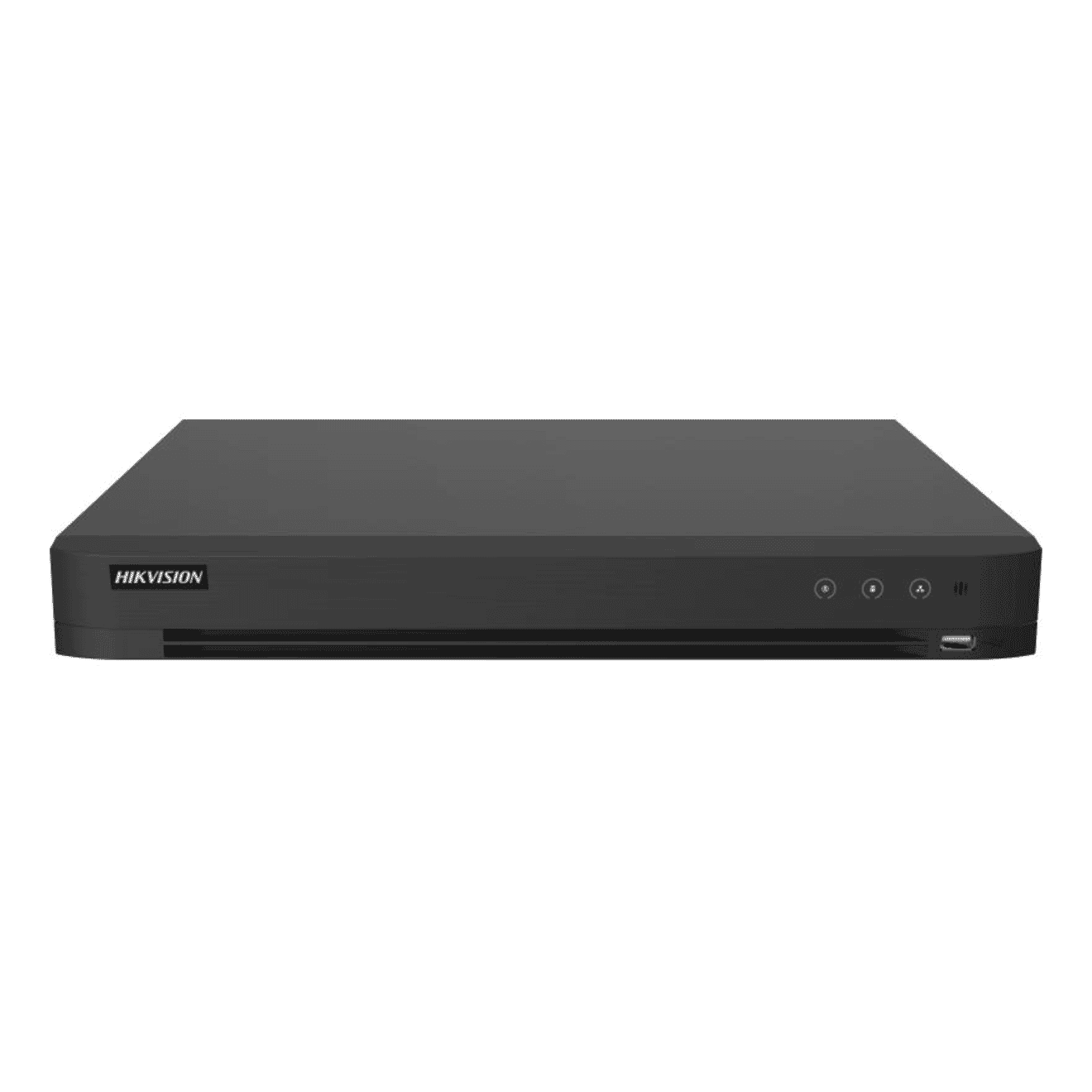

Hikvision iDS-7232HQHI-M2/XT 32-Ch AcuSense Turbo HD DVR Recorder CCTV Security

Hikvision iDS-7232HQHI-M2/XT 32-Ch AcuSense Turbo HD DVR Recorder CCTV Security

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • 32CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision iDS-7232HQHI-M2/XT 32-Ch AcuSense Turbo HD DVR Recorder CCTV Security
Login to View Price

Specifications

  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Weight: ‰¤ 2.1 kg (4.6 lb)
  • Face Picture Library: Up to 16 face picture libraries ;HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
  • Face Picture Comparison (Captured from Camera): 4-ch face picture comparison alarm (HD analogue camera)
  • Human/Vehicle Analysis: Up to 8-ch (advanced model)
  • Facial Detection and Capture: Face picture detection, face picture searchï¼›4-ch face picture capture
  • IP Video Input: 8-ch (up to 40-ch), each up to 6 MP resolution,
  • Analog Video Input: 32-chBNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • HDMI Output: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
  • VGA Output: 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 HzHDMI/VGA simultaneous output
  • CVBS Input: PAL/NTSC
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O),resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Synchronous playback: 16-ch
  • HDTVI Input: 3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • AHD Input: 5 MP(2560 x 1944)@20fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • HDCVI Input: 3K(2880x1620)@25fps, 5MP(2592 x 1944)@20 fps, 4MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Audio Input: 1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KO), 32-ch via coaxial cable
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using the audio input)
  • Encoding Resolution: When 1080p Lite mode is not enabled:3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;When 1080p Lite mode is enabled:3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Frame Rate: Main stream:When 1080p Lite mode not enabled:For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support main stream or sub stream
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Decoding Capability: up to 24-ch 1080P@30fps
  • Total Bandwidth: 256Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF, ISUP
  • Remote Connection: 128
  • Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
  • SATA: 2 SATA interfaces
  • Capacity: Up to 12 TB capacity for each disk
  • Serial Interface: RS-485 (half-duplex)
  • USB Interface: Front panel: 1 x USB 2.0Rear panel: 2 x USB 3.0
  • Alarm In/Out: N/A (optional to support)
  • Power Supply: 12 VDC, 5 A
  • Consumption: ‰¤ 60 W
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 384 x 313 x 52 mm (15.1 x 12.3 x 2.0 inch)

Video
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

General
  • Weight: ‰¤ 2.1 kg (4.6 lb)

Other
  • Face Picture Library: Up to 16 face picture libraries ;HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
  • Face Picture Comparison (Captured from Camera): 4-ch face picture comparison alarm (HD analogue camera)
  • Human/Vehicle Analysis: Up to 8-ch (advanced model)
  • Facial Detection and Capture: Face picture detection, face picture searchï¼›4-ch face picture capture
  • IP Video Input: 8-ch (up to 40-ch), each up to 6 MP resolution,
  • Analog Video Input: 32-chBNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • HDMI Output: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
  • VGA Output: 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 HzHDMI/VGA simultaneous output
  • CVBS Input: PAL/NTSC
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O),resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Synchronous playback: 16-ch
  • HDTVI Input: 3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • AHD Input: 5 MP(2560 x 1944)@20fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • HDCVI Input: 3K(2880x1620)@25fps, 5MP(2592 x 1944)@20 fps, 4MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Audio Input: 1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KO), 32-ch via coaxial cable
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using the audio input)
  • Encoding Resolution: When 1080p Lite mode is not enabled:3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;When 1080p Lite mode is enabled:3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Frame Rate: Main stream:When 1080p Lite mode not enabled:For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support main stream or sub stream
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Decoding Capability: up to 24-ch 1080P@30fps
  • Total Bandwidth: 256Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF, ISUP
  • Remote Connection: 128
  • Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
  • SATA: 2 SATA interfaces
  • Capacity: Up to 12 TB capacity for each disk
  • Serial Interface: RS-485 (half-duplex)
  • USB Interface: Front panel: 1 x USB 2.0Rear panel: 2 x USB 3.0
  • Alarm In/Out: N/A (optional to support)
  • Power Supply: 12 VDC, 5 A
  • Consumption: ‰¤ 60 W
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 384 x 313 x 52 mm (15.1 x 12.3 x 2.0 inch)
