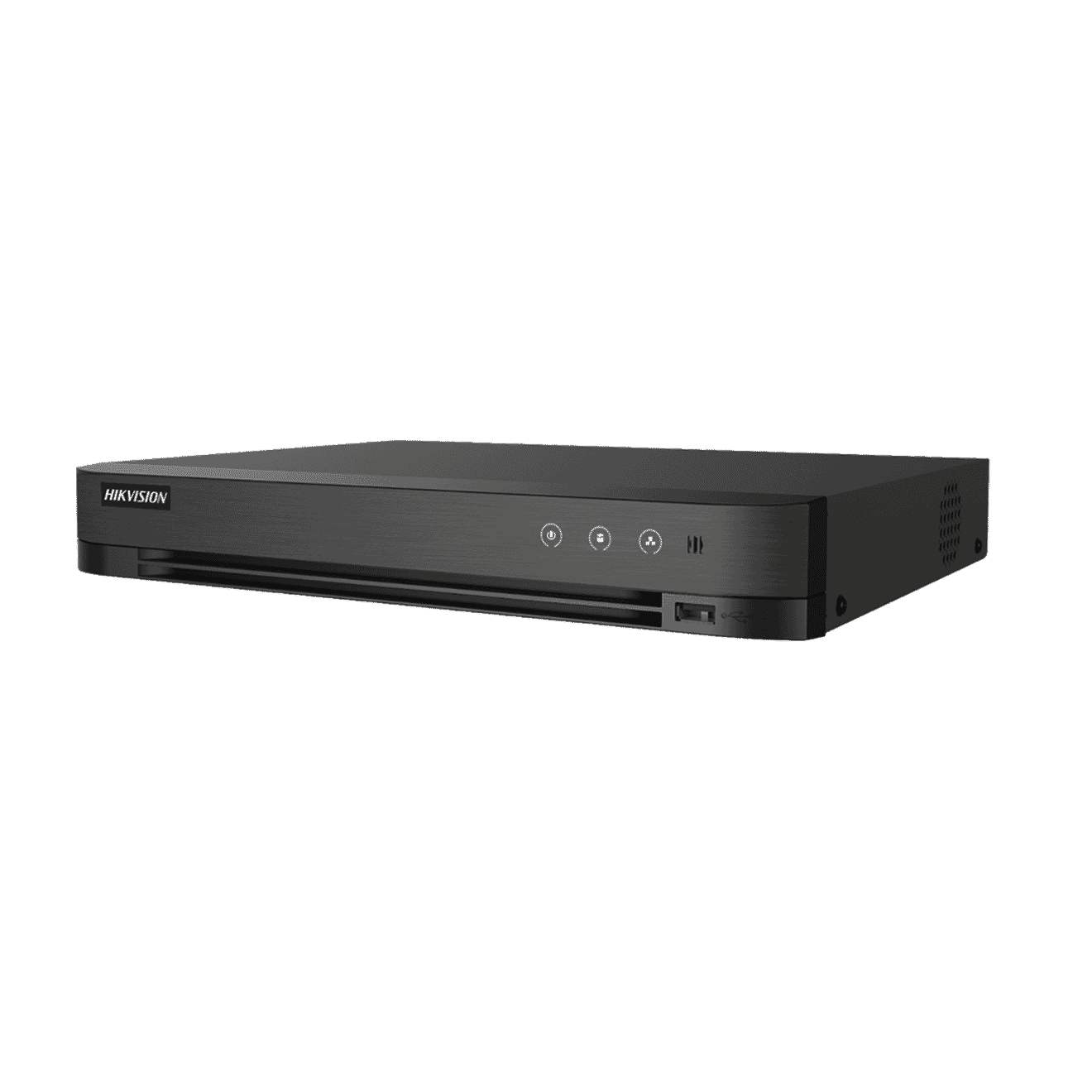

Hikvision iDS-7316HUHI-M4/S 16-Channel Turbo HD DVR with Advanced Analytics

Hikvision iDS-7316HUHI-M4/S 16-Channel Turbo HD DVR with Advanced Analytics

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 8MP
  • 16CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision iDS-7316HUHI-M4/S 16-Channel Turbo HD DVR with Advanced Analytics
Login to View Price

Specifications

  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Weight: = 5 kg (without HDD, 11.0 lb.)
  • Encoding Resolution: 8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream:8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • IP Video Input: 18-ch (up to 34-ch)Up to 12 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 16-chBNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • HDTVI Input: 8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
  • AHD Input: 5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
  • HDCVI Input: 4 MP, 720p25, 720p30, 1080p25, 1080p30
  • CVBS Input: PAL/NTSC
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • HDMI 1 Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • HDMI 2 Output: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KO)
  • Audio Output: 2-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (independent)
  • Synchronous Playback: 16-ch
  • Total Bandwidth: 320 Mbps
  • Remote Connection: 128
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF, SNMP
  • Network Interface: 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • SATA: 4 SATA interfaces
  • eSATA: Support
  • Capacity: Up to 12 TB capacity for each disk
  • Serial Interface: RS-232, RS-485 (full-duplex), keyboard
  • Alarm In/Out: 16/4
  • USB Interface: Front panel: 2 x USB 2.0Rear panel: 1 x USB 3.0
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 35 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 445 x 400 x 71 mm (17.5 x 15.7 x 2.8 inch)

Video
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

General
  • Weight: = 5 kg (without HDD, 11.0 lb.)

Other
  • Encoding Resolution: 8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream:8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • IP Video Input: 18-ch (up to 34-ch)Up to 12 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 16-chBNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • HDTVI Input: 8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
  • AHD Input: 5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
  • HDCVI Input: 4 MP, 720p25, 720p30, 1080p25, 1080p30
  • CVBS Input: PAL/NTSC
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • HDMI 1 Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • HDMI 2 Output: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KO)
  • Audio Output: 2-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (independent)
  • Synchronous Playback: 16-ch
  • Total Bandwidth: 320 Mbps
  • Remote Connection: 128
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF, SNMP
  • Network Interface: 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • SATA: 4 SATA interfaces
  • eSATA: Support
  • Capacity: Up to 12 TB capacity for each disk
  • Serial Interface: RS-232, RS-485 (full-duplex), keyboard
  • Alarm In/Out: 16/4
  • USB Interface: Front panel: 2 x USB 2.0Rear panel: 1 x USB 3.0
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 35 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 445 x 400 x 71 mm (17.5 x 15.7 x 2.8 inch)
