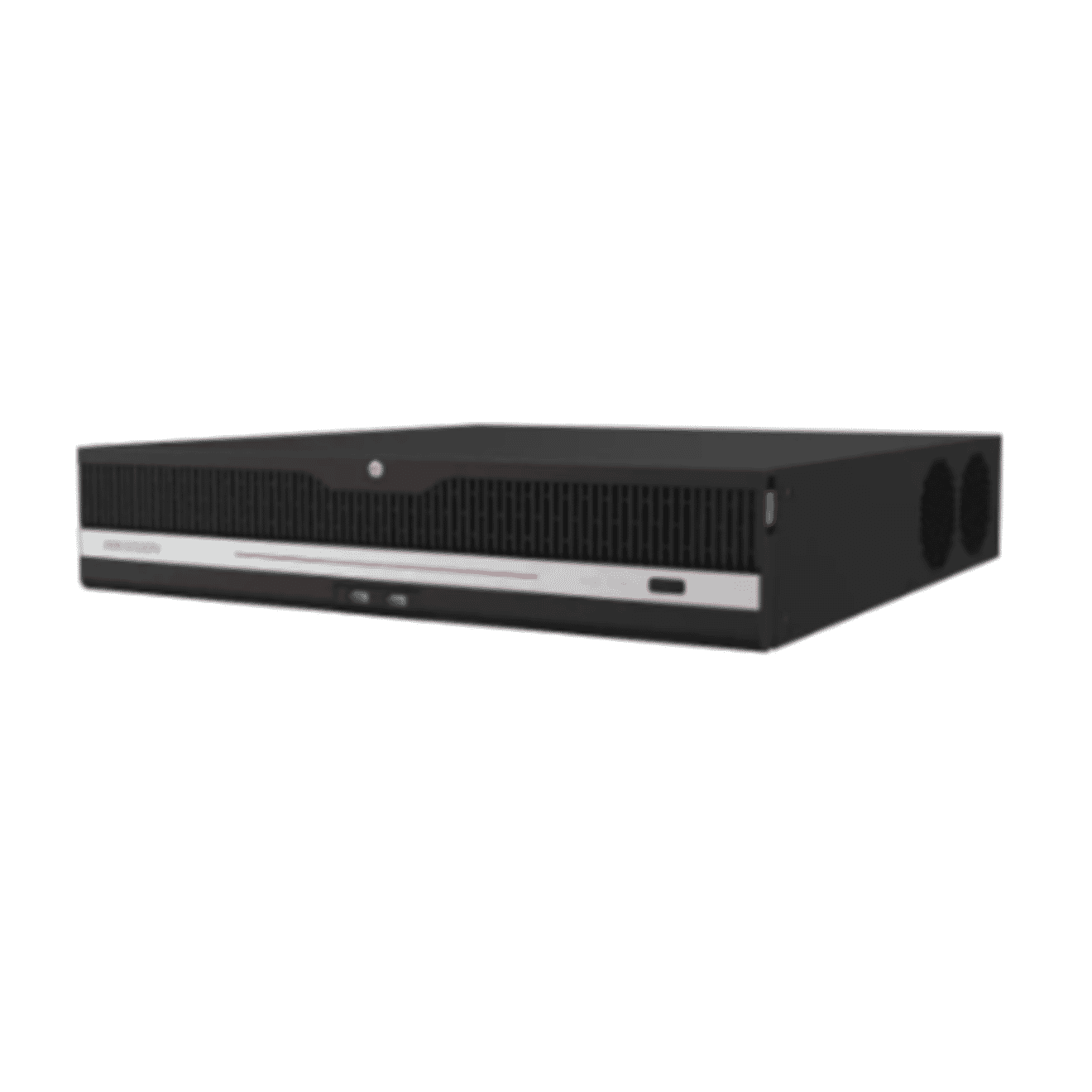

Hikvision iDS-9632NXI-M8/X 32-Channel 8K DeepinMind NVR

Hikvision iDS-9632NXI-M8/X 32-Channel 8K DeepinMind NVR

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • NVR
  • 32CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision iDS-9632NXI-M8/X 32-Channel 8K DeepinMind NVR
Login to View Price

Specifications

  • API: ONVIF (profile S/G); SDK; ISAPI
  • Weight: = 10 kg (without HDD, 28.7 lb.)
  • AI by NVR: Facial recognition, perimeter protection, video structurization, throwing objects from building
  • AI by Camera: Facial recognition, perimeter protection, video structurization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA
  • Engine: 2, each engine can run an intelligent algorithm, engine mode is adjustable
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture = 4 MB, total capacity = 20 GB)
  • Face Picture Comparison (Captured from Camera): 32-ch (16-ch for each engine);Comparison speed: 48 pictures per second
  • Facial Detection and Analytics Performance: 16-ch 2 MP (8-ch for each engine), up to 8 MP
  • By NVR: 16-ch 2 MP (8-ch for each engine), up to 8 MP)
  • By Camera: All channels
  • Structured Analysis: 12-ch 2 MP (6-ch for each engine), up to 8 MP
  • Face Picture Comparison: 16-ch;Comparison speed: 32 pictures per second
  • Plate Attributes: Plate number, license plate color, license plate type
  • Vehicle Attributes: Vehicle brand, vehicle color, vehicle type
  • IP Video Input: 32-chUp to 32 MP resolution*: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Incoming Bandwidth: 320 Mbps
  • Outgoing Bandwidth: 400 Mbps
  • HDMI 1 Output: 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • HDMI 2 Output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
  • VGA 1 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA 2 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 2-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k O)
  • Decoding Format: H.265/H.265+/H.264/H.264+
  • Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
  • Synchronous Playback: 16-ch
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF*: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
  • Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.*: The Ctrl 12V power is controlled by alarm output 9.
  • DC 12V: 12 VDC, 1 A power output
  • SATA: 8 SATA interfaces; 3.5-inch HDD
  • eSATA: 1 eSATA interface
  • Capacity: Up to 14 TB capacity for each HDD
  • Serial Interface: 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
  • Alarm In/Out: 16/9
  • GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 50 W (without HDD)
  • Working Temperature: -10 to 55° C (14 to 131° F)
  • Working Humidity: 10 to 90%
  • Dimension (W x D x H): 445 x 465 x 93 mm (17.5"x 18.3" x 3.7")
  • Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Video
  • API: ONVIF (profile S/G); SDK; ISAPI

General
  • Weight: = 10 kg (without HDD, 28.7 lb.)

Other
  • AI by NVR: Facial recognition, perimeter protection, video structurization, throwing objects from building
  • AI by Camera: Facial recognition, perimeter protection, video structurization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA
  • Engine: 2, each engine can run an intelligent algorithm, engine mode is adjustable
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture = 4 MB, total capacity = 20 GB)
  • Face Picture Comparison (Captured from Camera): 32-ch (16-ch for each engine);Comparison speed: 48 pictures per second
  • Facial Detection and Analytics Performance: 16-ch 2 MP (8-ch for each engine), up to 8 MP
  • By NVR: 16-ch 2 MP (8-ch for each engine), up to 8 MP)
  • By Camera: All channels
  • Structured Analysis: 12-ch 2 MP (6-ch for each engine), up to 8 MP
  • Face Picture Comparison: 16-ch;Comparison speed: 32 pictures per second
  • Plate Attributes: Plate number, license plate color, license plate type
  • Vehicle Attributes: Vehicle brand, vehicle color, vehicle type
  • IP Video Input: 32-chUp to 32 MP resolution*: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Incoming Bandwidth: 320 Mbps
  • Outgoing Bandwidth: 400 Mbps
  • HDMI 1 Output: 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • HDMI 2 Output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
  • VGA 1 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA 2 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 2-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k O)
  • Decoding Format: H.265/H.265+/H.264/H.264+
  • Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
  • Synchronous Playback: 16-ch
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF*: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
  • Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.*: The Ctrl 12V power is controlled by alarm output 9.
  • DC 12V: 12 VDC, 1 A power output
  • SATA: 8 SATA interfaces; 3.5-inch HDD
  • eSATA: 1 eSATA interface
  • Capacity: Up to 14 TB capacity for each HDD
  • Serial Interface: 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
  • Alarm In/Out: 16/9
  • GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 50 W (without HDD)
  • Working Temperature: -10 to 55° C (14 to 131° F)
  • Working Humidity: 10 to 90%
  • Dimension (W x D x H): 445 x 465 x 93 mm (17.5"x 18.3" x 3.7")
  • Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
