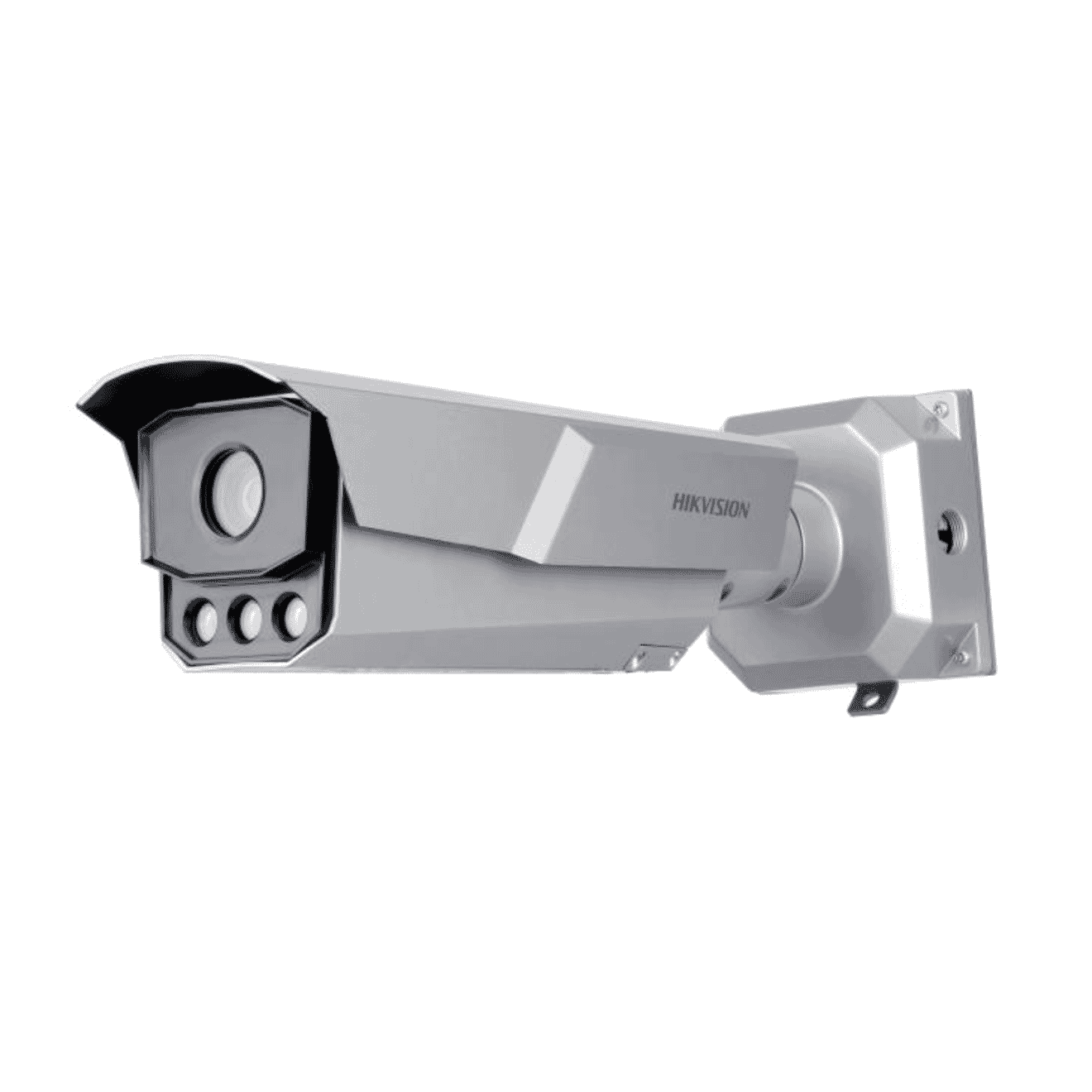

Hikvision iDS-TCM403-BI(G)/Y/POE/0832 4MP IR ANPR 8-32mm with PoE

Hikvision iDS-TCM403-BI(G)/Y/POE/0832 4MP IR ANPR 8-32mm with PoE

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision iDS-TCM403-BI(G)/Y/POE/0832 4MP IR ANPR 8-32mm with PoE
Login to View Price

Specifications

  • Image Sensor: 1/1.8€³ progressive scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.0005 Lux @ (F1.2, AGC ON);B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1/25 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Focal Length & FOV: 8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°
  • Iris Type: DC-IRIS
  • Aperture: 8-32mm : F1.7,
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 760, 704 x 576, 352 x 288)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 760, 704 x 576, 352 x 288)
  • Sub-Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 760, 704 x 576, 352 x 288)60 Hz: 30 fps (1920 x 1080, 1280 x 760, 704 x 576, 352 x 288)
  • Third Stream: 50 Hz: 25 fps (1280 x 760, 704 x 576, 352 x 288)60 Hz: 30 fps (1280 x 760, 704 x 576, 352 x 288)
  • Video Compression: H.264 and H.265 encodingMain stream: H.265/H.264/MJPEGSub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline profile/Main profile/High profile
  • H.265 Type: Main profile
  • Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, Complicated password, HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Watermark, IP address filter, Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS, Control timeout settings, Security audit log, TLS 1.2, 1.3,Host authentication (MAC address)
  • Network Storage: Micro SD/TF card (512 GB), local storage and CVR, NVR, ANPR
  • Web Browser: Chrome V61+, IE9 to IE11, Firefox V41+, Edge
  • Image Settings: Rotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
  • Day/Night Switch: Auto/Scheduled/Manual
  • Wide Dynamic Range (WDR): 140 dB
  • Image Enhancement: BLC, 3D DNR
  • Ethernet Interface: 1 RJ45 10M/100M/1000M Ethernet interface
  • On-Board Storage: Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
  • Basic Event: HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception
  • Power: DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,PoE: 802.3at, Type 2, Class 4, max. 15 W
  • Dimension: 428.5 mm x 120 mm x 132.8 mm (16.9" x 4.72" x 5.2") (L x W x H)
  • Package Dimension: 452 mm x 398 mm x 198 mm (17.8" x 15.67" x 7.8") (L x W x H)
  • Weight: Approx. 3 kg (6.61 lb.)
  • With Package Weight: Approx. 5.19 kg (11.44 lb.)
  • Language: 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
  • General Function: One-key reset, three streams, heartbeat, password protection, watermark
  • EMC: CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
  • Safety: CB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection: IK10: IEC 62262:2002,IP67: IEC 60529-2013
  • Focus: Auto
  • Built-in Supplement Light Type: IR light
  • Built-in Supplement Light Range: Up to 40 m
  • Audio Compression: G.711/G.722.1
  • Audio Bit Rate: 8Kbps (G.711) /16Kbps (G.722.1)
  • Frequency: /G model:LTE FDD: Band 1,2,3,4,5,7,8,12,17,28,66LTE TDD: Band 38,40WCDMA/HSPA+: Band 1,2,3,4,5,8GSM/GPRS/EDGE: 850/900/1800/1900MHz
  • Standard: /G model: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
  • SIM Card Type: /G model: Micro SIM
  • Audio: Supported
  • Alarm: 1 input interface, 1 output interface, 2 relays
  • RS-485: 1 RS-485 interface
  • Wiegand: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
  • Coverage: Up to 2 lane(s)
  • Smart Function: Traffic flow detection: vehicle type, lane flow, lane speed, space headway, time headway, lane time occupancy rate, lane space occupancy rate, queuing length, and traffic statusIncident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving
  • LPR Countries/Regions: Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
  • Accuracy (Under recommended installation and lighting conditions): Capture rate > 99%,Vehicle moving direction recognition accuracy > 98.5%,LPR accuracy > 98%,Mistaken capture rate < 2%
  • No License Plate Detection: Supported
  • Motorcycle LPR: Supported
  • Vehicle Type: Car, Van, Bus, Truck, Light Truck, SUV (MPV), Pickup, Motorcycle, Tricycle
  • Vehicle Colour: Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, blackRecognizable at daytime only.
  • Vehicle Manufacturer: 83 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An€˜kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang€˜an, Alfa, FORO
  • Capture Speed Range: 5 to 120 km/h
  • Operating System: Linux
  • Material: Aluminium alloy
  • Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Storage Condition: -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (Non-condensing)
  • RF: CE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4，EN 301489-52 V1.2.1，EN 302264-1 V1.1.1, EN 302 264-2 V1.1.1, EN IEC 62311:2020
  • Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 1/1.8€³ progressive scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.0005 Lux @ (F1.2, AGC ON);B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1/25 s to 1/100,000 s
  • Day & Night: IR cut filter

Lens
  • Focal Length & FOV: 8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°
  • Iris Type: DC-IRIS
  • Aperture: 8-32mm : F1.7,

Illuminator
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 760, 704 x 576, 352 x 288)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 760, 704 x 576, 352 x 288)
  • Sub-Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 760, 704 x 576, 352 x 288)60 Hz: 30 fps (1920 x 1080, 1280 x 760, 704 x 576, 352 x 288)
  • Third Stream: 50 Hz: 25 fps (1280 x 760, 704 x 576, 352 x 288)60 Hz: 30 fps (1280 x 760, 704 x 576, 352 x 288)
  • Video Compression: H.264 and H.265 encodingMain stream: H.265/H.264/MJPEGSub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline profile/Main profile/High profile
  • H.265 Type: Main profile
  • Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, Complicated password, HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Watermark, IP address filter, Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS, Control timeout settings, Security audit log, TLS 1.2, 1.3,Host authentication (MAC address)
  • Network Storage: Micro SD/TF card (512 GB), local storage and CVR, NVR, ANPR
  • Web Browser: Chrome V61+, IE9 to IE11, Firefox V41+, Edge

  • Image Settings: Rotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
  • Day/Night Switch: Auto/Scheduled/Manual
  • Wide Dynamic Range (WDR): 140 dB
  • Image Enhancement: BLC, 3D DNR

Interface
  • Ethernet Interface: 1 RJ45 10M/100M/1000M Ethernet interface
  • On-Board Storage: Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB

Event
  • Basic Event: HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception

General
  • Power: DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,PoE: 802.3at, Type 2, Class 4, max. 15 W
  • Dimension: 428.5 mm x 120 mm x 132.8 mm (16.9" x 4.72" x 5.2") (L x W x H)
  • Package Dimension: 452 mm x 398 mm x 198 mm (17.8" x 15.67" x 7.8") (L x W x H)
  • Weight: Approx. 3 kg (6.61 lb.)
  • With Package Weight: Approx. 5.19 kg (11.44 lb.)
  • Language: 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
  • General Function: One-key reset, three streams, heartbeat, password protection, watermark

Approval
  • EMC: CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
  • Safety: CB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection: IK10: IEC 62262:2002,IP67: IEC 60529-2013

Other
  • Focus: Auto
  • Built-in Supplement Light Type: IR light
  • Built-in Supplement Light Range: Up to 40 m
  • Audio Compression: G.711/G.722.1
  • Audio Bit Rate: 8Kbps (G.711) /16Kbps (G.722.1)
  • Frequency: /G model:LTE FDD: Band 1,2,3,4,5,7,8,12,17,28,66LTE TDD: Band 38,40WCDMA/HSPA+: Band 1,2,3,4,5,8GSM/GPRS/EDGE: 850/900/1800/1900MHz
  • Standard: /G model: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
  • SIM Card Type: /G model: Micro SIM
  • Audio: Supported
  • Alarm: 1 input interface, 1 output interface, 2 relays
  • RS-485: 1 RS-485 interface
  • Wiegand: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
  • Coverage: Up to 2 lane(s)
  • Smart Function: Traffic flow detection: vehicle type, lane flow, lane speed, space headway, time headway, lane time occupancy rate, lane space occupancy rate, queuing length, and traffic statusIncident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving
  • LPR Countries/Regions: Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
  • Accuracy (Under recommended installation and lighting conditions): Capture rate > 99%,Vehicle moving direction recognition accuracy > 98.5%,LPR accuracy > 98%,Mistaken capture rate < 2%
  • No License Plate Detection: Supported
  • Motorcycle LPR: Supported
  • Vehicle Type: Car, Van, Bus, Truck, Light Truck, SUV (MPV), Pickup, Motorcycle, Tricycle
  • Vehicle Colour: Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, blackRecognizable at daytime only.
  • Vehicle Manufacturer: 83 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An€˜kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang€˜an, Alfa, FORO
  • Capture Speed Range: 5 to 120 km/h
  • Operating System: Linux
  • Material: Aluminium alloy
  • Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Storage Condition: -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (Non-condensing)
  • RF: CE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4，EN 301489-52 V1.2.1，EN 302264-1 V1.1.1, EN 302 264-2 V1.1.1, EN IEC 62311:2020
  • Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
