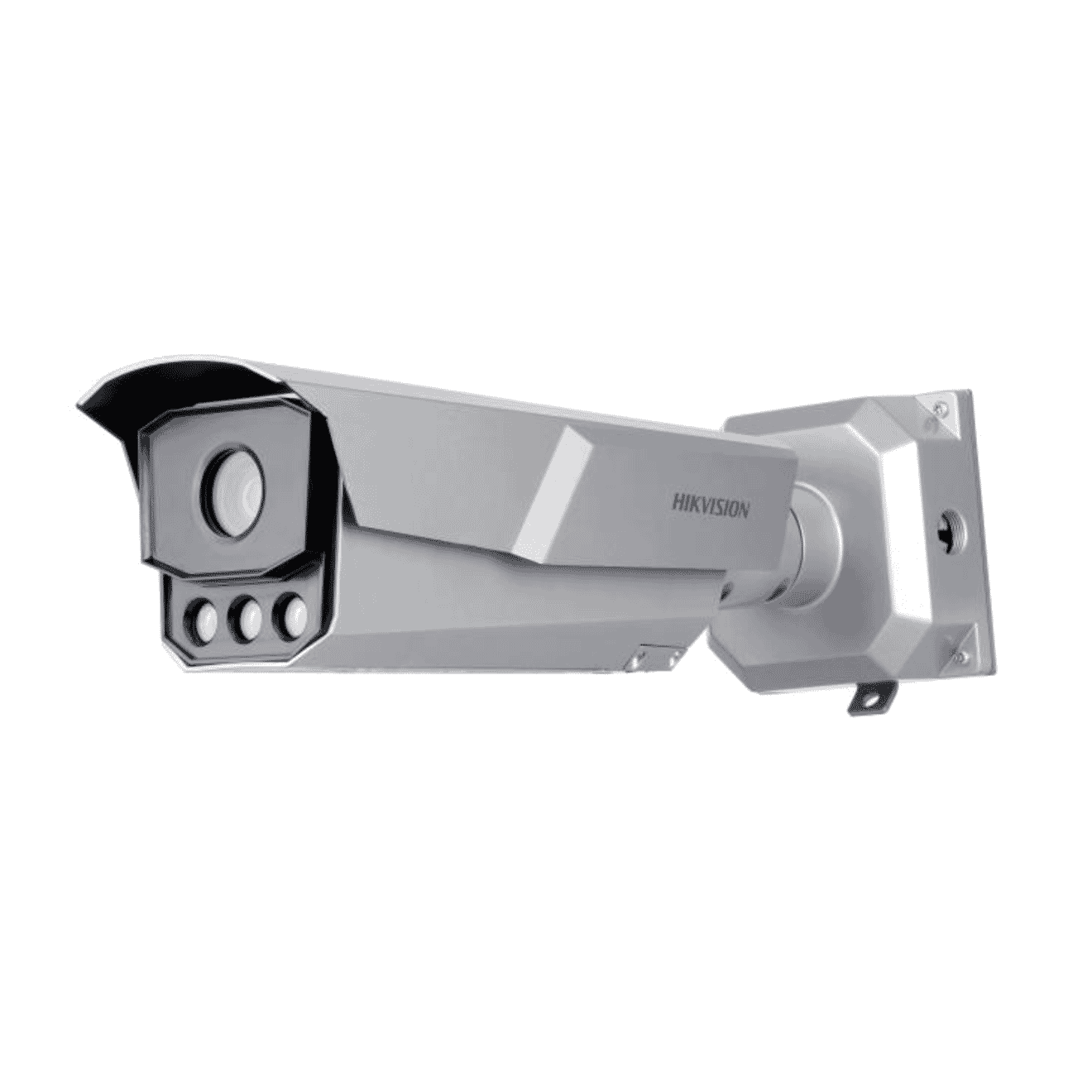

Hikvision iDS-TCM403-BI(G)/Y/POE/2812 4MP IR ANPR 2.8-12mm with PoE

Hikvision iDS-TCM403-BI(G)/Y/POE/2812 4MP IR ANPR 2.8-12mm with PoE

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision iDS-TCM403-BI(G)/Y/POE/2812 4MP IR ANPR 2.8-12mm with PoE
Login to View Price

Specifications

  • Image Sensor: 1/1.8" progressive scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1/50 s to 1/40,000 s
  • Day & Night: IR cut filter
  • Focal Length & FOV: 2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°,8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°,10-50mm: Horizontal: 32.2° to 7.8°°, Vertical: 18.1° to 4.4°, Diagonal: 37.1° to 8.95°
  • Iris Type: DC-IRIS
  • Aperture: 2.8-12mm : F1.38,8-32mm : F1.7,10-50mm : F1.7
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Sub-Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Third Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288)
  • Video Compression: H.264 and H.265 encodingMain stream: H.265/H.264/MJPEGSub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline profile/Main profile/High profile
  • H.265 Type: Main profile
  • Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
  • Simultaneous Live View: Up to 6 channels
  • API: ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2, 1.3,Host authentication (MAC address)
  • Network Storage: Micro SD/TF card (512 GB), local storage and CVR, NVR, ANR
  • Client: Hik-Central Master,Hik-Central Pro
  • Web Browser: Chrome V61+, IE9 to IE11, Firefox V41+, Edge
  • Image Settings: Saturation,Brightness,Contrast,Gain,Sharpness,White balance,AGC,Adjustable by client software or web browser.
  • Day/Night Switch: Auto/Scheduled/Manual
  • Wide Dynamic Range (WDR): 140 dB
  • Image Enhancement: BLC, 3D DNR
  • Ethernet Interface: 1 RJ45 10M/100M/1000M Ethernet interface
  • On-Board Storage: Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
  • Basic Event: HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception
  • Power: DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,PoE: 802.3at, Type 2, Class 4, max. 15 W
  • Dimension: 428.5 mm × 120 mm × 132.8 mm (16.9" × 4.72" × 5.2") (L × W × H)
  • Package Dimension: 595 mm × 259 mm × 193 mm (23.4" × 10.2" × 7.6") (L × W × H)
  • Weight: Approx. 2.975 kg (6.56 lb.)
  • With Package Weight: Approx. 4.385 kg (9.67 lb.)
  • Language: 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
  • General Function: One-key reset, three streams, heartbeat, password protection, watermark
  • EMC: CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
  • Safety: CB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IK10: IEC 62262:2002,IP67: IEC 60529-2013
  • Focus: Auto
  • Built-in Supplement Light Type: IR light
  • Supplement Light Number: 3
  • Built-in Supplement Light Range: Up to 50 m
  • Audio Compression: G.711/G.722.1
  • Audio Bit Rate: 8Kbps (G.711) /16Kbps (G.722.1)
  • Frequency: /G model:LTE FDD: Band 1,2,3,4,5,7,8,12,17,28,66LTE TDD: Band 38,40WCDMA/HSPA+: Band 1,2,3,4,5,8GSM/GPRS/EDGE: 850/900/1800/1900MHz
  • Standard: /G model: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
  • SIM Card Type: /G model: Micro SIM
  • Satellite Positioning: /G model: GPS
  • Audio: Supported
  • Alarm: 1 input interface, 1 output interface, 2 relays
  • RS-485: 1 RS-485 interface
  • Wiegand: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
  • Coverage: Up to 3 lane(s)
  • Smart Function: Helmet Detection, Manned Non-MotorTraffic flow detection:average speed, traffic flow, queuing length, and traffic statusIncident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving
  • LPR Countries/Regions: Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
  • Accuracy (Under recommended installation and lighting conditions): Capture rate > 99%,Vehicle moving direction recognition accuracy > 98.5%,LPR accuracy > 98%,Mistaken capture rate < 2%
  • No License Plate Detection: Supported
  • Motorcycle LPR: Supported
  • Vehicle Type: Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle
  • Vehicle Color: Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, blackRecognizable at daytime only.
  • Vehicle Manufacturer: 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
  • Capture Speed Range: 5 to 120 km/h
  • Blocklist and Allowlist: Max. 50000 records
  • Operating System: Linux
  • Material: Aluminum alloy
  • Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Storage Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
  • RF: EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1, EN 301 511 V12.5.1, EN 301 908-2 V13.1.1, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, EN 303 413 V1.2.1, EN IEC 62311:2020
  • Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 1/1.8" progressive scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1/50 s to 1/40,000 s
  • Day & Night: IR cut filter

Lens
  • Focal Length & FOV: 2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°,8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°,10-50mm: Horizontal: 32.2° to 7.8°°, Vertical: 18.1° to 4.4°, Diagonal: 37.1° to 8.95°
  • Iris Type: DC-IRIS
  • Aperture: 2.8-12mm : F1.38,8-32mm : F1.7,10-50mm : F1.7

Illuminator
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Sub-Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Third Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288)
  • Video Compression: H.264 and H.265 encodingMain stream: H.265/H.264/MJPEGSub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline profile/Main profile/High profile
  • H.265 Type: Main profile
  • Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
  • Simultaneous Live View: Up to 6 channels
  • API: ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2, 1.3,Host authentication (MAC address)
  • Network Storage: Micro SD/TF card (512 GB), local storage and CVR, NVR, ANR
  • Client: Hik-Central Master,Hik-Central Pro
  • Web Browser: Chrome V61+, IE9 to IE11, Firefox V41+, Edge

  • Image Settings: Saturation,Brightness,Contrast,Gain,Sharpness,White balance,AGC,Adjustable by client software or web browser.
  • Day/Night Switch: Auto/Scheduled/Manual
  • Wide Dynamic Range (WDR): 140 dB
  • Image Enhancement: BLC, 3D DNR

Interface
  • Ethernet Interface: 1 RJ45 10M/100M/1000M Ethernet interface
  • On-Board Storage: Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB

Event
  • Basic Event: HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception

General
  • Power: DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,PoE: 802.3at, Type 2, Class 4, max. 15 W
  • Dimension: 428.5 mm × 120 mm × 132.8 mm (16.9" × 4.72" × 5.2") (L × W × H)
  • Package Dimension: 595 mm × 259 mm × 193 mm (23.4" × 10.2" × 7.6") (L × W × H)
  • Weight: Approx. 2.975 kg (6.56 lb.)
  • With Package Weight: Approx. 4.385 kg (9.67 lb.)
  • Language: 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
  • General Function: One-key reset, three streams, heartbeat, password protection, watermark

Approval
  • EMC: CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
  • Safety: CB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IK10: IEC 62262:2002,IP67: IEC 60529-2013

Other
  • Focus: Auto
  • Built-in Supplement Light Type: IR light
  • Supplement Light Number: 3
  • Built-in Supplement Light Range: Up to 50 m
  • Audio Compression: G.711/G.722.1
  • Audio Bit Rate: 8Kbps (G.711) /16Kbps (G.722.1)
  • Frequency: /G model:LTE FDD: Band 1,2,3,4,5,7,8,12,17,28,66LTE TDD: Band 38,40WCDMA/HSPA+: Band 1,2,3,4,5,8GSM/GPRS/EDGE: 850/900/1800/1900MHz
  • Standard: /G model: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
  • SIM Card Type: /G model: Micro SIM
  • Satellite Positioning: /G model: GPS
  • Audio: Supported
  • Alarm: 1 input interface, 1 output interface, 2 relays
  • RS-485: 1 RS-485 interface
  • Wiegand: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
  • Coverage: Up to 3 lane(s)
  • Smart Function: Helmet Detection, Manned Non-MotorTraffic flow detection:average speed, traffic flow, queuing length, and traffic statusIncident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving
  • LPR Countries/Regions: Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
  • Accuracy (Under recommended installation and lighting conditions): Capture rate > 99%,Vehicle moving direction recognition accuracy > 98.5%,LPR accuracy > 98%,Mistaken capture rate < 2%
  • No License Plate Detection: Supported
  • Motorcycle LPR: Supported
  • Vehicle Type: Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle
  • Vehicle Color: Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, blackRecognizable at daytime only.
  • Vehicle Manufacturer: 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
  • Capture Speed Range: 5 to 120 km/h
  • Blocklist and Allowlist: Max. 50000 records
  • Operating System: Linux
  • Material: Aluminum alloy
  • Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Storage Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
  • RF: EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1, EN 301 511 V12.5.1, EN 301 908-2 V13.1.1, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, EN 303 413 V1.2.1, EN IEC 62311:2020
  • Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
