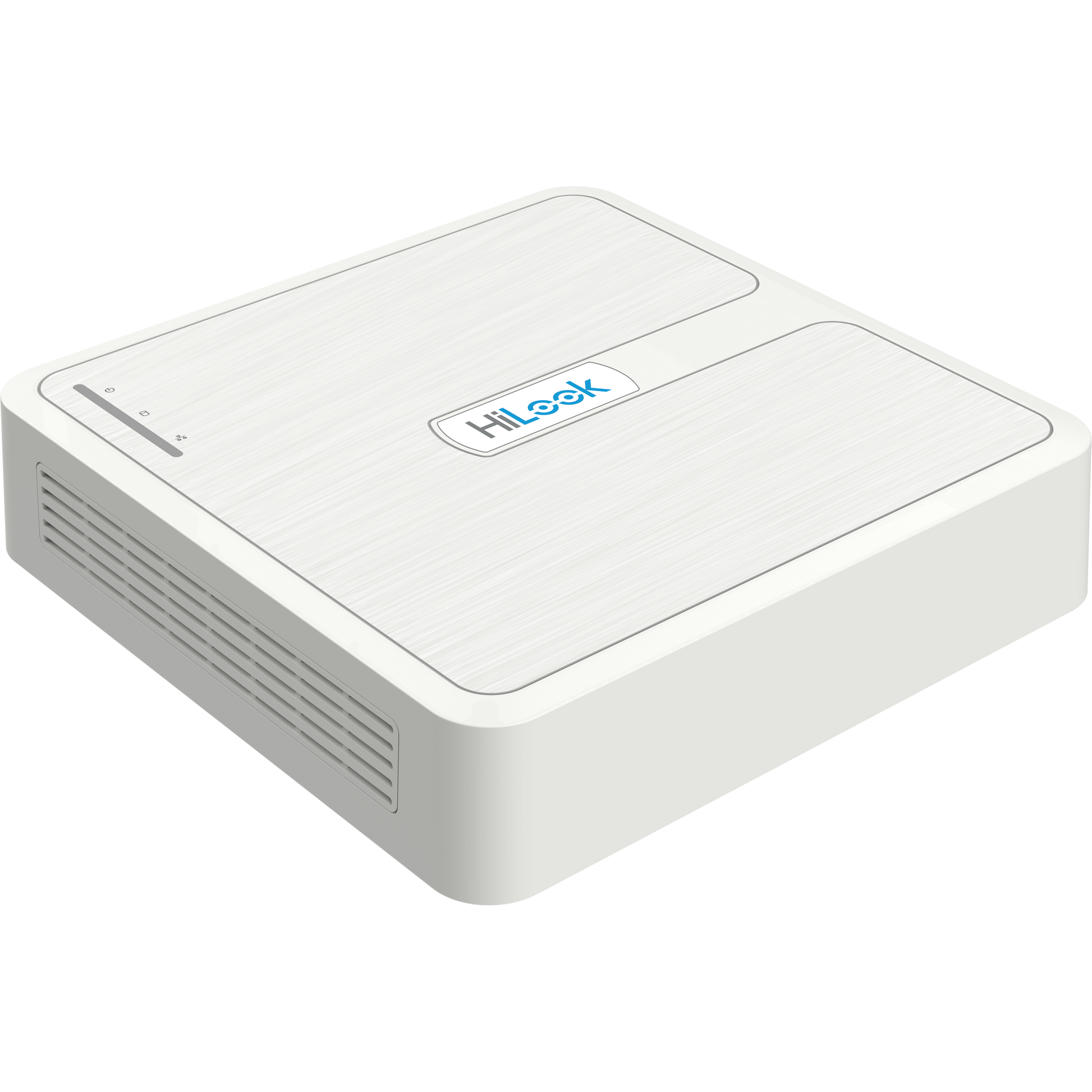

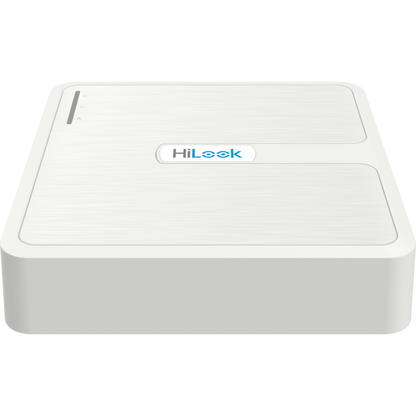

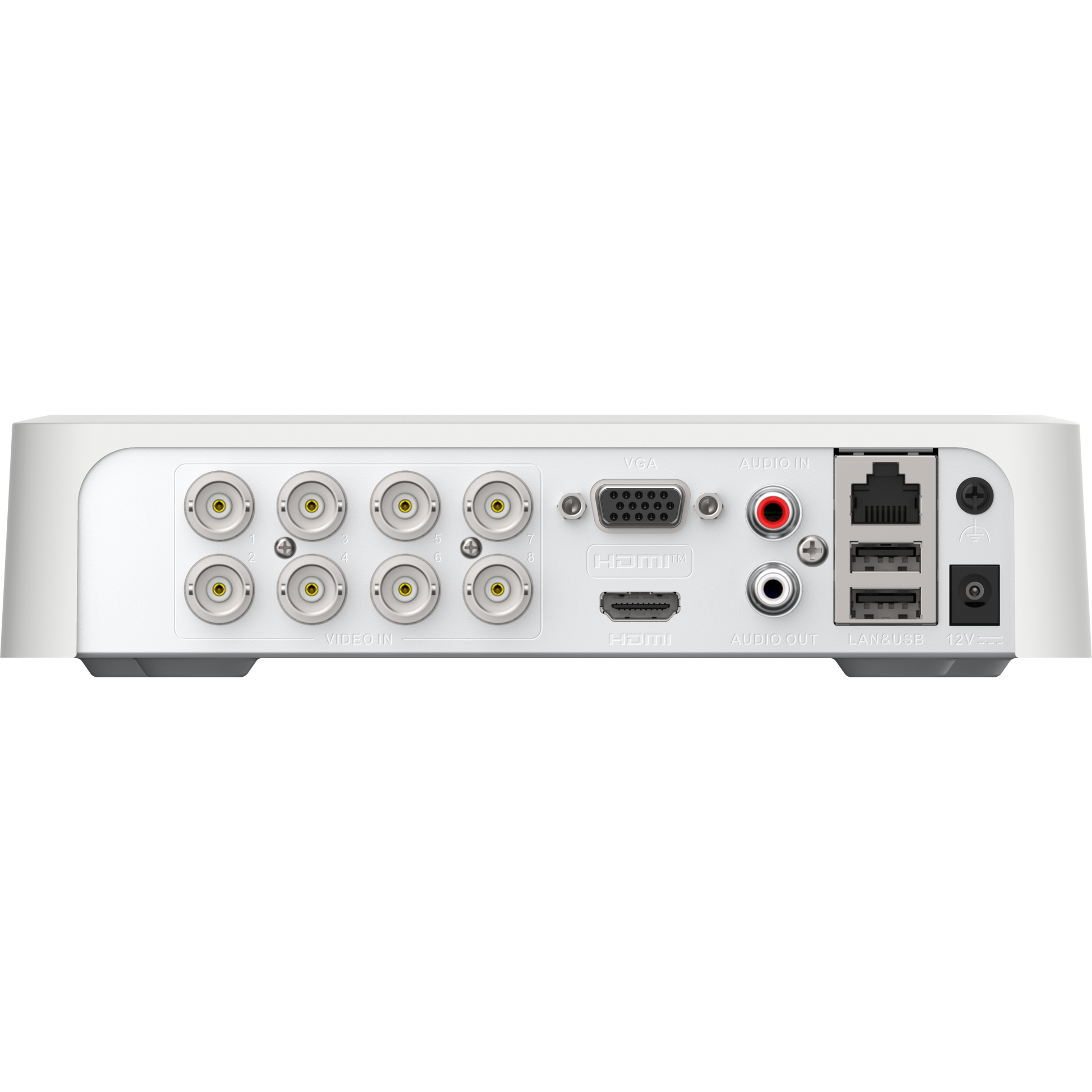

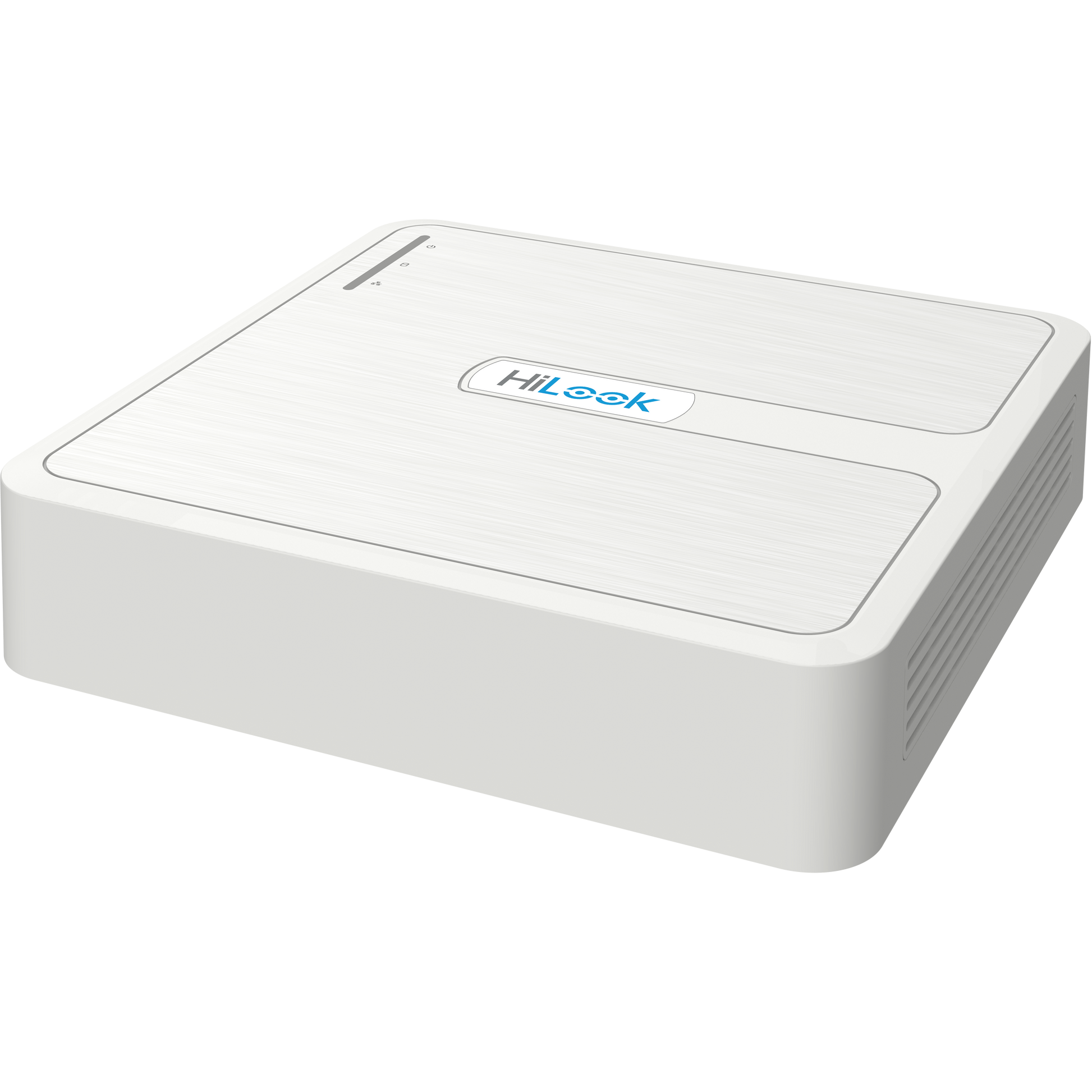

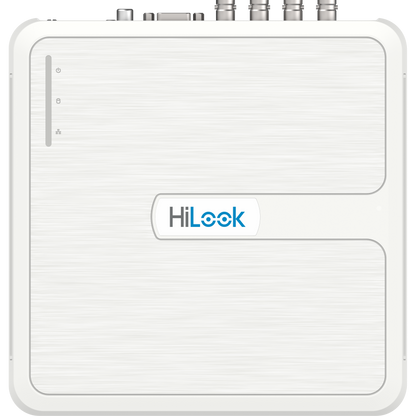

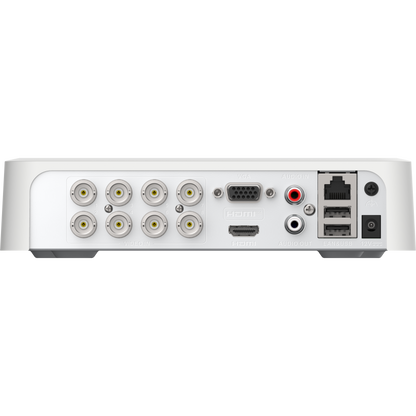

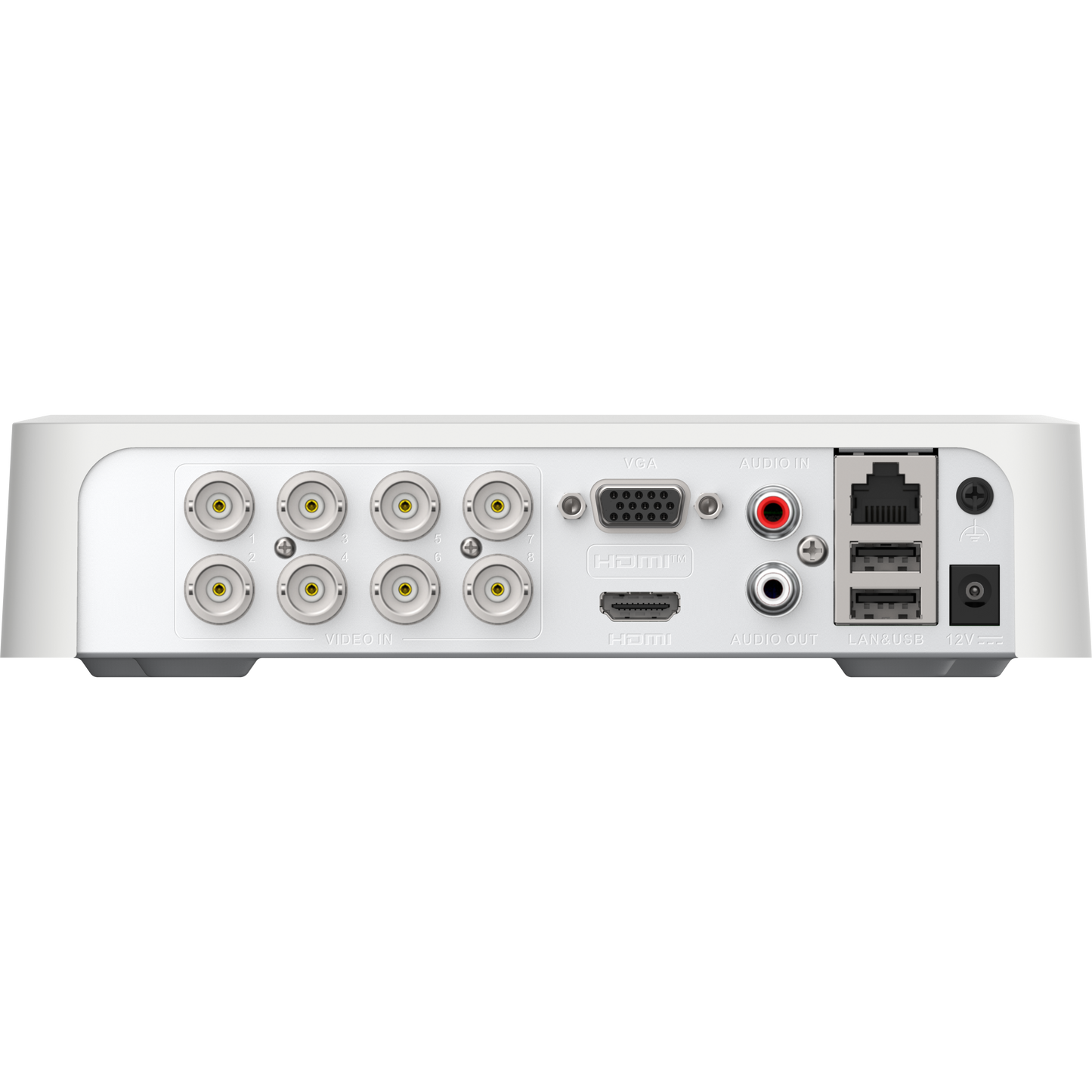

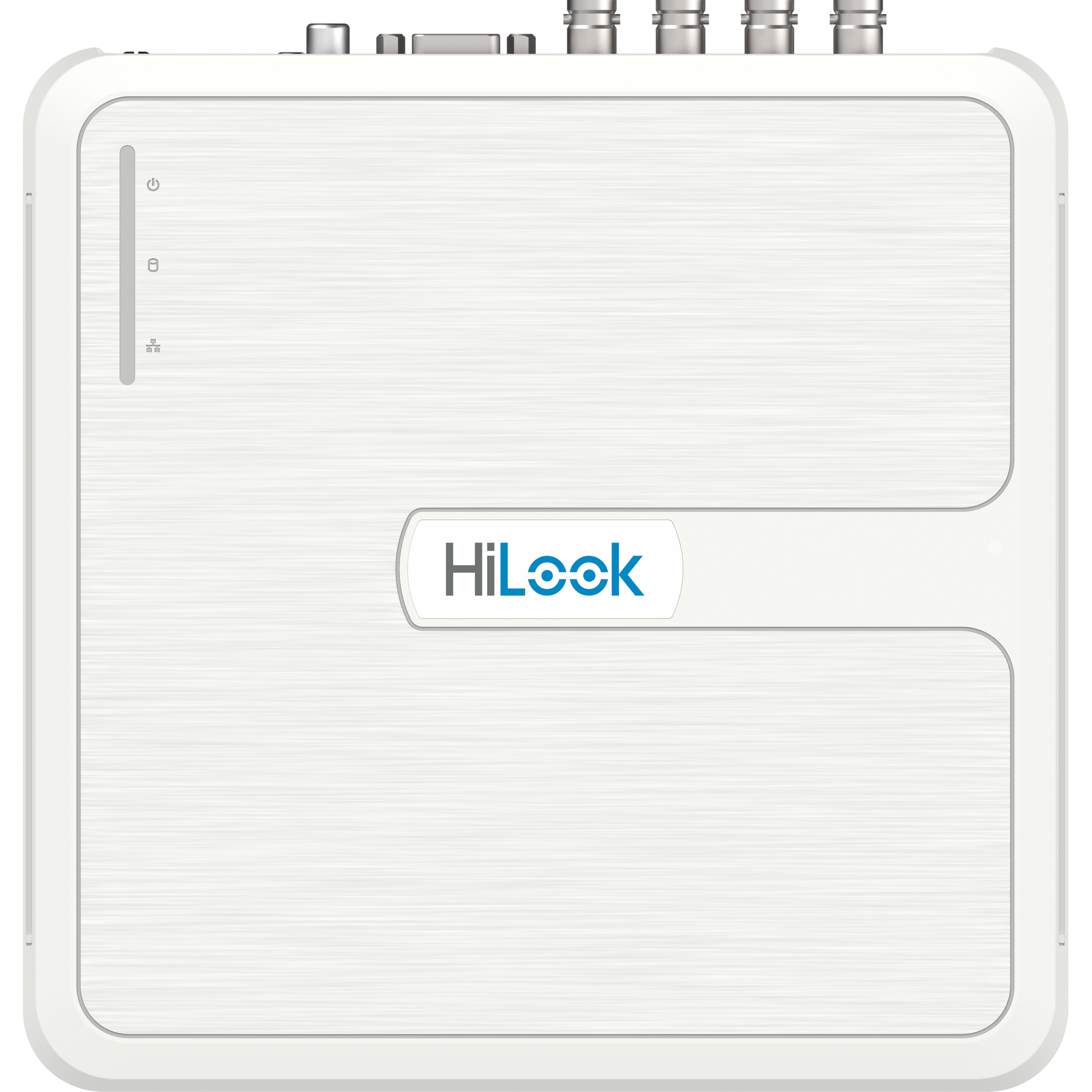

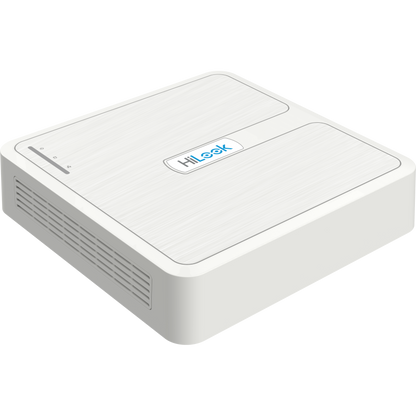

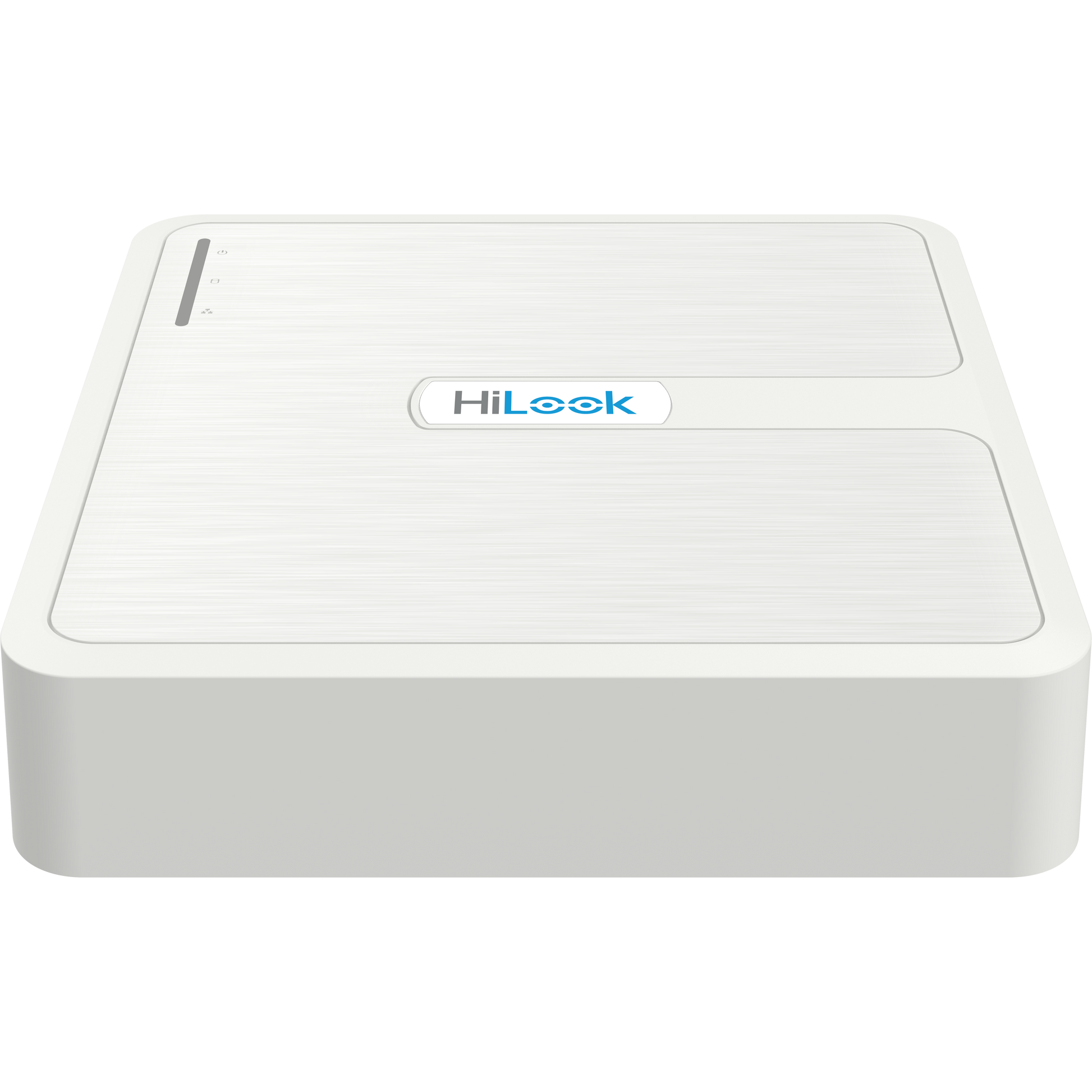

HiLook DVR-108G-M1/T TVI

HiLook DVR-108G-M1/T TVI

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 1 MP

Support All channels HDTVI Two-way Audio Technology,full-channel motion detection 2.0 ,8 Turbo HD/AHD/Analog interface input,8-ch HDTVI coaxial video&audio input, 1-ch RCA audio input, 2-ch IP video input (up to 10-ch), HDMI & VGA Output, 1 SATA interface, HD1080P Lite: 12fps/ch, mini 1U case

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook DVR-108G-M1/T TVI
Login to View Price

Specifications

  • Human/Vehicle Analysis: Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
  • IP Video Input: 2-ch (up to 10-ch) Up to 5MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
  • AHD Input: 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input: Support
  • HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: Reuse the first audio input
  • Synchronous playback: 8-ch
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 4 Mbps
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Total Bandwidth: 72 Mbps
  • Remote Connection: 64
  • Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
  • Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • SATA: 1 SATA interface
  • Capacity: Up to 4 TB capacity for each disk
  • USB Interface: Rear panel: 2 × USB 2.0
  • Alarm In/Out: N/A
  • Power Supply: 12 VDC, 1.5 A
  • Consumption: ≤ 10 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)

Motion Detection 2.0
  • Human/Vehicle Analysis: Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Video and Audio
  • IP Video Input: 2-ch (up to 10-ch) Up to 5MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
  • AHD Input: 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input: Support
  • HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: Reuse the first audio input
  • Synchronous playback: 8-ch

Recording
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 4 Mbps
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps

Network
  • Total Bandwidth: 72 Mbps
  • Remote Connection: 64
  • Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
  • Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface
  • SATA: 1 SATA interface
  • Capacity: Up to 4 TB capacity for each disk
  • USB Interface: Rear panel: 2 × USB 2.0
  • Alarm In/Out: N/A

General
  • Power Supply: 12 VDC, 1.5 A
  • Consumption: ≤ 10 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)
