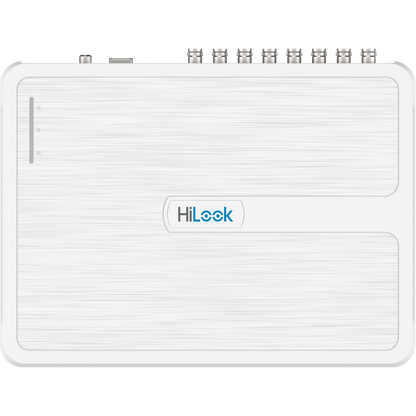

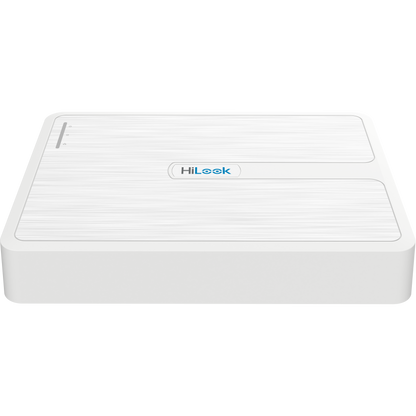

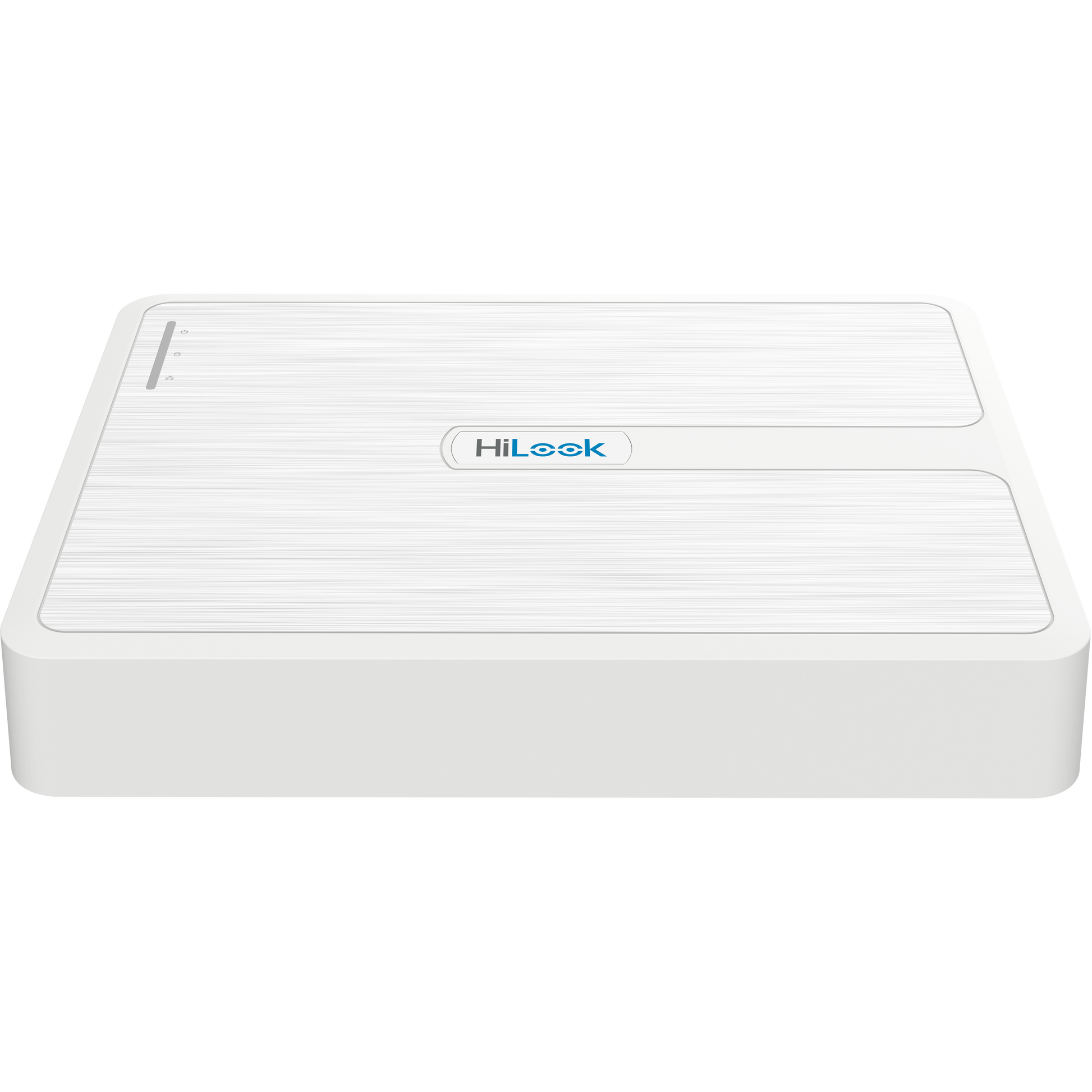

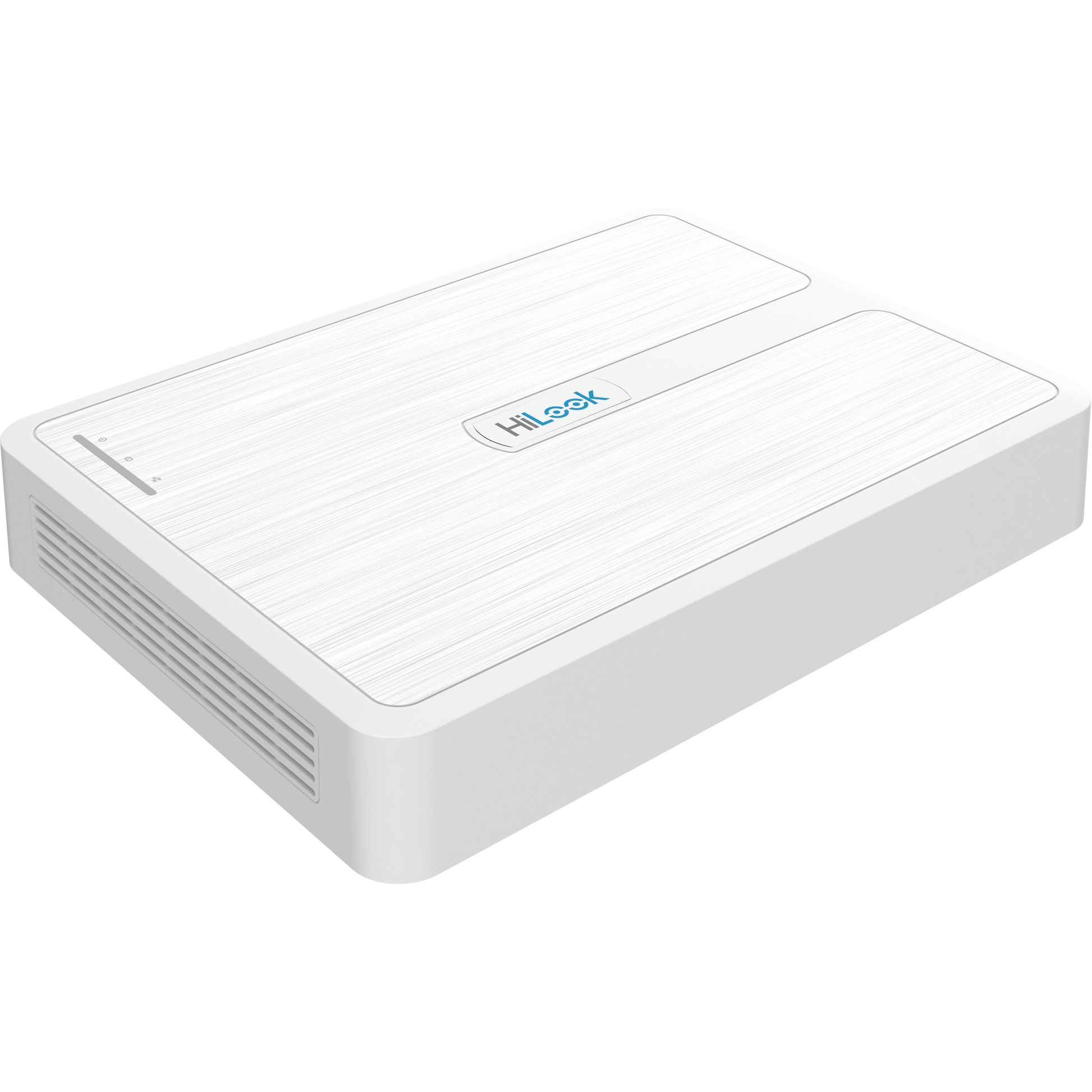

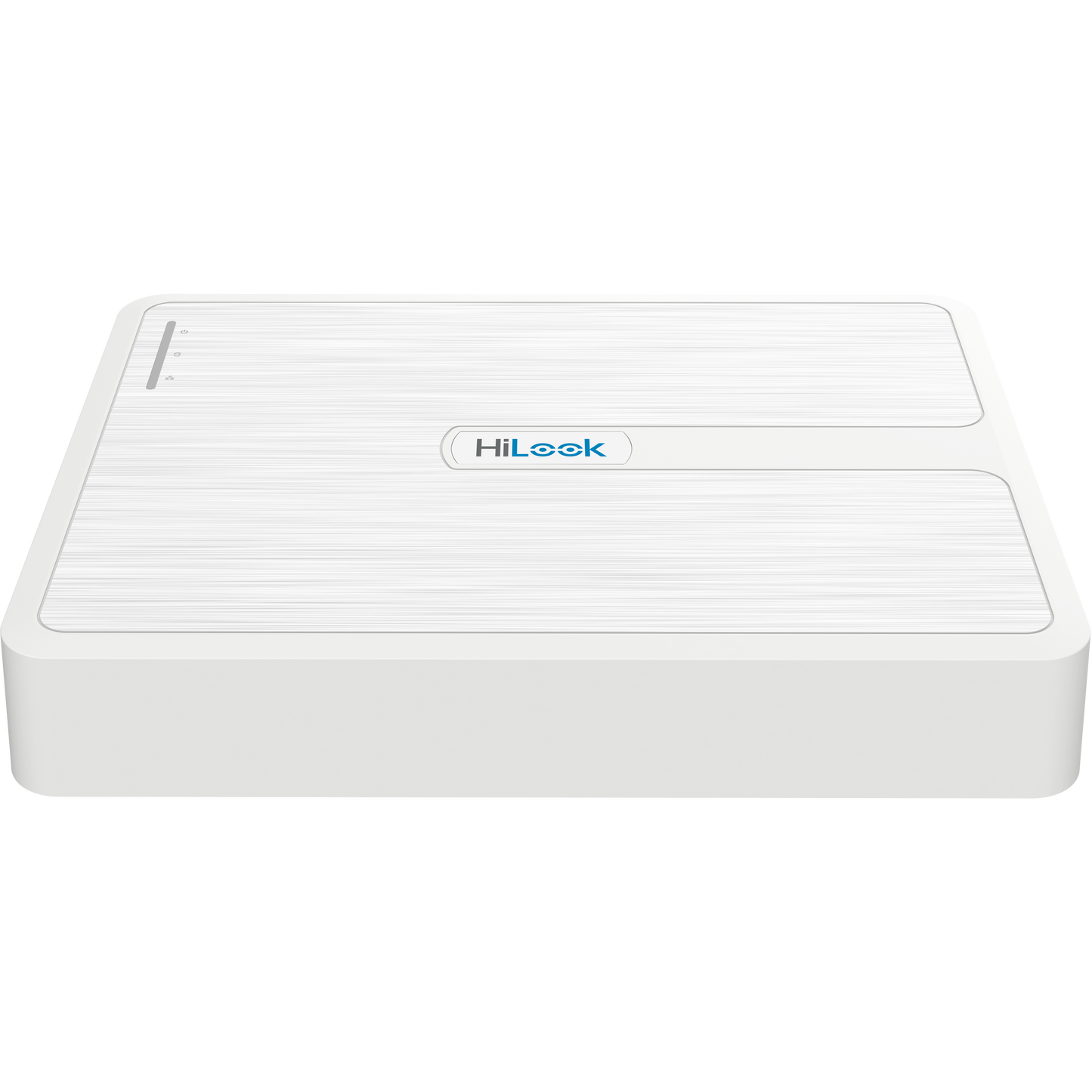

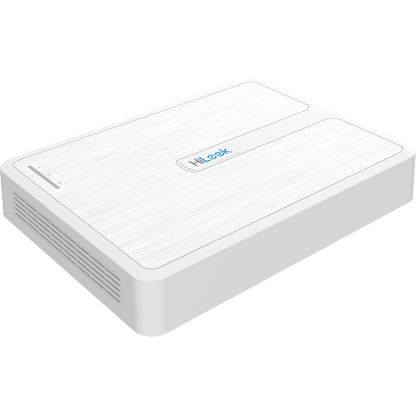

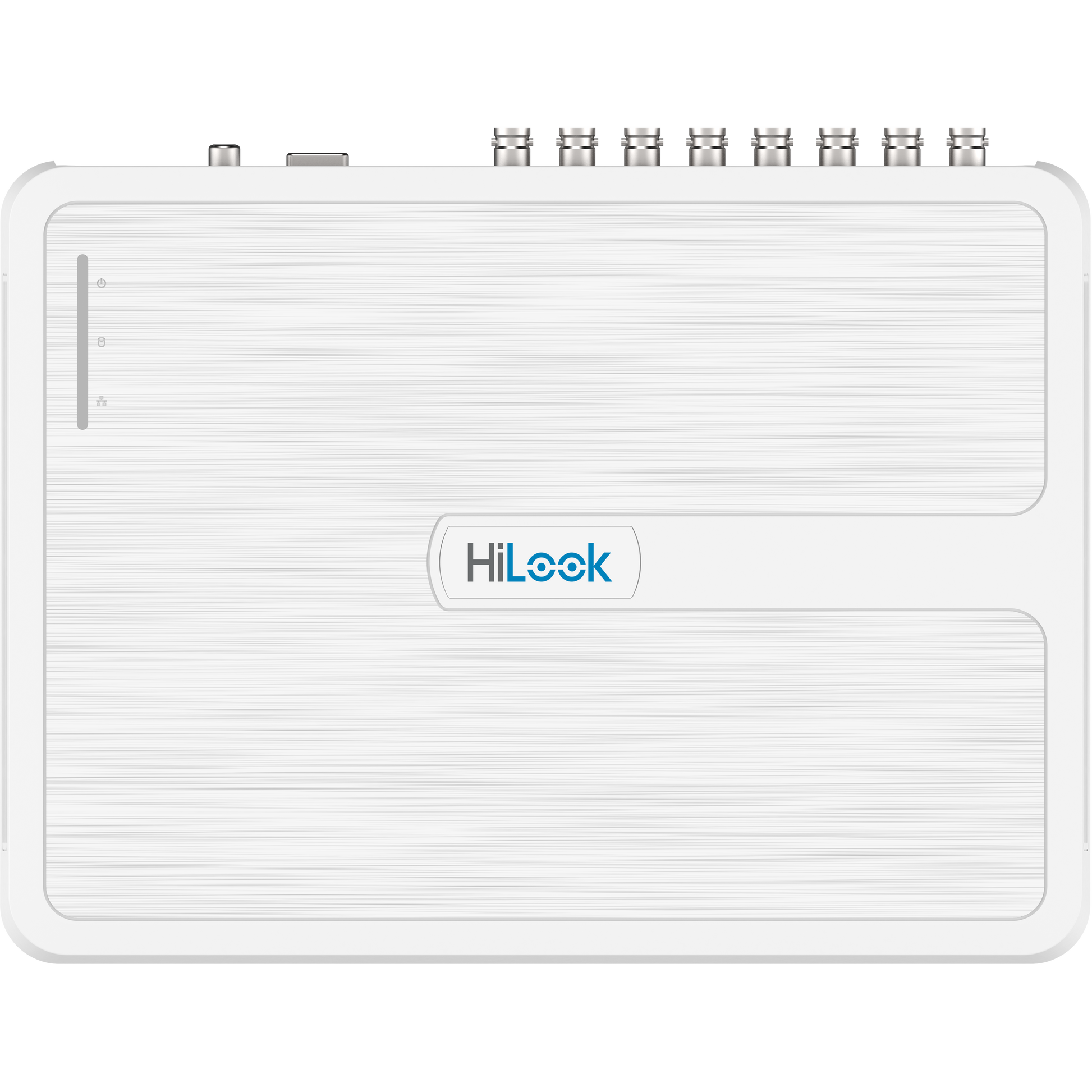

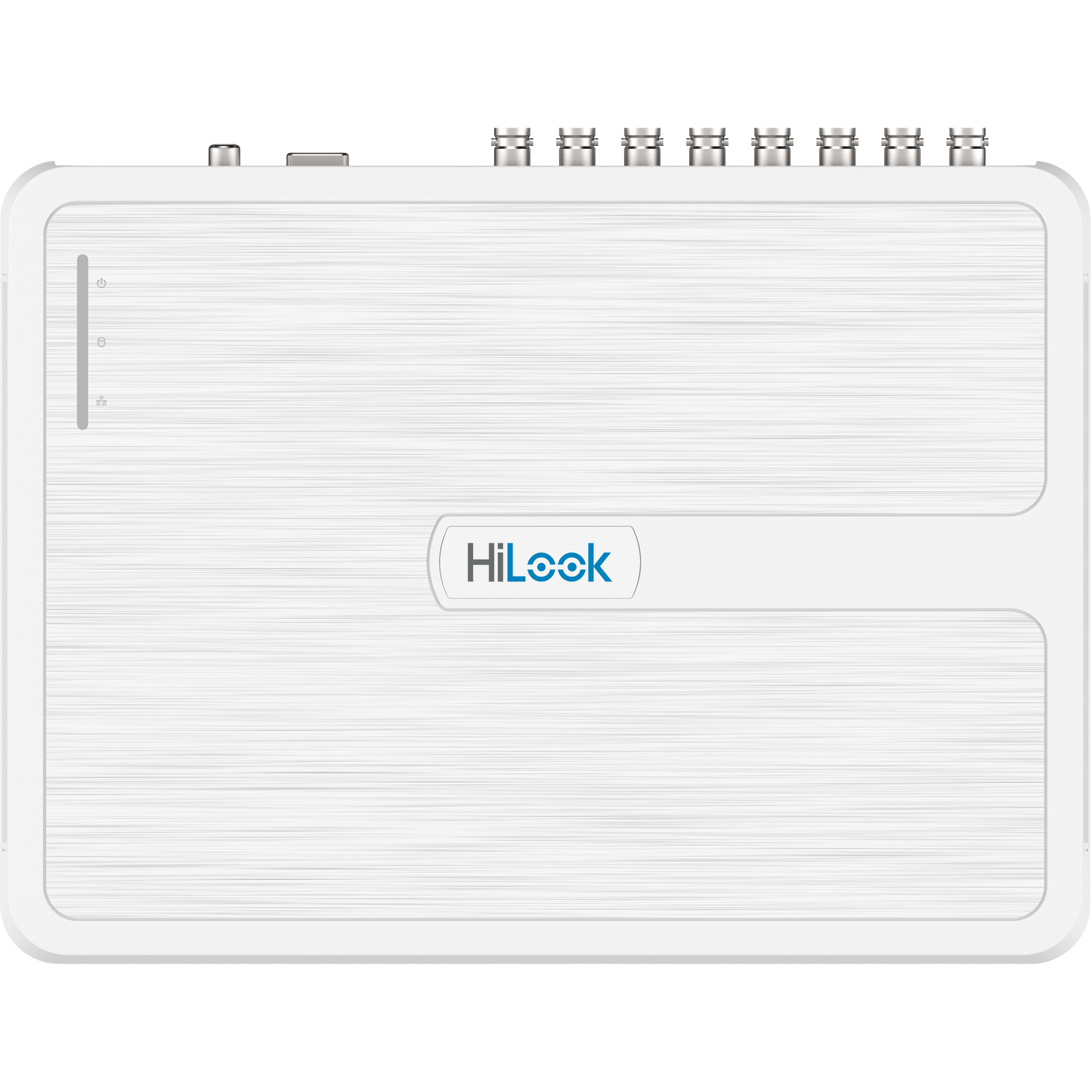

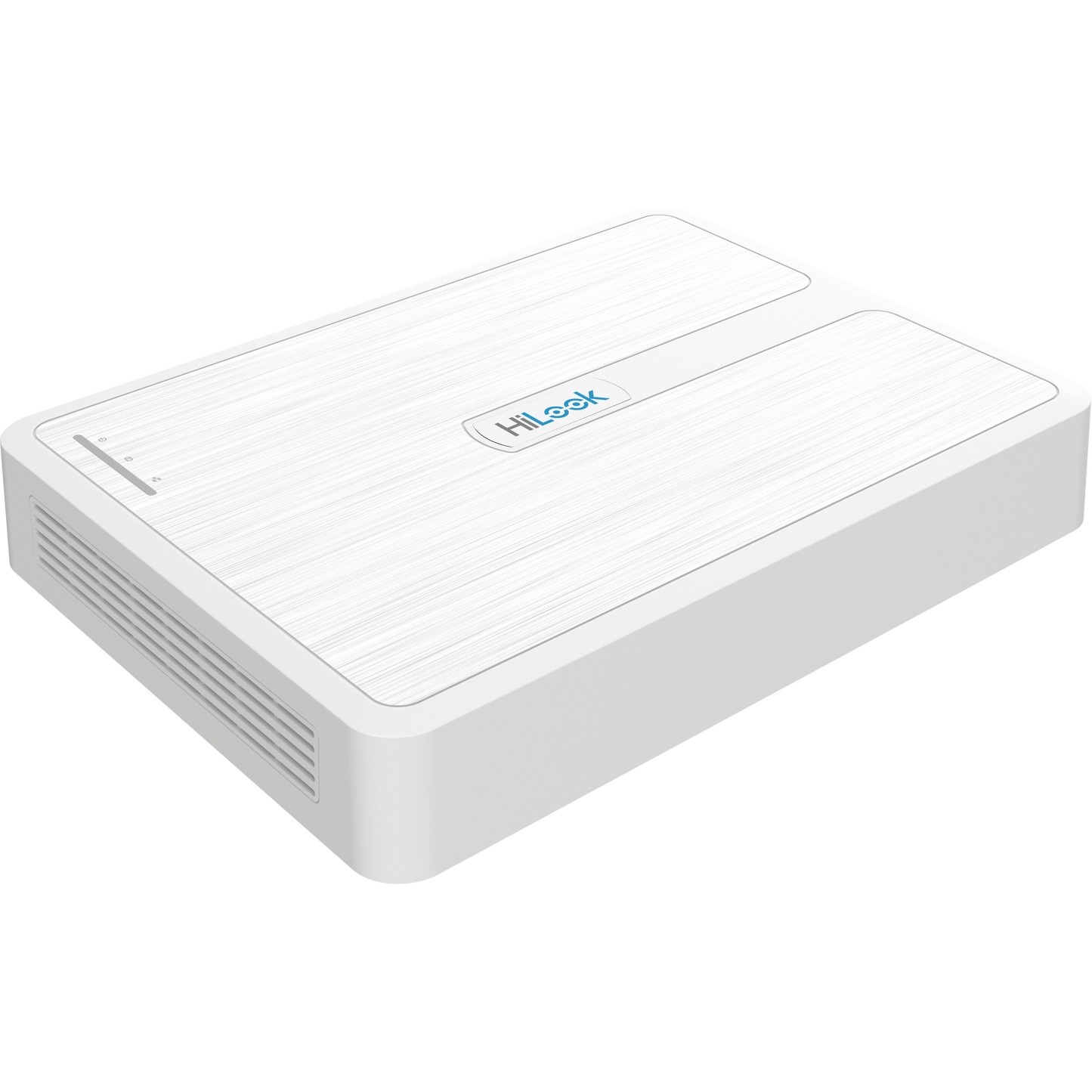

HiLook DVR-116G-M1/T TVI

HiLook DVR-116G-M1/T TVI

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 1 MP

Support All channels HDTVI Two-way Audio Technology,full-channel motion detection 2.0 ,16 Turbo HD/AHD/Analog interface input, 16-ch HDTVI coaxial video&audio input,2-ch IP video input (up to 18-ch), 1-ch RCA audio input, HDMI & VGA Output, 1 SATA interface, HD1080P Lite: 15fps/ch, mini 1U case

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook DVR-116G-M1/T TVI
Login to View Price

Specifications

  • Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
  • IP Video Input: 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

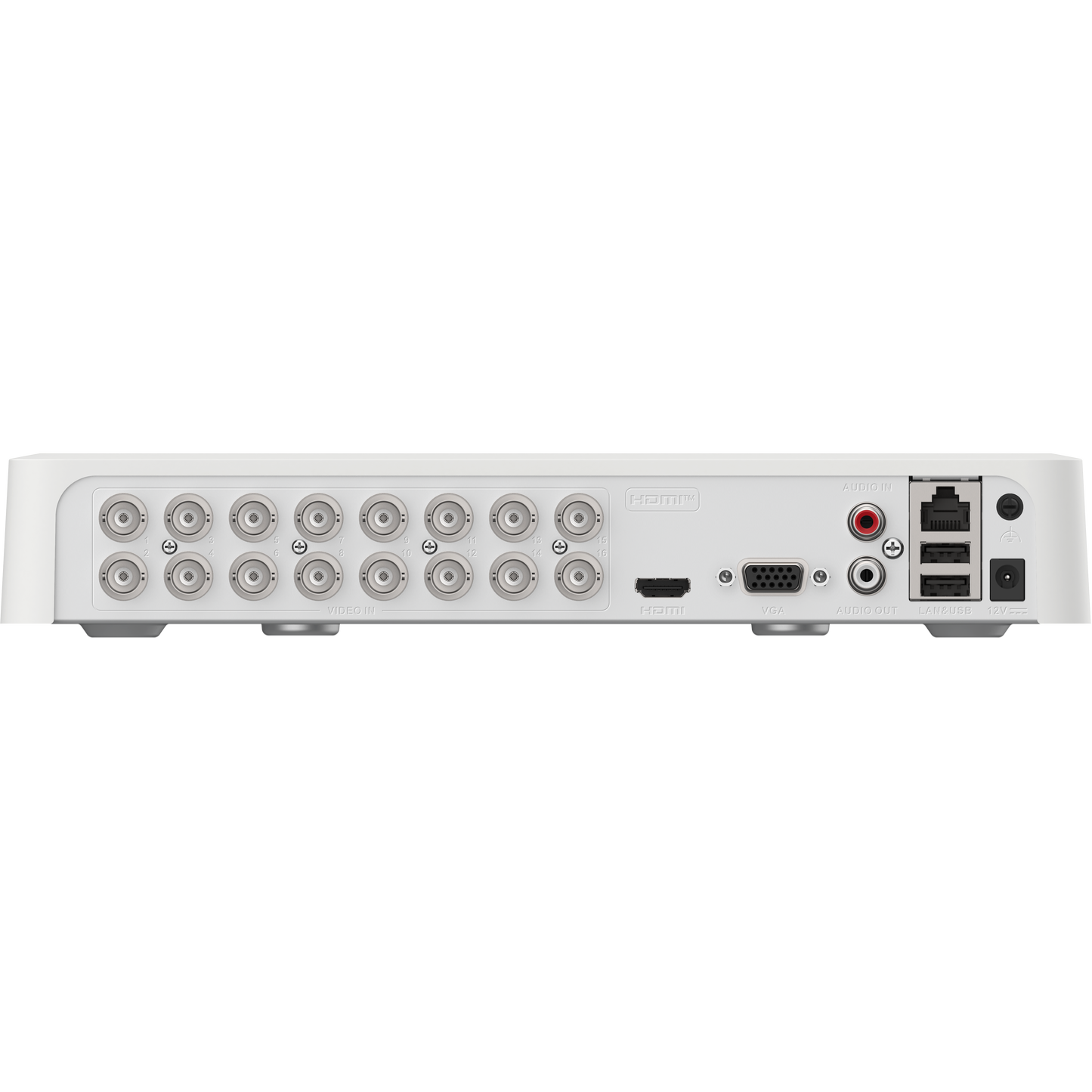

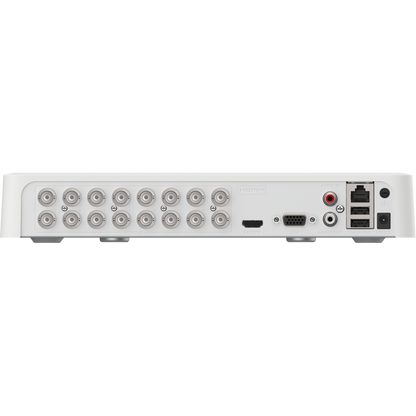

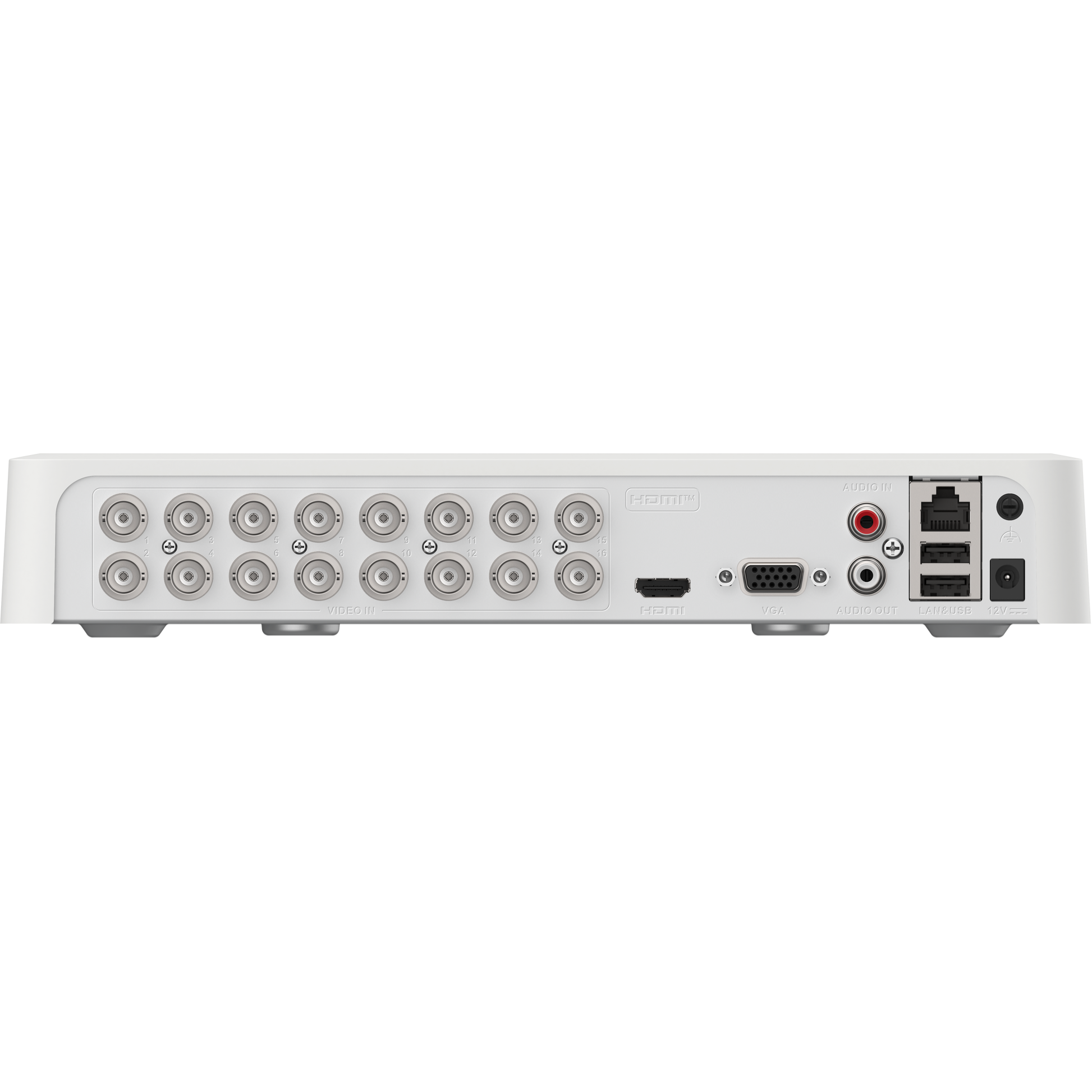

  • Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
  • AHD Input: 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input: PAL/NTSC
  • HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback: 16-ch
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 4 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Total Bandwidth: 96 Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
  • Remote Connection: 128
  • Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • SATA: 1, SATA interface
  • Capacity: Up to 6 TB capacity for each disk
  • USB Interface: 2 × USB 2.0
  • Power Supply: 12 VDC, 2 A
  • Consumption: ≤ 7 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
  • Weight: ≤ 1.8 kg (without HDD, 4.0 lb.)

Motion Detection 2.0
  • Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Video and Audio
  • IP Video Input: 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
  • AHD Input: 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input: PAL/NTSC
  • HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback: 16-ch

Recording
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 4 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps

Network
  • Total Bandwidth: 96 Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
  • Remote Connection: 128
  • Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface
  • SATA: 1, SATA interface
  • Capacity: Up to 6 TB capacity for each disk
  • USB Interface: 2 × USB 2.0

General
  • Power Supply: 12 VDC, 2 A
  • Consumption: ≤ 7 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
  • Weight: ≤ 1.8 kg (without HDD, 4.0 lb.)
