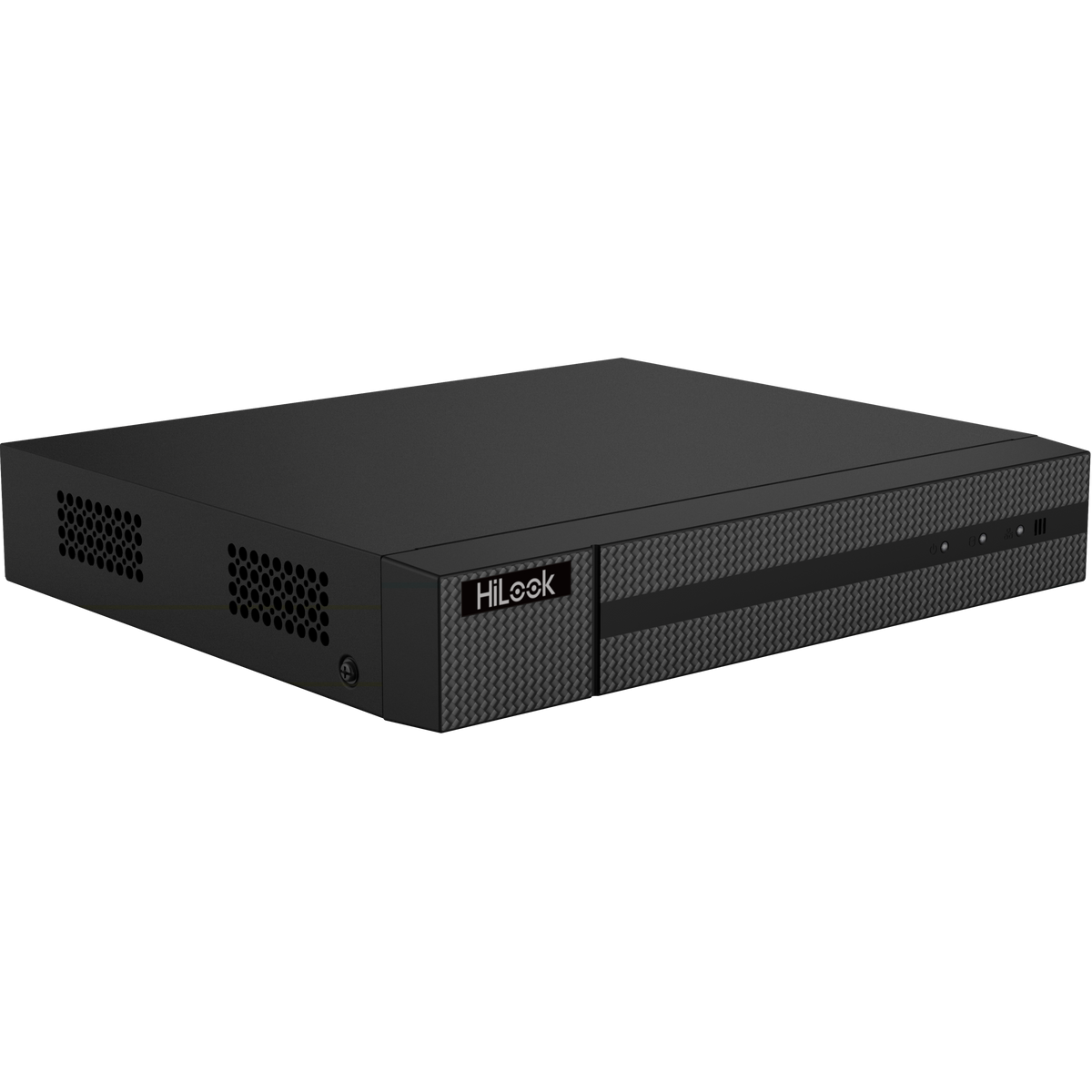

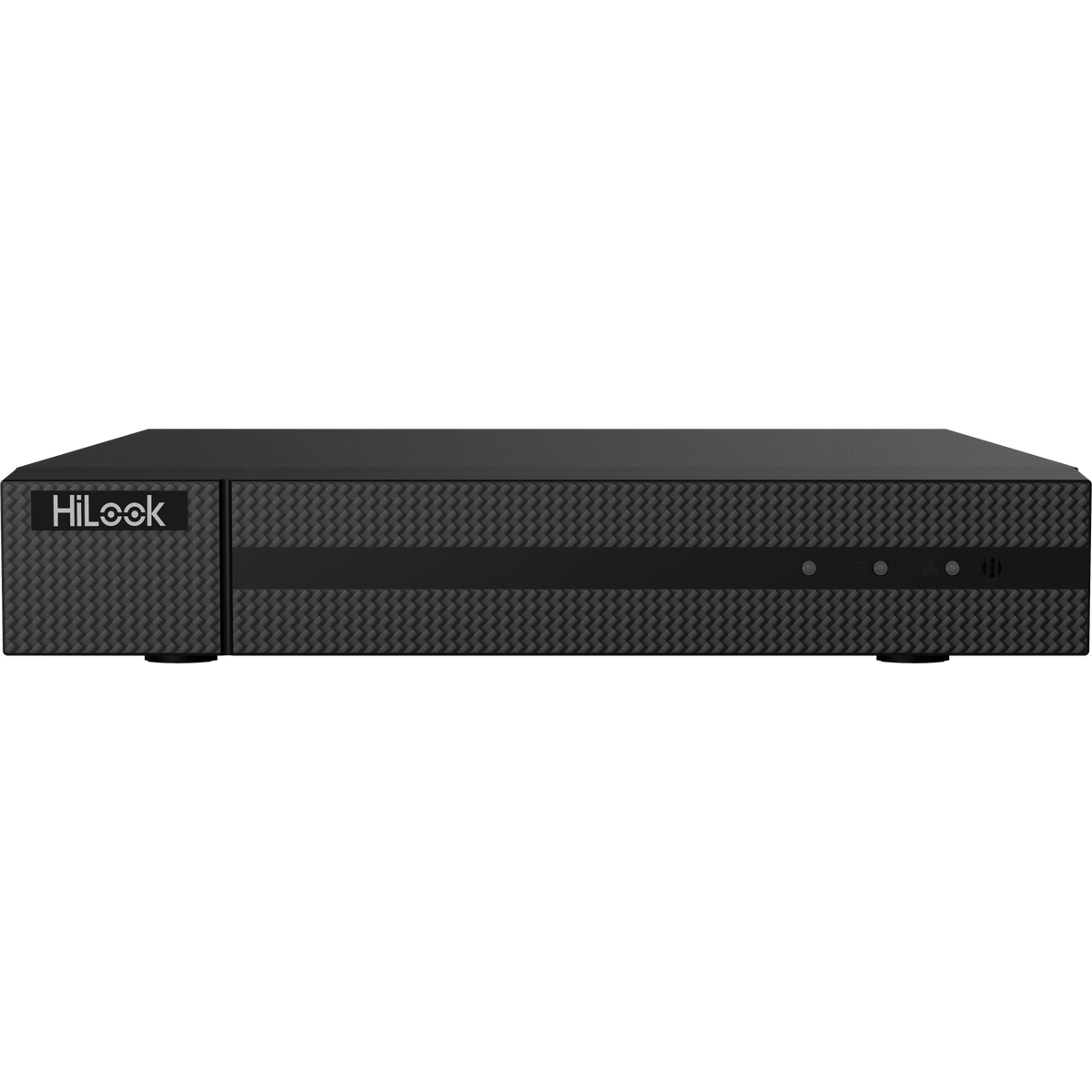

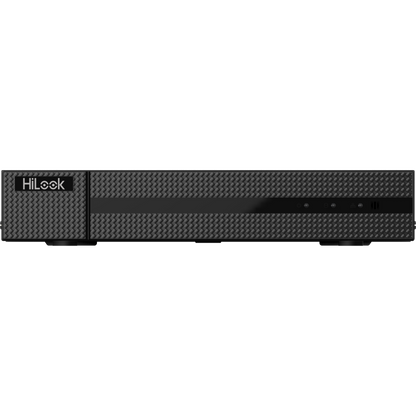

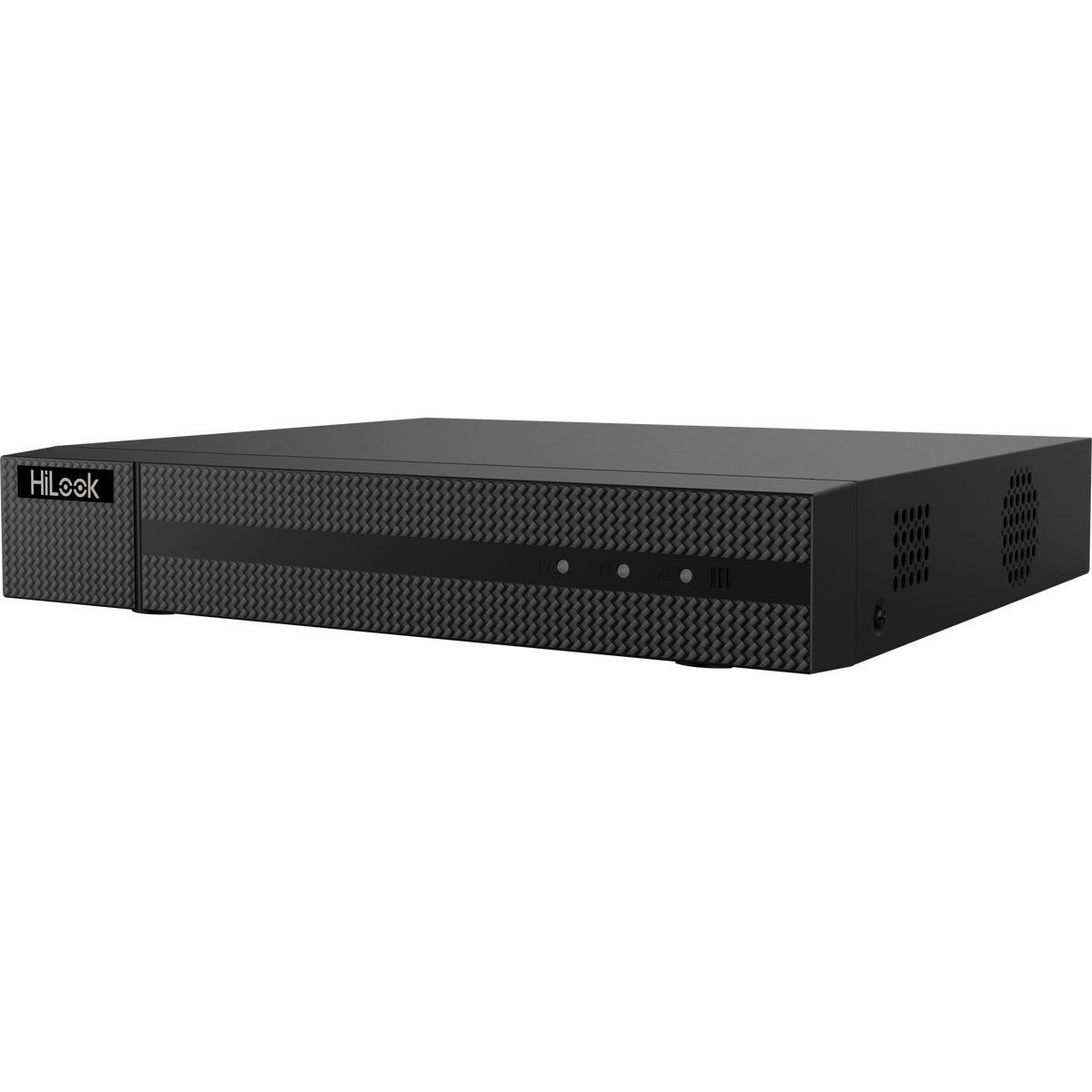

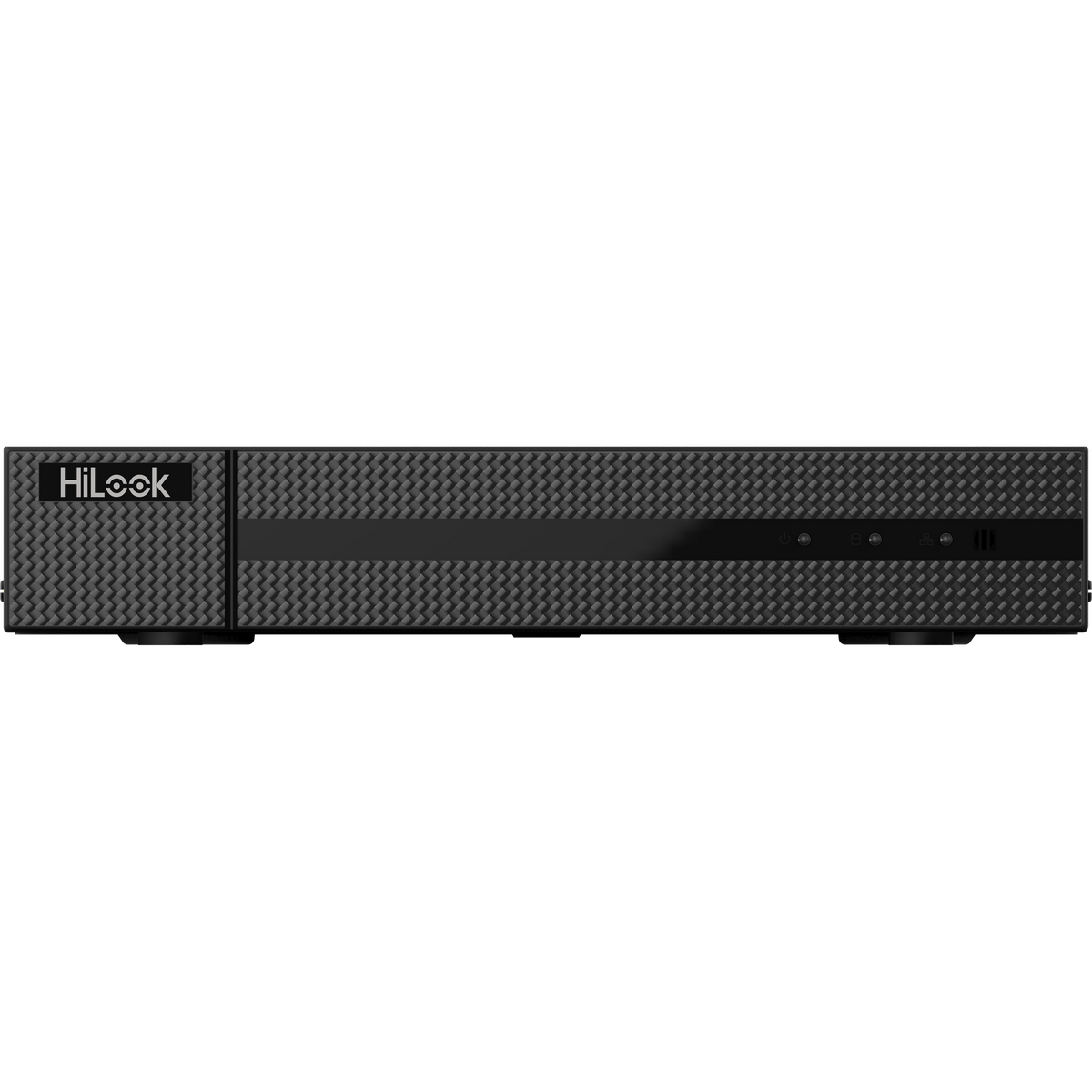

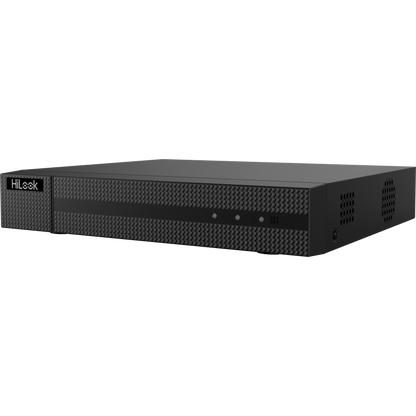

HILOOK DVR-204U-M1/T 4-ch 5MP 1U H.265 AcuSense DVR
HILOOK DVR-204U-M1/T 4-ch 5MP 1U H.265 AcuSense DVR
- HD COAX CCTV
- 8MP
- 4 channels and 1 HDD 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 4K/8MP @ 8fps(1-ch); 3K/5MP @12fps
- Up to 8 channels IP camera inputs, each channel up to 8MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HILOOK DVR-204U-M1/T 4-ch 5MP 1U H.265 AcuSense DVR
Specifications
- Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights. Quick search by object or event type is supported.
- IP Video Input: 2-ch (up to 6-ch) Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

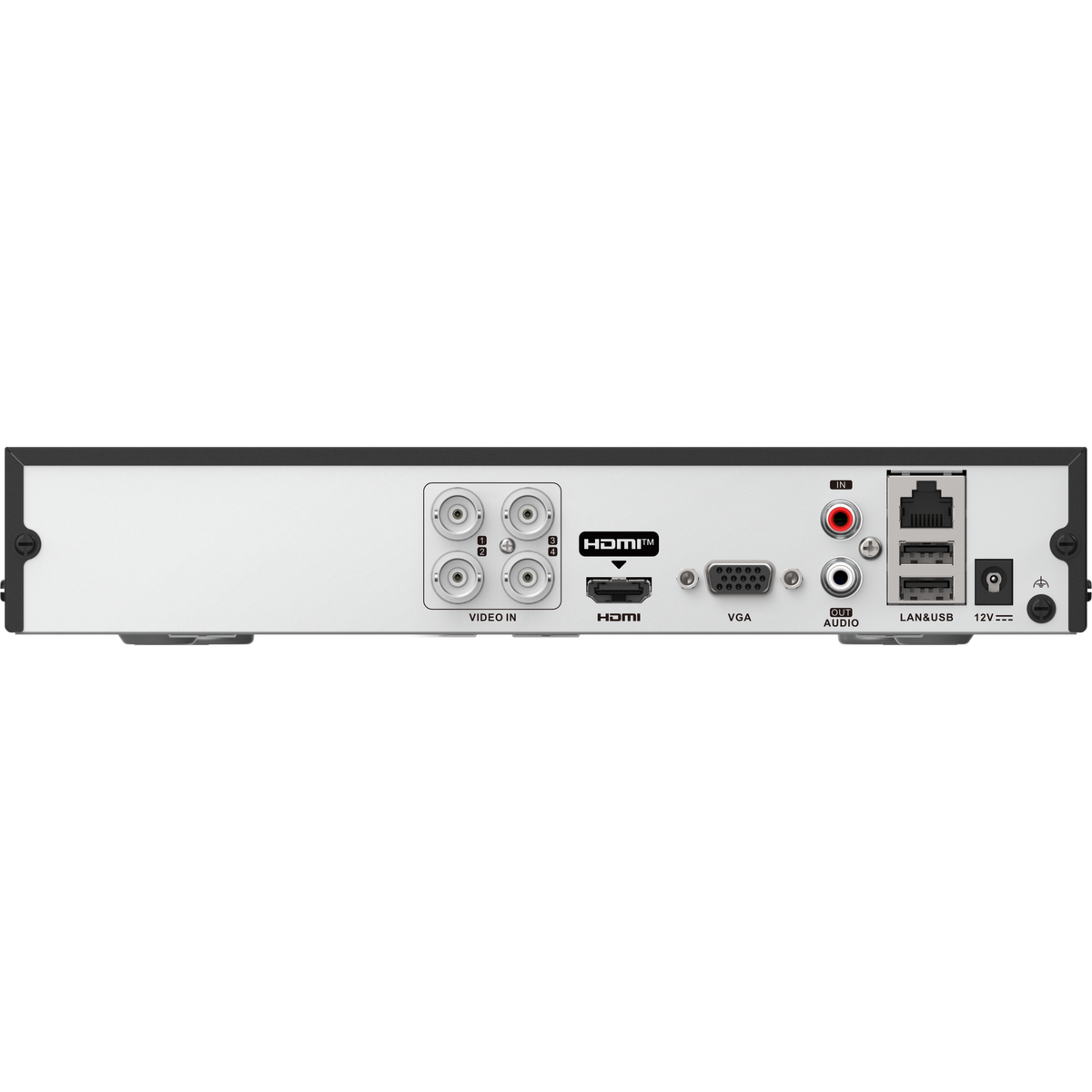

- Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input: 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20 fps,2K(2304x1296)@20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
- AHD Input: 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input: 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
- CVBS Input: PAL/NTSC
- HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode: HDMI/VGA simultaneous output
- Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback: 4-ch
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate: Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate: 32 Kbps to 10 Mbps
- Dual-stream: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bitrate: 64 Kbps
- Total Bandwidth: 96 Mbps
- Remote Connection: 32
- Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
- Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interfac
- Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
- SATA: 1 SATA interface
- Capacity: Up to 10 TB capacity for each disk
- Alarm In/Out: N/A
- USB Interface: 2 × USB 2.0
- Power Supply: 12 VDC, 1.5 A
- Consumption: ≤ 15 W (without HDD)
- Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)
- Weight: ≤ 1.16 kg (without HDD, 2.6 lb.)
