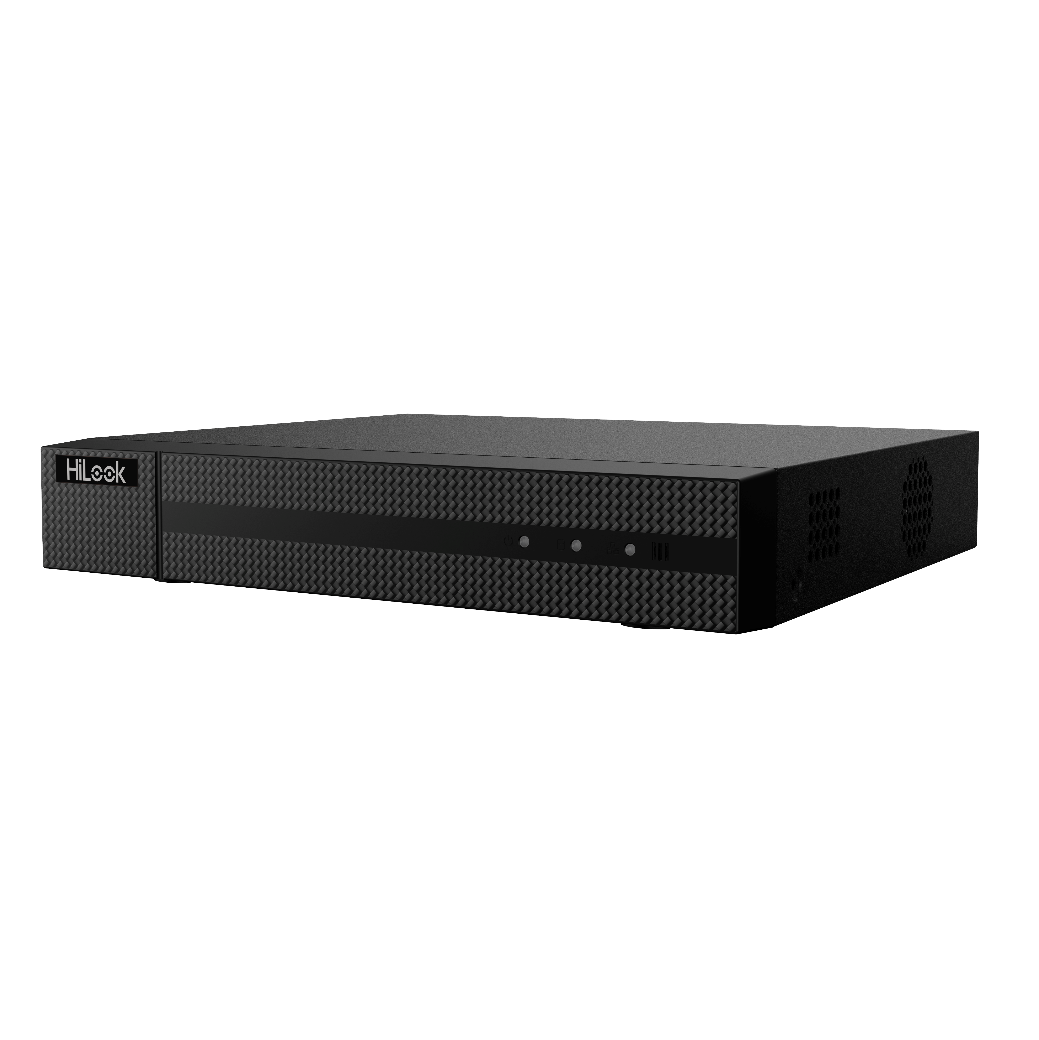

• DVR-208U-M1

HiLook DVR-208U-M1(C) TVI

HiLook DVR-208U-M1(C) TVI

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 5 MP

Full-channel Motion Detection 2.0,8 HDTVI/CVI / AHD / CVBS self-adaptive interfaces input, 8-ch HDTVI coaxial video&audio input,1-ch local audio input, 8-ch IP video input(up to 16-ch IP), 1 SATA interface, H.265/H.265+ compression, 5MP: 12fps, 4MP: 15fps, 3MP: 18fps, 1920×1080P: 25(P)/30(N) fps/ch, mini 1U case

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook DVR-208U-M1(C) TVI
Login to View Price

Specifications

  • Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
  • HDTVI Input: 8 MP@15 fps, 8 MP@12 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • HDCVI Input: 8 MP@15 fps, 8 MP@12 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • AHD Input: 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • IP Video Input: 4-ch (up to 12-ch) Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • CVBS Input: PAL/NTSC
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
  • Synchronous playback: 8-ch
  • Frame Rate: Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Total Bandwidth: 128 Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection: 64
  • Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
  • SATA: 1 SATA interface
  • Capacity: Up to 10 TB capacity for each disk
  • USB Interface: Rear panel: 2 × USB 2.0
  • Power Supply: 12 VDC, 2 A
  • Consumption: ≤ 10 W (without HDD)
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
  • Weight: ≤ 1.6 kg (without HDD, 3.5 lb.)

Motion Detection 2.0
  • Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Video and Audio
  • HDTVI Input: 8 MP@15 fps, 8 MP@12 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • HDCVI Input: 8 MP@15 fps, 8 MP@12 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • AHD Input: 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • IP Video Input: 4-ch (up to 12-ch) Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • CVBS Input: PAL/NTSC
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
  • Synchronous playback: 8-ch

Recording
  • Frame Rate: Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps

Network
  • Total Bandwidth: 128 Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection: 64
  • Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface
  • SATA: 1 SATA interface
  • Capacity: Up to 10 TB capacity for each disk
  • USB Interface: Rear panel: 2 × USB 2.0

General
  • Power Supply: 12 VDC, 2 A
  • Consumption: ≤ 10 W (without HDD)
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
  • Weight: ≤ 1.6 kg (without HDD, 3.5 lb.)
