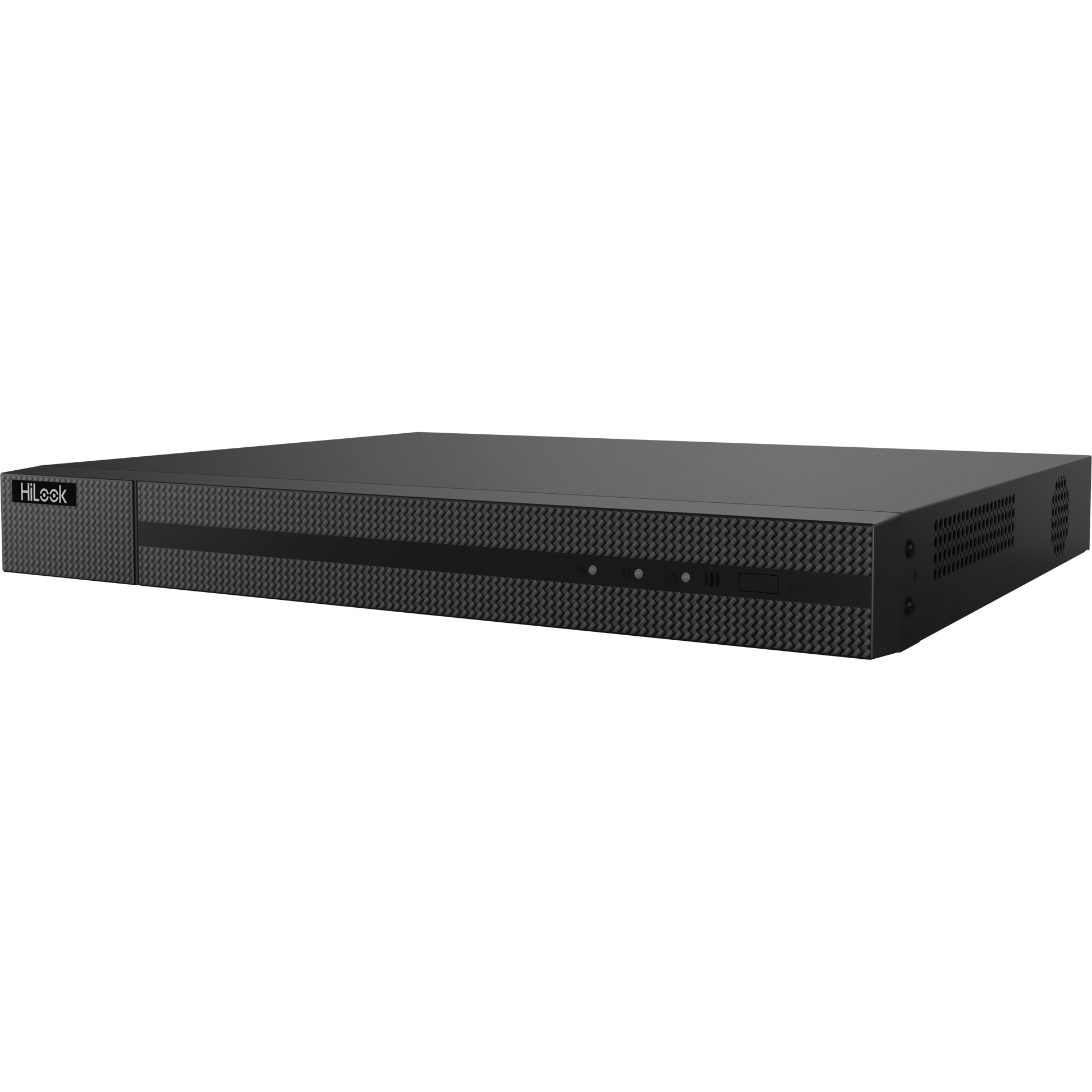

HiLook DVR-216Q-M2 TVI

HiLook DVR-216Q-M2 TVI

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 2 MP

16-ch HD-TVI/AHD/CVI/CVBS video & 1-ch audio input, 8-ch IP video input(up to 24-ch IP), 2 SATA interface, 5 MP lite@20fps, 4 MP lite@15 fps. H.265 Pro+/H.265 Pro/H.265 video compression, 380 1U case

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook DVR-216Q-M2 TVI
Login to View Price

Specifications

  • Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported
  • HDTVI Input: 3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • HDCVI Input: 5 MP@20 fps,4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • AHD Input: 5 MP@20 fps,4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • IP Video Input: 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • Incoming Bandwidth: 96 Mbps
  • CVBS Input: PAL/NTSC
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous playback: 16-ch
  • Frame Rate: Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Encoding Resolution: When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Video Bitrate: 32 Kbps to 6 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Remote Connection: 128
  • Total Bandwidth: 128 Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • SATA: 2 SATA interfaces
  • Capacity: Up to 10 TB capacity for each disk
  • USB Interface: Real panel: 2 × USB 2.0
  • Alarm In/Out: N/A
  • Power Supply: 12 VDC, 3.3A
  • Consumption: ≤ 40 W
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 384 × 315 × 52 mm (15.1 × 12.4 × 2.0 inch)
  • Weight: ≤ 2 kg (4.4 lb.)

Motion Detection 2.0
  • Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported

Video and Audio
  • HDTVI Input: 3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • HDCVI Input: 5 MP@20 fps,4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • AHD Input: 5 MP@20 fps,4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • IP Video Input: 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • Incoming Bandwidth: 96 Mbps
  • CVBS Input: PAL/NTSC
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous playback: 16-ch

Recording
  • Frame Rate: Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Encoding Resolution: When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Video Bitrate: 32 Kbps to 6 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps

Network
  • Remote Connection: 128
  • Total Bandwidth: 128 Mbps
  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface
  • SATA: 2 SATA interfaces
  • Capacity: Up to 10 TB capacity for each disk
  • USB Interface: Real panel: 2 × USB 2.0
  • Alarm In/Out: N/A

General
  • Power Supply: 12 VDC, 3.3A
  • Consumption: ≤ 40 W
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 384 × 315 × 52 mm (15.1 × 12.4 × 2.0 inch)
  • Weight: ≤ 2 kg (4.4 lb.)
