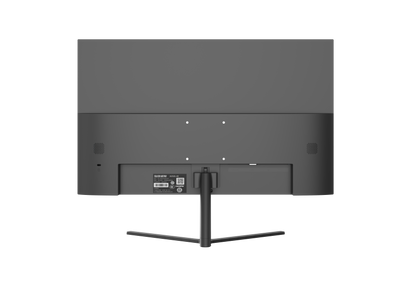

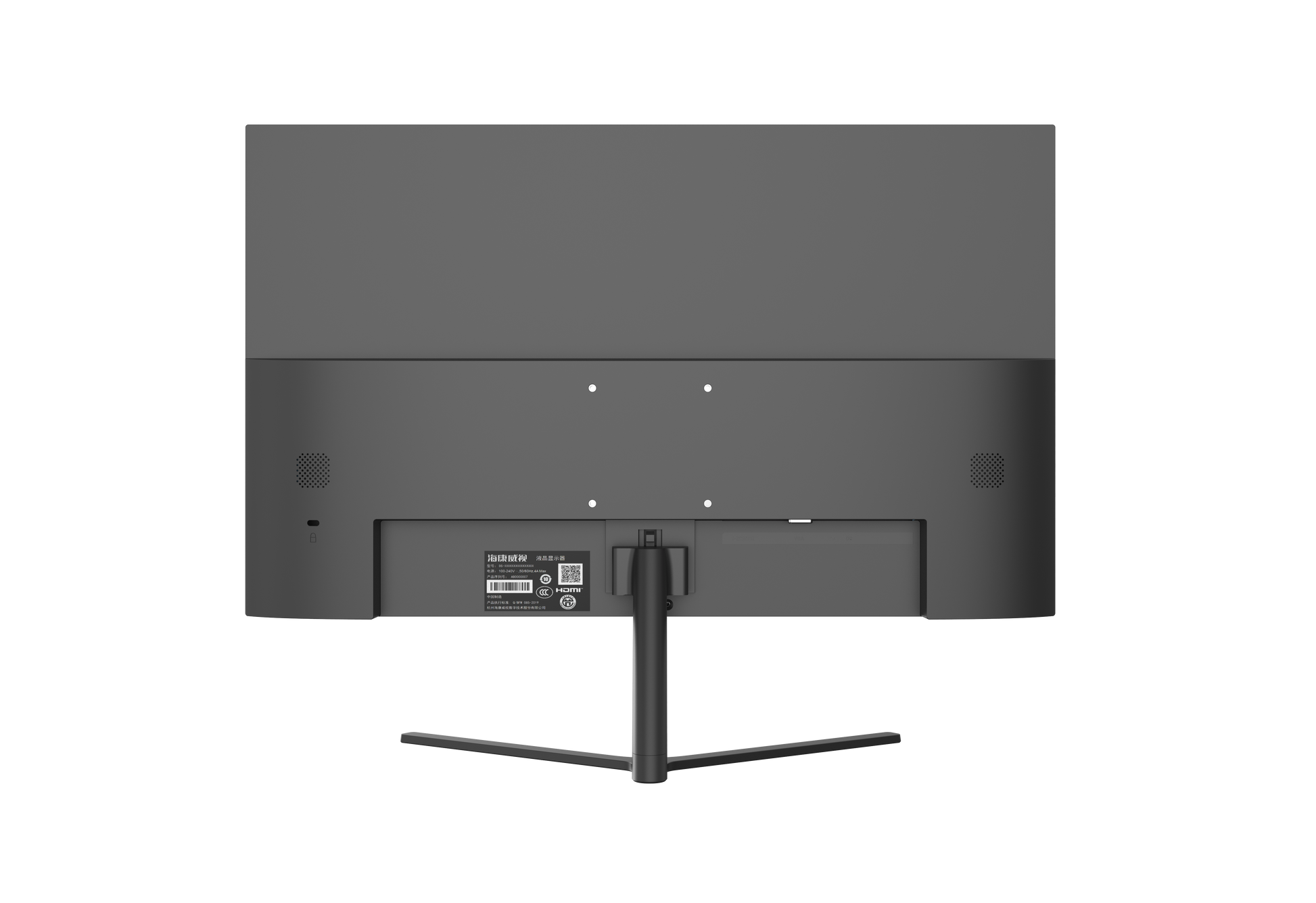

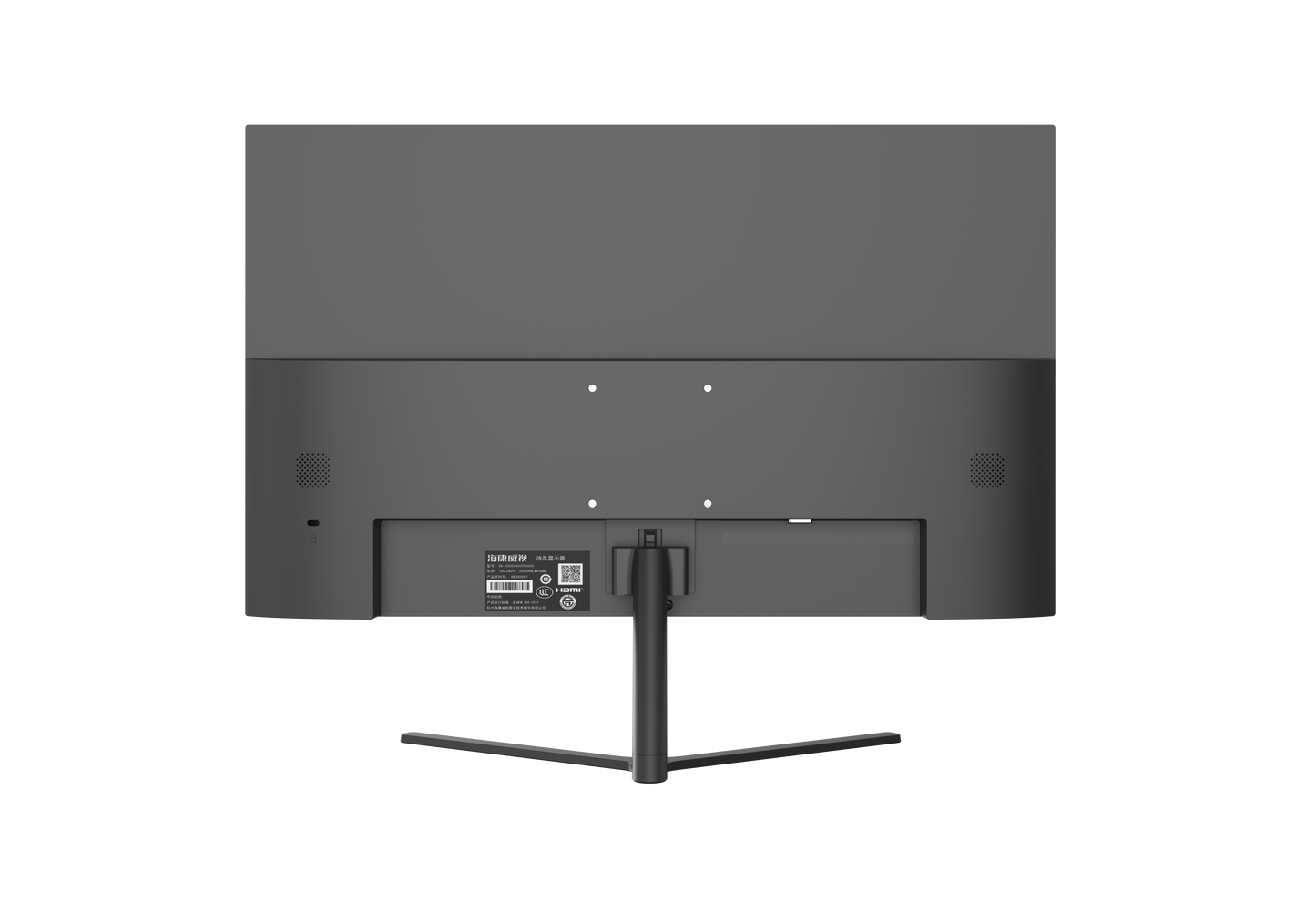

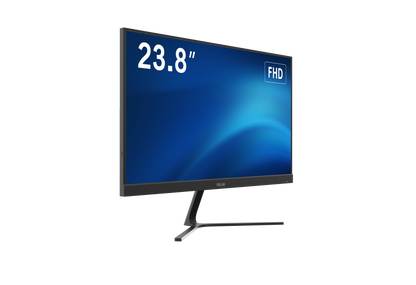

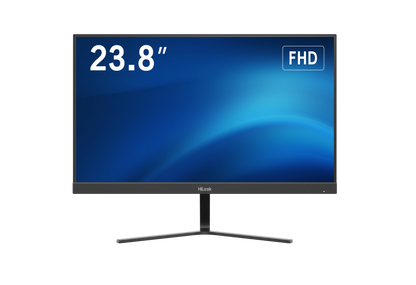

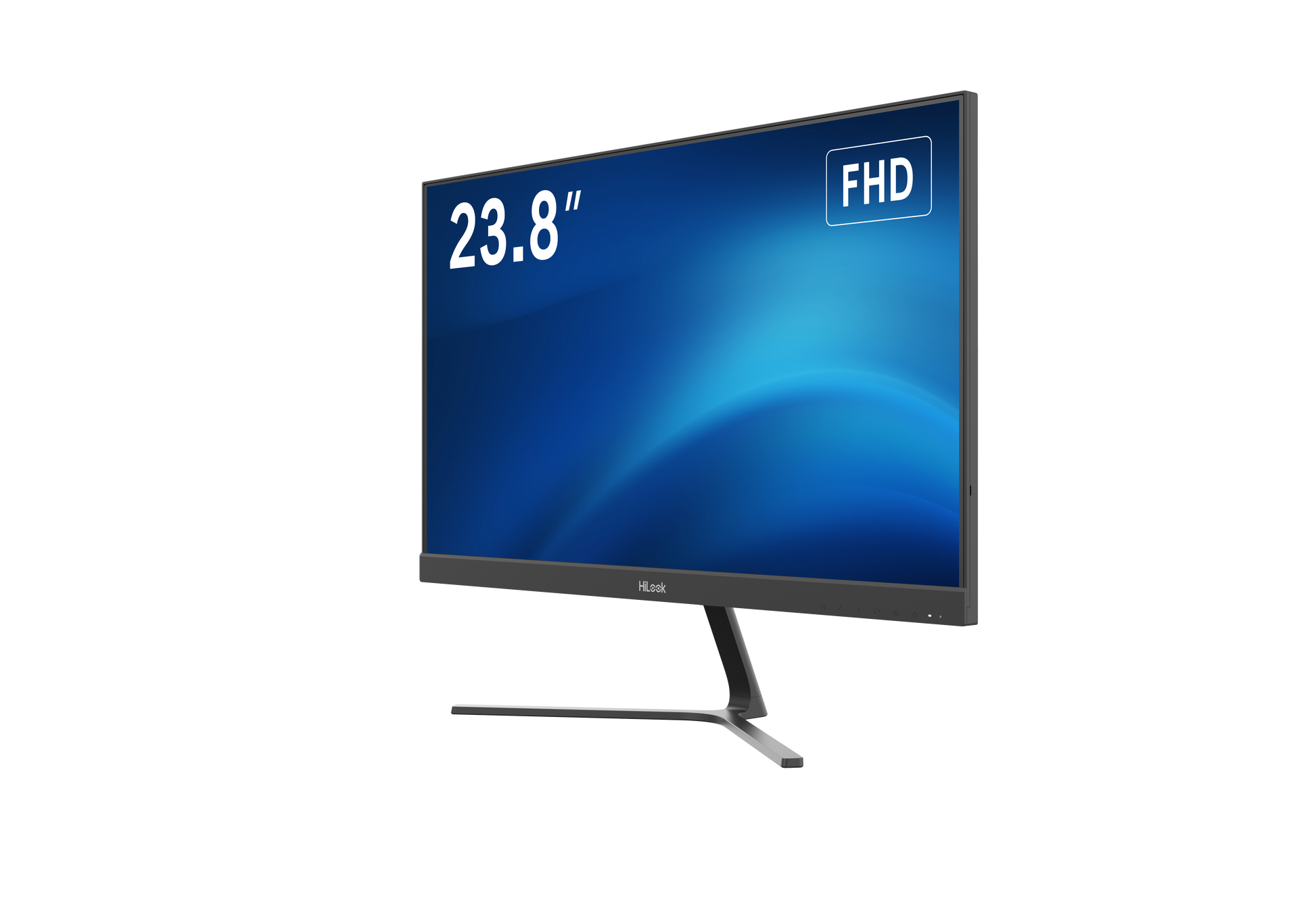

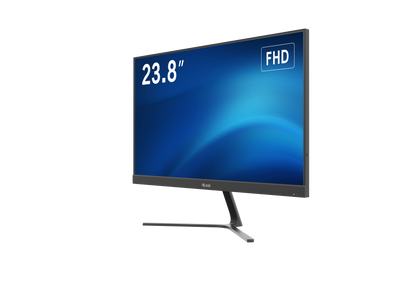

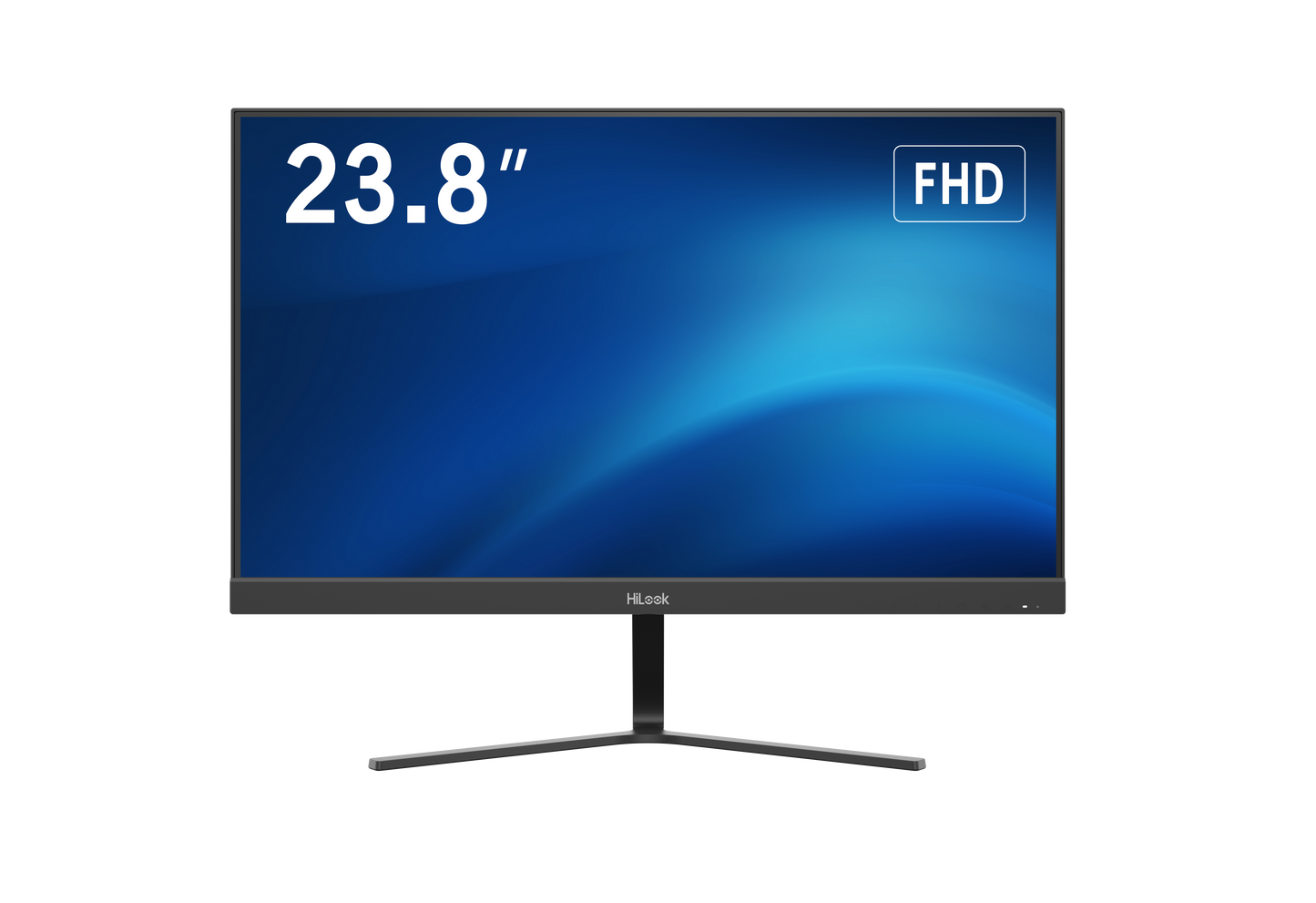

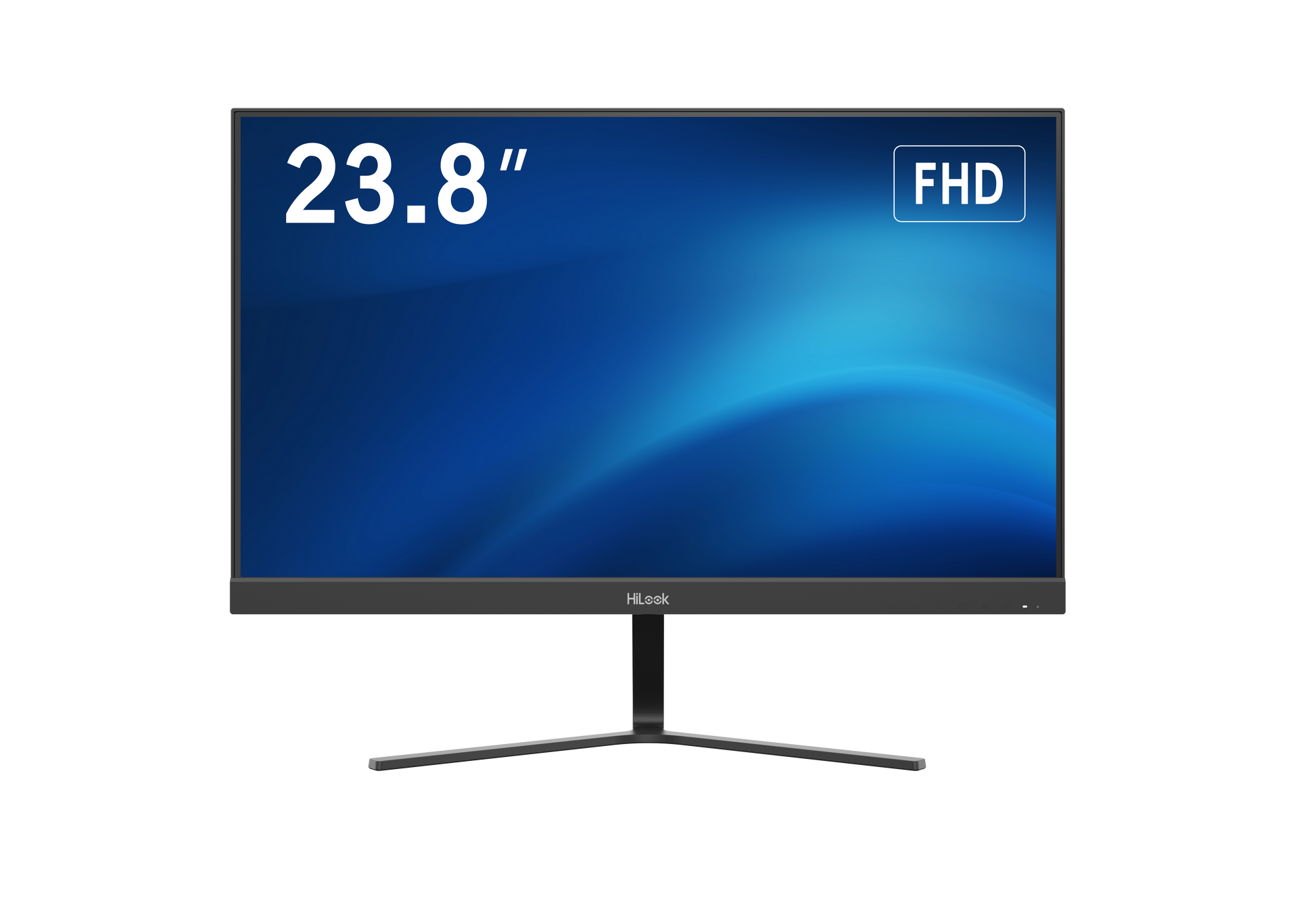

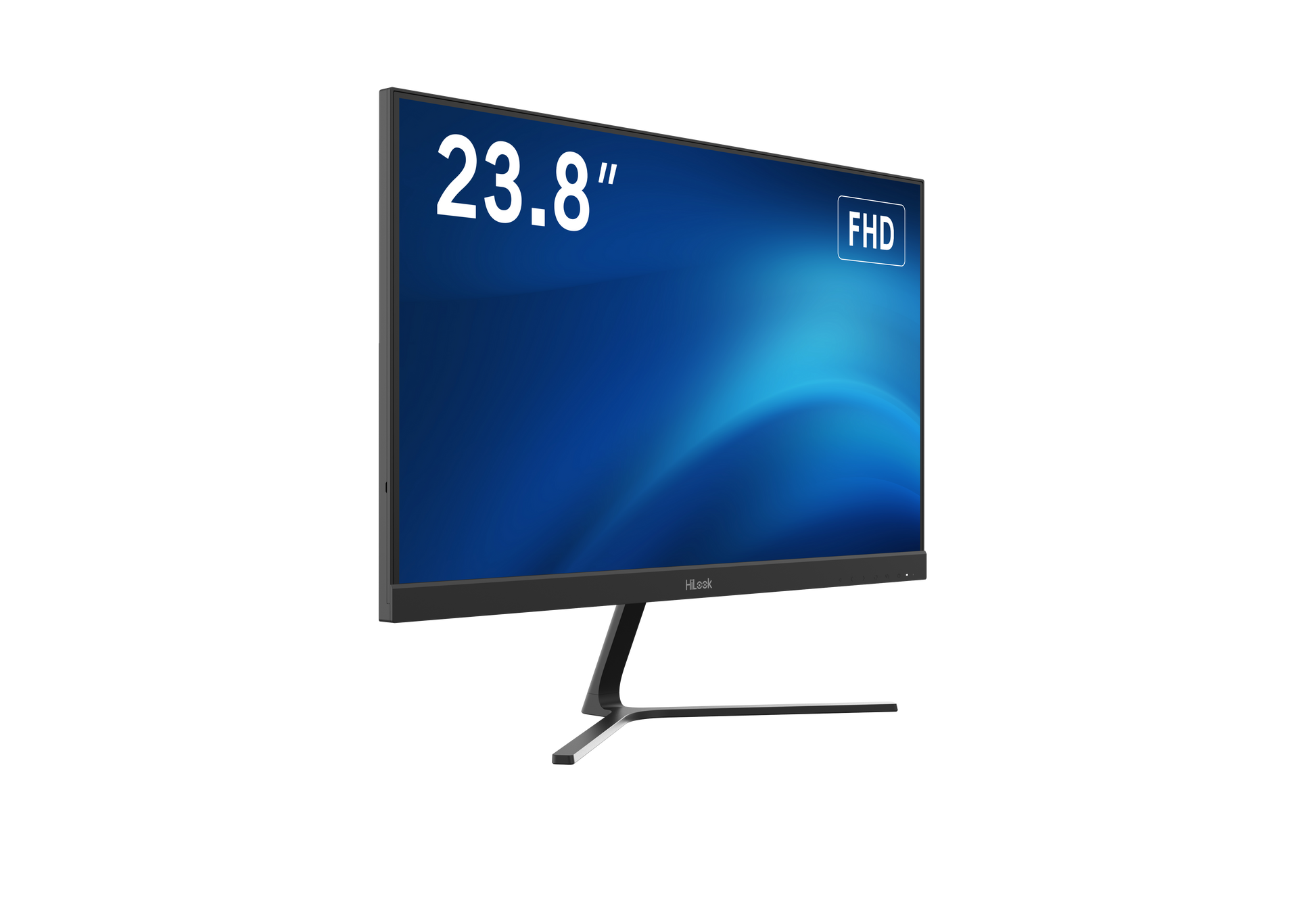

HiLook 23.8 inch FHD 100Hz VA Monitor
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook Hi-D24F2V2F
Specifications
- Screen Size: 23.8 inch
- Active Display Area: 527.04 (H) mm × 296.46 (V) mm
- Resolution: 1920 × 1080
- Backlight: E-LED
- Pixel Pitch: 0.2745 (H) mm × 0.2745 (V) mm
- Brightness: 250 cd/m²
- Viewing Angle: 178° (H) / 178° (V)
- Color Depth: 8 bit ,16.7 M
- Contrast Ratio: 4000 : 1
- Response Time: 7 ms
- Refresh Rate: 100 Hz
- Haze: Haze 25%
- Reliability: 7 × 16 H
- Color Gamut: 72% NTSC
- Video & Audio Input: HDMI 1.4 × 1, VGA × 1
- Video & Audio Output: Audio Out × 1
- Data Transmission Interface: None
- Control Interface: None
- Panel Manufacturer: CSOT
- Panel Technology: VA
- Panel Type: SG2381B01-1 Ver. 6.7
- Main Chip Scheme: NT68830
- Power Supply: DC 12V, 2.0A
- Power Consumption: ≤ 24 W
- Standby Consumption: ≤ 0.5 W
- Working Temperature: 0℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity: 20% to 90% RH (Non-Condensing)
- Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity: 10% to 90% RH (Non-Condensing)
- Speaker: None
- Casing Material: Plastic
- VESA: 75 mm × 75 mm (4-M4 × 6 mm)
- Bezel Width: 2 mm (top/left/right), 23.55 mm (bottom)
- Product Dimensions (W × H × D): With base: 539.7 (W) mm × 420.99 (H) mm × 168.54 (D) mm 21.25 (W) inch × 16.57 (H) inch × 6.64 (D) inch Without base: 539.7 (W) mm × 327.33 (H) mm × 42.7 (D) mm 21.25 (W) inch × 12.89 (H) inch × 1.68 (D) inch
- Package Dimensions (W × H × D): 647 (W) mm ｘ 440 (H) mm ｘ 111 (D) mm 25.47 (W) ｘ 17.32 (H) ｘ 4.37 (D) inch
- Net Weight: 2.4 ± 0.5 kg (5.3 ± 1.1 lb)
- Gross Weight: 3.8 ± 0.5 kg (8.4 ± 1.1 lb)
- Packing List: Monitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
- Remarks: The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
