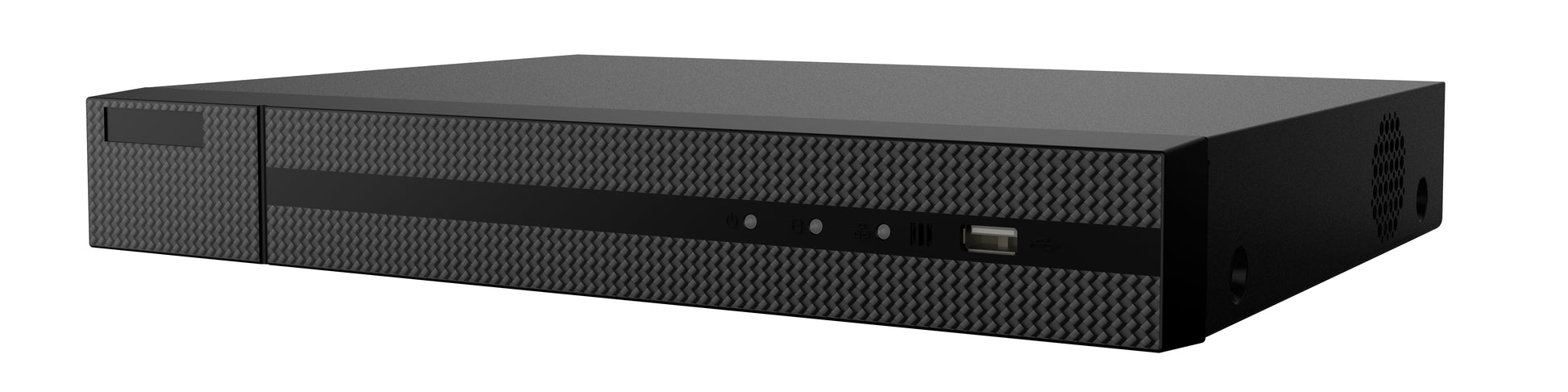

HiLook HL-NVR-104MH-K/4P NVR

HiLook HL-NVR-104MH-K/4P NVR

Category: IP CCTV
|
Brand: HiLook
  • IP CCTV

· Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces
· H.265+/H.265/H.264+/H.264 video formats
· Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
· Up to 40 Mbps incoming bandwidth

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook HL-NVR-104MH-K/4P NVR
Login to View Price

Specifications

  • System memory: 1.5G
  • EMMC: 8G
  • AI by Device: Facial recognition, perimeter protection, motion detection 2.0
  • AI by Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
  • By Device: 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • By Camera: All channels
  • Face Picture Comparison: 4-ch
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
  • Facial Detection and Analytics Performance: 1-ch, 8 MP
  • By Camera: All channels
  • IP Video Input: 4-ch
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output Mode: HDMI1/VGA simultaneous output
  • CVBS Output: N/A
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding Format: H.265/H.265+/H.264+/H.264
  • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback: 4-ch
  • Decoding Capability: AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps) Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/7-ch@4 MP (30 fps)/15-ch@1080p (30 fps)
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
  • Remote Connection: 128
  • API: ONVIF (profile S/G); SDK; ISAPI
  • Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 50 W
  • Standard: IEEE 802.3af/at
  • SATA: 1 SATA interface
  • Capacity: Up to 16 TB capacity for each HDD
  • USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
  • Power Supply: 48 VDC, 1.35 A
  • Consumption: ≤ 10 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)
  • CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  • Obtained Certification: CE KC WEEE REACH ROHS BIS CB RCM IC LOA UKCA

Control Unit
  • System memory: 1.5G
  • EMMC: 8G

Intelligent Analytics
  • AI by Device: Facial recognition, perimeter protection, motion detection 2.0
  • AI by Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Perimeter Protection
  • By Device: 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • By Camera: All channels

Facial Recognition
  • Face Picture Comparison: 4-ch
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
  • Facial Detection and Analytics Performance: 1-ch, 8 MP

Motion Detection 2.0
  • By Camera: All channels

Video and Audio
  • IP Video Input: 4-ch
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output Mode: HDMI1/VGA simultaneous output
  • CVBS Output: N/A
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding
  • Decoding Format: H.265/H.265+/H.264+/H.264
  • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback: 4-ch
  • Decoding Capability: AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps) Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/7-ch@4 MP (30 fps)/15-ch@1080p (30 fps)
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC

Network
  • Remote Connection: 128
  • API: ONVIF (profile S/G); SDK; ISAPI
  • Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
  • Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 50 W
  • Standard: IEEE 802.3af/at

Auxiliary Interface
  • SATA: 1 SATA interface
  • Capacity: Up to 16 TB capacity for each HDD
  • USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

General
  • GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
  • Power Supply: 48 VDC, 1.35 A
  • Consumption: ≤ 10 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)

Certification
  • CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  • Obtained Certification: CE KC WEEE REACH ROHS BIS CB RCM IC LOA UKCA
