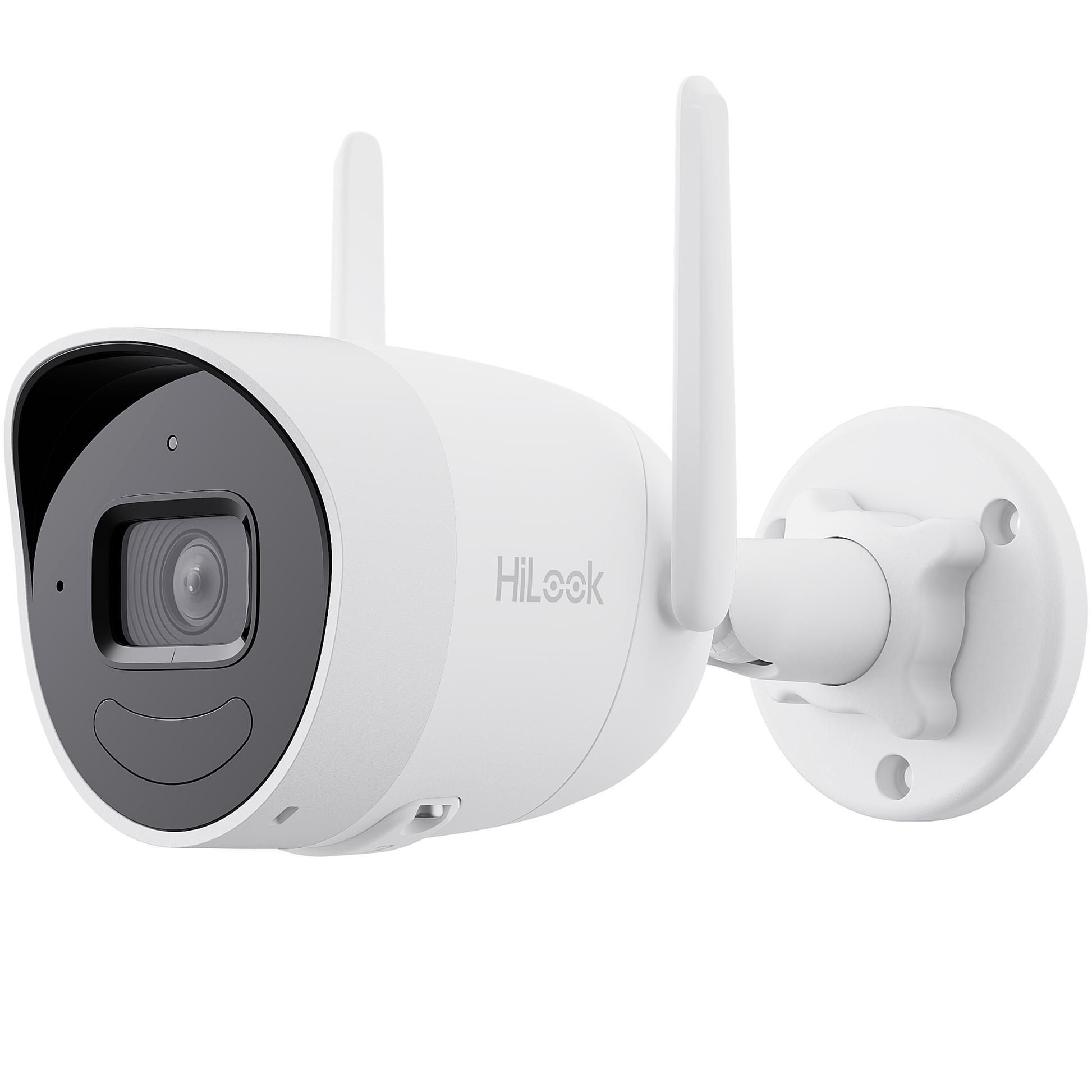

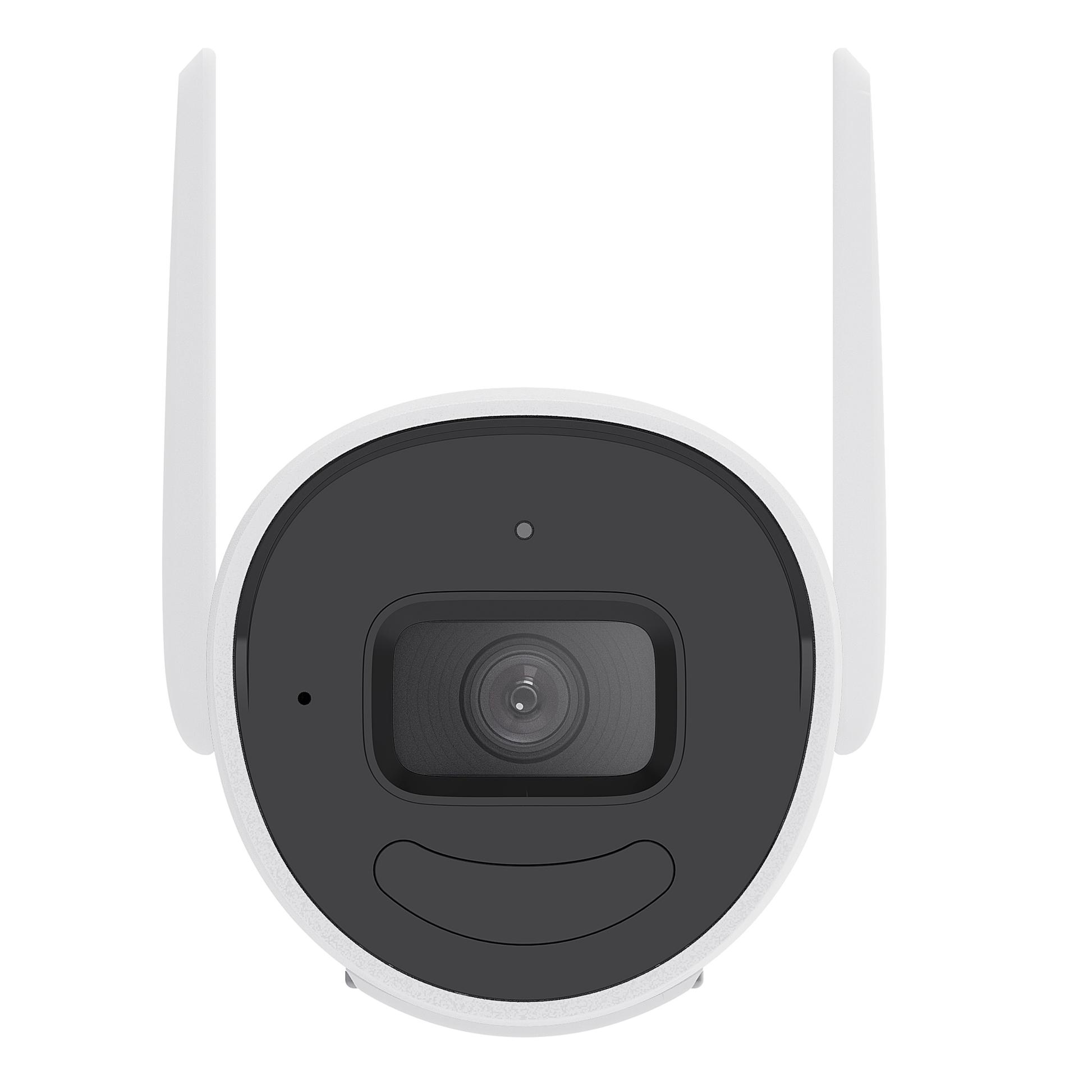

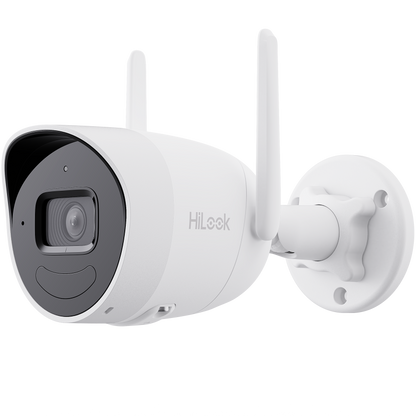

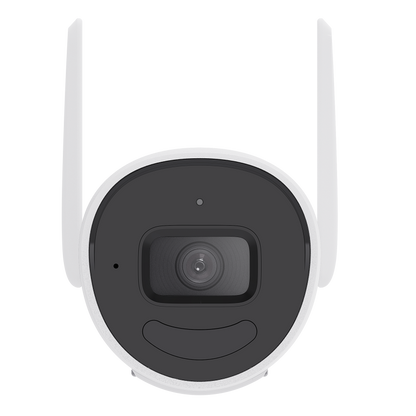

HiLook IPC-B120HA-D/W(W)(2.8mm) Specialist Camera | 2MP |
HiLook IPC-B120HA-D/W(W)(2.8mm) Specialist Camera | 2MP |
- IP CCTV
- 2 MP
- Fixed Lens
1/2.8" Progressive CMOS, ICR, 0lux with IR, 1920x1080/1280x720: 25fps(P)/30fps(N), 2.8/4mm lens, H.265+/H.265/H.264+/H.264/MJPEG, dual-stream, 3D DNR,support on-board storage up to 256GB(SD card slot), Build-in microphone and speaker, Build-in external Dual-Antenna 2.4GHz Wi-Fi, 802.11b/g/n.
*power supply included
*SD Card not included
*(W) version models support mobile monitoring via Hik-Connect
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook IPC-B120HA-D/W(W)(2.8mm) Specialist Camera | 2MP |
Specifications
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/25 s to 1/10000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108° 4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°
- Aperture: F1.6
- Iris Type: Fixed
- Lens Mount: M12
- Depth of Field: 2.8 mm: 1 m to ∞ 4 mm: 1.5 m to ∞
- DORI: 2.8 mm, D: 42 m, O: 17 m, R: 9 m, I: 4 m 4 mm, D: 52 m, O: 21 m, R: 11 m, I: 5 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- IR Wavelength: 850 nm
- Smart Supplement Light: Yes
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (768 × 432, 512 × 288) 60 Hz: 30 fps (768 × 432, 512 × 288)
- Video Compression: Main stream: H.265/H.264, Sub-stream: H.265/H.264
- Video Bit Rate: 256 Kbps to 1 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Audio Compression: G.711,AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz,16 kHz
- Environment Noise Filtering: Yes
- Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS
- Simultaneous Live View: Up to 4 channels
- API: ONVIF, SDK
- Security: Password protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface
- User/Host: Only one user: administrator
- Client: iVMS-4200, HiLookVision, Hik-Partner-Pro
- Transfer Rate: 11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
- Wi-Fi Protocol: 802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
- Frequency Range: 2.412 GHz to 2.472 GHz
- Channel Bandwidth: 20 MHz
- Modulation: 802.11b: CCK,QPSK,BPSK,,802.11g: OFDM,,802.11n: OFDM
- Wireless Range: Up to 120 m (The performance varies based on actual environment)
- Encryption Mode: WPA-PSK/WPA2-PSK
- Antenna: 2 Antennas
- Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software
- Day/Night Switch: Auto, Schedule, Day, Night
- Wide Dynamic Range (WDR): Digital WDR
- Privacy Mask: 4 programmable polygon privacy masks
- Built-in Microphone: Yes
- Built-in Speaker: Yes
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key: Yes
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Basic Event: Motion detection (support alarm triggering by specified target type (human and vehicle)), exception
- Linkage: Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
- Language: English
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: heartbeat,mirror
- Material: Front cover: metal, back cover: plastic
- Dimension: 175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
- Package Dimension: 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
- Weight: Approx. 345 g (0.8 lb.)
- With Package Weight: Approx. 635 g (1.4 lb.)
- EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- RF: CE-RED (EN 301489-1 V2.1.1(BT or 2.4G)
- Safety: CE-LVD: EN 62368-1: 2014/A11: 2017, CB: IEC 62368-1: 2014+A11
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
- Protection: IP66: IEC 60529-2013
Resources
Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.
-
Resource 1
PDF -
Resource 2
PDF -
Resource 3
PDF
Need additional support? Visit our
