HiLook IPC-B140HA(4mm) IP Camera | 4MP | Bullet

HiLook IPC-B140HA(4mm) IP Camera | 4MP | Bullet

Category: IP CCTV
|
Brand: HiLook
  • IP CCTV
  • 4 MP
  • Fixed Lens

1/3" Progressive CMOS, ICR,2560 × 1440: 25fps(P)/(N), H.265+/H.265/H.264+&H.264, WDR, 3D DNR, BLC, IR range: up to 30m, DC12V & PoE, Support mobile monitoring via HiLookVision
*power supply is not included

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook IPC-B140HA(4mm) IP Camera | 4MP | Bullet
Login to View Price

Specifications

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Shutter Time: 1/3 s to 1/100,000 s
  • Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F2.0
  • DORI: 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m 4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Region of Interest (ROI): 1 fixed region for main stream
  • Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
  • Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • User/Host: Up to 32 users 3 levels: administrator, operator and user
  • Client: iVMS-4200, HiLookVision
  • Web Browser: Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Privacy Mask: 4 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage: Upload to FTP, notify surveillance center, trigger capture, send email
  • Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5. mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Material: Metal & Plastic

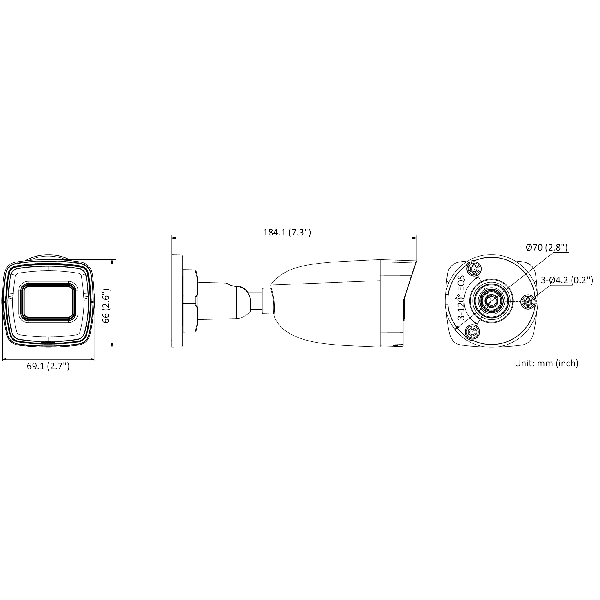

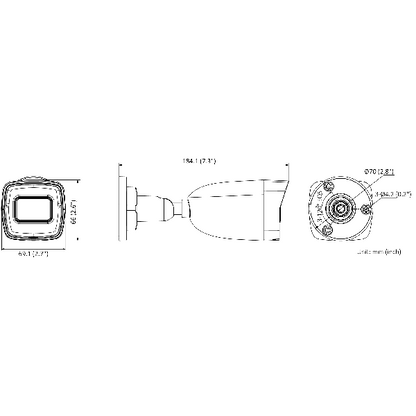

  • Dimension: 184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
  • Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • Weight: Approx. 270 g (0.6 lb.)
  • With Package Weight: Approx. 489 g (1.1 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: English, Ukrainian
  • General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email
  • EMC: FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015
  • Safety: CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013

Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Shutter Time: 1/3 s to 1/100,000 s
  • Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
  • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F2.0

DORI
  • DORI: 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m 4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Region of Interest (ROI): 1 fixed region for main stream

Network
  • Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
  • Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • User/Host: Up to 32 users 3 levels: administrator, operator and user
  • Client: iVMS-4200, HiLookVision
  • Web Browser: Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+

  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Privacy Mask: 4 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage: Upload to FTP, notify surveillance center, trigger capture, send email

General
  • Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5. mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Material: Metal & Plastic
  • Dimension: 184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
  • Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • Weight: Approx. 270 g (0.6 lb.)
  • With Package Weight: Approx. 489 g (1.1 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: English, Ukrainian
  • General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
  • EMC: FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015
  • Safety: CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013
