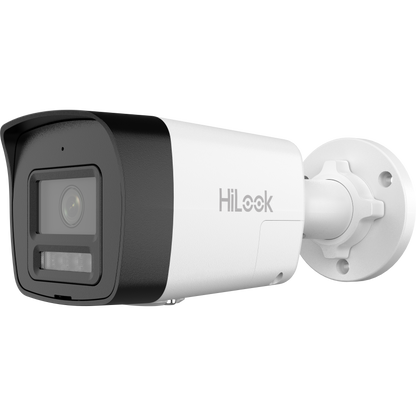

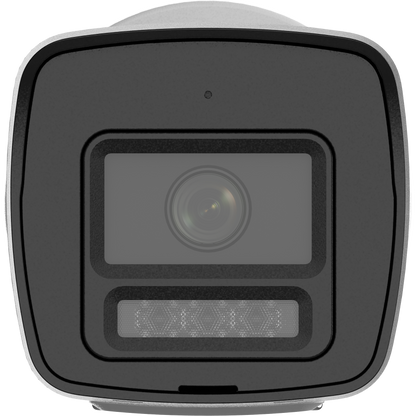

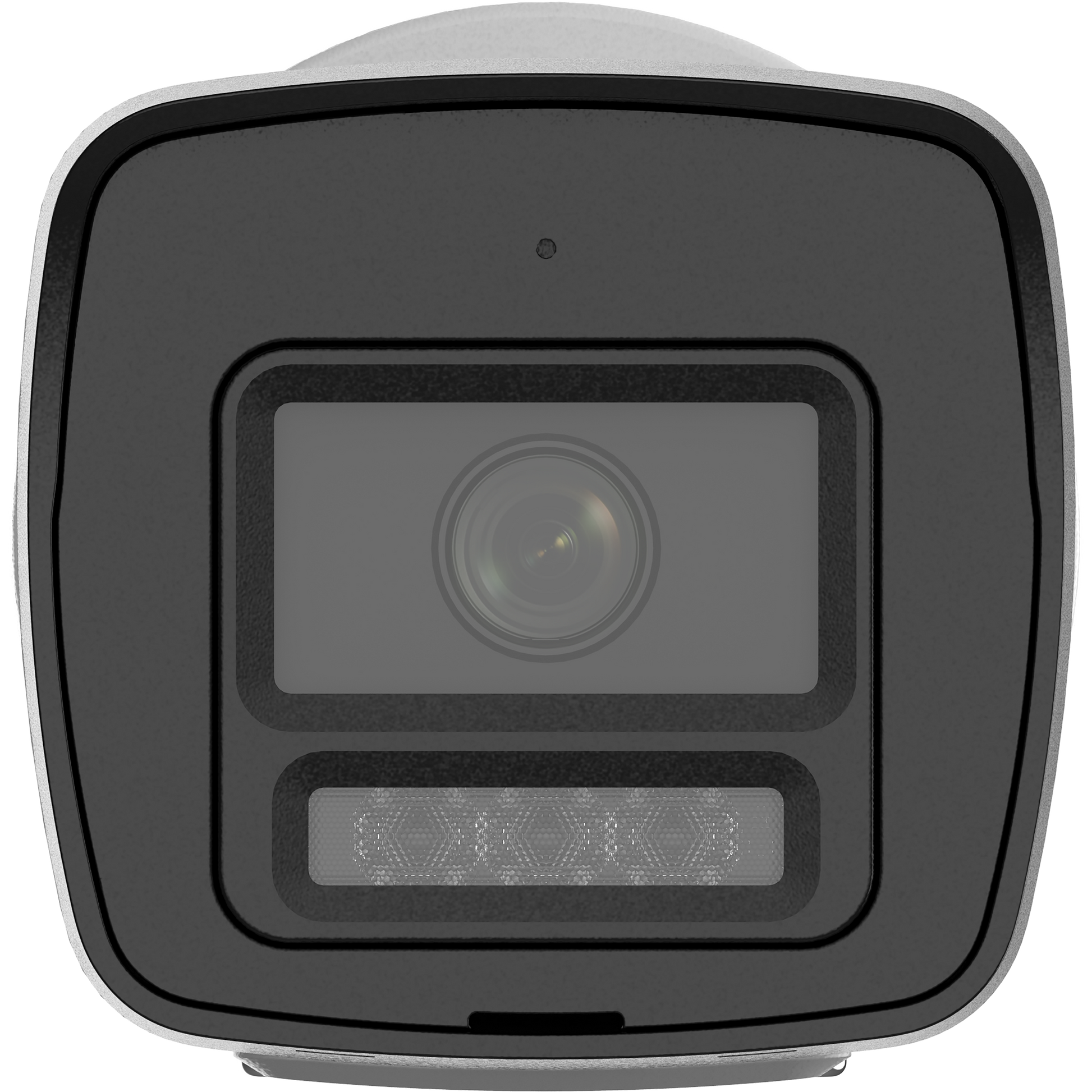

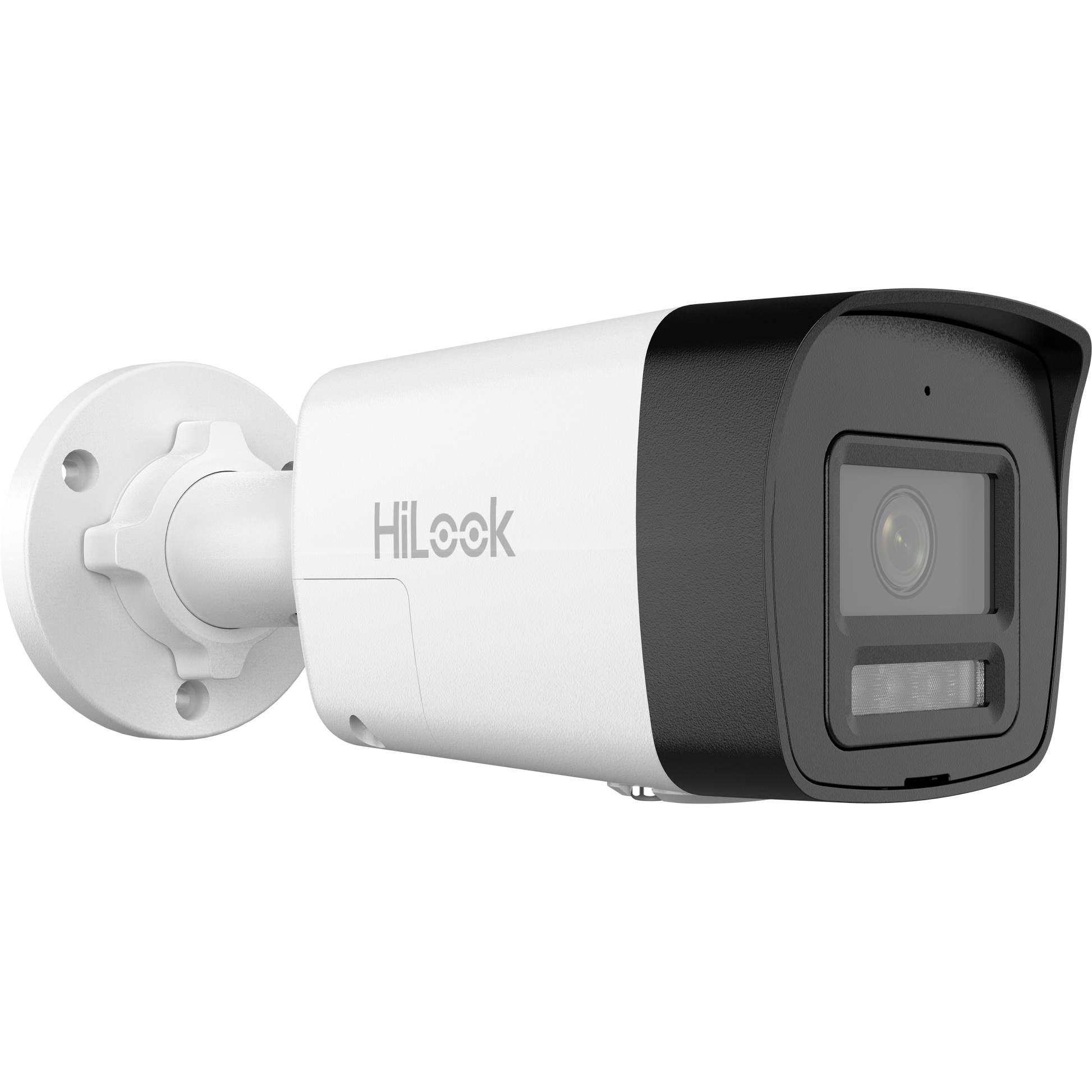

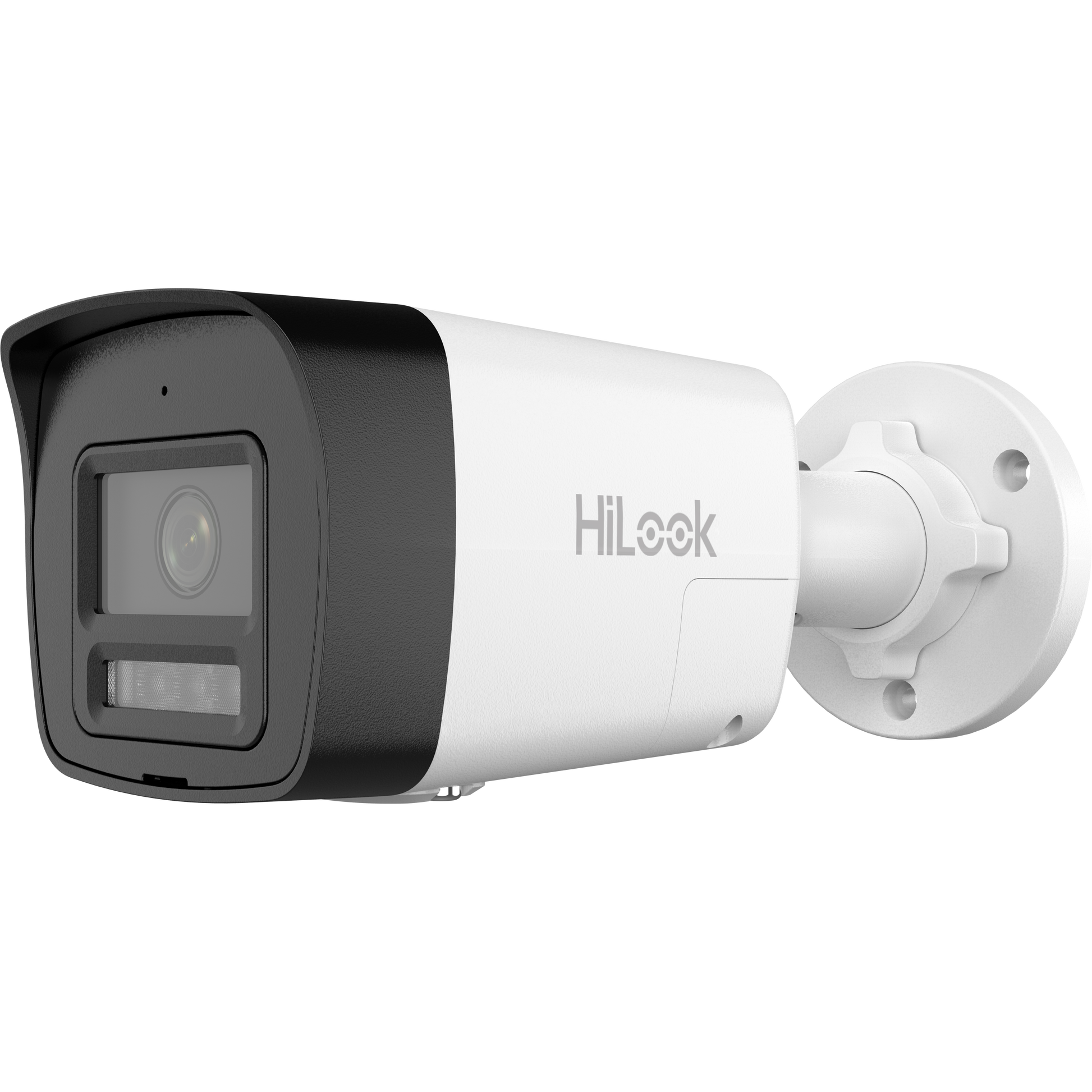

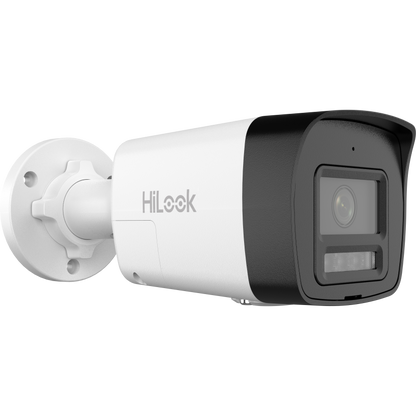

HiLook IPC-B180HA-LUF/SL(4mm) IP Camera | 8MP | Turret
HiLook IPC-B180HA-LUF/SL(4mm) IP Camera | 8MP | Turret
- IP CCTV
- 8 MP
- Fixed Lens
1/3" Progressive CMOS, ICR, 3840 × 2160: 12.5fps(P)/15fps(N), H.265+/H.265/H.264+&H.264, WDR, 3D DNR, BLC, IR or white light range: up to 30m, Built-in microphone & speaker, audio & strobe light alarm, DC12V & PoE, Support mobile monitoring via HiLookVision;
*power supply is not included
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook IPC-B180HA-LUF/SL(4mm) IP Camera | 8MP | Turret
Specifications
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Shutter Time: 1/3 s to 1/100,000 s
- Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° 4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F2.0
- DORI: 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
- Supplement Light Type: IR,White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream
- Audio Type: Mono sound
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
- User/Host: Up to 32 users 3 user levels: administrator, operator, and user
- Client: iVMS-4200,HiLookVision
- Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Day/Night Switch: Day,Night,Auto,Schedule
- Image Enhancement: BLC,HLC,3D DNR
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask: 4 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes,1 built-in microphone
- Built-in Speaker: Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
- Reset Key: Yes
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light
- Power: 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
- Material: Metal & Plastic
- Dimension: 179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")
- Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
- Weight: Approx. 280 g (0.6 lb.)
- With Package Weight: Approx. 475 g (1.0 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email
- Flashing Light: Yes
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
- Safety: CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
