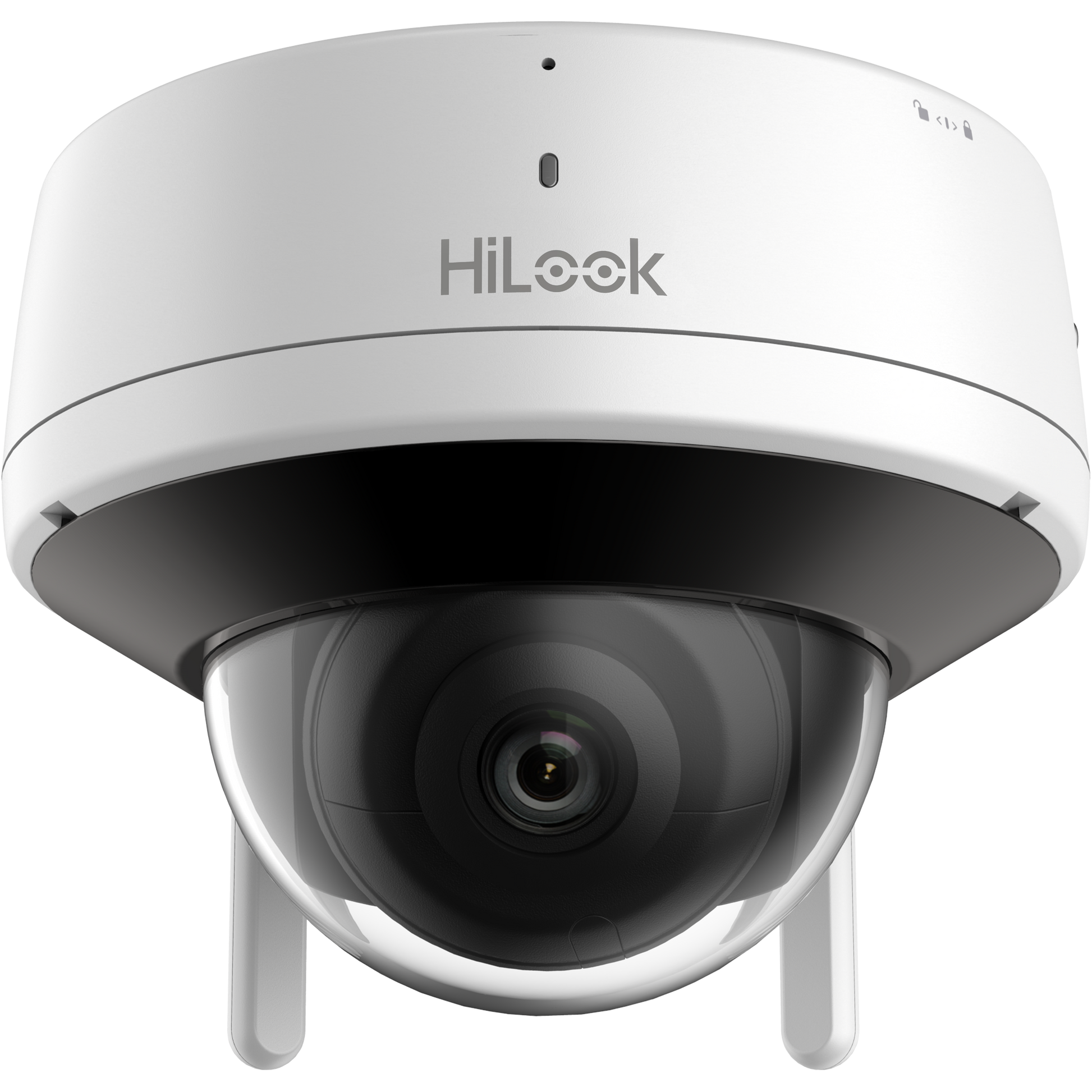

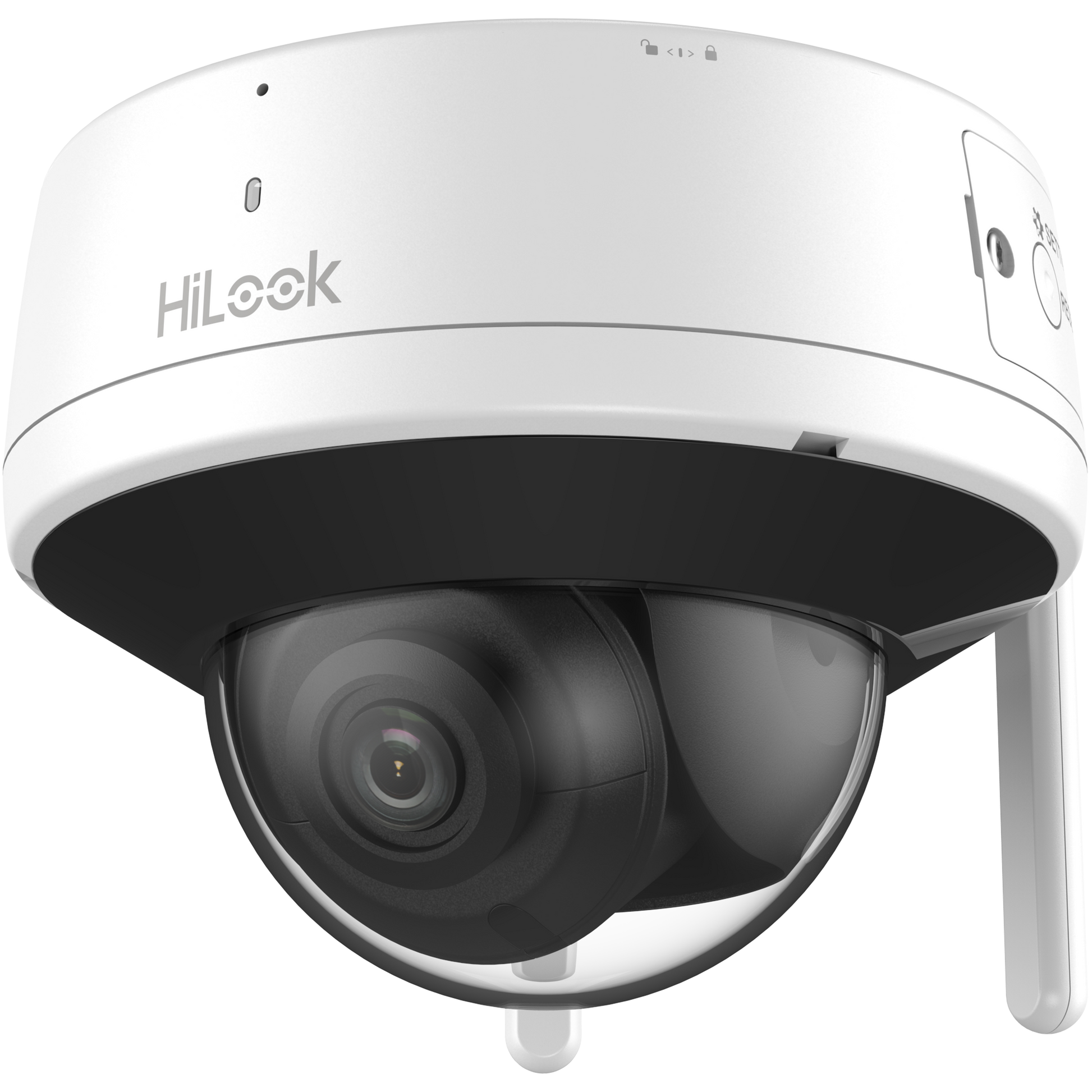

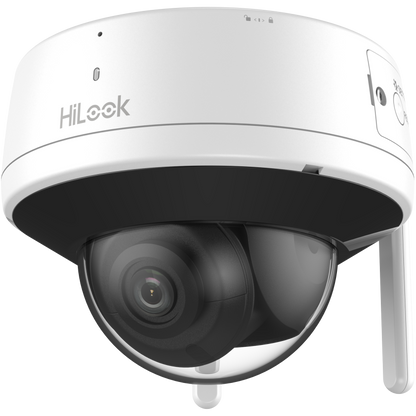

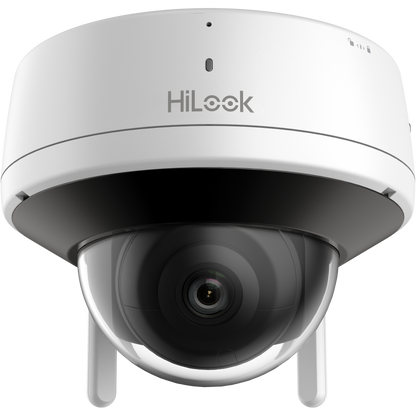

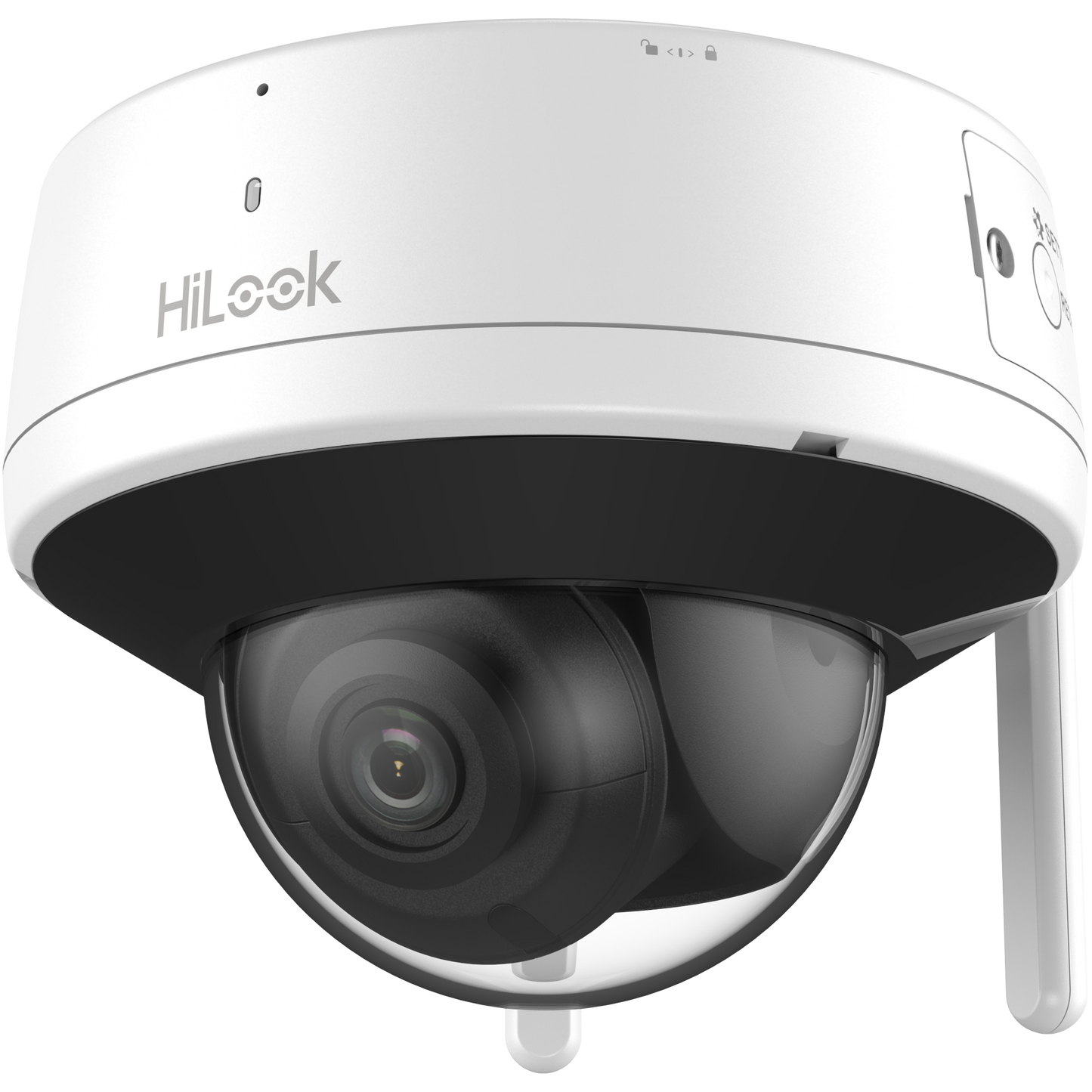

HiLook IPC-D140HA-D/W(W)(2.8mm) Specialist Camera | 4MP |
HiLook IPC-D140HA-D/W(W)(2.8mm) Specialist Camera | 4MP |
- IP CCTV
- 4 MP
- Fixed Lens
1/3" Progressive CMOS, ICR, 0lux with IR, 2560x1440:30fps, 2304x1296/1920x1080/1280x720: 25fps(P)/30fps(N), H.265/H.264+/H.264/MJPEG, Dual-stream, WDR, 3D DNR, support on-board storage up to 256GB(SD card slot), Build-in microphone and speaker, Build-in external Dual-Antenna 2.4GHz Wi-Fi, 802.11b/g/n.
*power supply included
*SD Card not included
*(W) version models support mobile monitoring via Hik-Connect
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook IPC-D140HA-D/W(W)(2.8mm) Specialist Camera | 4MP |
Specifications
- Image Sensor: 1/2.9" Progressive Scan CMOS
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Max. Resolution: 2560 × 1440
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: unsupported
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108° 4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°
- Aperture: F1.6
- Iris Type: Fixed
- Lens Mount: M12
- Depth of Field: 2.8 mm: 1.5 m to ∞ 4 mm: 2 m to ∞
- DORI: 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)
- Video Compression: Main stream: H.265/H.264 Sub-stream: H.265/H.264
- Video Bit Rate: Up to 2 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Audio Compression: G.711ulaw/G.711alaw/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
- Simultaneous Live View: Up to 4 channels
- API: ONVIF, SDK
- User/Host: administrator
- Security: Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
- Network Storage: unsupported
- Client: iVMS-4200, HiLookVision, Hik-Partner-Pro
- Web Browser: unsupported
- Frequency Range: 2.412 GHz to 2.472 GHz
- Channel Bandwidth: 20 MHz
- Modulation: 802.11b: CCK, QPSK, BPSK,802.11g: OFDM,802.11n: OFDM
- Wi-Fi Protocol: IEEE802.11b,IEEE802.11g,IEEE802.11n
- Transfer Rate: 11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
- Wireless Range: Up to 120 m (The performance varies based on actual environment)
- Antenna: 2 Antennas
- Image Settings: Saturation, brightness, contrast, sharpness, adjustable by client software
- Day/Night Switch: Auto, Schedule, Day, Night
- Wide Dynamic Range (WDR): Digital WDR
- SNR: ≥ 52 dB
- Image Enhancement: unsupported
- Privacy Mask: 4 programmable polygon privacy masks
- Built-in Microphone: Yes,1 built-in microphone
- Built-in Speaker: Yes, 1 built-in speaker
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key: Yes
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
- Linkage: Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
- Power: 12 VDC ± 10%, 1 A, max. 10 W,Ø2 mm coaxial power plug,reverse polarity protection
- Language: unsupported
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: Heartbeat, mirror
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Material: Base: metal, front cover: polycarbonate, back cover: polycarbonate
- Dimension: 120 mm × 120 mm × 95 mm (4.7" × 4.7" × 3.7")
- Package Dimension: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
- Weight: Approx. 593 g (1.3 lb.)
- With Package Weight: Approx. 886 g (1.95 lb.)
- RF: CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
- EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- Safety: CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
- Protection: IP66: IEC 60529-2013
