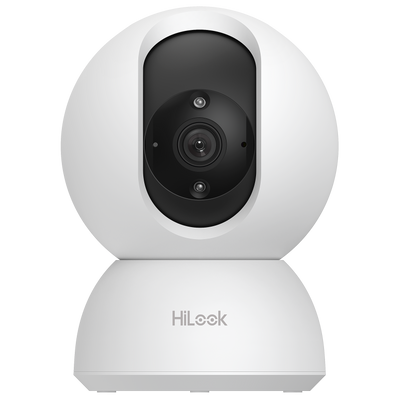

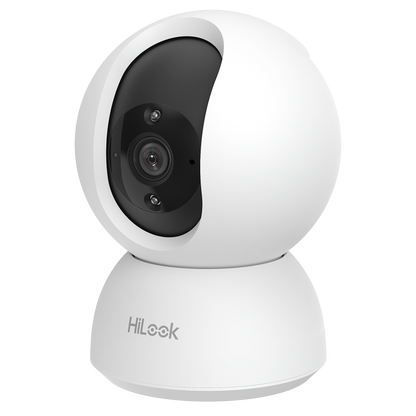

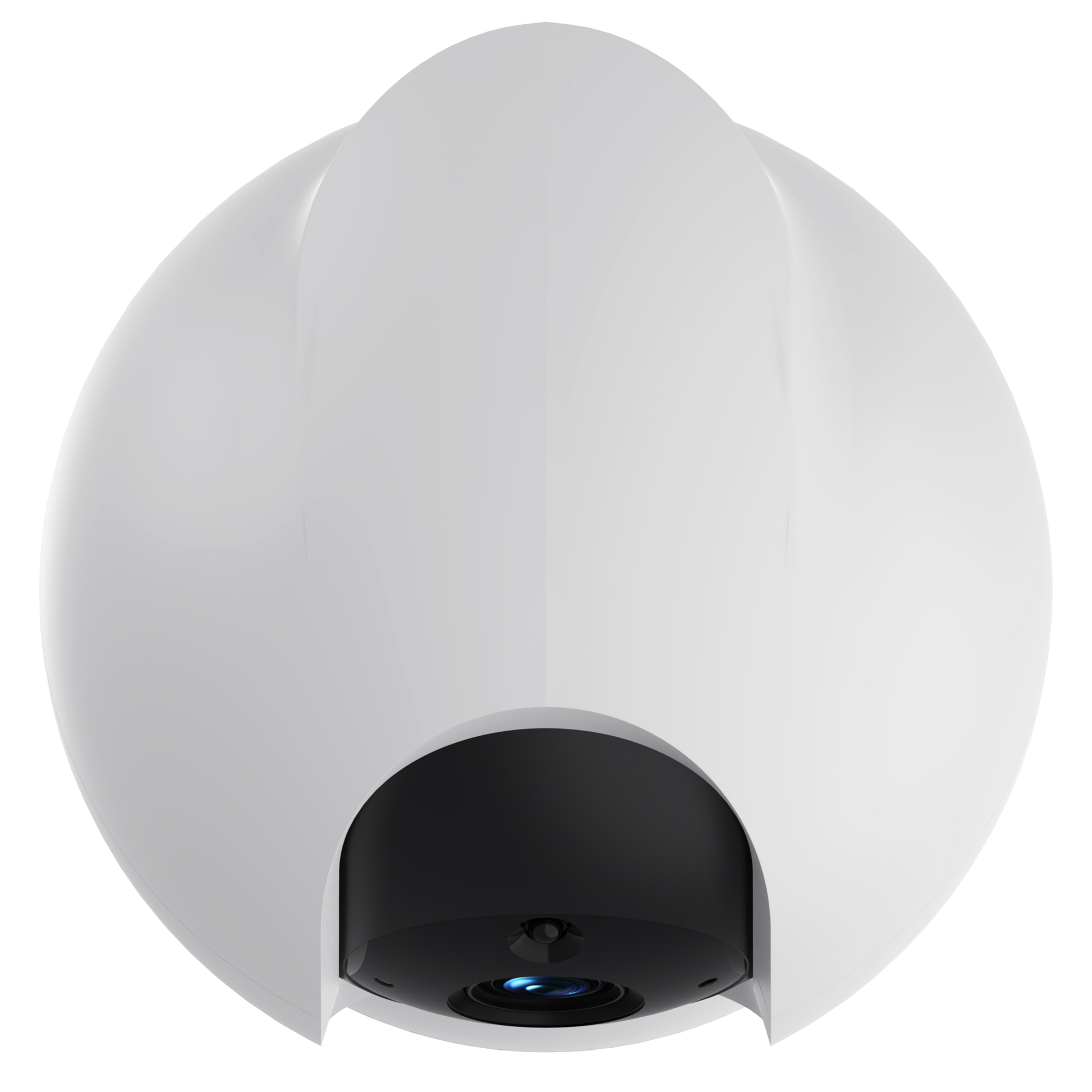

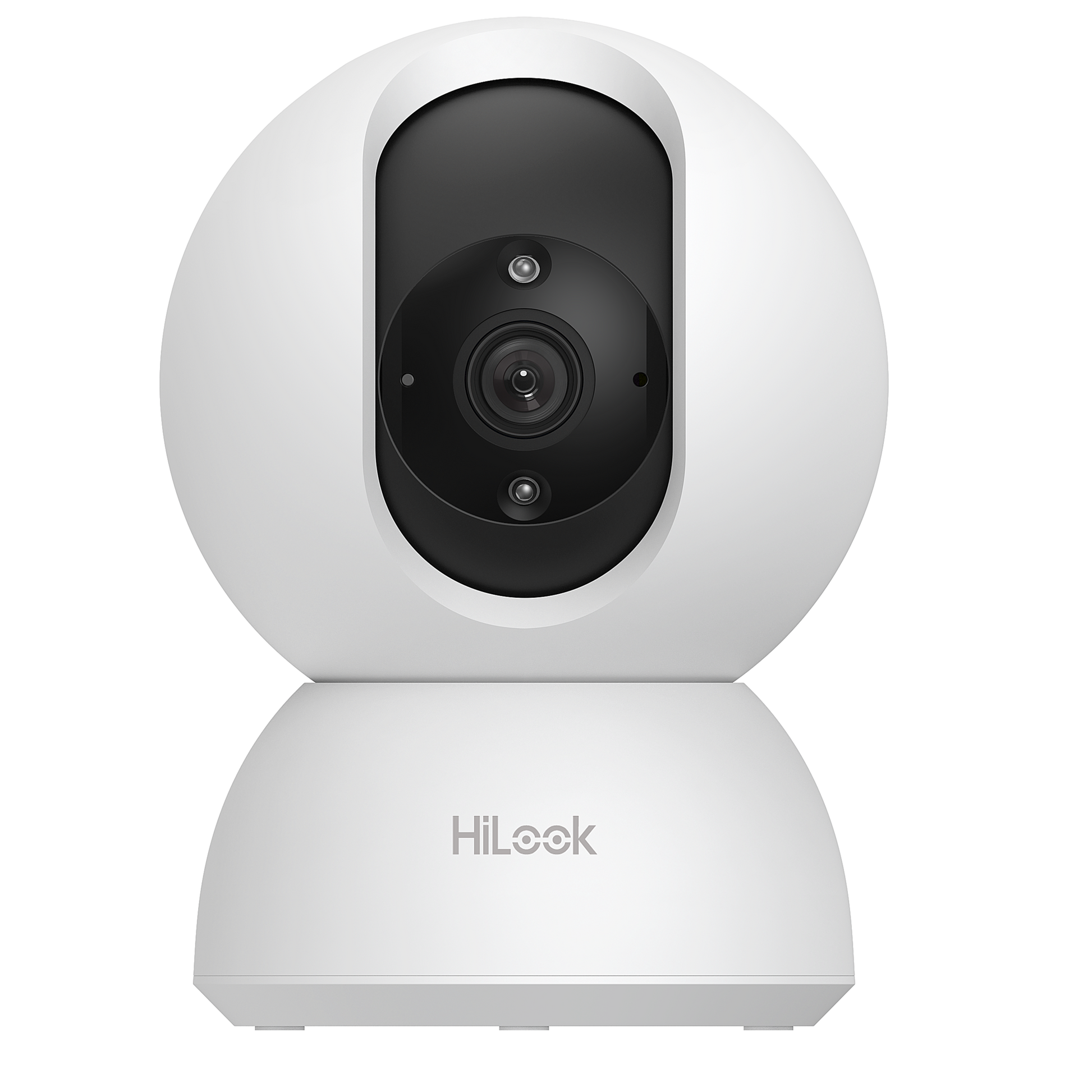

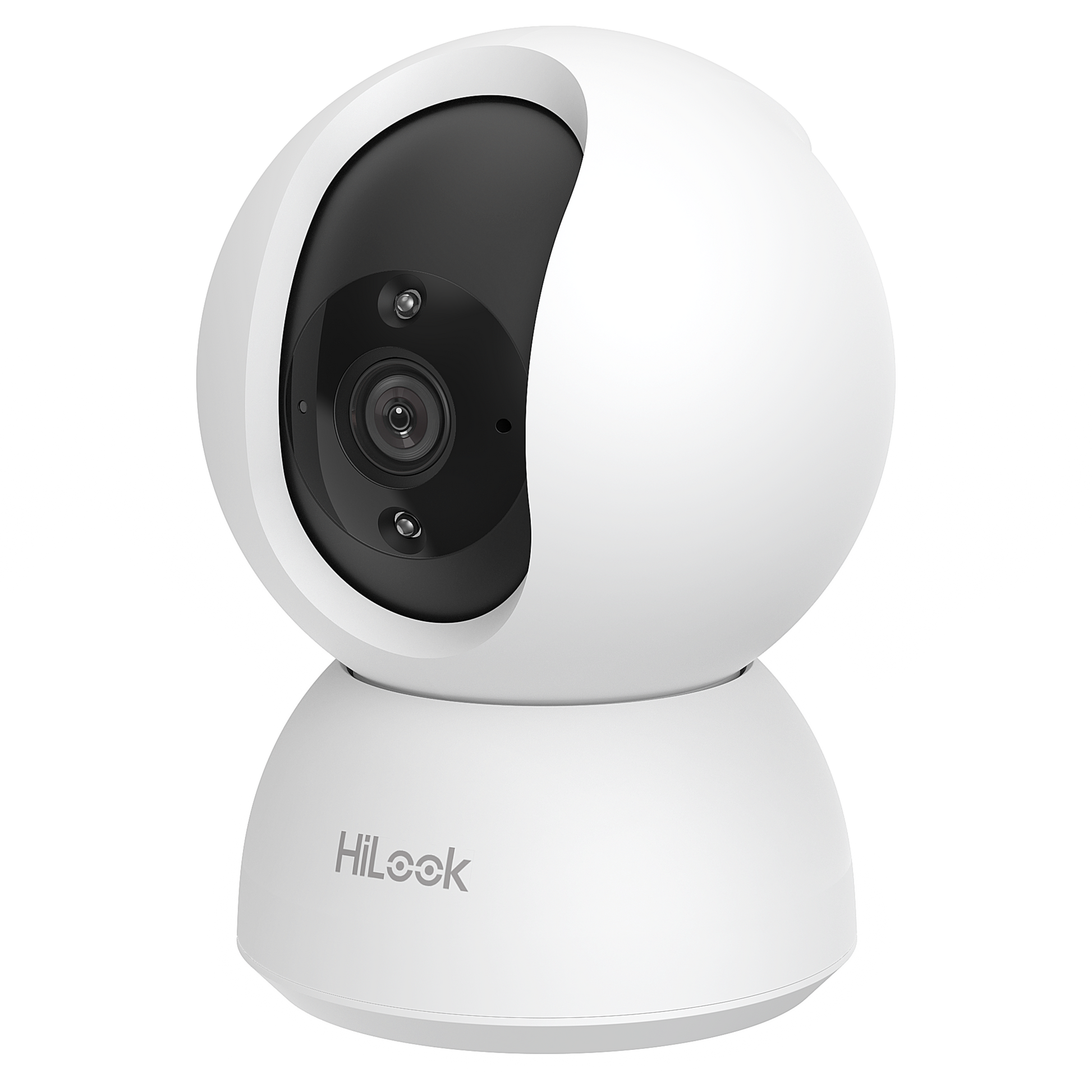

HiLook IPC-P220-D/W(W)(4mm) Specialist Camera | 2MP |
HiLook IPC-P220-D/W(W)(4mm) Specialist Camera | 2MP |
- IP CCTV
- 2 MP
- Fixed Lens
1/2.8" Progressive CMOS, ICR,1920×1080: 25fps(P)/30fps(N), H.265+/H.265,3D DNR, support on-board storage up to 512GB, Build-in microphone and speaker, two-way talk, support two-way audio, Support mobile monitoring via Hik-Connect
5VDC power supply is included.
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook IPC-P220-D/W(W)(4mm) Specialist Camera | 2MP |
Specifications
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.05 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 330°, tilt: 0° to 60°, rotate: 0° to 360°
- Focal Length & FOV: 4 mm, horizontal FOV 75°, vertical FOV 45°, diagonal FOV 85°
- Lens Mount: M12
- Aperture: F2.0
- Supplement Light Type: IR
- Supplement Light Range: Up to 10 m
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)
- Sub-Stream: 50 Hz: 25 fps (768 × 432, 512 × 288) 60 Hz: 30 fps (768 × 432, 512 × 288)
- Video Compression: Main stream: H.265/H.264 Sub-stream: H.265/H.264
- Video Bit Rate: Up to 1 M bps
- Frame Rate: Max.15 fps Self-Adaptive during network transmission
- Audio Compression: G.711/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
- Simultaneous Live View: Up to 4 channels
- API: ONVIF (Profile S, Profile T, Profile G),SDK
- User/Host: Administrator
- Security: Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
- Client: iVMS-4200, HiLookVision, Hik-Partner-Pro
- Encryption Mode: WPA-PSK/WPA2-PSK
- Frequency Range: 2.412 GHz to 2.472 GHz
- Channel Bandwidth: 20 MHz
- Transfer Rate: 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps
- Wireless Range: Up to 50 m (The performance varies based on actual environment)
- Image Settings: saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software
- Day/Night Switch: Auto
- Wide Dynamic Range (WDR): Digital WDR
- Privacy Mask: 4 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
- Built-in Microphone: Yes,1 built-in microphone
- Built-in Speaker: Yes, 1 built-in speaker
- Reset Key: Yes
- Basic Event: Motion detection (support alarm triggering by specified target type (human)), exception
- Material: Plastic
- Dimension: Ø80 mm × 122 mm (Ø3.14" × 4.8")
- Package Dimension: 105 mm × 105 mm × 190 mm (4.1" × 4.1" × 7.5")
- Weight: Approx. 216 g (0.48 lb.)
- With Package Weight: Approx. 554 g (1.22 lb.)
- Storage Conditions: -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -10 °C to 45°C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
- Power: 5 VDC ± 10%, 1 A, max. 5 W
- General Function: Heartbeat,mirror
- Flashing Light: Red and Blue Light
- RF: CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
- EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- Safety: CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
