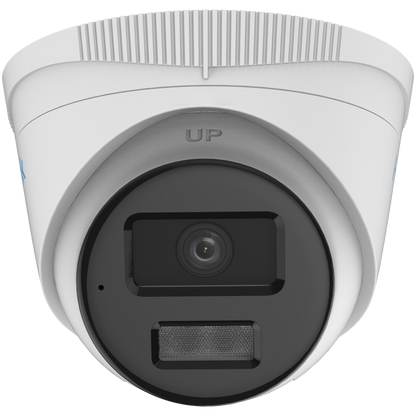

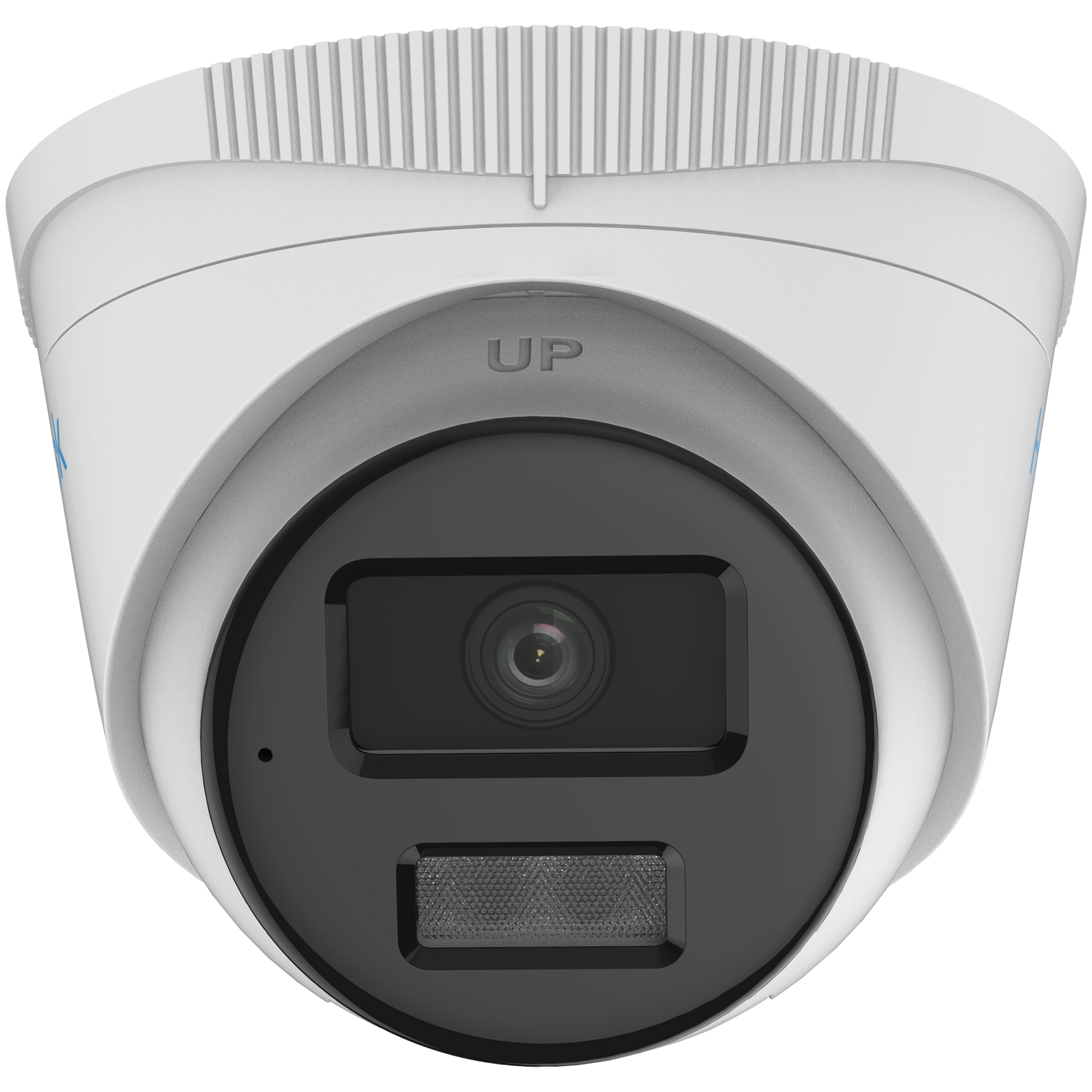

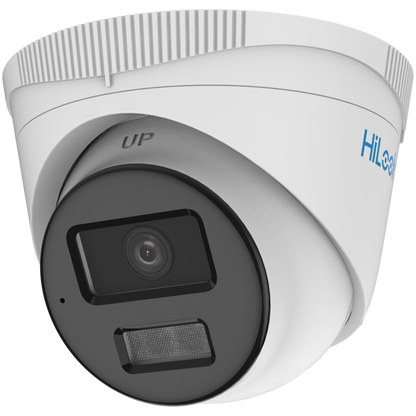

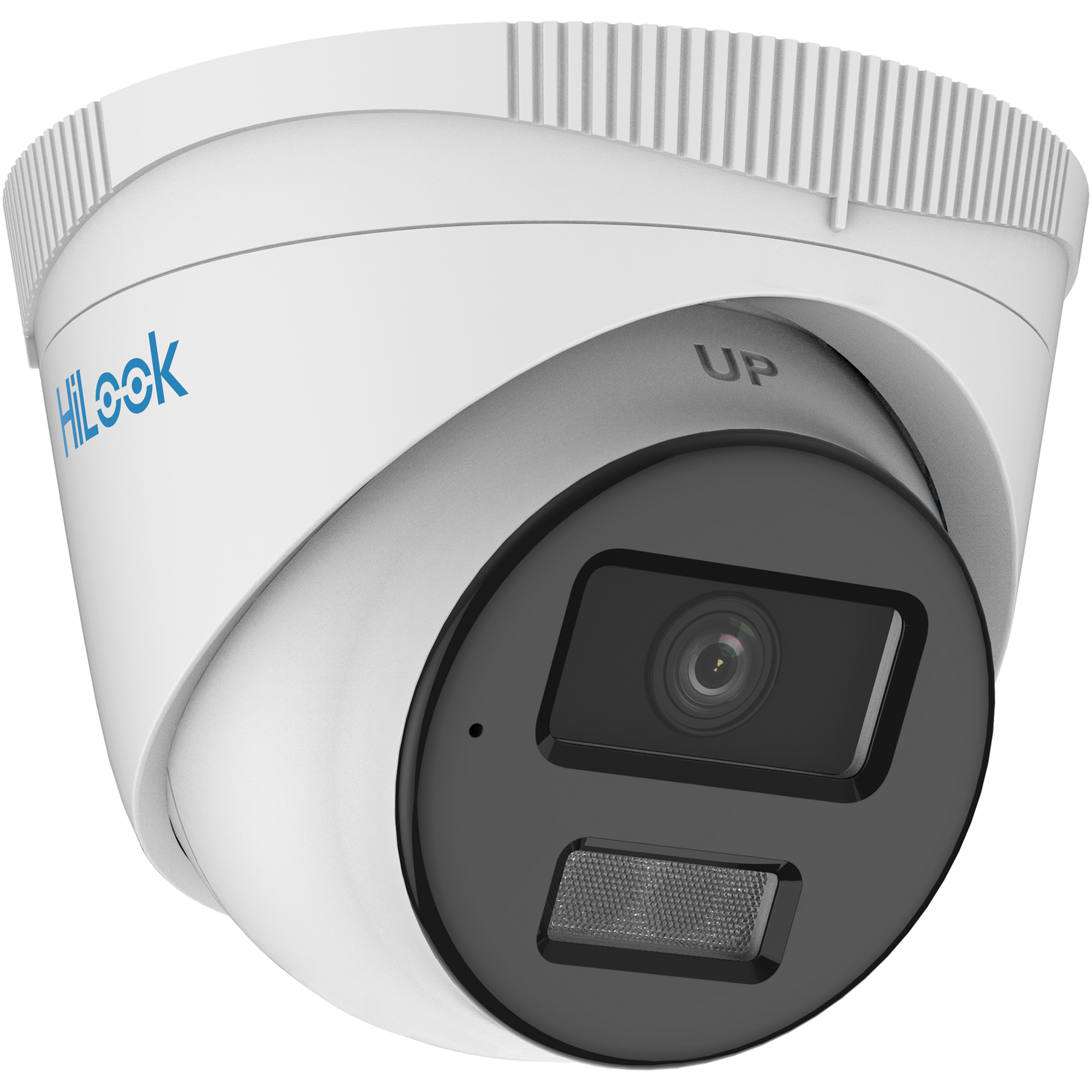

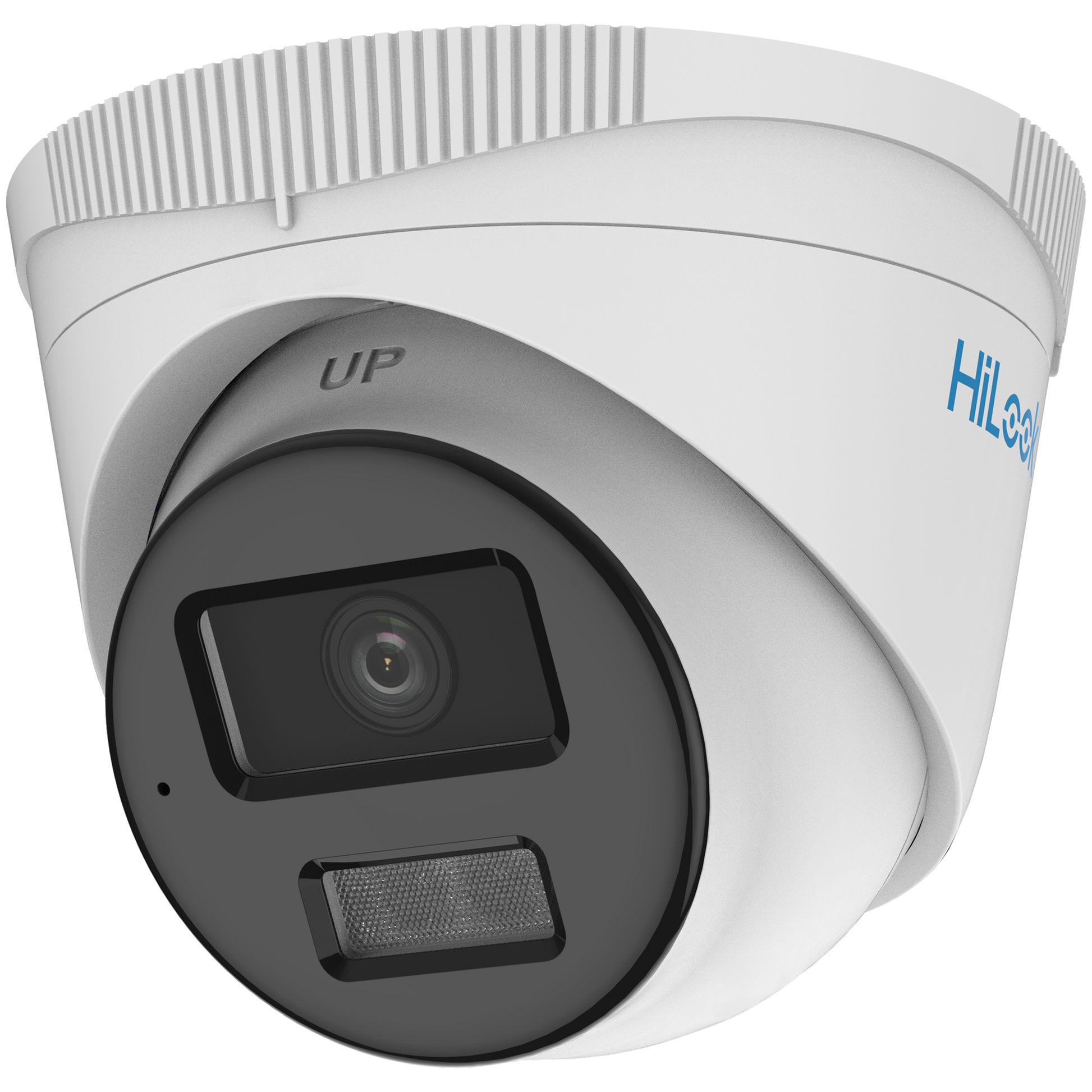

HiLook IPC-T229HA-LU(4mm) IP Camera | 2MP | Turret
HiLook IPC-T229HA-LU(4mm) IP Camera | 2MP | Turret
- IP CCTV
- 2 MP
- Fixed Lens
1/3" Progressive CMOS, ICR,1920 × 1080: 25fps(P)/30fps(N), H.265+/H.265/H.264+&H.264, DWDR, 3D DNR, BLC, IR or white light range: up to 30m, Built-in microphone, DC12V & PoE, Support mobile monitoring via HiLookVision;
*power supply is not included
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook IPC-T229HA-LU(4mm) IP Camera | 2MP | Turret
Specifications
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- DORI: 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m
- Supplement Light Type: IR,White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Region of Interest (ROI): 1 fixed region for main stream
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
- Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- User/Host: Up to 32 users 3 user levels: administrator, operator, and user
- Client: iVMS-4200,HiLookVision
- Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch: Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR): Digital WDR
- SNR: ≥ 52 dB
- Image Enhancement: BLC,HLC,3D DNR
- Privacy Mask: 4 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: NA
- Built-in Microphone: Yes
- Reset Key: NA
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage: Upload to FTP,notify surveillance center,send email,trigger capture
- Power: 12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
- Material: Metal & Plastic
- Dimension: Ø112 mm × 82 mm (Ø4.41" × 3.23")
- Package Dimension: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
- Weight: Approx. 375 g (0.8 lb.)
- With Package Weight: Approx. 610 g (1.2 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Heartbeat, anti-banding, mirror, password protection,password reset by email
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
- Safety: CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
