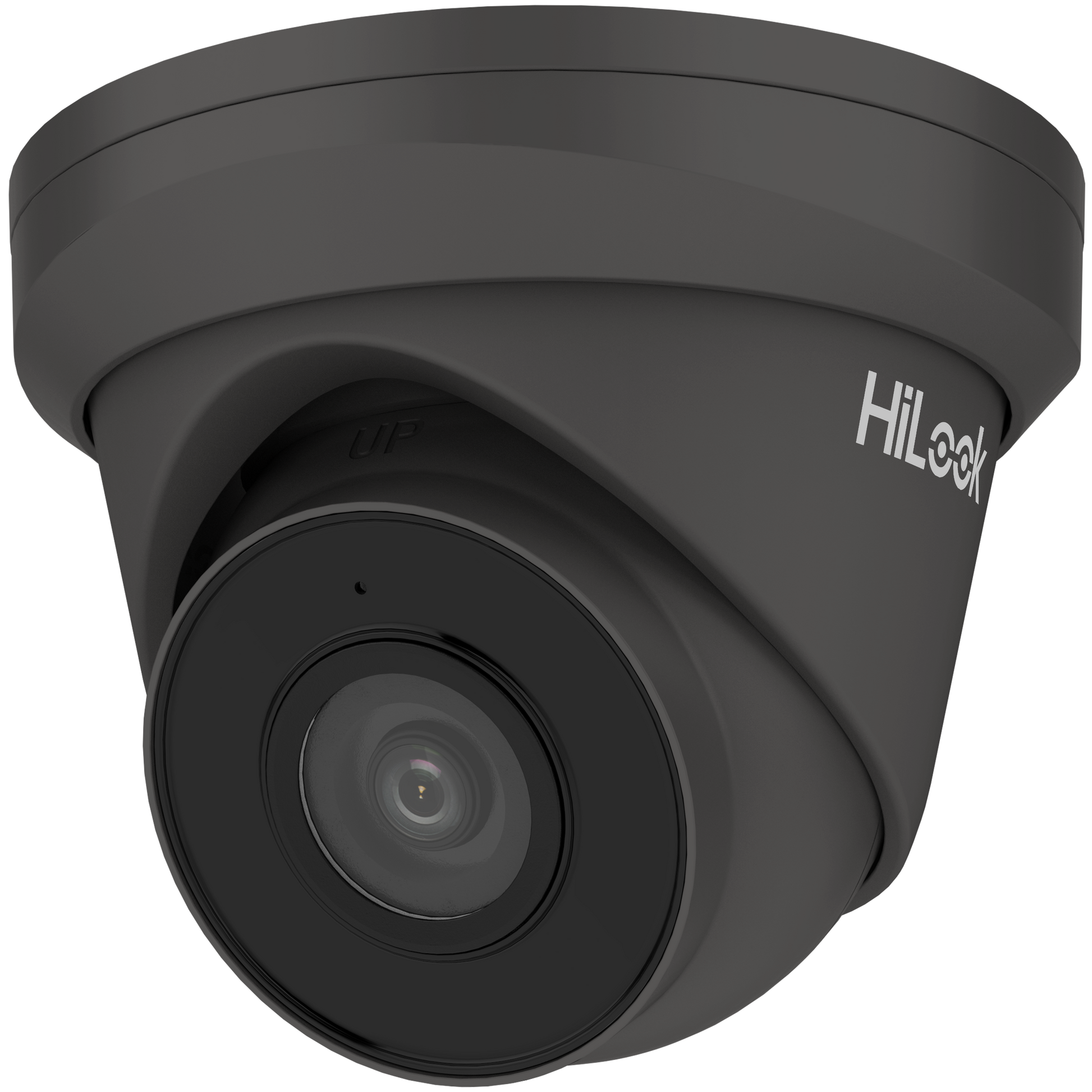

HiLook IPC-T250H-MU GREY(2.8mm)(UK) IP Camera | 5MP | Turret

HiLook IPC-T250H-MU GREY(2.8mm)(UK) IP Camera | 5MP | Turret

Category: IP CCTV
|
Brand: HiLook
  • IP CCTV
  • 2560 × 1920
  • Fixed focal lens, 2.8 and 4 mm optional

1/2.7" Progressive CMOS, ICR, 2560*1920:15fps(P)/(N), H.265+/H.265/H.264+&H.264, WDR, 3D DNR, BLC, DC12V & PoE,Support mobile monitoring via HiLookVision *power supply no included

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook IPC-T250H-MU GREY(2.8mm)(UK) IP Camera | 5MP | Turret
Login to View Price

Specifications

  • Image Sensor: 1/2.7" progressive scan CMOS
  • Max. Resolution: 2560 × 1920
  • Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0° 4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F2.0
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main profile
  • Region of Interest (ROI): 1 fixed region for main stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface, ISAPI
  • User/Host: Up to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night Switch: Auto, Schedule, Day, Night
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, 3D DNR
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in Microphone: Yes
  • Basic Event: Motion detection, video tampering alarm, exception
  • Linkage: Upload to FTP, notify surveillance center, send email
  • Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Material: Metal & Plastic
  • Dimension: Camera: Ø 112 .4mm × 94.6 mm (Ø 4.4" × 4.2") With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Weight: Approx. 320 g (0.7 lb.)
  • With Package Weight: Approx. 550 g (1.2 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: English, Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • EMC: FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015
  • Safety: UL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013

Camera
  • Image Sensor: 1/2.7" progressive scan CMOS
  • Max. Resolution: 2560 × 1920
  • Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
  • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0° 4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F2.0

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main profile
  • Region of Interest (ROI): 1 fixed region for main stream

Network
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface, ISAPI
  • User/Host: Up to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

  • Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night Switch: Auto, Schedule, Day, Night
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, 3D DNR

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in Microphone: Yes

Event
  • Basic Event: Motion detection, video tampering alarm, exception
  • Linkage: Upload to FTP, notify surveillance center, send email

General
  • Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Material: Metal & Plastic
  • Dimension: Camera: Ø 112 .4mm × 94.6 mm (Ø 4.4" × 4.2") With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Weight: Approx. 320 g (0.7 lb.)
  • With Package Weight: Approx. 550 g (1.2 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: English, Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
  • EMC: FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015
  • Safety: UL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013
