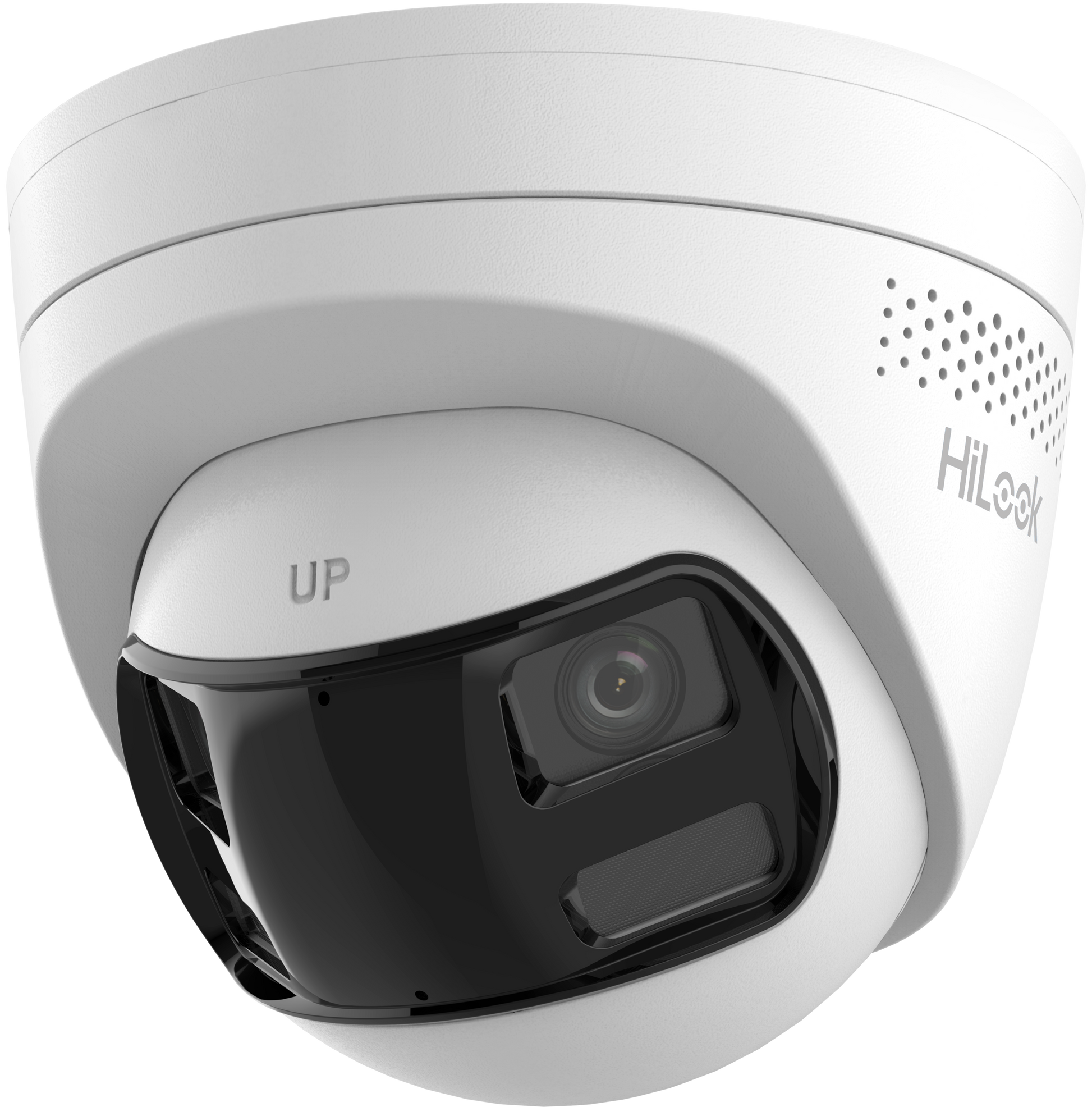

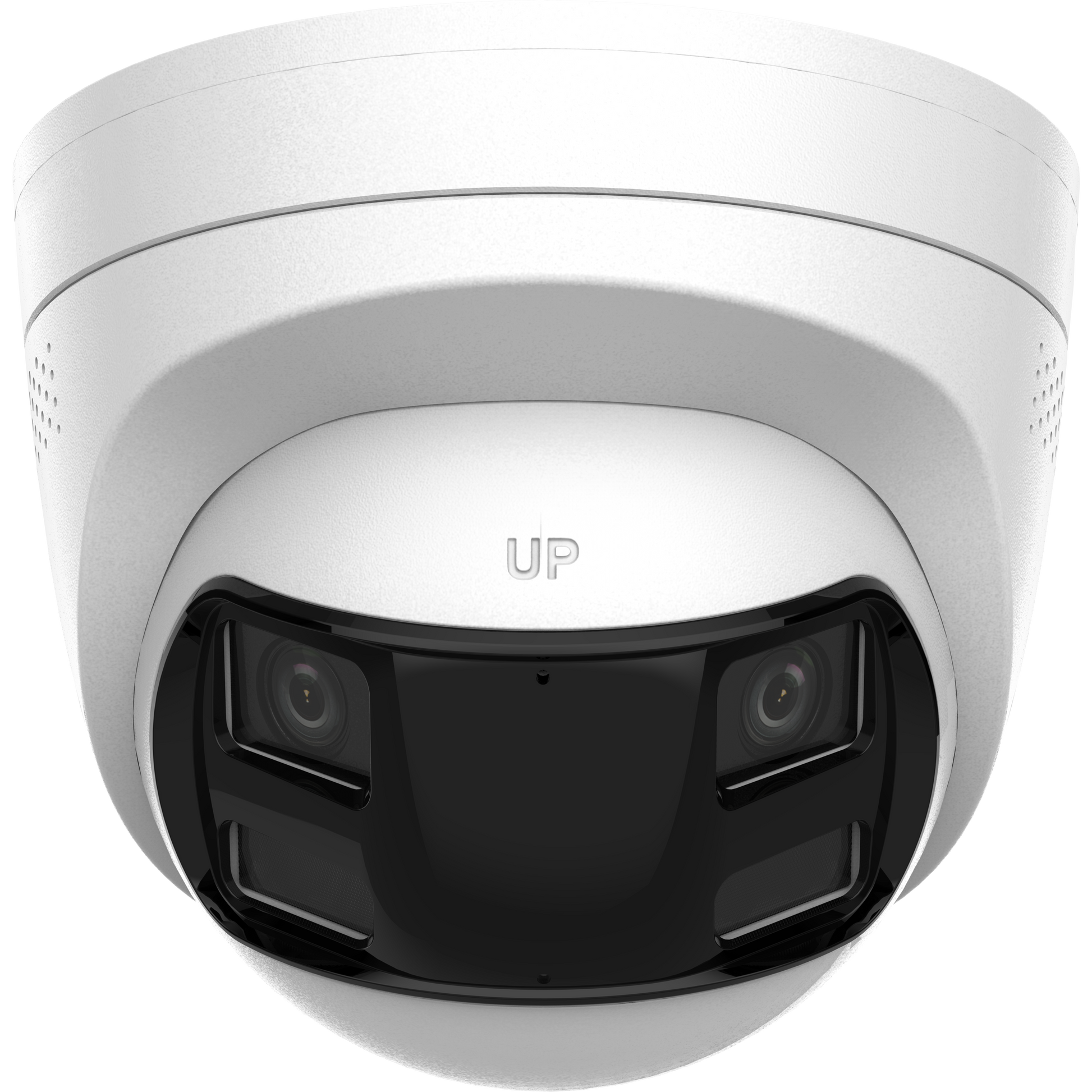

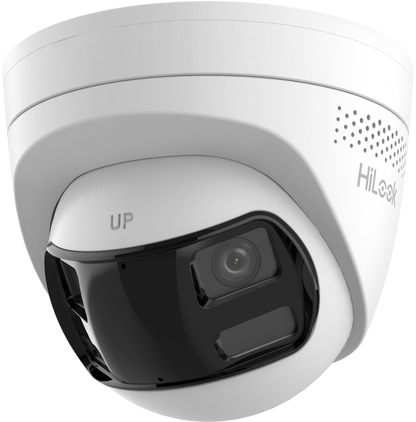

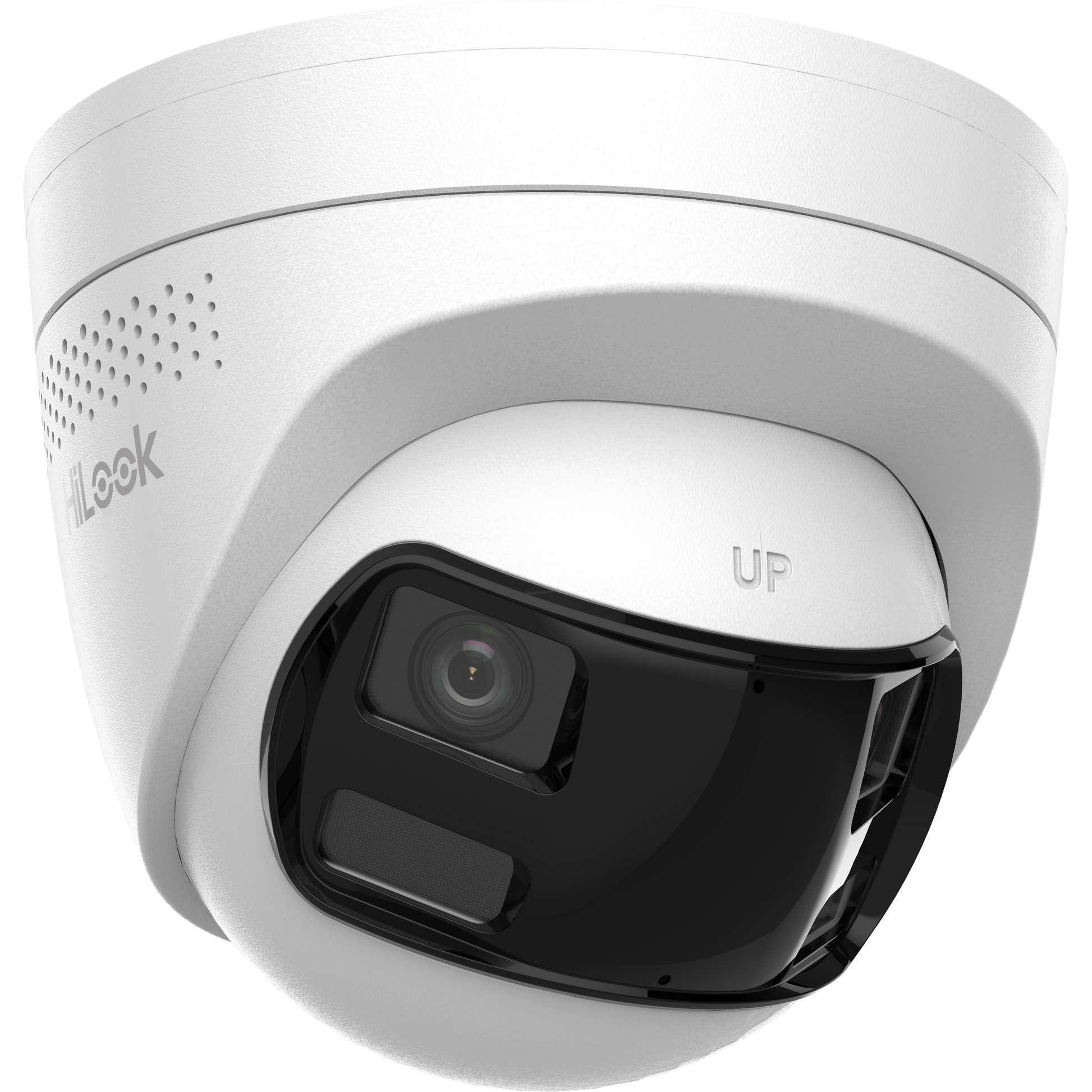

HiLook IPC-T280HAD-LUF/SL(2mm) IP Camera | 8MP | Turret
HiLook IPC-T280HAD-LUF/SL(2mm) IP Camera | 8MP | Turret
- IP CCTV
- 8 MP
- Fixed Lens
2×1/2.5" Progressive Scan CMOS stitched, up to 180° wide angle; 4272 × 1920: 20fps(P)/(N), 20:9; H.265+/H.265/H.264+/H.264, WDR, ICR, IR or white light range: up to 30m, Built-in SD card slot, Built-in microphone & speaker, audio & strobe light alarm, DC12V & PoE, Support mobile monitoring via HiLookVision;
*/SL: White strobe light
*/SRB: Red & Blue Flashed strobe light
*power supply is not included
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook IPC-T280HAD-LUF/SL(2mm) IP Camera | 8MP | Turret
Specifications
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Max. Resolution: 4256 × 1888
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON)
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2 mm
- Focal Length & FOV: 2 mm, horizontal FOV 180°, vertical FOV 77°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- DORI: 2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m
- Supplement Light Type: IR,White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 20 fps (4256 × 1888) 60 Hz: 20 fps (4256 × 1888)
- Sub-Stream: 50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream
- Audio Type: Mono sound
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
- User/Host: Up to 32 users 3 user levels: administrator, operator, and user
- Client: iVMS-4200,HiLookVision
- Web Browser: Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Day/Night Switch: Day,Night,Auto,Schedule
- Image Enhancement: BLC,HLC,3D DNR
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask: 4 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes,1 built-in microphone
- Built-in Speaker: Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
- Reset Key: Yes
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage: Upload to FTP, upload to memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing
- Power: 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W
- Material: Base: Metal, cover: Plastic
- Dimension: Ø130.1 mm × 109.1 mm (Ø5.1" × 4.3")
- Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight: Approx. 580 g (1.3 lb.)
- With Package Weight: Approx. 760 g (1.7 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
- General Function: Heartbeat,anti-banding,password protection,password reset via email
- Flashing Light: /SRB model: Red and Blue Light /SL model: White Light
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety: CB: IEC 62368-1: 2014+A11
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
