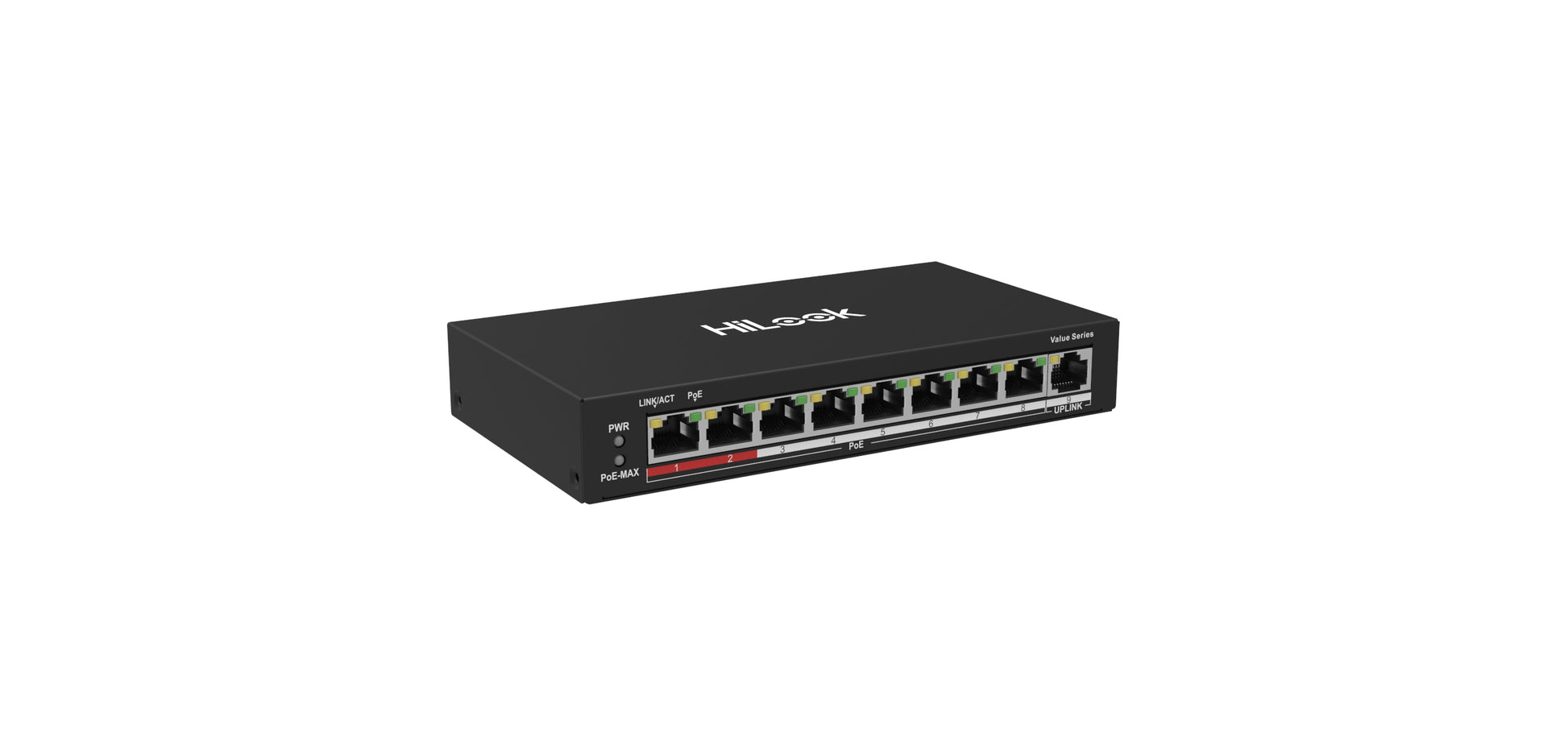

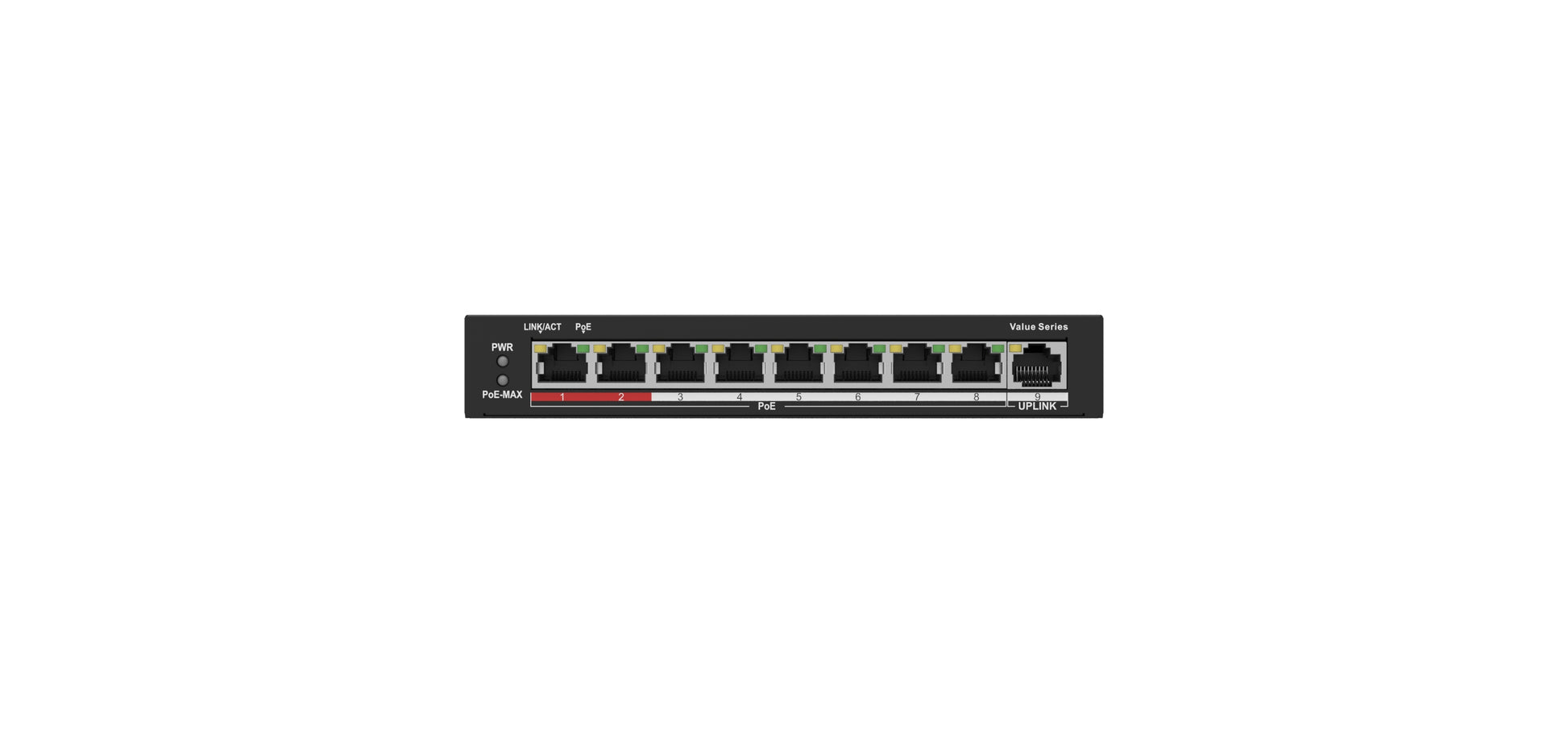

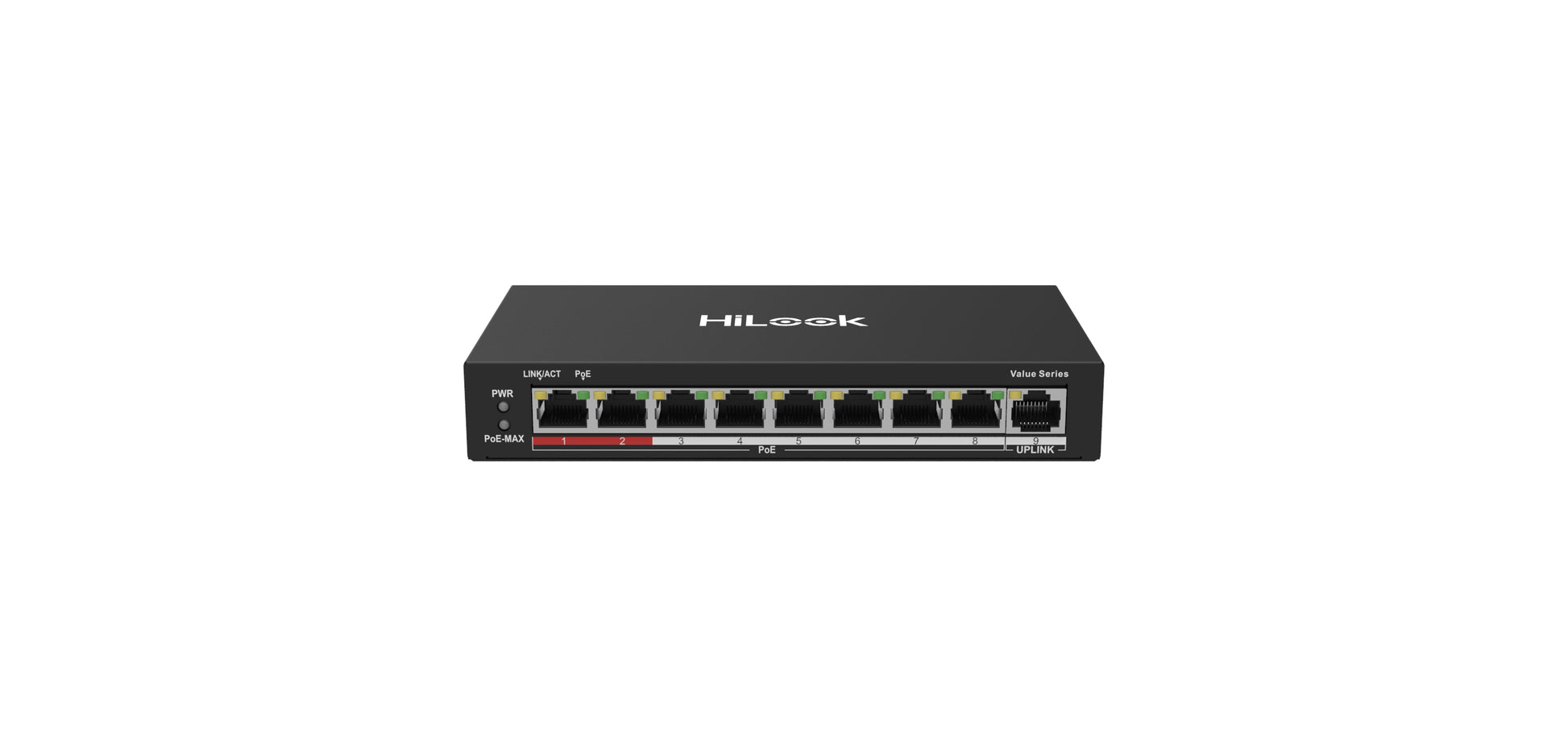

HiLook NS-0109P-60(B)
HiLook NS-0109P-60(B)
- Switches
- Network Switches
- Value Series
L2, Unmanaged, 8 100M PoE port, 1 100M uplink port, 802.3af/at, PoE power budget 60W,max. 250m long distance transmission;
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook NS-0109P-60(B)
Specifications
- Shell: Metal material, fan-free design
- Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Power supply: 48 VDC, 1.35 A
- Storage humidity: 5% to 95% (no condensation)
- Net weight: 0.35 kg (0.77 lb)
- Gross weight: 0.89 kg (1.96 lb)
- Dimension (L × H × D): 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
- Operating humidity: 5% to 95% (no condensation)
- Power consumption in idle: 5 W
- Port number: 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
- Port type: RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding mode: Store-and-forward switching
- Working mode: Standard mode (default); Extend mode
- MAC address table: 2 K
- Switching capacity: 1.8 Gbps
- Packet forwarding rate: 1.339 Mpps
- Internal cache: 1 Mbits
- High priority ports: Ports 1 to 2
- Ports for long-distance transmission: Ports 1 to 8
- PoE standard: IEEE 802.3af, IEEE 802.3at
- PoE power pin: Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
- PoE port: Ports 1 to 8
- Max. port power: 30 W
- PoE power budget: 60 W
- Max. power consumption: 65 W
