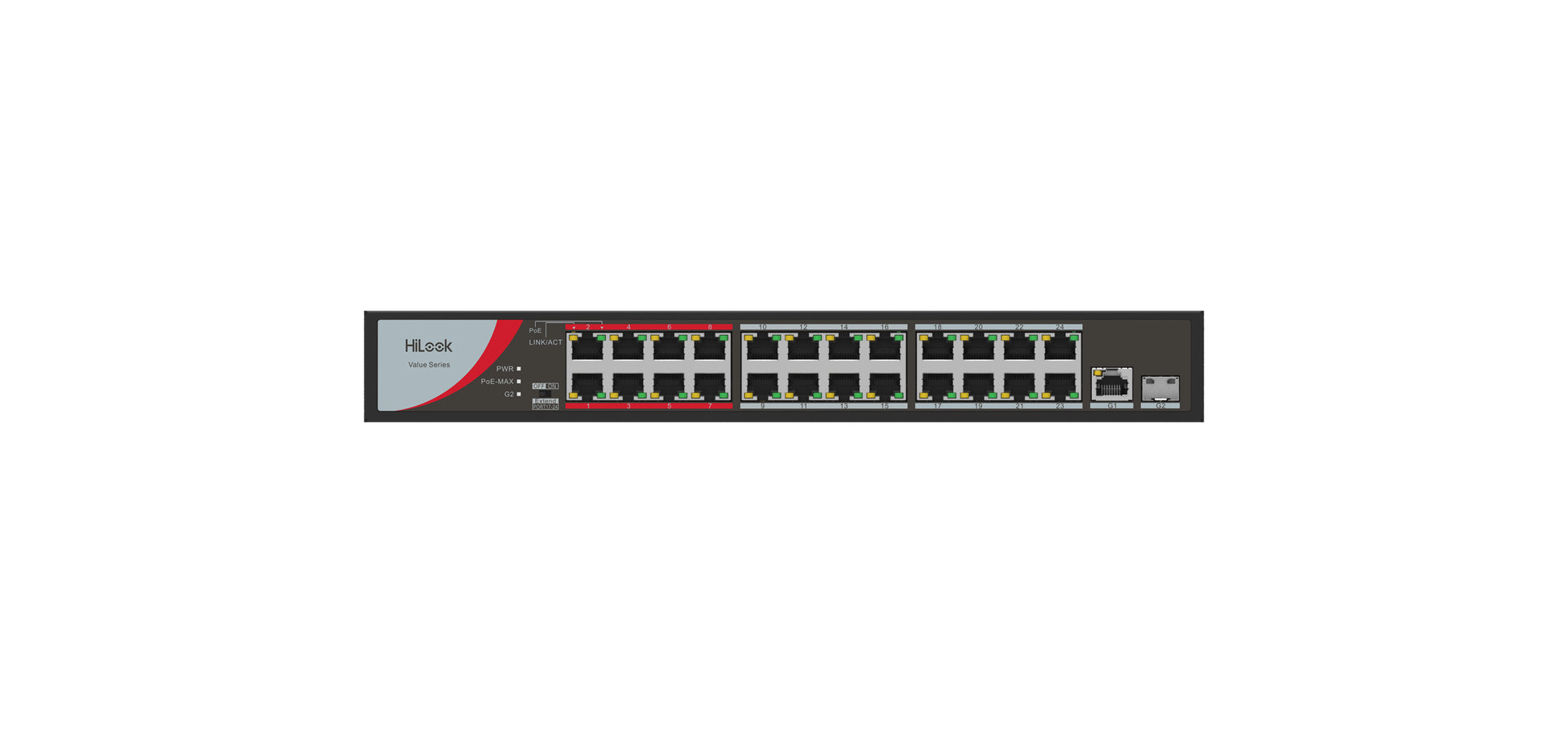

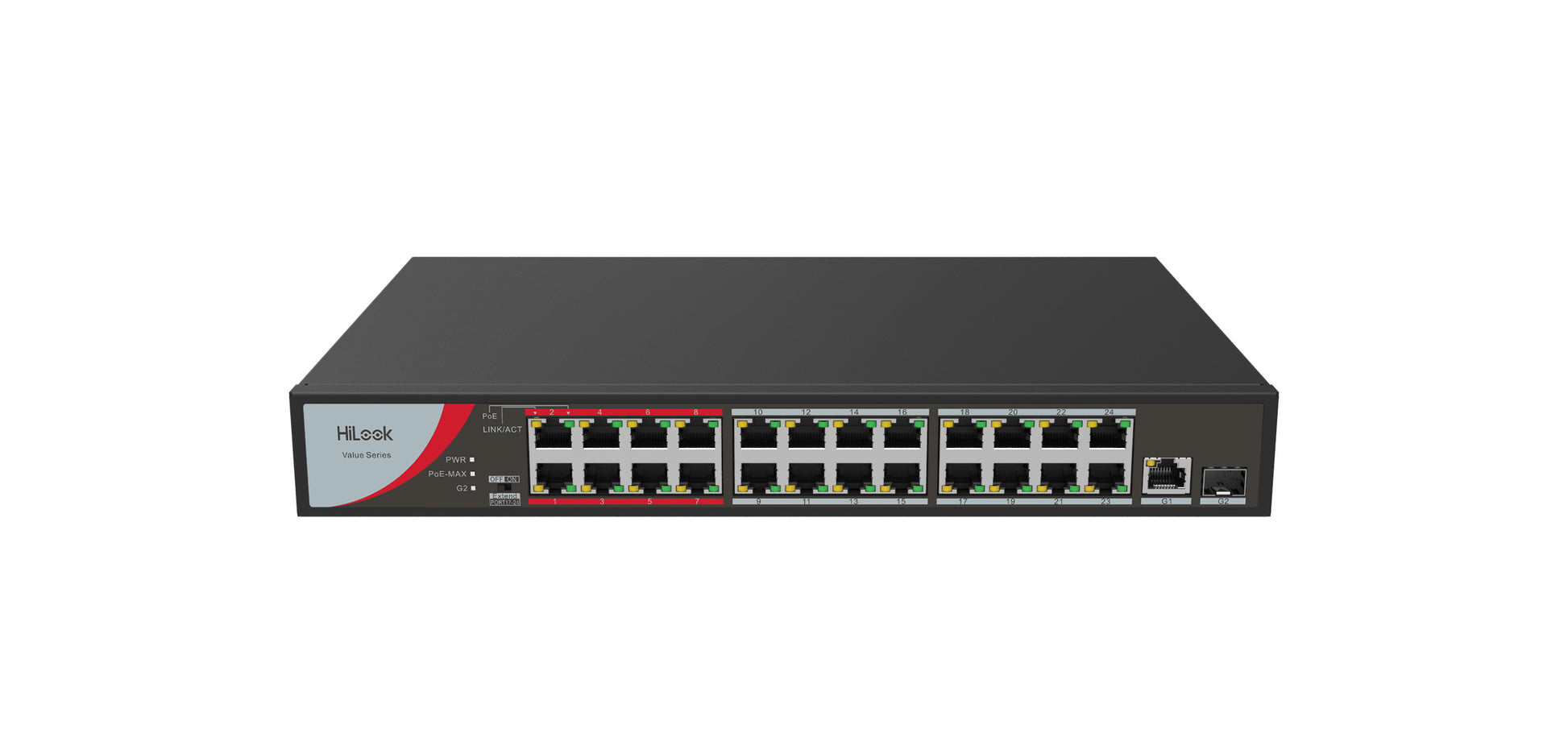

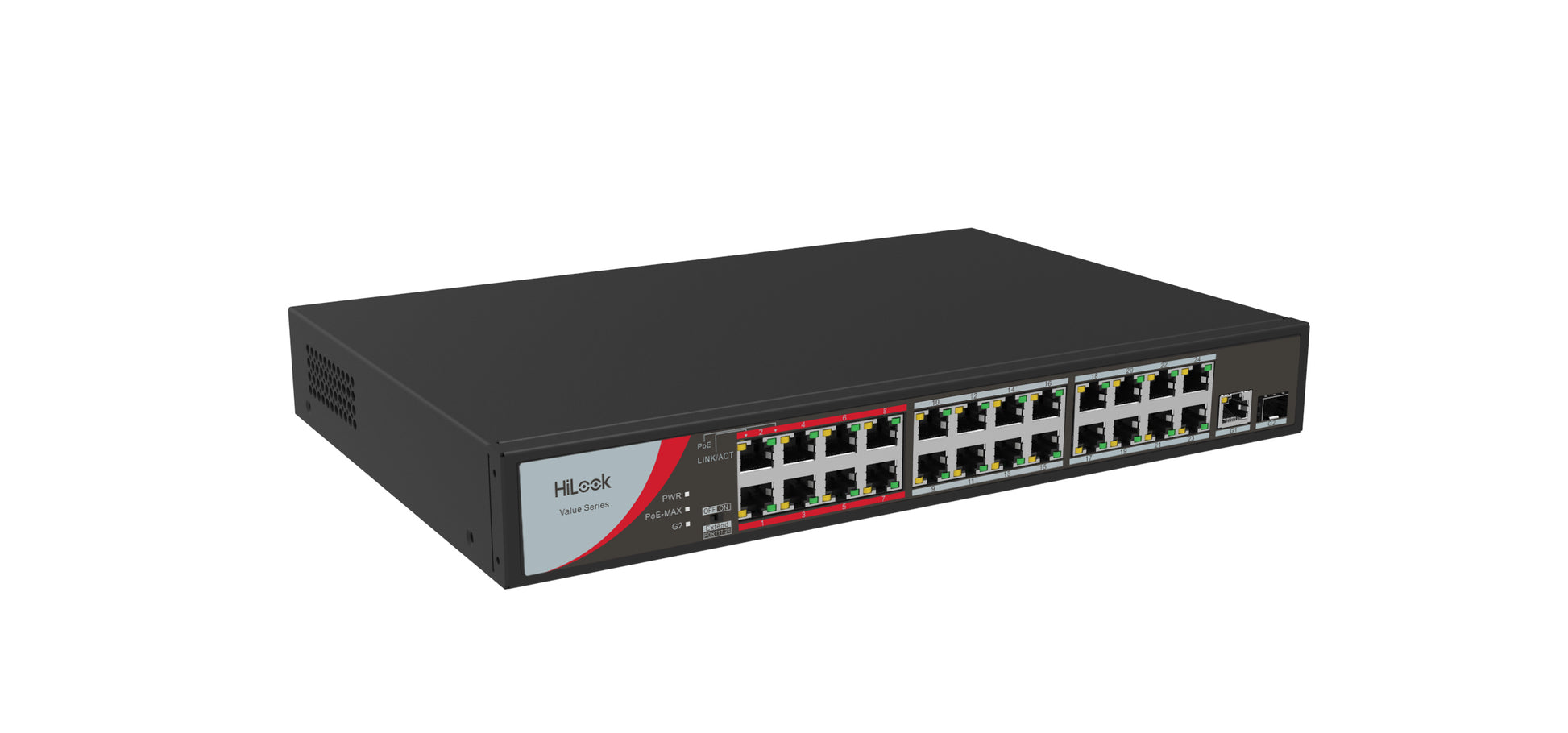

HiLook NS-0326P-230(B)
HiLook NS-0326P-230(B)
- Switches
- Network Switches
- Value Series
L2, Unmanaged, 24 100M PoE port, 1 1000M RJ45, 1 1000M SFP, 802.3af/at, PoE power budget 230W,"Extend" Mode: Port 17-24 250m
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook NS-0326P-230(B)
Specifications
- Port number: 24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
- Port type: RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding mode: Store-and-forward switching
- Working mode: Standard mode (default); Extend mode
- High priority ports: Ports 1 to 8
- Ports for long-distance transmission: Ports 17 to 24
- MAC address table: 4 K
- Switching capacity: 8.8 Gbps
- Packet forwarding rate: 6.547 Mpps
- Internal cache: 2.75 Mbits
- PoE standard: IEEE 802.3af, IEEE 802.3at
- PoE power pin: Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply. Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
- PoE port: Ports 1 to 24
- Max. port power: 30 W
- PoE power budget: 230 W
- Max. power consumption: 250 W
- Shell: Metal material
- Gross weight: 3.33 kg (7.34 lb)
- Net weight: 2.55 kg (5.6 lb)
- Dimension (L × H × D): 335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
- Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating humidity: 5% to 95% (no condensation)
- Storage humidity: 5% to 95% (no condensation)
- Power supply: 100 to 240 VAC, 50/60 Hz, Max. 4 A
- Power consumption in idle: 20 W
