• NS-0505D

HiLook NS-0505D

HiLook NS-0505D

Category: Switches
|
Brand: HiLook
  • Switches
  • Network Switches
  • Pro Series

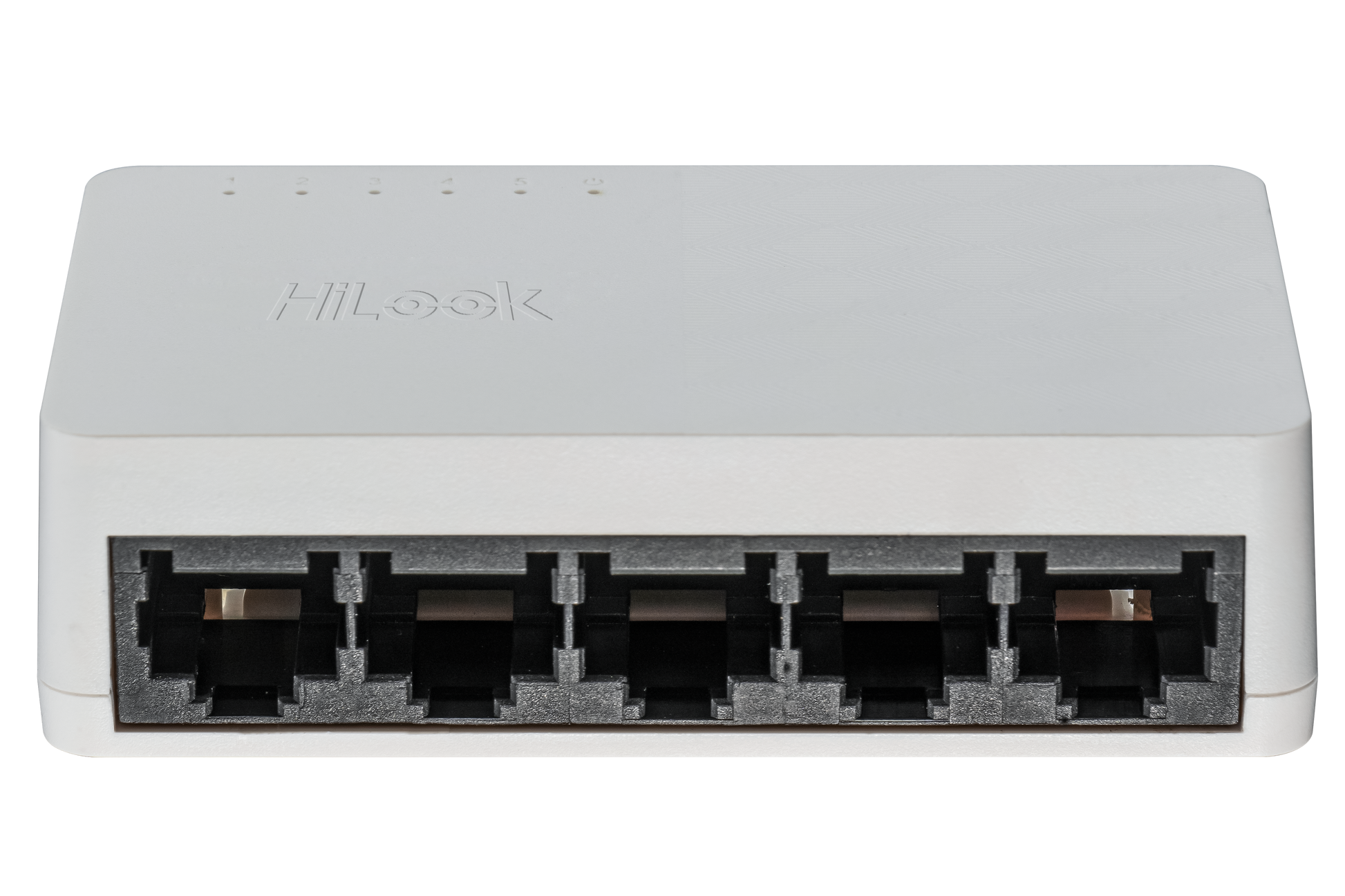

L2, Unmanaged, 5 Gigabit RJ45 ports, desktop plastic switch

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook NS-0505D
Login to View Price

Specifications

  • Shell: ABS
  • Net Weight: 0.059 kg (0.13 lb)
  • Gross Weight: 87.00 mm × 25.00 mm × 51.00 mm (3.43'' × 0.98'' × 2.01'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 5 VDC, 0.6 A
  • Installation Mode: Desk-Mounted
  • Ports: 5 × Gigabit RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • Internal Cache: 1 Mbits
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

General
  • Shell: ABS
  • Net Weight: 0.059 kg (0.13 lb)
  • Gross Weight: 87.00 mm × 25.00 mm × 51.00 mm (3.43'' × 0.98'' × 2.01'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 5 VDC, 0.6 A
  • Installation Mode: Desk-Mounted

Network Parameters
  • Ports: 5 × Gigabit RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • Internal Cache: 1 Mbits

Approval
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
