• NS-0505P-35

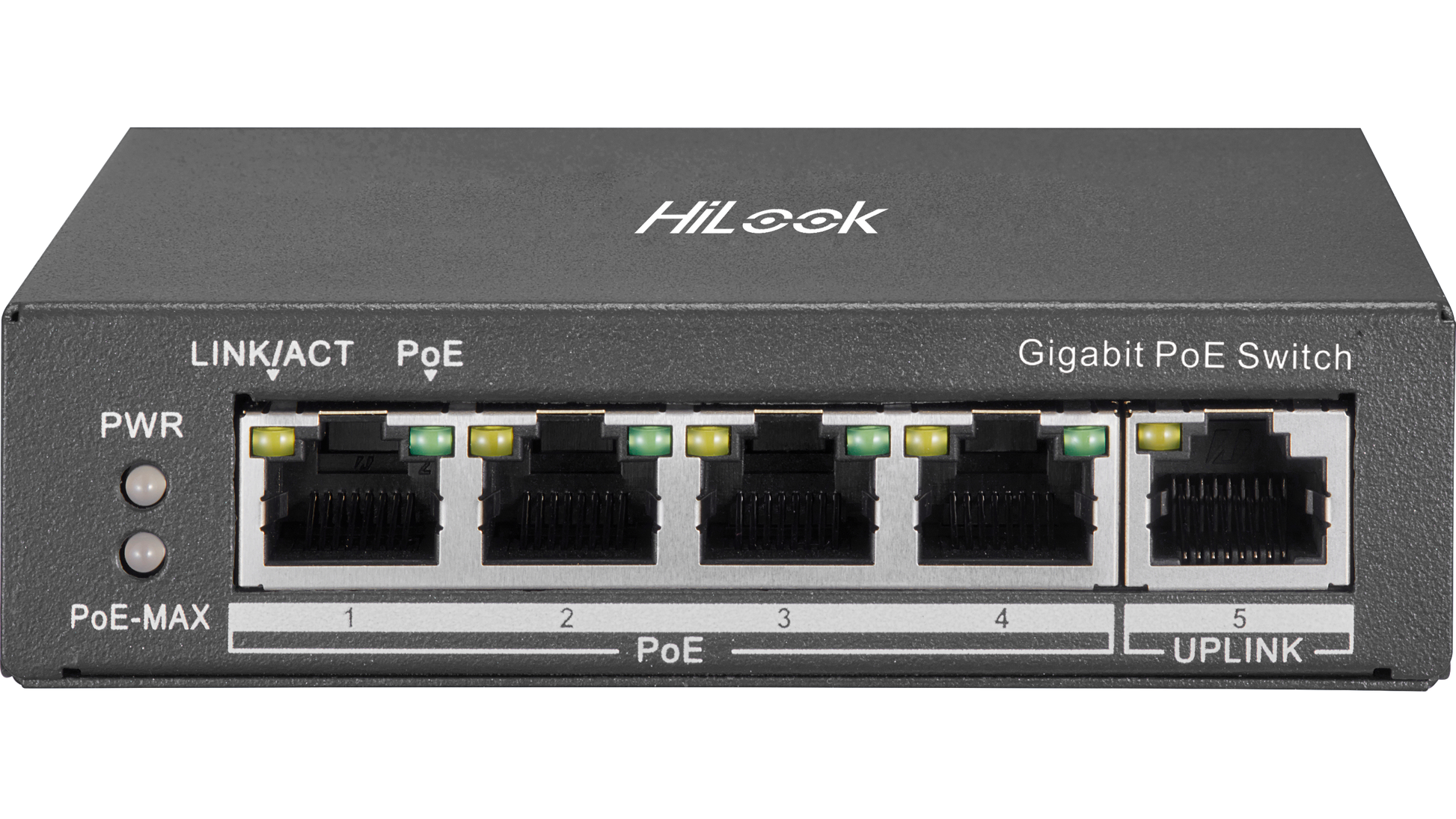

HiLook NS-0505P-35

HiLook NS-0505P-35

Category: Switches
|
Brand: HiLook
  • Switches
  • Network Switches
  • Value Series

L2, Unmanaged, 4 Gigabit POE ports, 1 Gigabit RJ45 uplink port, 802.3af/at, PoE power budget 35w

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook NS-0505P-35
Login to View Price

Specifications

  • Shell: Metal material
  • Net Weight: 0.265 kg (0.58 lb)
  • Gross Weight: 0.759 kg (1.67 lb)
  • Dimensions (W × H × D): 105.00 mm × 27.60 mm × 83.10 mm (4.10'' × 1.10'' × 3.30'')
  • Operating Temperature: –10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 48 VDC, 0.8 A
  • Max. Power Consumption: 38 W
  • Power Consumption in Idle: 3 W
  • Installation Mode: Desk-Mounted,Wall-Mounted
  • Surge Protection: 6 KV
  • Ports: 4 × Gigabit PoE port,1 × Gigabit RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • Internal Cache: 1 Mbits
  • PoE Standard: IEEE 802.3af;IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(+), 3/6(-)
  • PoE Port: PoE: Ports 1 to 4
  • Max. Port Power: 30 W
  • PoE Power Budget: 35 W
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Chemistry: CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)

General
  • Shell: Metal material
  • Net Weight: 0.265 kg (0.58 lb)
  • Gross Weight: 0.759 kg (1.67 lb)
  • Dimensions (W × H × D): 105.00 mm × 27.60 mm × 83.10 mm (4.10'' × 1.10'' × 3.30'')
  • Operating Temperature: –10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 48 VDC, 0.8 A
  • Max. Power Consumption: 38 W
  • Power Consumption in Idle: 3 W
  • Installation Mode: Desk-Mounted,Wall-Mounted
  • Surge Protection: 6 KV

Network Parameters
  • Ports: 4 × Gigabit PoE port,1 × Gigabit RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • Internal Cache: 1 Mbits

PoE Power Supply
  • PoE Standard: IEEE 802.3af;IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(+), 3/6(-)
  • PoE Port: PoE: Ports 1 to 4
  • Max. Port Power: 30 W
  • PoE Power Budget: 35 W

Approval
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Chemistry: CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
