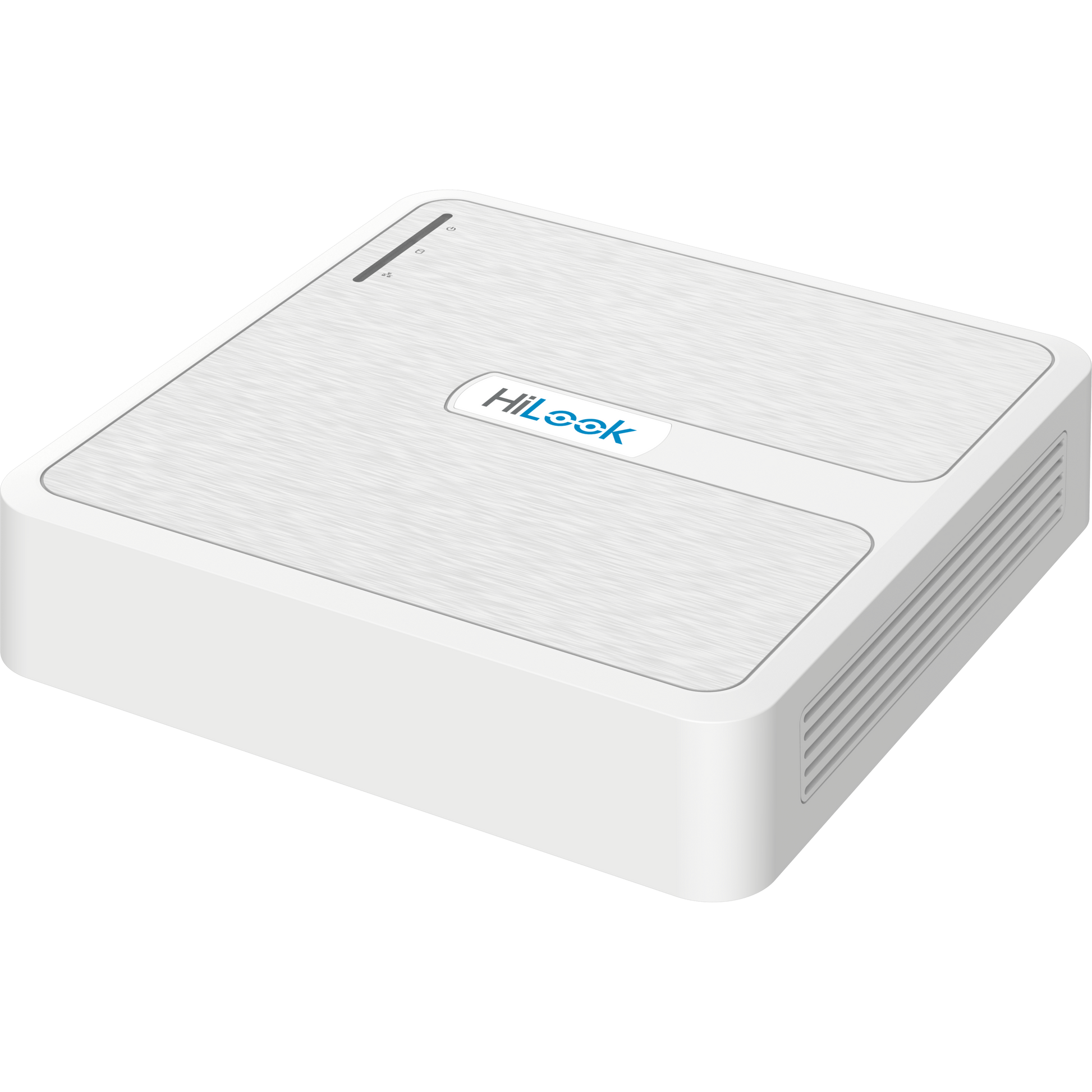

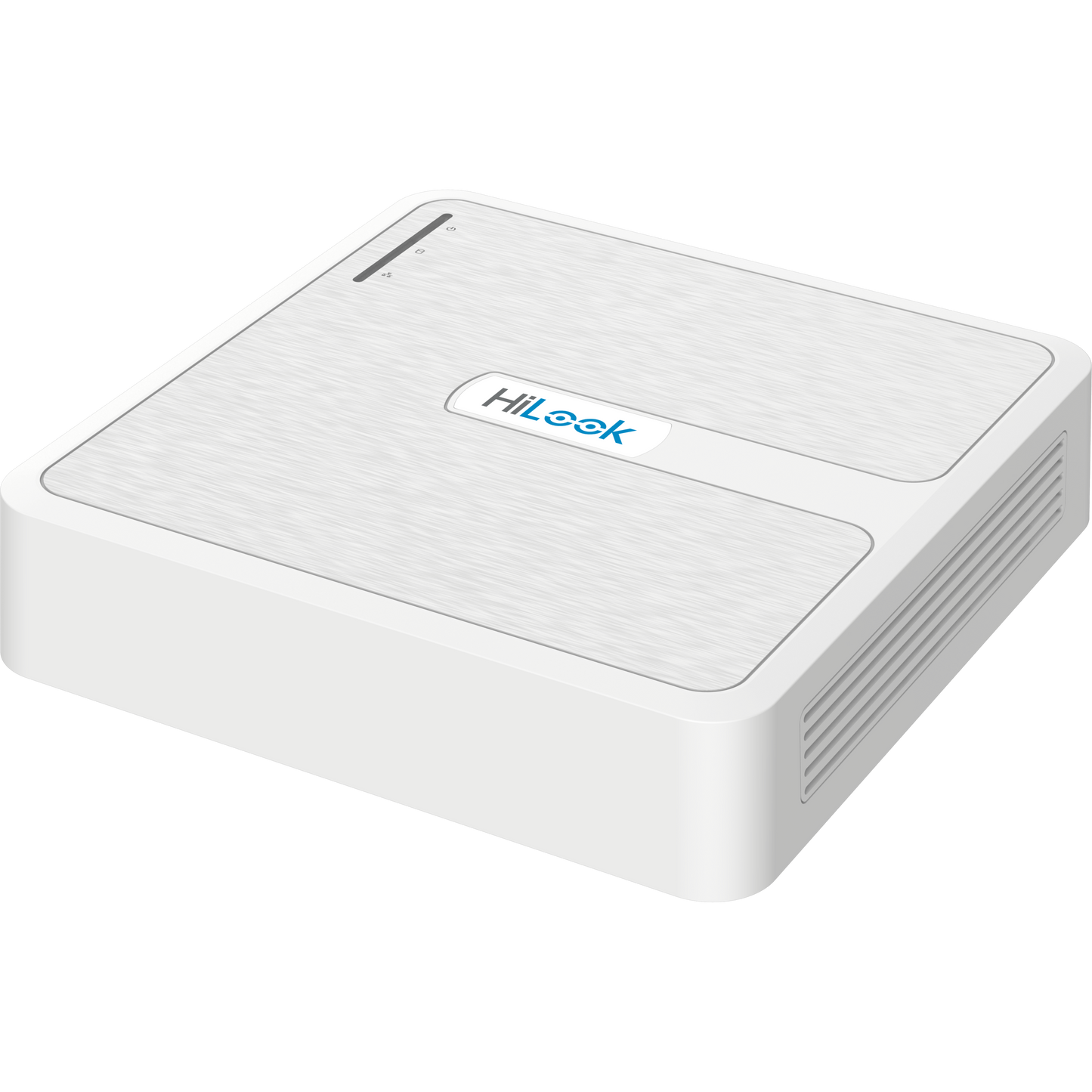

HiLook NVR-104H-D/4P(STD)(D) NVR

HiLook NVR-104H-D/4P(STD)(D) NVR

Category: IP CCTV
|
Brand: HiLook
  • IP CCTV

4-ch 1080P,or 1-ch 6MP, 40Mbps Bit Rate Input Max (up to 4-ch IP video), H.265/H.265+/H.264/H.264+,1 SATA interface, 4 independent PoE network interfaces, mini 1U case(Plastic)

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook NVR-104H-D/4P(STD)(D) NVR
Login to View Price

Specifications

  • IP Video Input: 4-ch Up to 6 MP resolution
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 60 Mbps
  • HDMI Output: 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output: 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Decoding Format: H.265+/H.265/ H.264+/H.264
  • Recording Resolution: 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback: 4-ch
  • Decoding Capability: 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
  • Stream Type: Video, Video & Audio
  • Remote Connection: 16
  • Network Protocol: TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
  • Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
  • Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 36 W
  • Standard: IEEE 802.3 af/at
  • SATA: 1 SATA interface
  • Capacity: Up to 6 TB capacity for each disk
  • Alarm In/Out: N/A
  • USB Interface: Rear panel: 2 × USB 2.0
  • Power Supply: 48 VDC, 1 A
  • Consumption: ≤ 10 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 200 × 200 × 48 mm (7.9" × 8.1" × 1.9")
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)
  • CE: EN50130-4, EN 61000-3-2,EN 61000-3-3

Video and Audio
  • IP Video Input: 4-ch Up to 6 MP resolution
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 60 Mbps
  • HDMI Output: 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output: 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output Mode: HDMI/VGA simultaneous output

Decoding
  • Decoding Format: H.265+/H.265/ H.264+/H.264
  • Recording Resolution: 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback: 4-ch
  • Decoding Capability: 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
  • Stream Type: Video, Video & Audio

Network
  • Remote Connection: 16
  • Network Protocol: TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
  • Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE
  • Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 36 W
  • Standard: IEEE 802.3 af/at

Auxiliary Interface
  • SATA: 1 SATA interface
  • Capacity: Up to 6 TB capacity for each disk
  • Alarm In/Out: N/A
  • USB Interface: Rear panel: 2 × USB 2.0

General
  • Power Supply: 48 VDC, 1 A
  • Consumption: ≤ 10 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 200 × 200 × 48 mm (7.9" × 8.1" × 1.9")
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)

Certification
  • CE: EN50130-4, EN 61000-3-2,EN 61000-3-3
