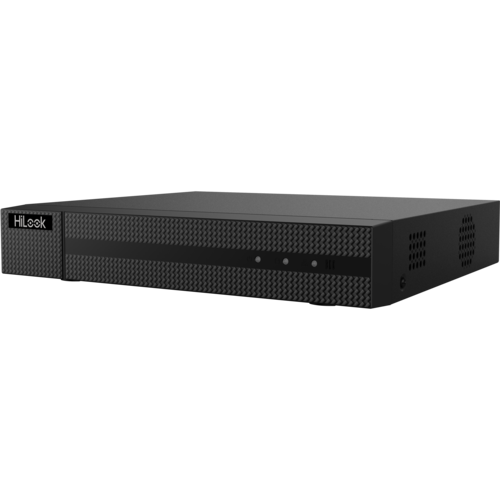

HiLook NVR-104MH-C/4P(D)   NVR

HiLook NVR-104MH-C/4P(D)   NVR

Category: IP CCTV
|
Brand: HiLook
  • IP CCTV

1-channel Motion Detection 2.0
40Mbps Bit Rate Input Max (up to 4-ch IP video), H.265/H.265+/H.264/H.264+, RJ45 10M/100M,1 SATA interface, 4 independent PoE network interfaces, standalone mini 1U 260 case(Metal)

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook NVR-104MH-C/4P(D)   NVR
Login to View Price

Specifications

  • Human/Vehicle Analysis: 1-ch
  • HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
  • IP Video Input: 4-ch
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 80Mbps
  • VGA Input: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
  • Decoding Capability: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
  • Decoding Format: H.265+,H.265,H.264+,H.264,MPEG4
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback: 4-ch
  • Remote Connection: 32
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Interface: 4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 50 W
  • Standard: IEEE 802.3 af/at
  • SATA: 1 SATA interface
  • Capacity: Up to 8 TB capacity for each disk
  • USB Interface: 2 × USB 2.0
  • Power Supply: 48 VDC, 1.35 A
  • Consumption: ≤ 10 W (without HDD and PoE off)
  • Working Temperature: -10 to +55° C (14 to 131° F)
  • Working Humidity: 10% to 90%
  • Chassis: 1U
  • Dimension (W × D × H): 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)

Motion Detection 2.0
  • Human/Vehicle Analysis: 1-ch

Video and Audio
  • HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
  • IP Video Input: 4-ch
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 80Mbps
  • VGA Input: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding
  • Decoding Capability: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
  • Decoding Format: H.265+,H.265,H.264+,H.264,MPEG4
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback: 4-ch

Network
  • Remote Connection: 32
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE
  • Interface: 4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 50 W
  • Standard: IEEE 802.3 af/at

Auxiliary Interface
  • SATA: 1 SATA interface
  • Capacity: Up to 8 TB capacity for each disk
  • USB Interface: 2 × USB 2.0

General
  • Power Supply: 48 VDC, 1.35 A
  • Consumption: ≤ 10 W (without HDD and PoE off)
  • Working Temperature: -10 to +55° C (14 to 131° F)
  • Working Humidity: 10% to 90%
  • Chassis: 1U
  • Dimension (W × D × H): 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)
